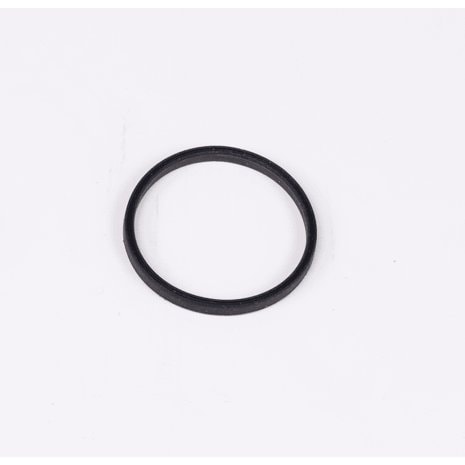

RTK Rubber Ring (T70P/T50/T25P) YC.JG.MY001073
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
This RTK rubber ring is shared by the DJI Agras T70P, T50 and T25P. It is drawn with the RTK antenna module on the T70P front frame (sheet 1) and on the rear frame sheets of the T50 and T25P.
| Part number | YC.JG.MY001073 |
| Fits | DJI Agras T70P, T50, T25P |
| Parts diagram | T70P front frame (sheet 1), callouts 7 and 17; T50 rear frame, callout 23; T25P rear frame, callout 18 |
A ring that has gone hard, split or squashed flat will no longer seat properly at the antenna mount. Look at it each time the RTK antenna module comes off, and fit a new one rather than reusing a tired ring. The T70P sheet shows it twice, at callouts 7 and 17, so count how many your aircraft needs before ordering.
The T100 has its own RTK rubber ring, YC.JG.MY001898, so this code is not a T100 part. On the T50 rear frame it is listed with the T50's separate RTK antenna module, BC.AG.SS000694.
