DJI

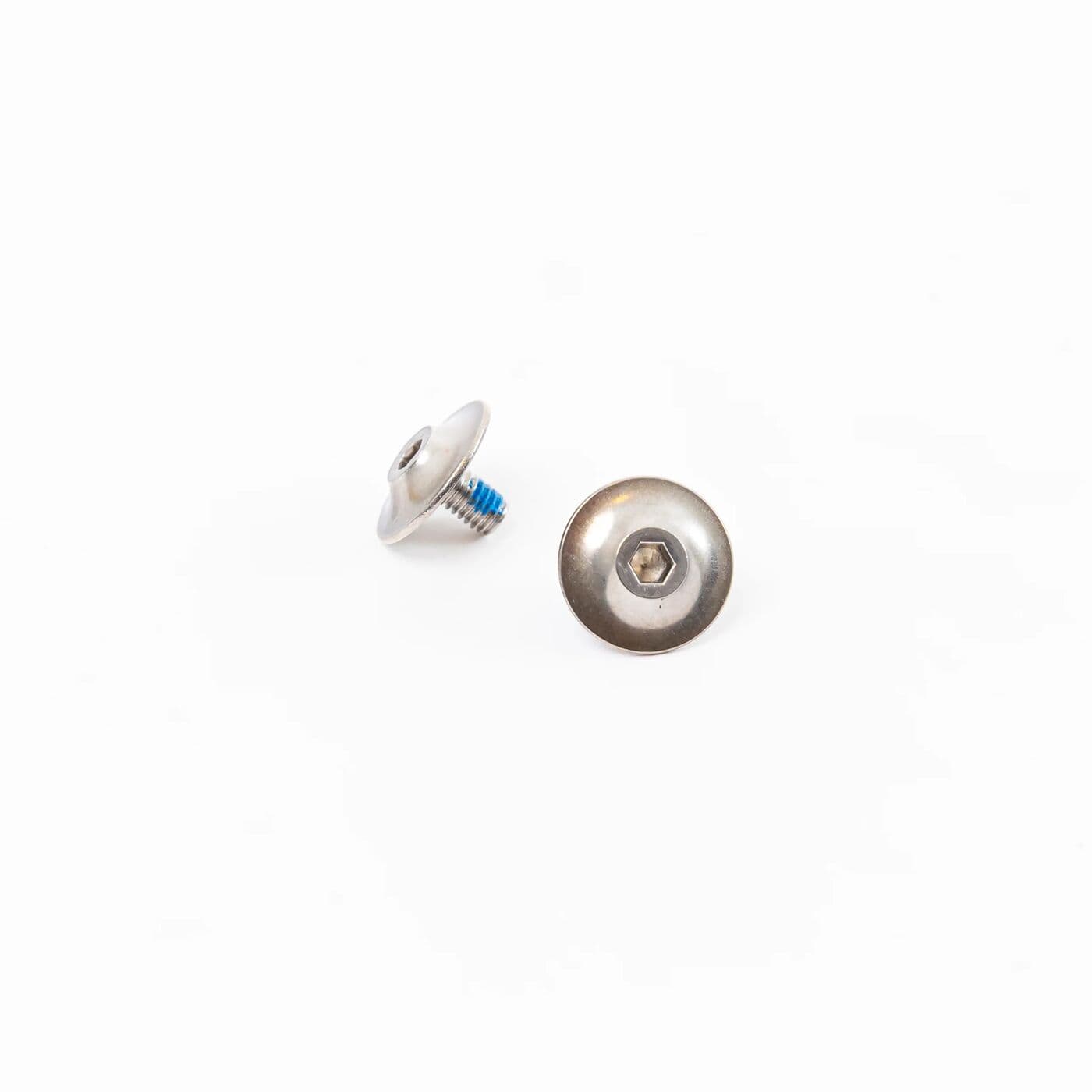

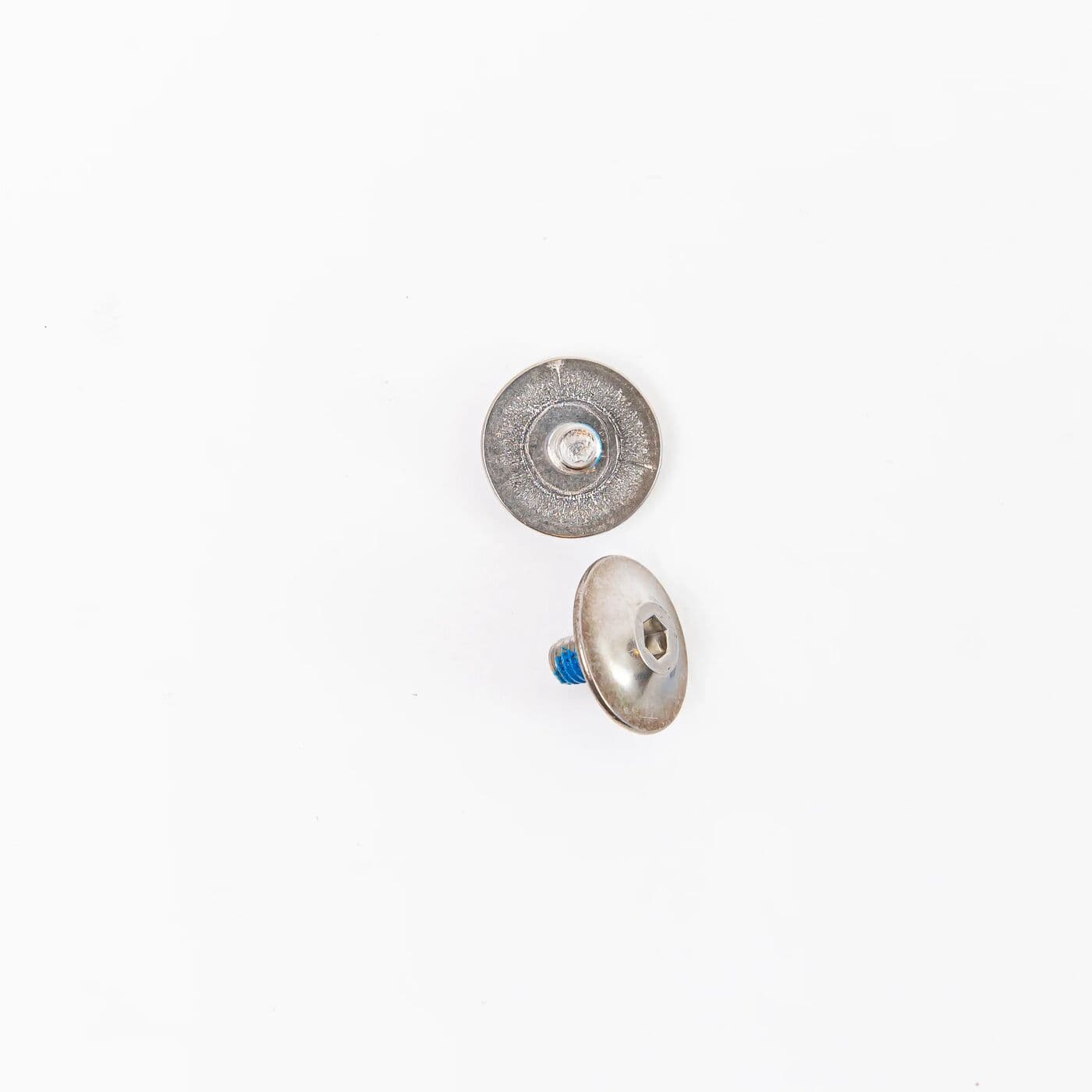

Screw - M40-HP00700070-150030-5103-Y (T100/T70P) YC.ST.LL000779
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Part of the payload lifting system winch on the DJI Agras T70P, this screw is callout 22 on the winch sheet, listed between the M6 T-shaped nut and the hose rubber stopper.
| Part number | YC.ST.LL000779 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T70P lifting system winch, callout 22 |
| Supplied as | One screw |
In lifting mode the aircraft carries its load on a rope below the frame, so every fastener in the winch assembly deserves the same care as the rope and hook. Replace this screw if the head is rounded, the thread is damaged or it has been overtightened, and do not refit one you have doubts about. EE Group lists it for the T100 as well as the T70P, but the T100 winch sheet does not show it and the T70P sheet uses several different screws, so read the code on the old screw before ordering.
While the winch is open, check the lifting rope for fraying and the lifting hook for wear or nicks.
