DJI

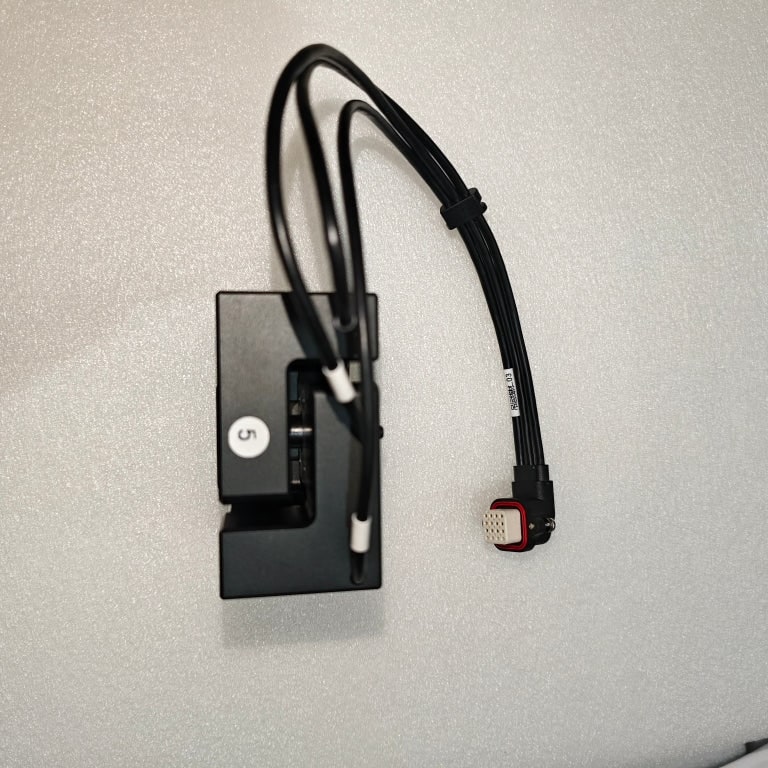

Three-Axis Force Sensor Module (T100/T70P) BC.AG.SS001124
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Weight and swing readings for the DJI Agras T100 and T70P lift system come from this three-axis force sensor module, which sits in the winch assembly and measures force in three directions.
| Part number | BC.AG.SS001124 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 lift system winch, callout 14; T70P lifting system winch, callout 18 |
A weight other than zero while the aircraft hovers with nothing on the rope calls first for the tare calibration in the DJI Agras app, carried out with the aircraft on level ground and the rope unloaded and clear.
Suspect the sensor if readings still disagree with the load after calibrating, or lift warnings persist after a restart, but check its connector and cable before replacing it. Handle the new sensor by its body, do not lever against it while fitting, and recalibrate before the first lift. The payload lifting control module is in the same winch assembly.
