DJI
Payload Lifting Control Module (T100/T70P) BC.AG.SS001123
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

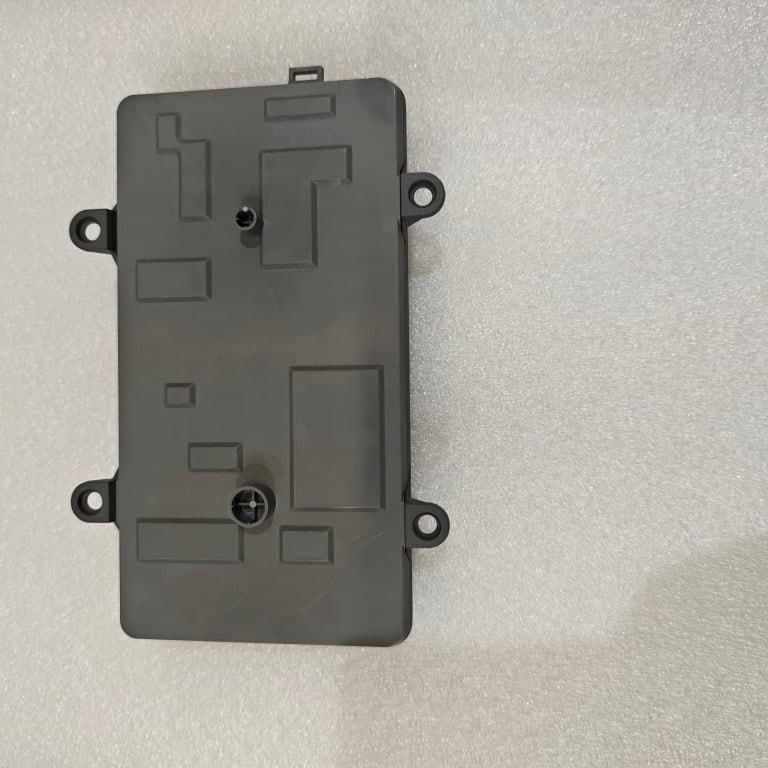

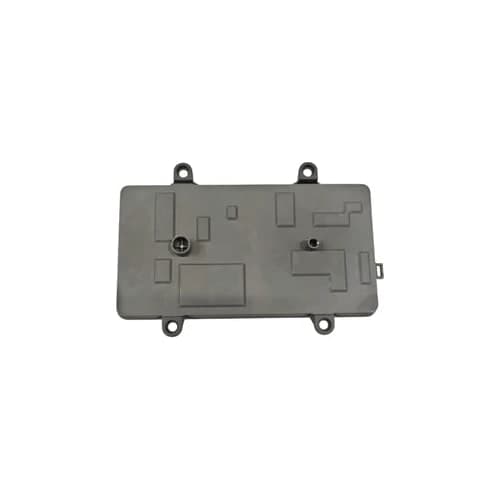

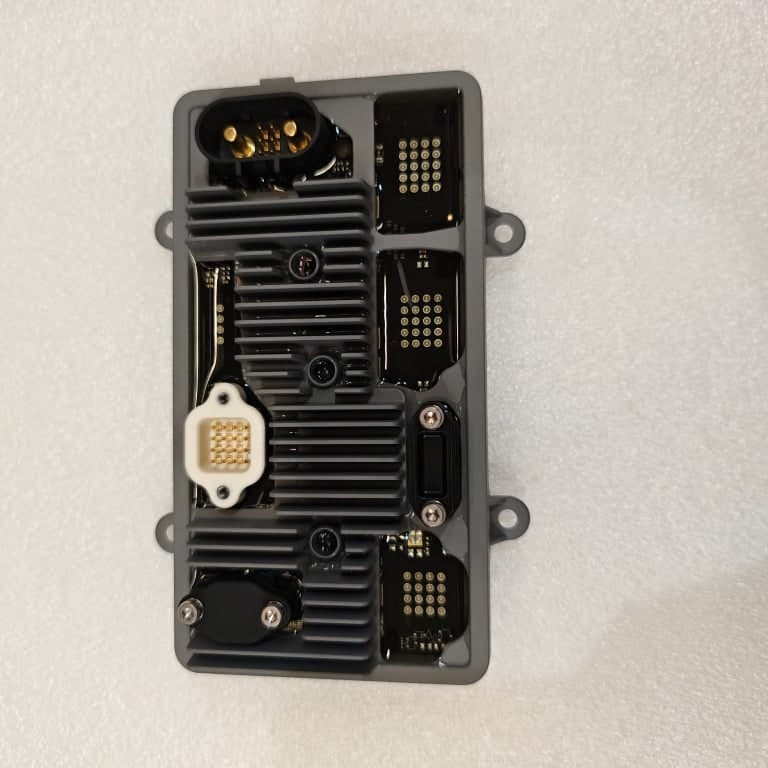

The payload lifting control module is an electronic unit in the lift system of the DJI Agras T100 and T70P. DJI lists it on the same lift system winch diagrams as the three-axis force sensor, although the system carries loads on a fixed-length sling rather than a powered winch.
| Part number | BC.AG.SS001123 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 lift system winch, callout 12; T70P lifting system winch, callout 16 |
If the app keeps reporting a lift system fault after a restart, rule out the simple causes first. Unplug and inspect each connector for bent pins, corrosion or moisture, and look along the cables for pinches; a damaged plug can look very much like a failed module.
Remove the flight battery before disconnecting anything and confirm the code on the old module matches. DJI has delivered lift weighing and balance changes through T100 firmware updates, so check the DJI Agras app for a firmware update once the new module is in. The three-axis force sensor module sits in the same assembly if the fault points there instead.
