DJI
Barometer Protection Foam (T70P/T50/T25P) YC.PM.QT000137
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

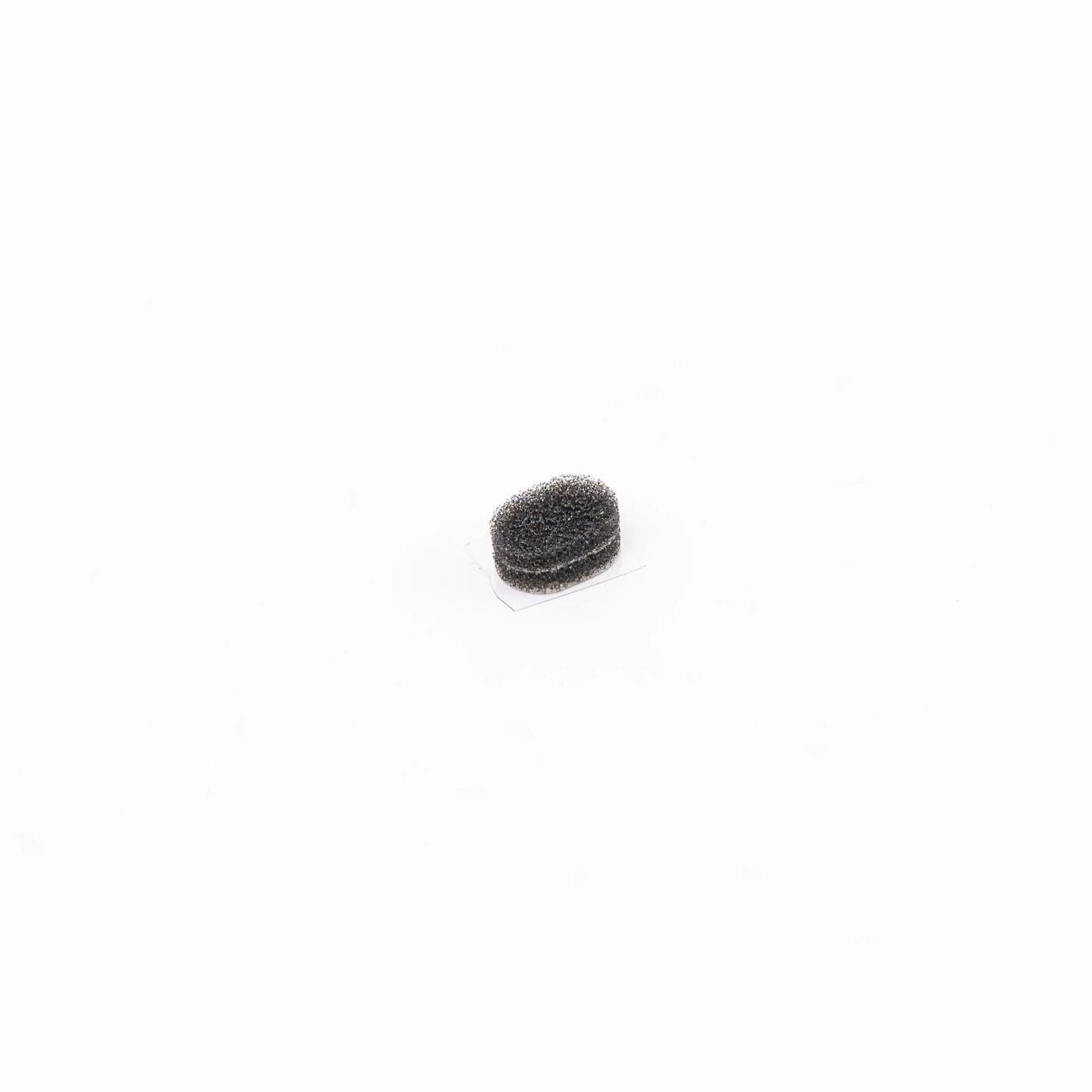

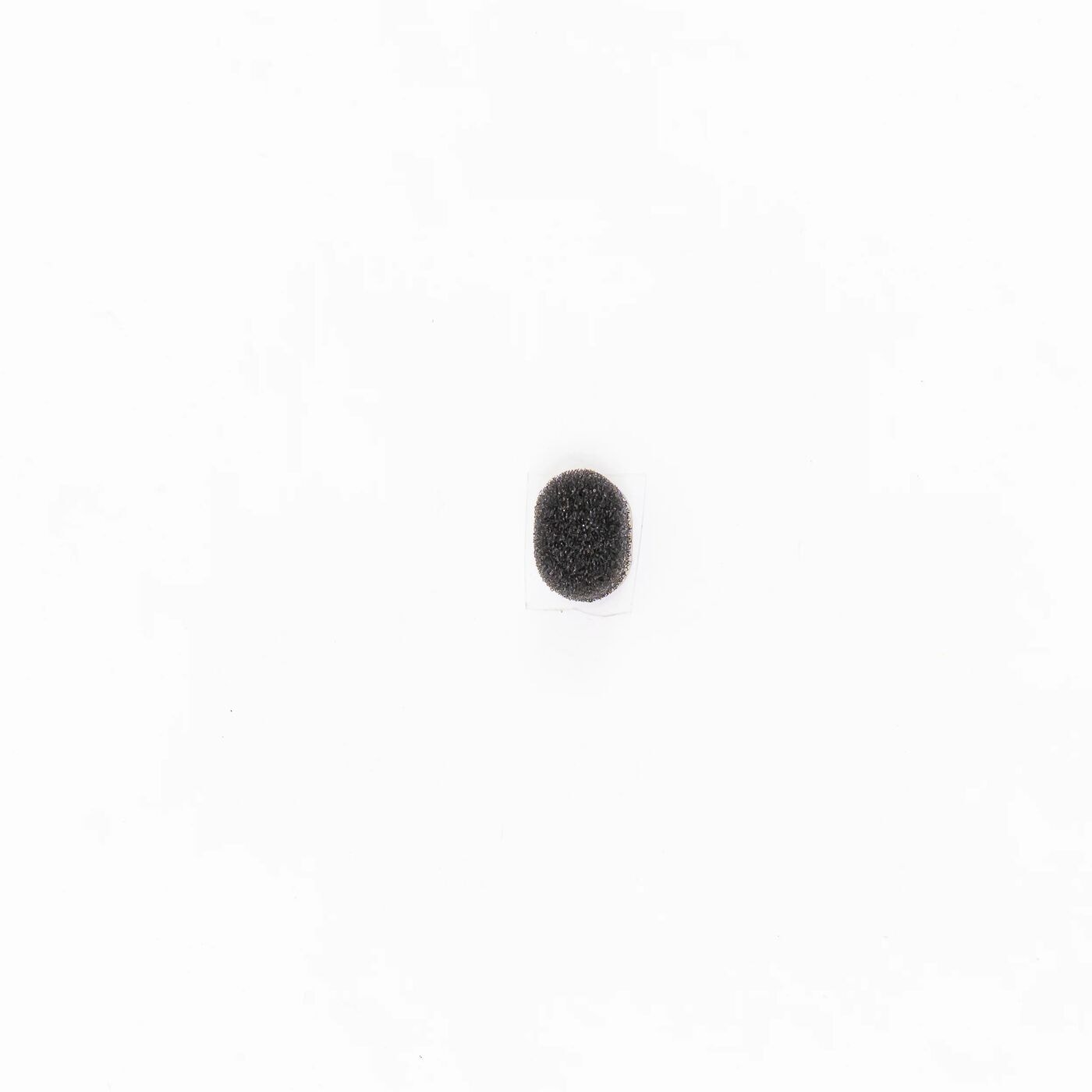

This foam pad protects the barometer in the flight electronics of the DJI Agras T70P, T50 and T25P, fitted with the barometer board to shield the pressure sensor from direct airflow and dirt.
| Part number | YC.PM.QT000137 |
| Fits | DJI Agras T70P, T50, T25P |
| Parts diagram | T70P cable distribution board, callout 5; T50 cable distribution board module, callout 6; T25P aerial electronics module, callout 11 |
The flight controller uses barometric pressure as one of its height references, and an uncovered sensor reacts to every gust of propeller wash. Once the foam has been squashed flat, torn or soaked with spray, it stops buffering the sensor, so renew it whenever the barometer housing is opened rather than refitting the old piece. Seat the new foam squarely before the barometer outer shell goes back on.
The barometer waterproof permeability film is part of the same housing and is worth renewing at the same time. This foam is not listed for the T100, whose cable distribution board sheet shows a barometer tube (callout 15) and no foam.
