DJI

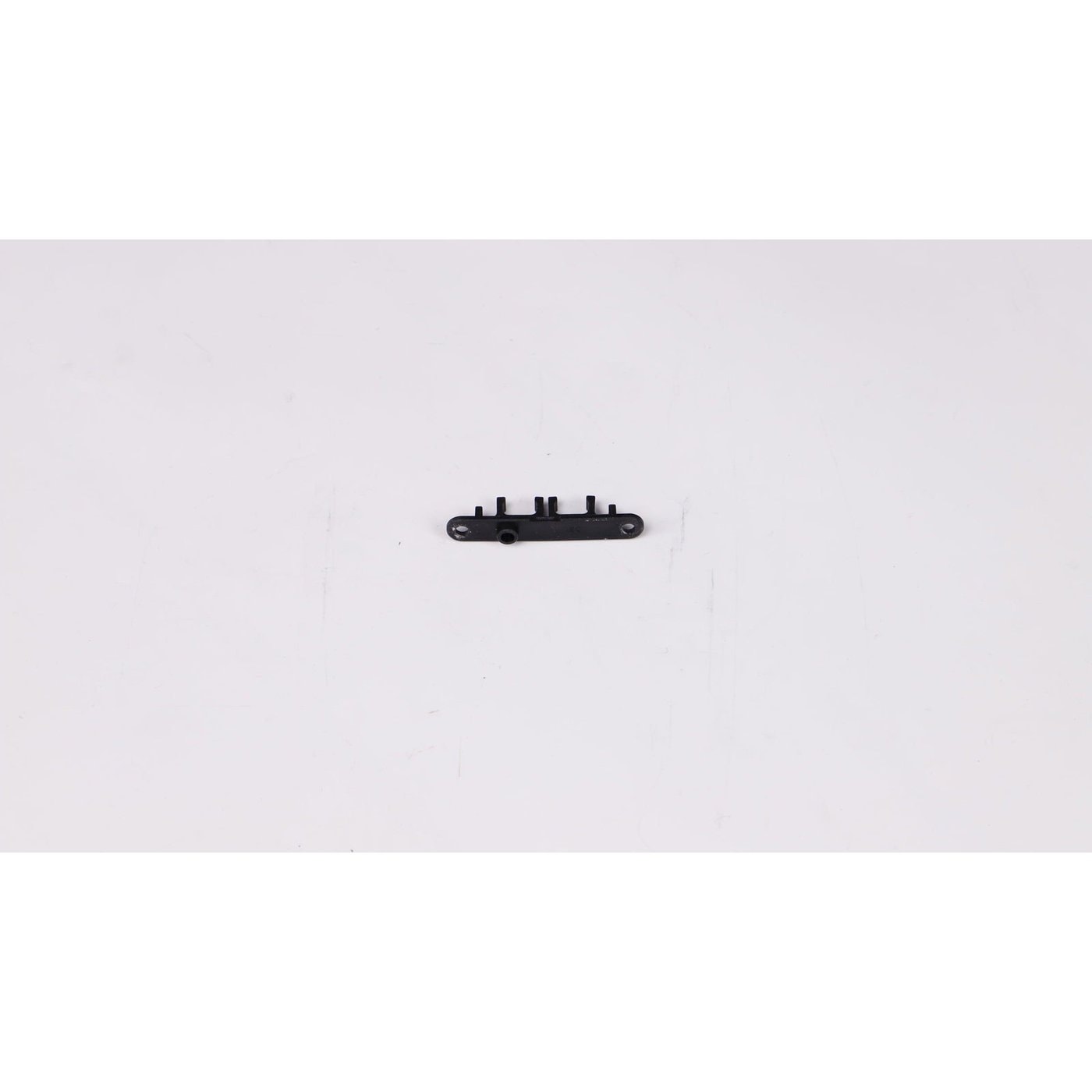

Spray Tank Cable Clip (T50/T25P) YC.JG.ZS003393
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Cables on the DJI Agras T50 and T25P spray tank are held in place by this clip. It is callout 25 on T50 tank 2 and callout 5 on T25P tank sheet 2.
| Part number | YC.JG.ZS003393 |
| Fits | DJI Agras T50, T25P |
| Parts diagram | T50 tank 2, callout 25; T25P tank (sheet 2), callout 5 |
Age, chemical exposure and repeated removal all make clips brittle. A cracked clip, or one that no longer holds firmly, lets the cable chafe or snag, so replace it and route the cable back exactly as it was.
On the T25P sheet two M40-HC060060-55-85 screws follow it at callouts 6 and 7. On the T50 sheet it sits among the liquid level parts, beside the installation nut sealing ring and an M40 screw.
