DJI

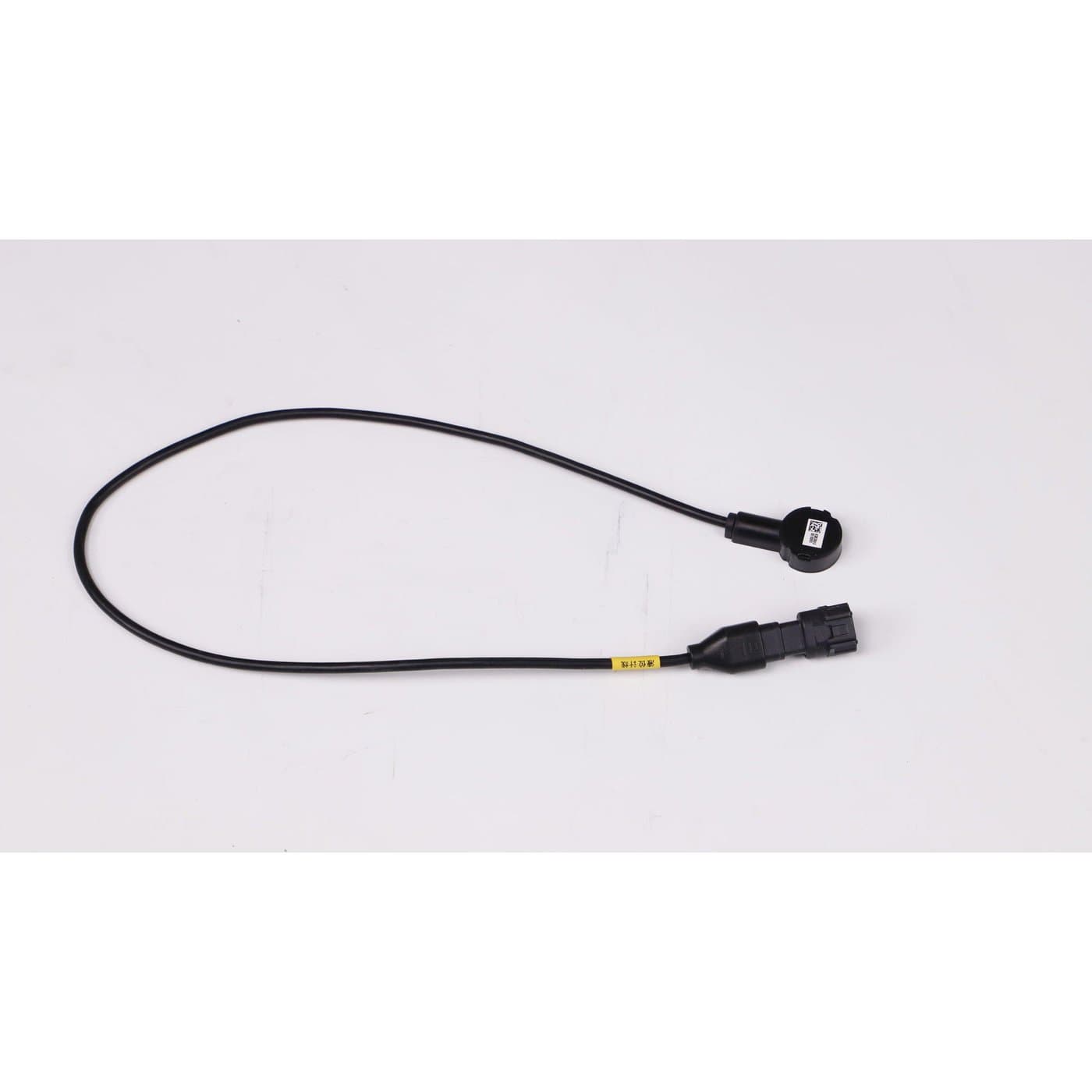

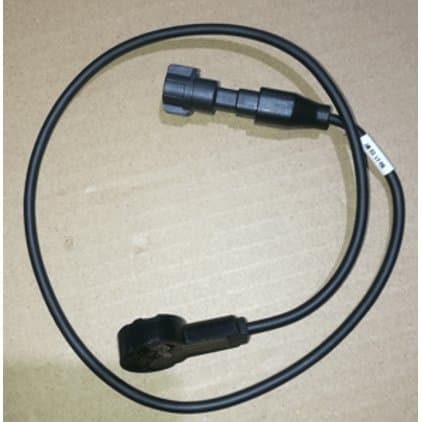

Liquid Level Gauge Sensor Module (T50/T25P) BC.AG.SS000709
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Part of the tank level sensing on the DJI Agras T50 and T25P, this liquid level gauge sensor module is drawn at callout 10 on T50 tank 2 and callout 16 on T25P tank sheet 2.
| Part number | BC.AG.SS000709 |
| Fits | DJI Agras T50, T25P |
| Parts diagram | T50 tank 2, callout 10; T25P tank (sheet 2), callout 16 |
Before replacing it, rule out the simpler causes of a bad tank reading: residue in the tank, a damaged plug or cable, and level parts that have been disturbed. Our Horsham or Manjimup workshop can confirm whether the module itself has failed.
It is a different part from the spray tank liquid level meter (BC.AG.SS000471) drawn at callout 11 on the T25P sheet, so check the code against the callout. On the T25P sheet a male connector rubber stopper is drawn close by at callout 18; check it is still in place. The spray tank inlet filter sits next to it on the T50 sheet.
