DJI

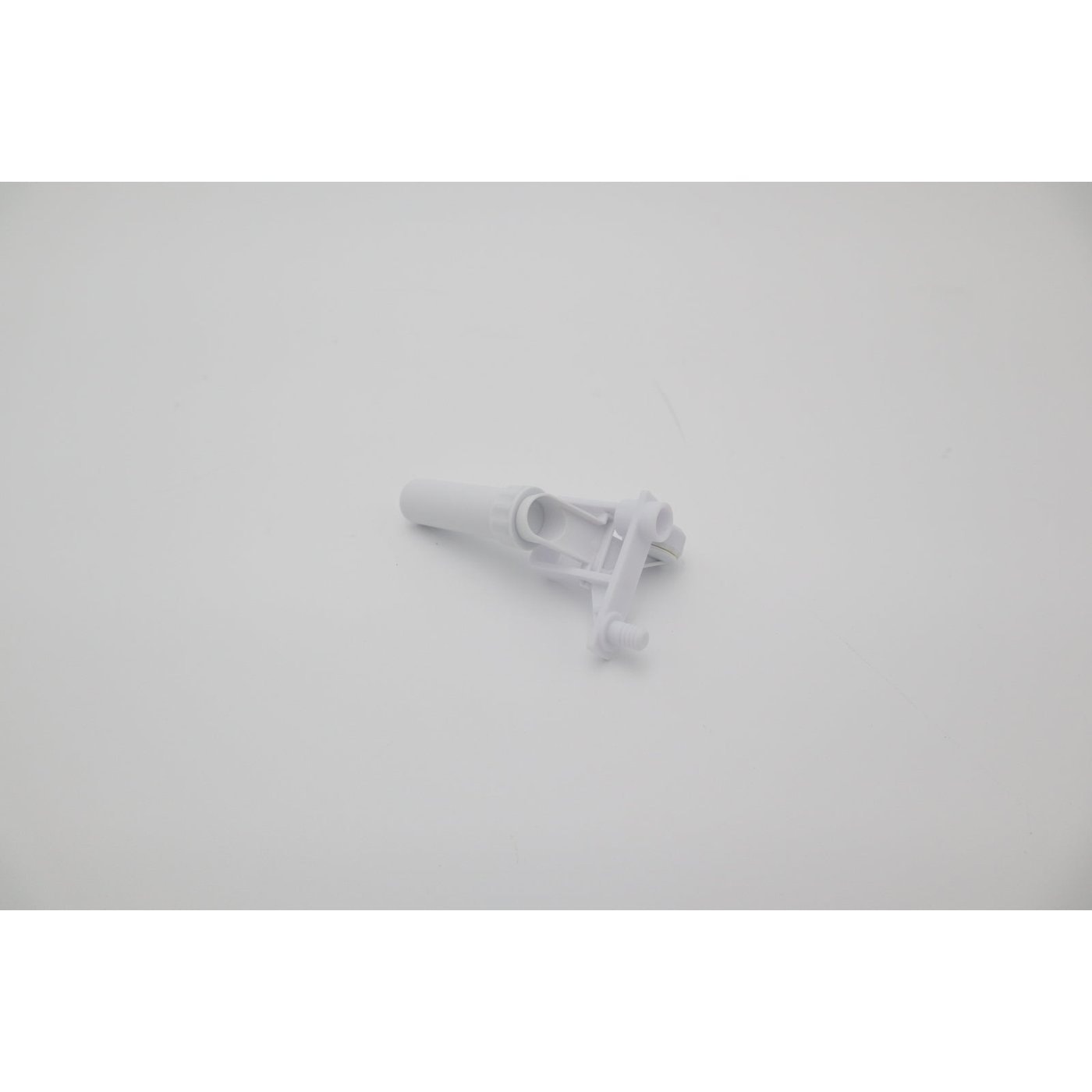

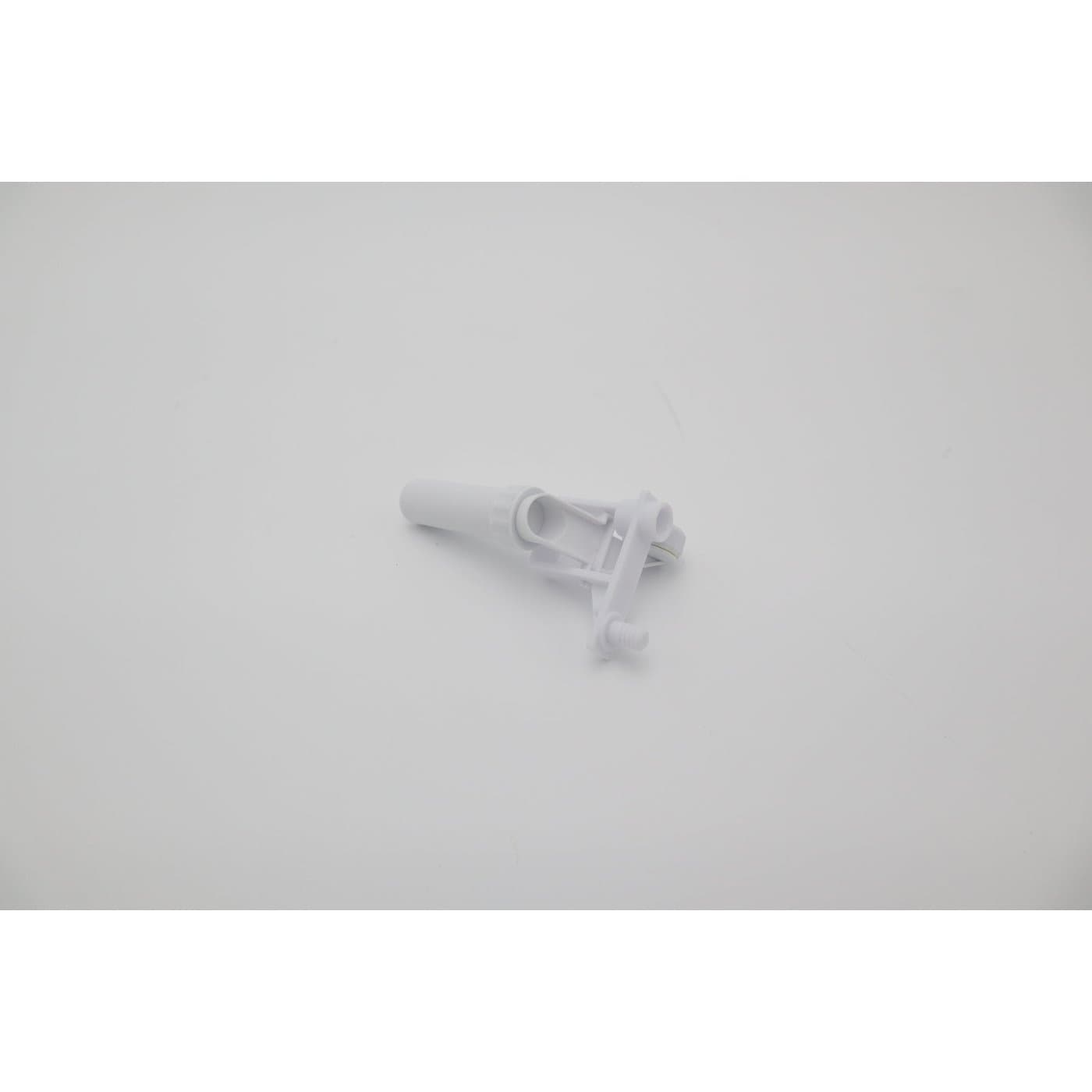

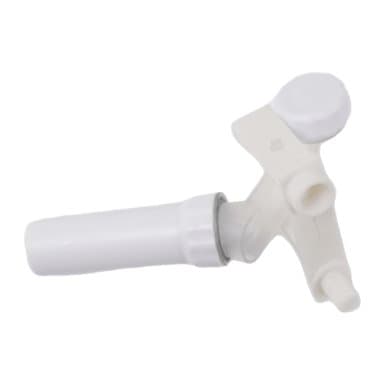

Spray Tank Liquid Level Meter (T50/T25P) BC.AG.SS000471
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Liquid level in the DJI Agras T50 and T25P spray tank is measured by this part, drawn at callout 28 on T50 tank 2 and callout 11 on T25P tank sheet 2.
| Part number | BC.AG.SS000471 |
| Fits | DJI Agras T50, T25P |
| Parts diagram | T50 tank 2, callout 28; T25P tank (sheet 2), callout 11 |
Erratic or stuck level readings, or a level warning that does not match what is in the tank, can come from residue on the unit, a disturbed seal or a poor connection as well as a failed part. Rinse the tank, clean the unit and check the plug, then have it tested at our Horsham or Manjimup workshop if the fault stays.
It mounts with its own installation nut and nut sealing ring, both listed separately; renew the ring whenever the unit comes out. The liquid level gauge sensor module, BC.AG.SS000709, is a different part, drawn five callouts later on the T25P sheet.
