DJI

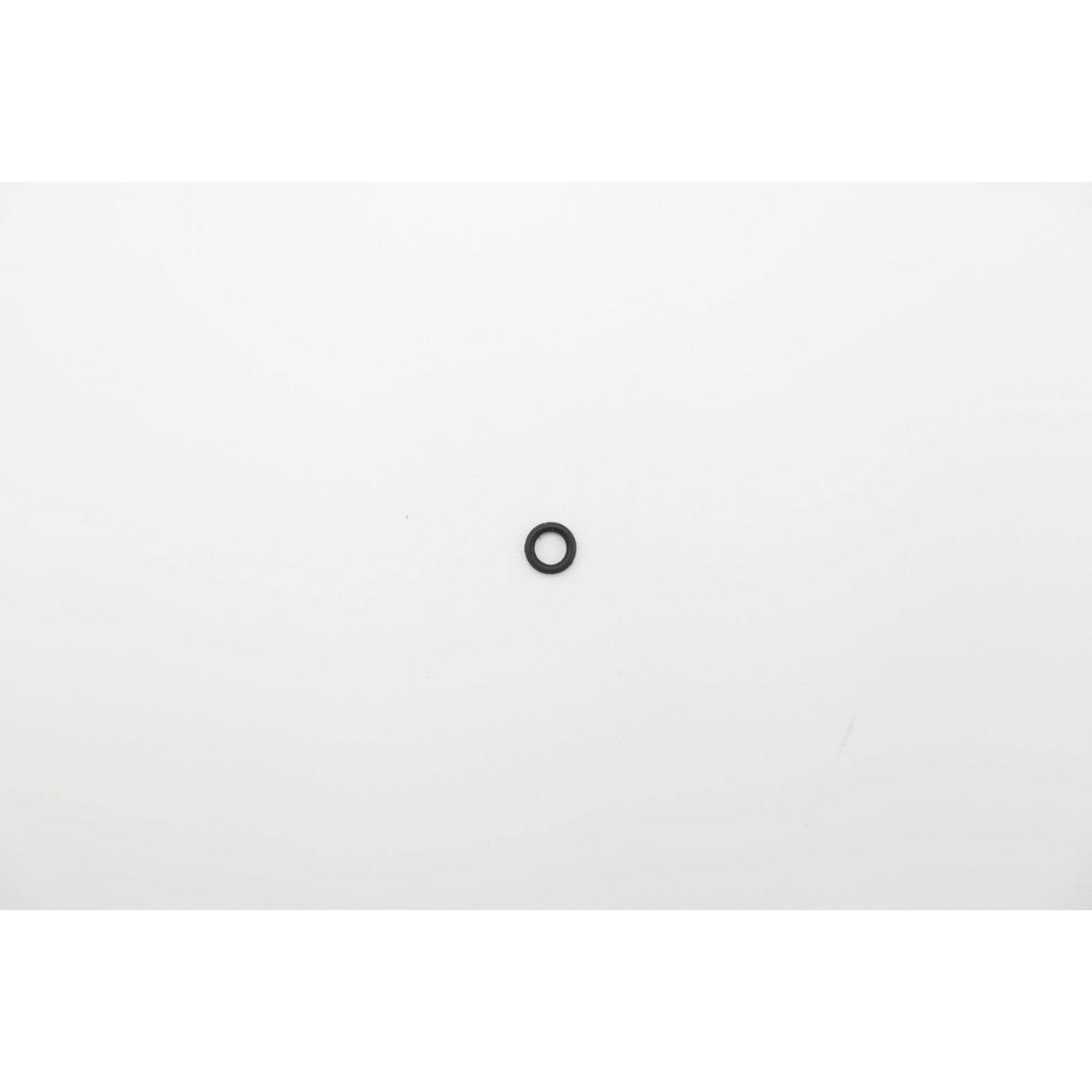

Spray Tank Liquid Level Meter Installation Nut Sealing Ring (T50/T25P) YC.XJ.QT000194
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Sealing the installation nut of the spray tank liquid level meter on DJI Agras T50 and T25P tanks is this ring's job. T50 tank 2 numbers it 24; T25P tank sheet 2 numbers it 15, right after the nut.
| Part number | YC.XJ.QT000194 |
| Fits | DJI Agras T50, T25P |
| Parts diagram | T50 tank 2, callout 24; T25P tank (sheet 2), callout 15 |
A weep around the base of the level unit tends to come from this ring or from a nut that has not been done up fully. Look for flattening, cracks, swelling or nicks, clean the seat, and fit the new ring without twisting it.
Renew it whenever the installation nut comes off. On the T50 sheet it is listed beside the filter with 50 holes and the spray tank cable clip.
