DJI

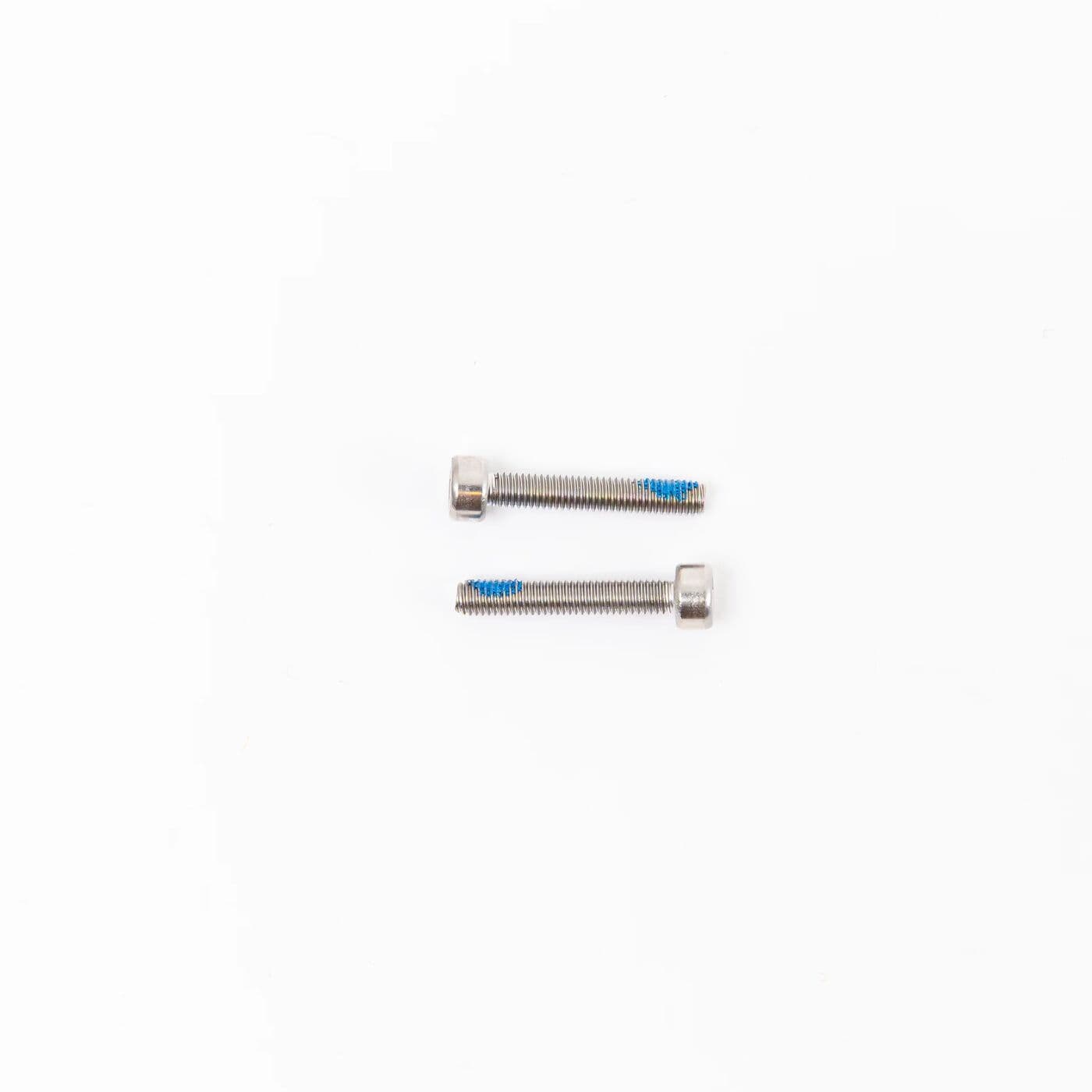

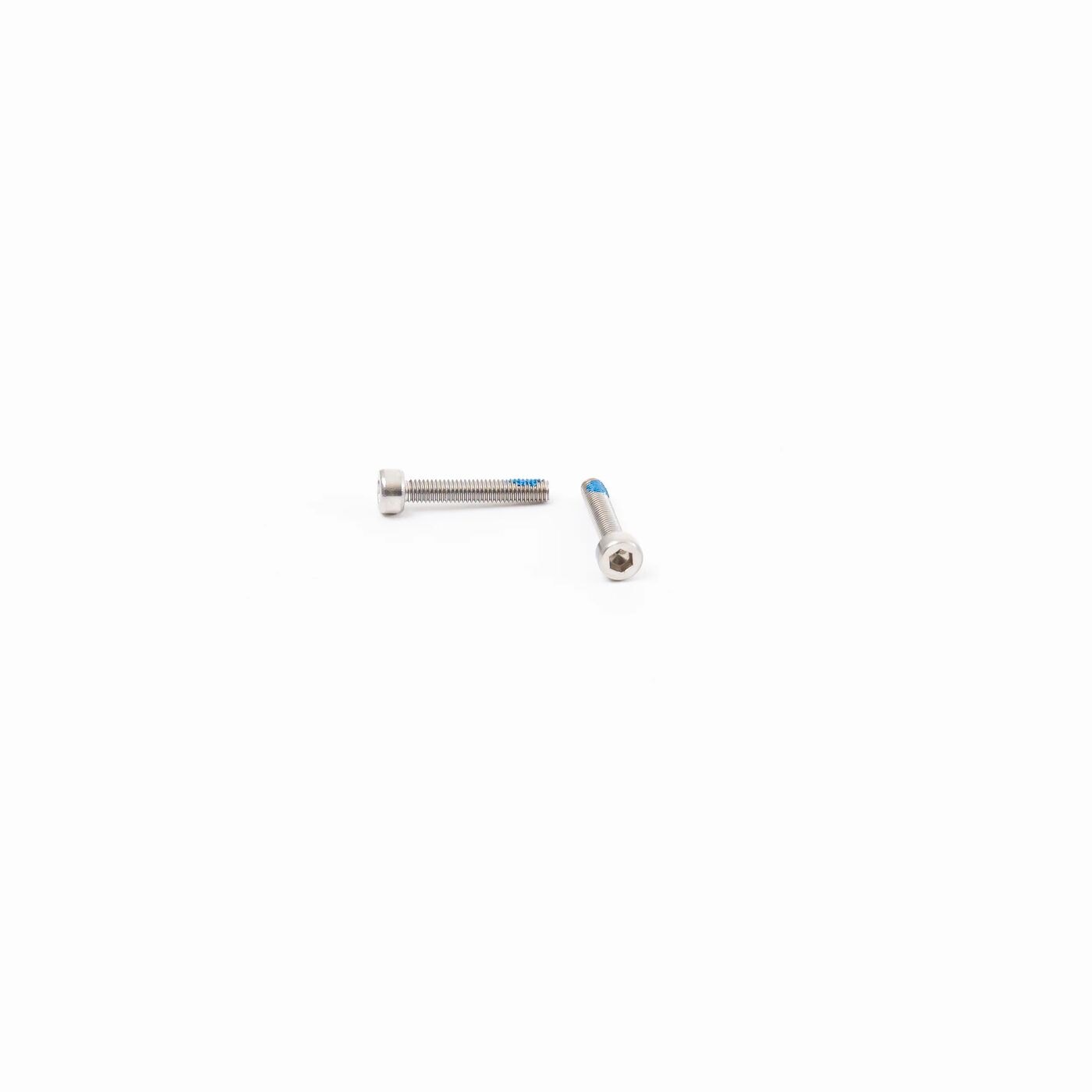

Screw - M30-HC01600100-057030-5103-Y (T100) YC.ST.LL000439
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Callout 6 on the DJI Agras T100 motor sheet is this M30-HC01600100 screw, numbered between the motor upper cover and the 15516 motor. It is catalogued for the T100 only.
| Part number | YC.ST.LL000439 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 motor, callout 6 |
It shares the M30 prefix with the YC.ST.LL000612 screw in the same assembly, but the codes differ, so keep the two apart in the parts tray and do not substitute one for the other.
Order a replacement when the head is rounded, the thread is damaged or one has gone missing during a motor or cover job. Blow out the threaded hole before fitting. If that hole is stripped, the part it screws into needs attention, and a new screw alone will not fix it.
