DJI
15516 Motor (T100) BC.AG.SS001102
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

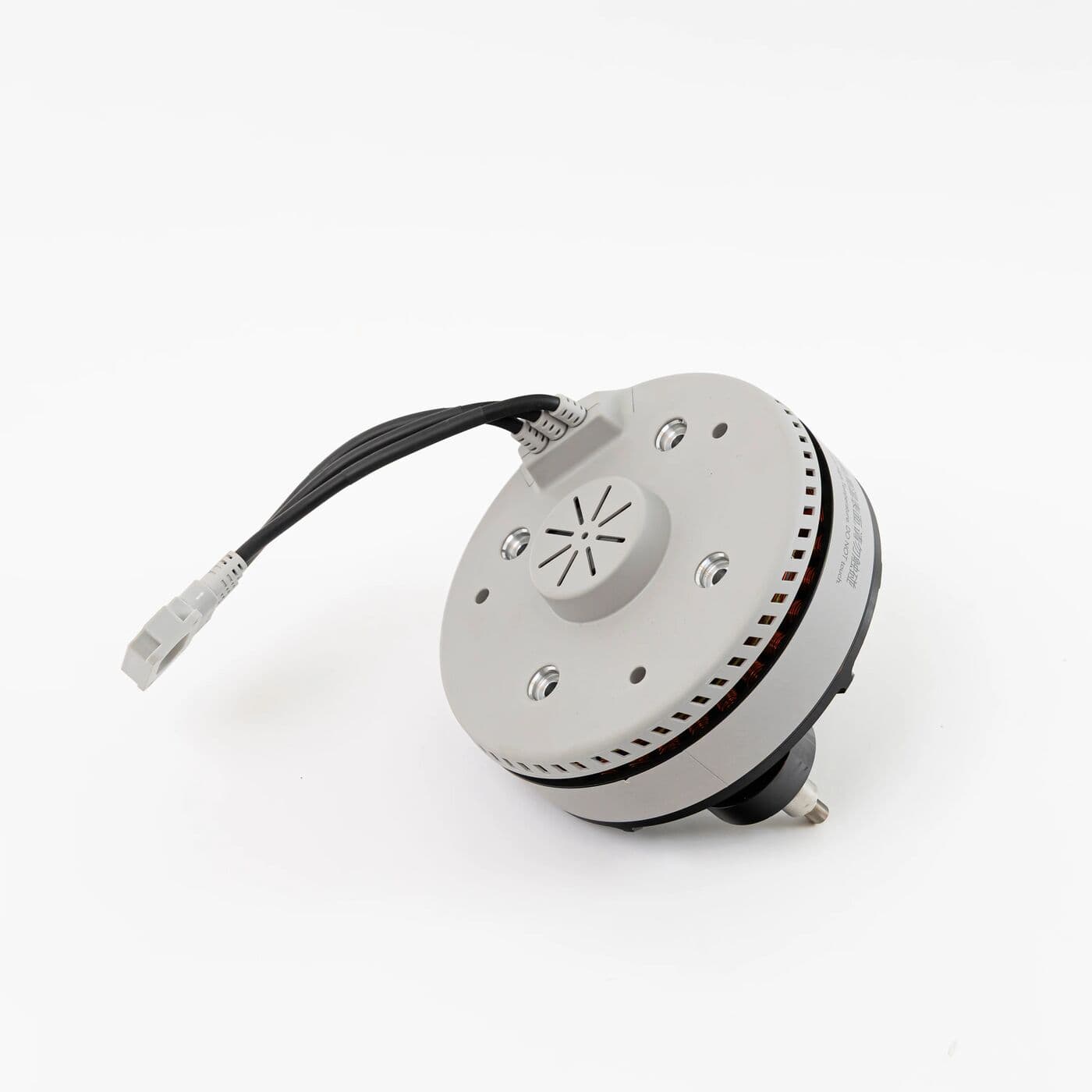

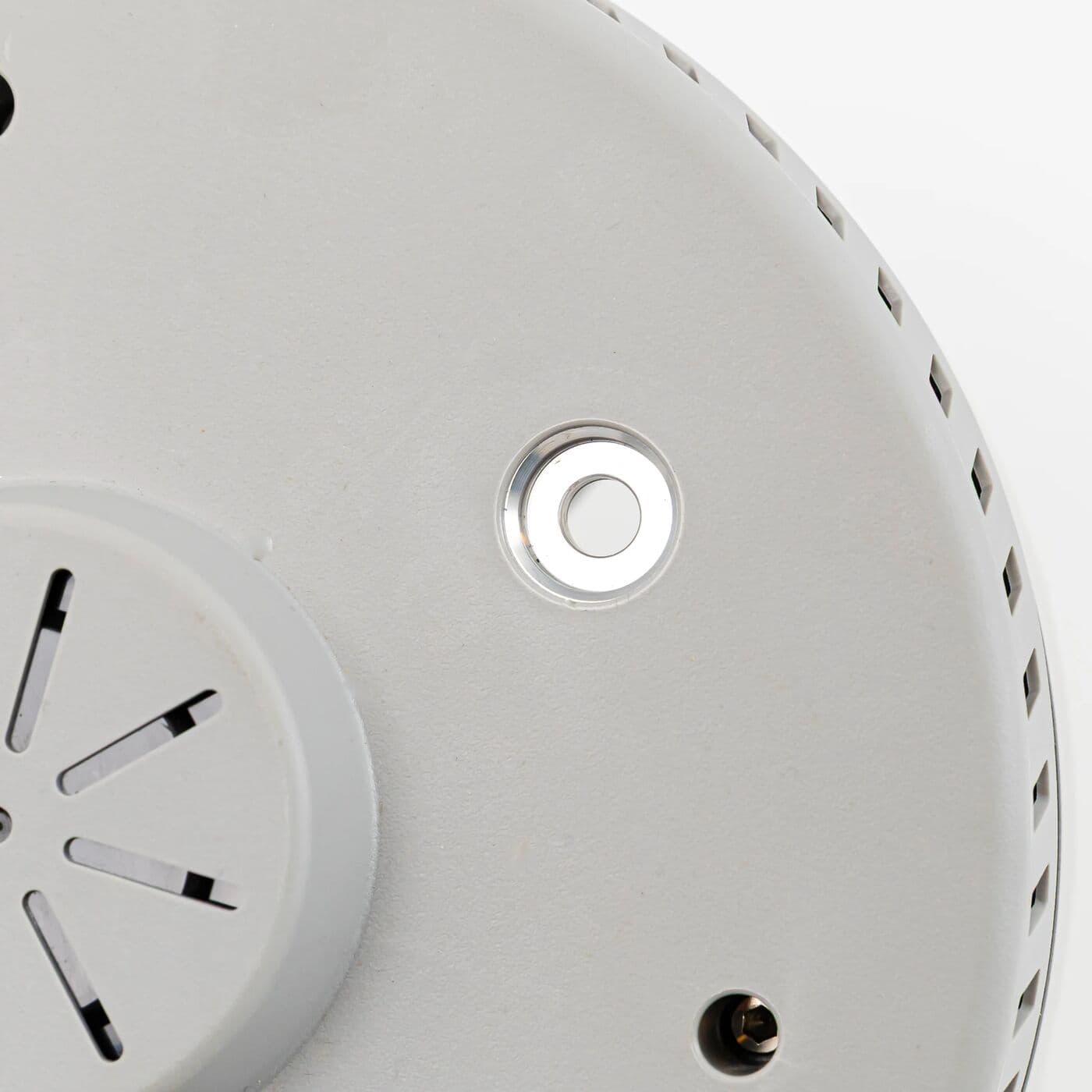

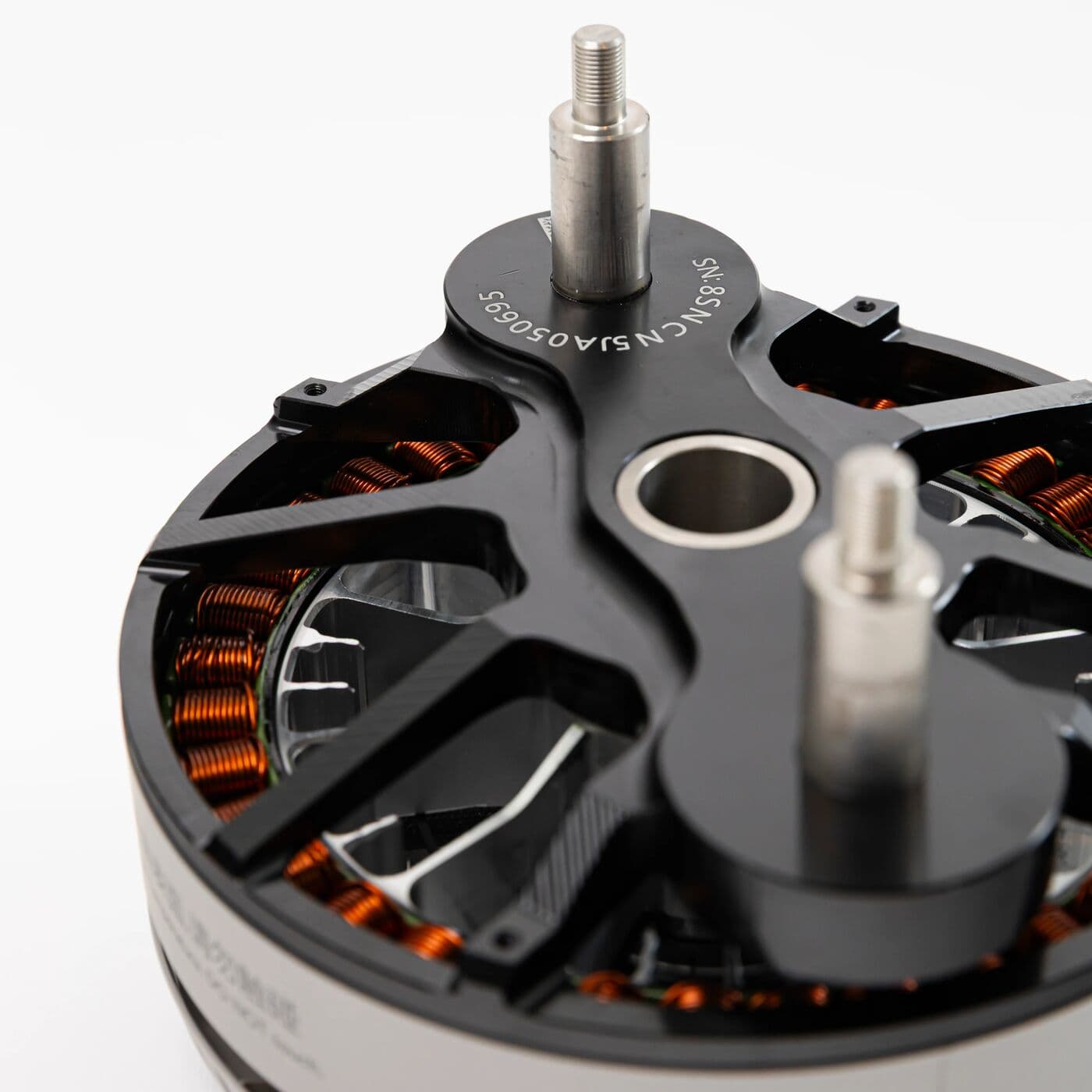

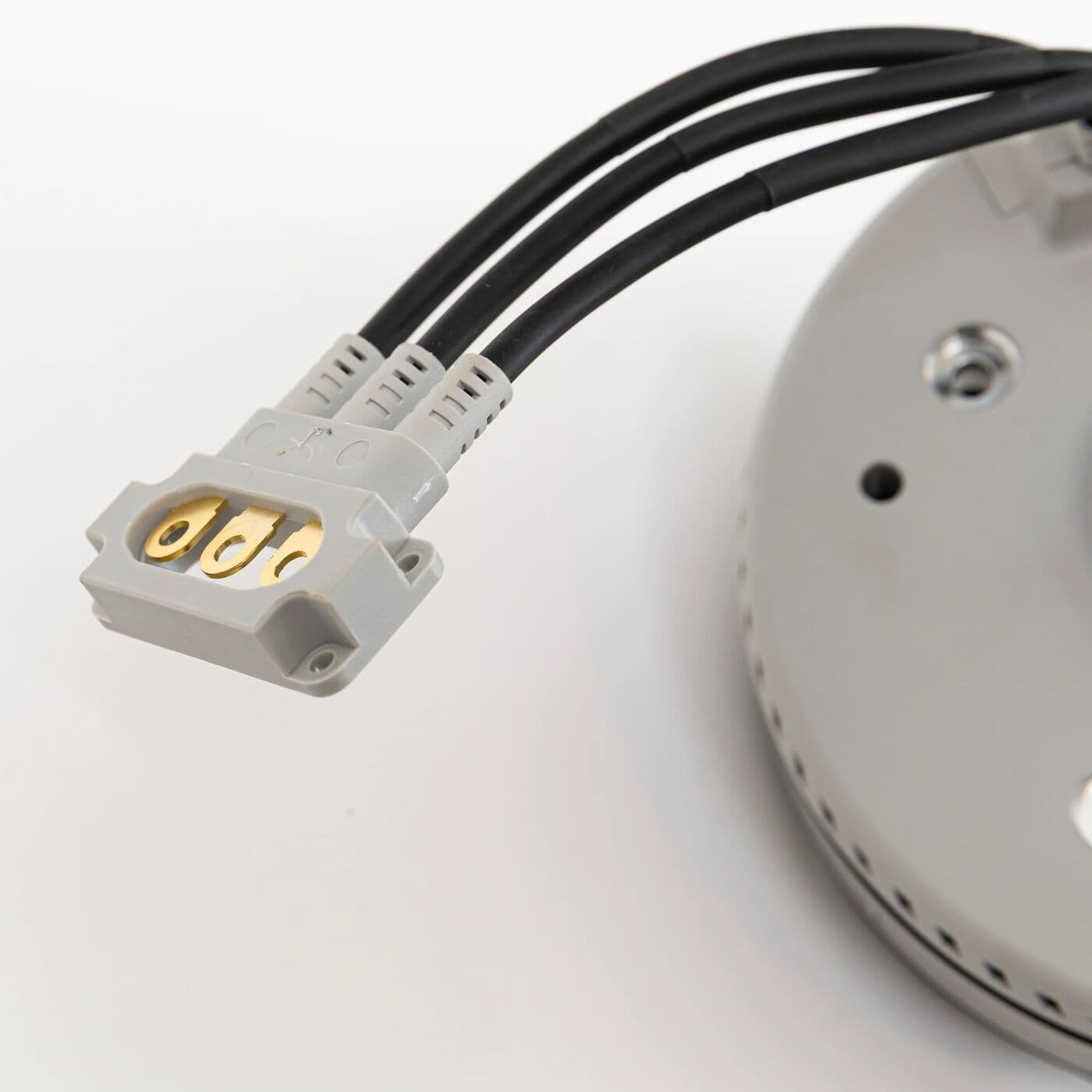

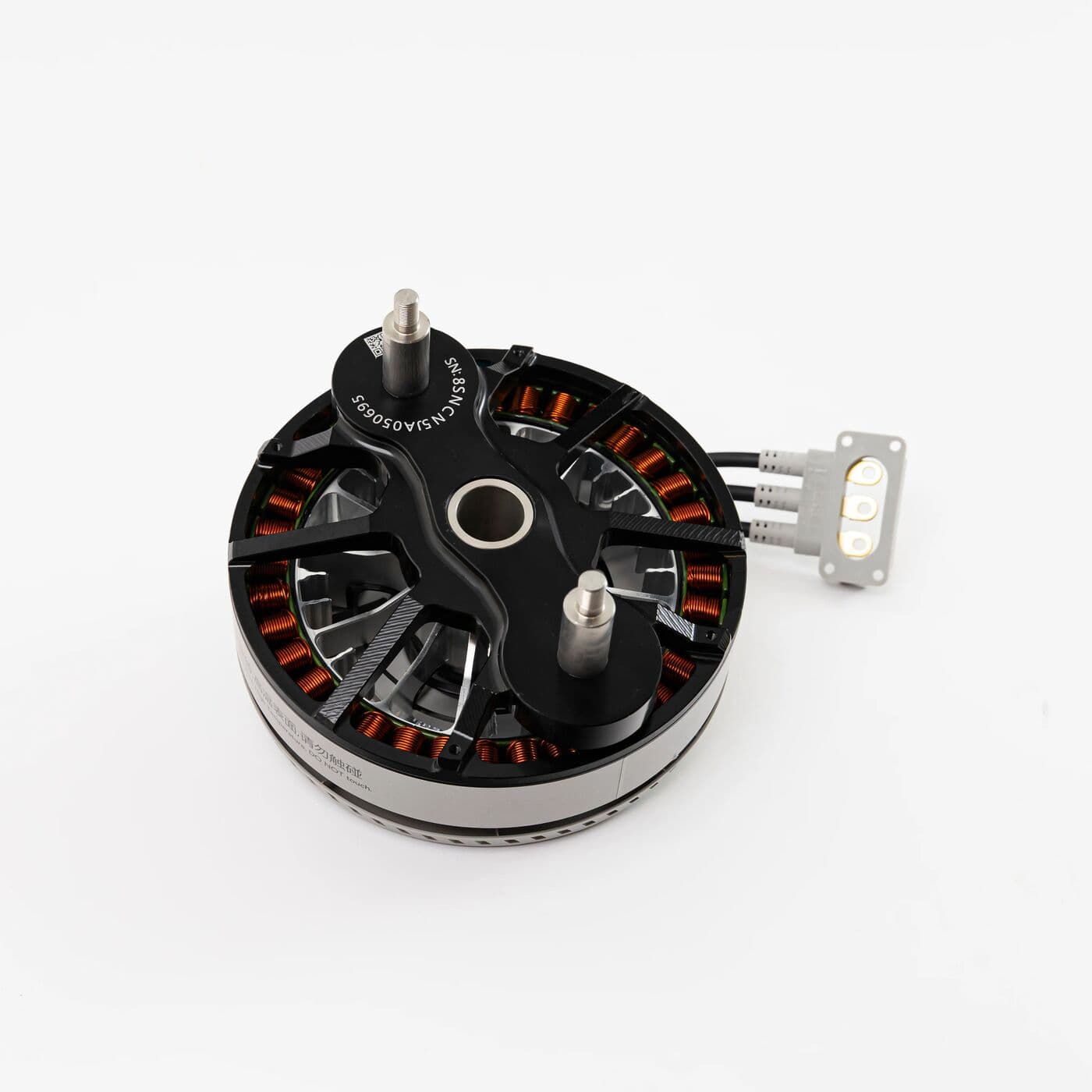

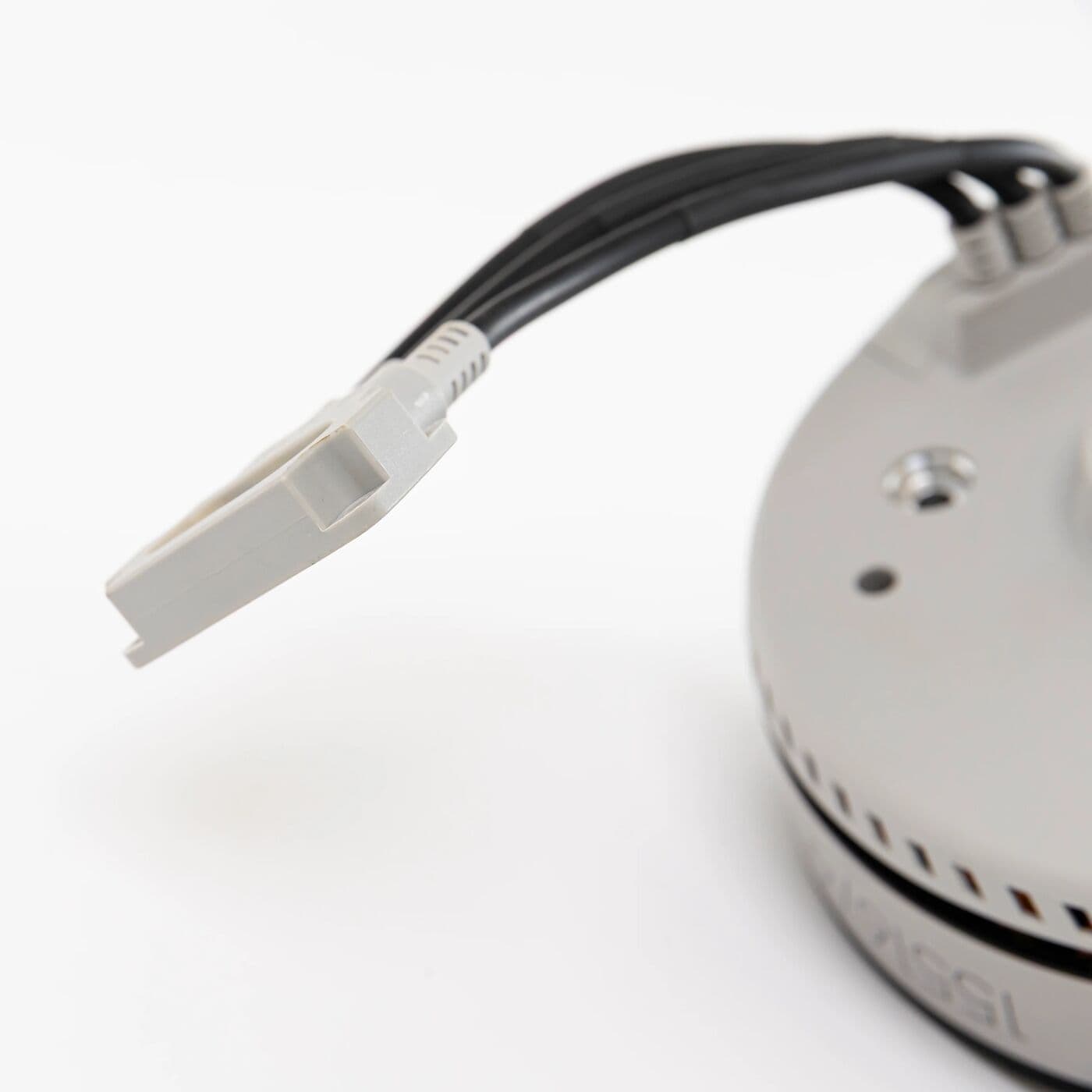

One of the propulsion motors on the DJI Agras T100, the 15516 motor drives a propeller and is callout 7 on the T100 motor diagram. The covers and screws around it carry their own part numbers.
| Part number | BC.AG.SS001102 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 motor, callout 7 |
Signs a motor is due for replacement include a motor warning in the DJI Agras app that comes back after the usual checks, a rough or gritty feel when the rotor is turned slowly by hand with the propellers off, or crash damage to the housing or shaft.
Work with the flight battery out and the propellers removed. Renew any screw with a damaged head or thread, and inspect the motor lower cover and motor cable protective cover before they go back on. Confirm the correct propeller direction for that position before the first flight.
