DJI
Aircraft Arm Insert (T100) YC.JG.FM000215
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Callout 8 on the DJI Agras T100 large aircraft arm diagram is this arm insert, listed on the same sheet as the front and rear large arms and their fixing hardware.
| Part number | YC.JG.FM000215 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 large aircraft arm, callout 8 |

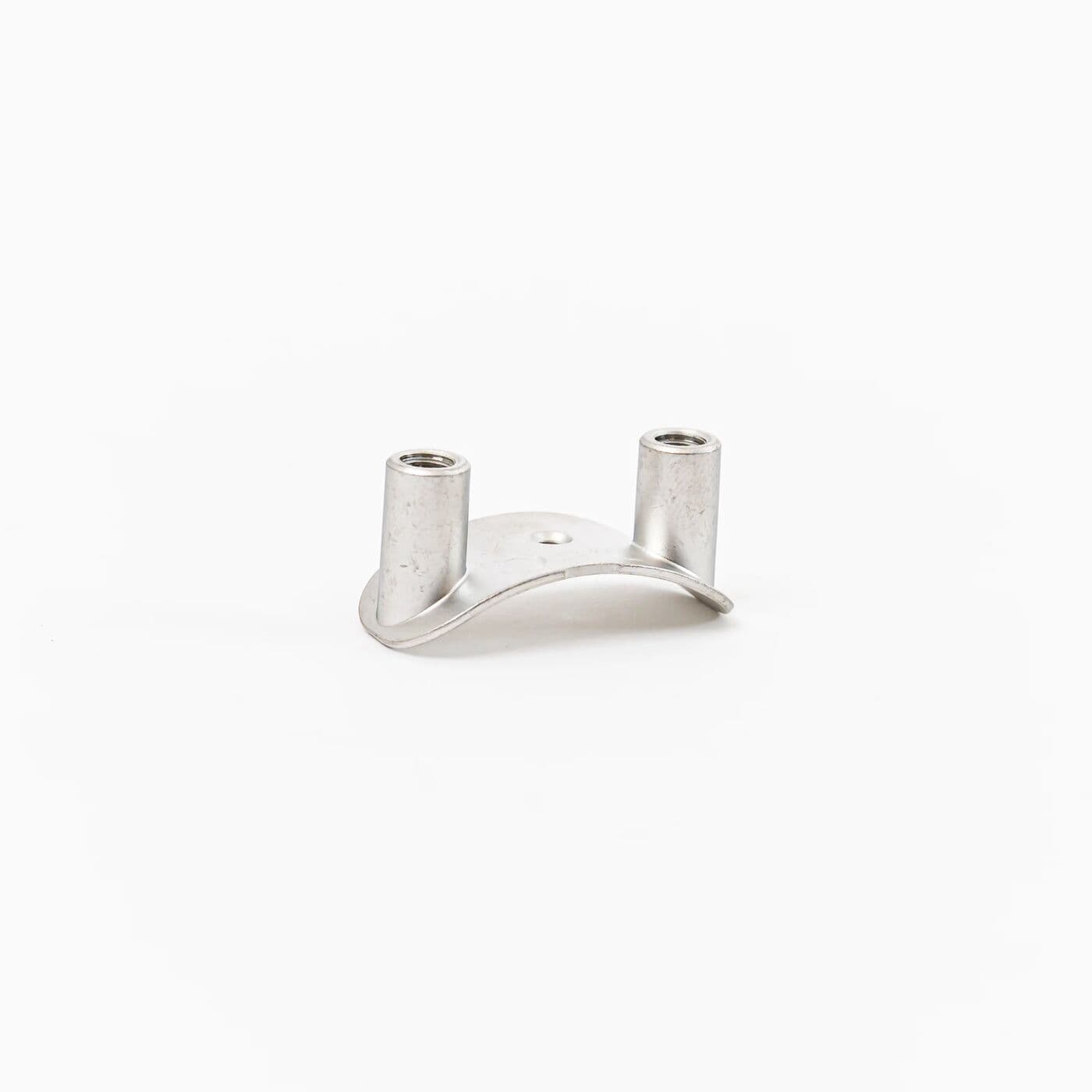

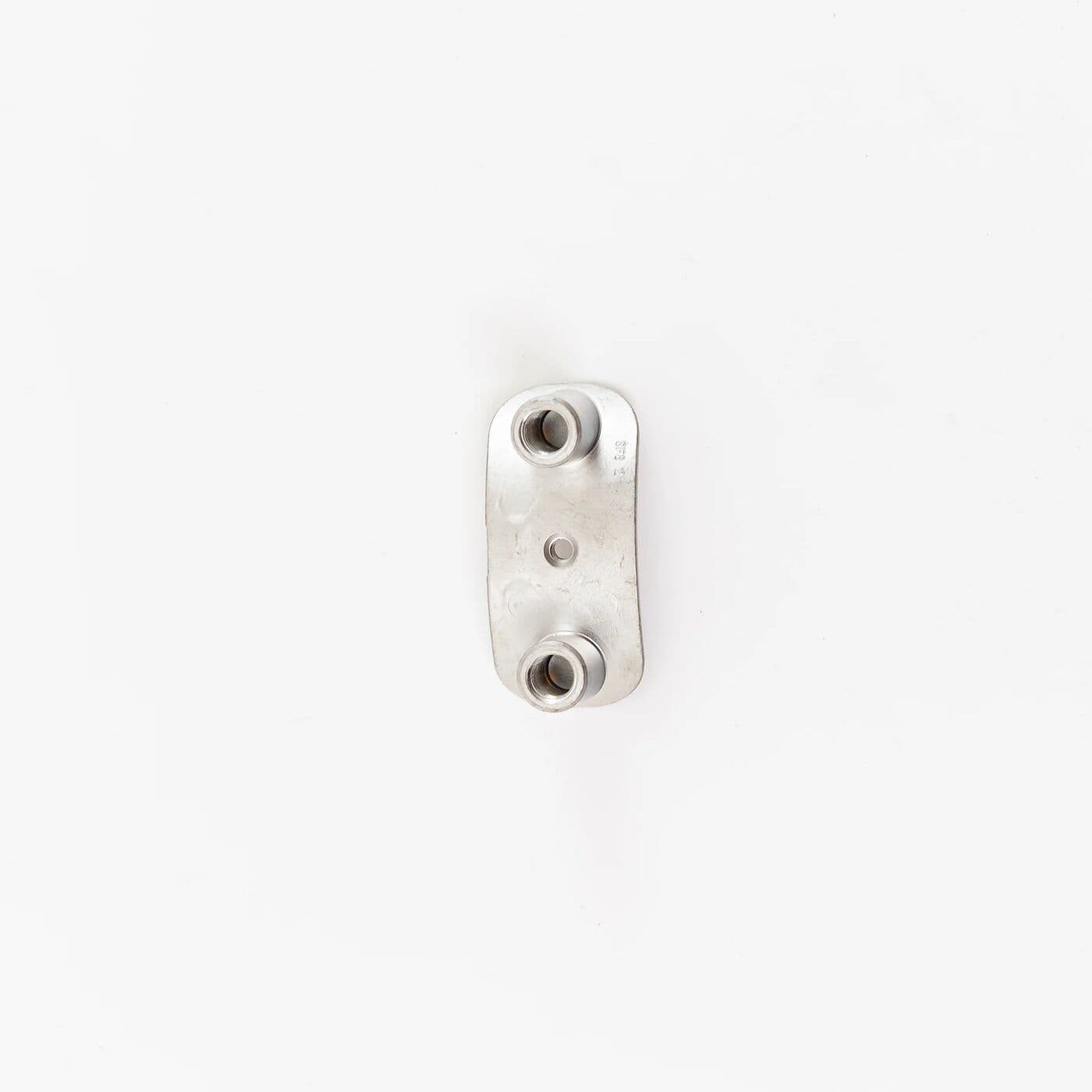

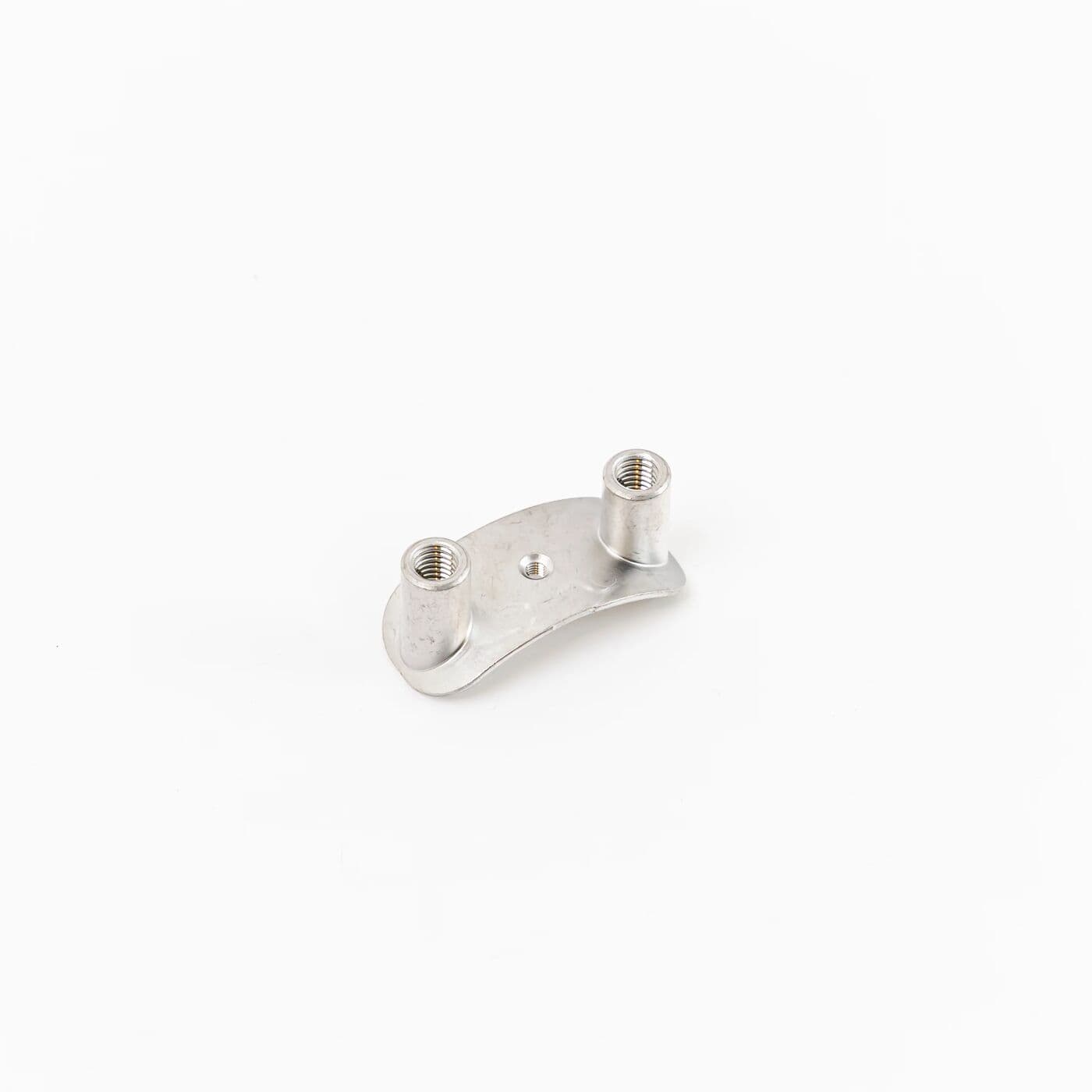

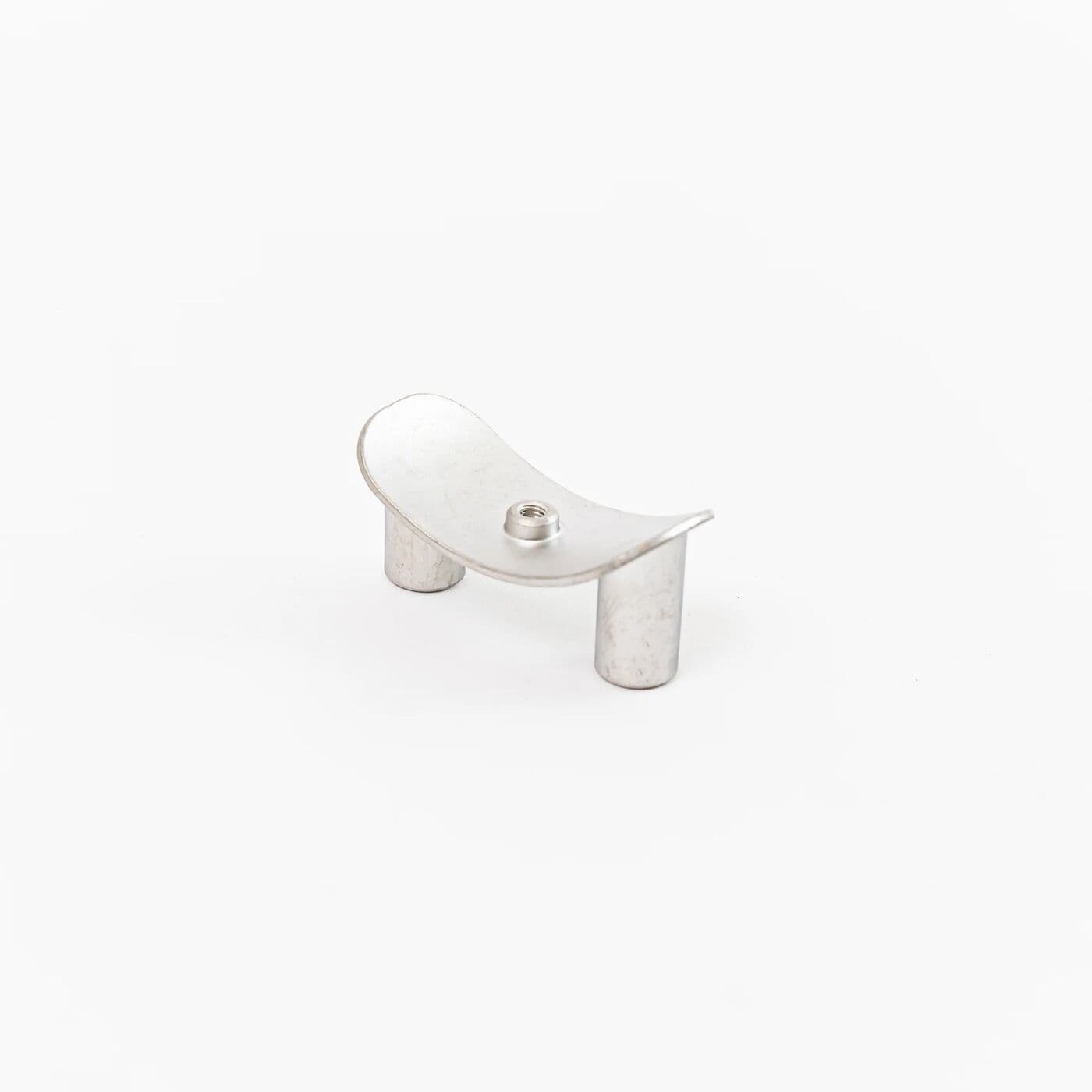

In DJI's photo it is a small silver-coloured piece, and one is laid out with each of the four large arms. Because it is sold on its own, a cracked, worn or missing insert can be replaced without buying a whole arm, provided the arm itself is sound. Compare the code on the old part with YC.JG.FM000215 before ordering.
The diagram draws it with a single M30-HC060060-55-85 screw (callout 9) directly above it and four M60-HC02170160 screws (callout 10) above that. Check those for damaged heads or threads while you are working there.
