DJI
Large Aircraft Arm - Rear (T100) BC.AG.SS001098
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Replacing the back arm on a DJI Agras T100? This is the rear large aircraft arm, callout 7 on the large arm parts diagram and the rear counterpart to the front arm at callout 1.
| Part number | BC.AG.SS001098 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 large aircraft arm, callout 7 |
An arm that has taken a hard hit can hide damage, so check along its full length and around each mounting point for hairline cracks, dents or distortion before deciding whether it can stay in service. If there is any doubt, replace it.

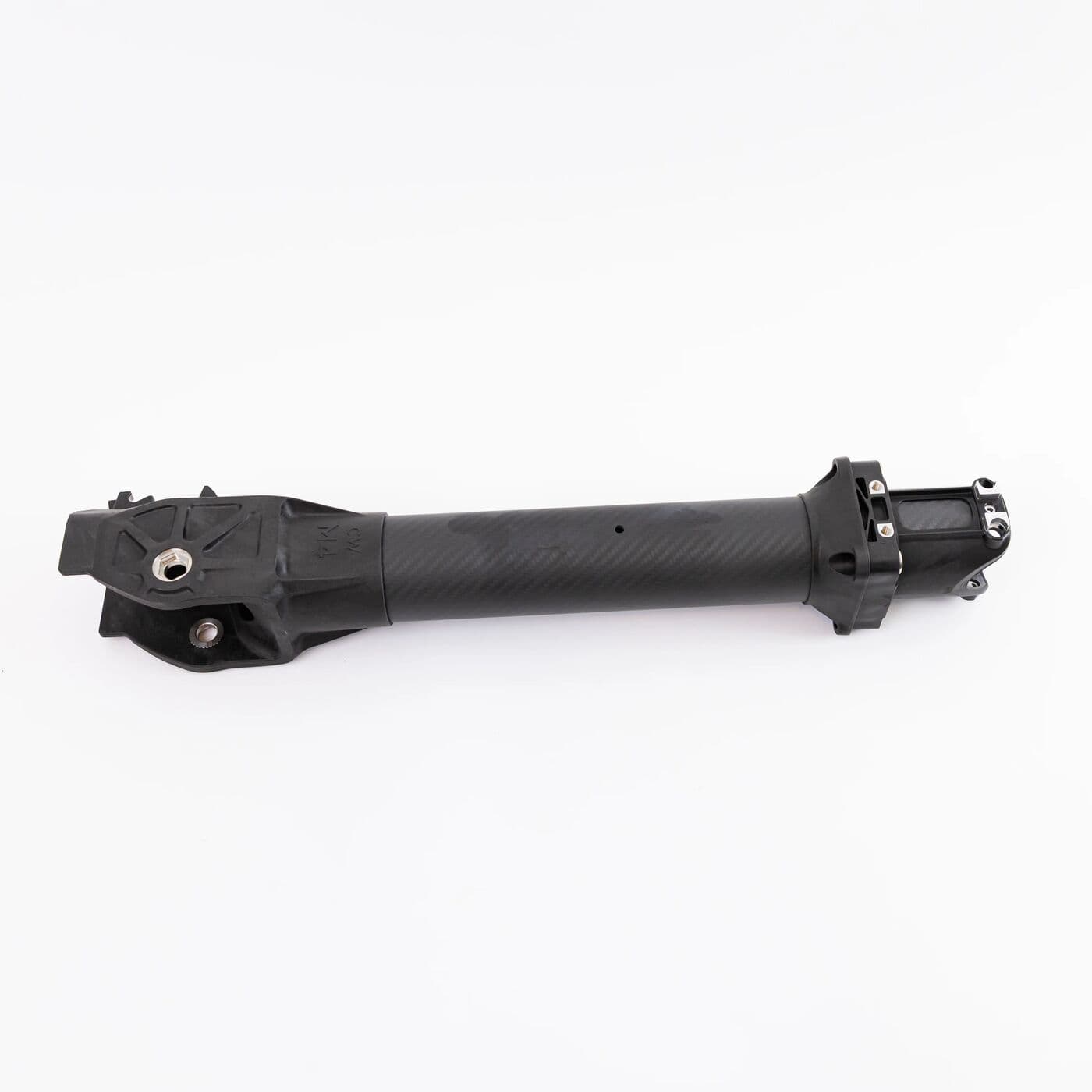

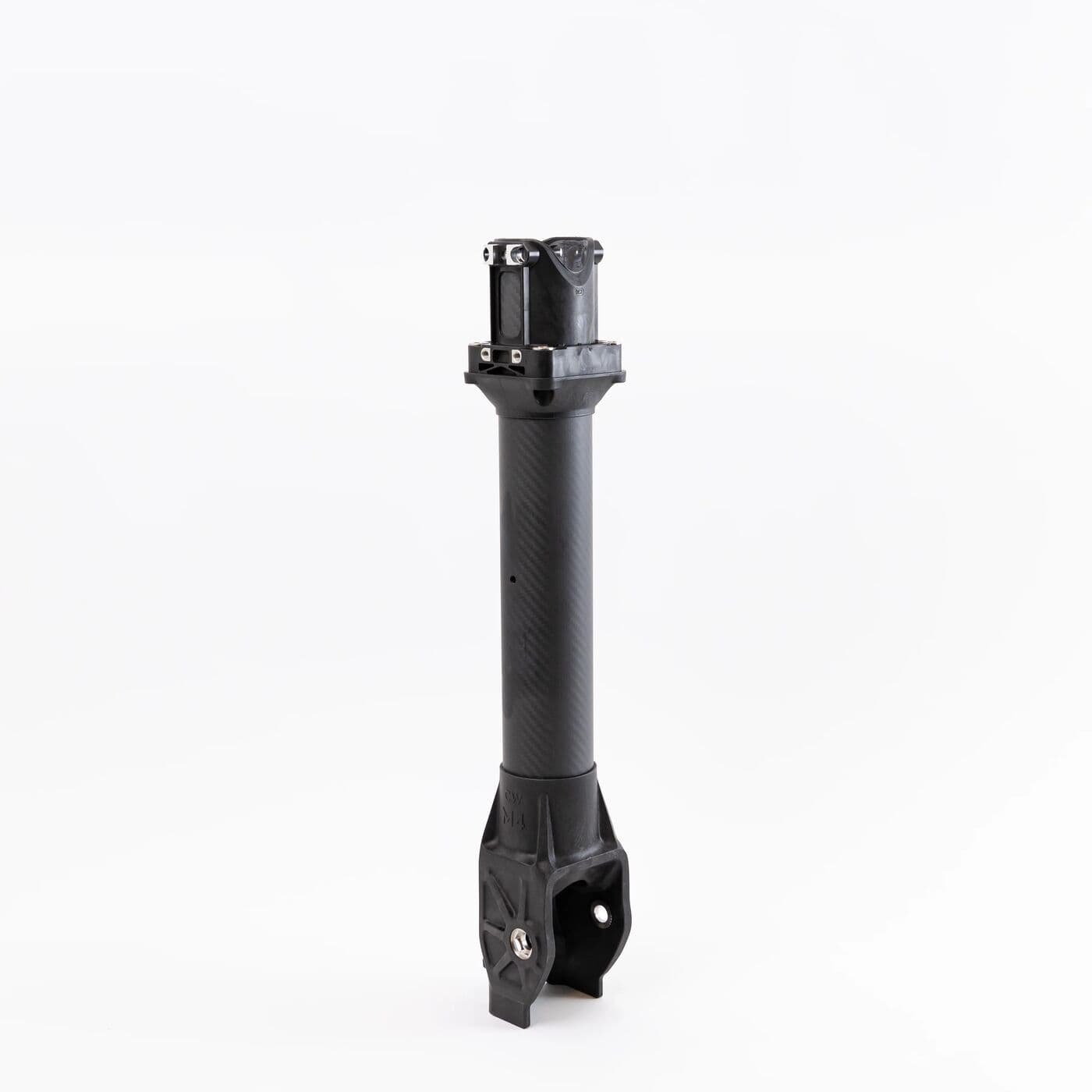

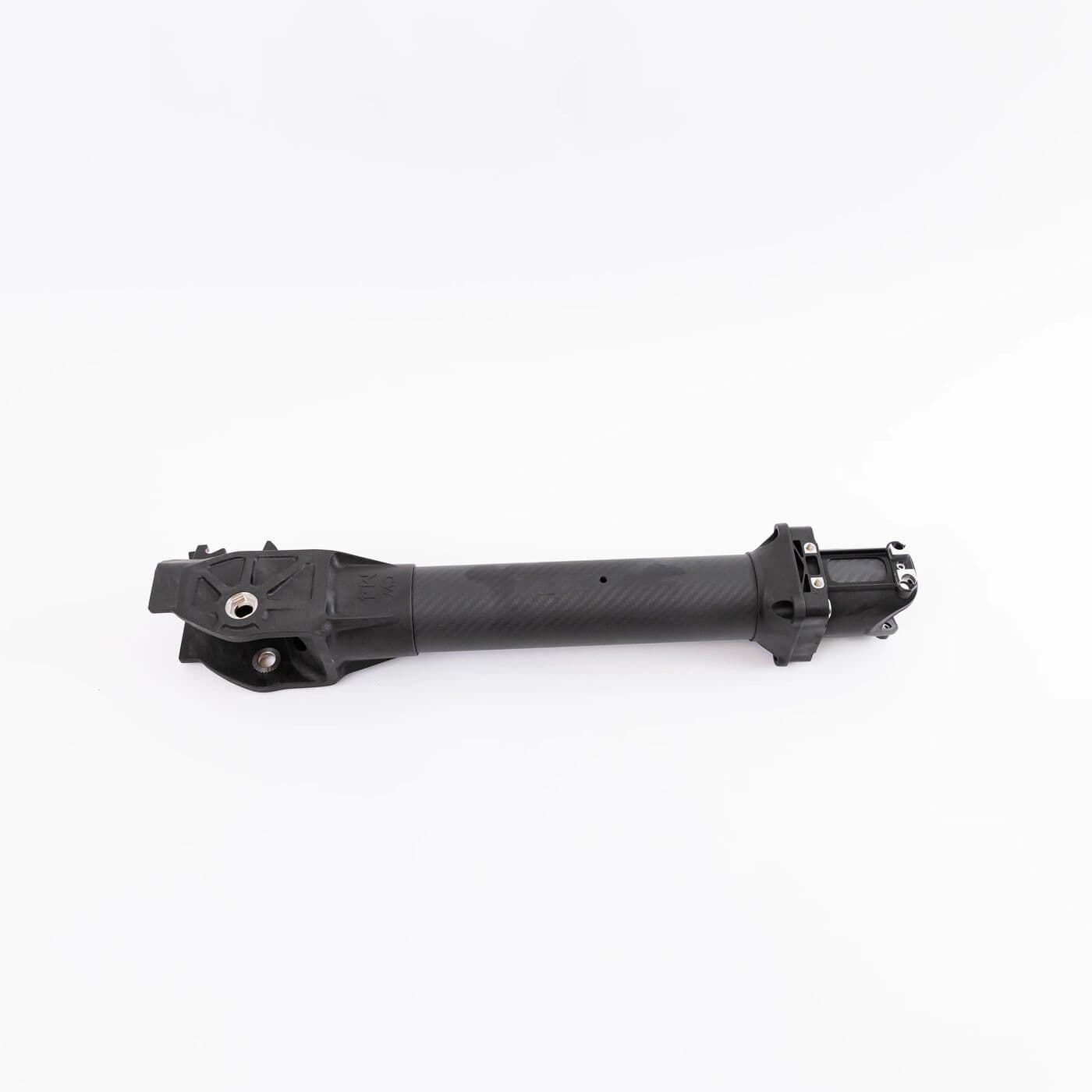

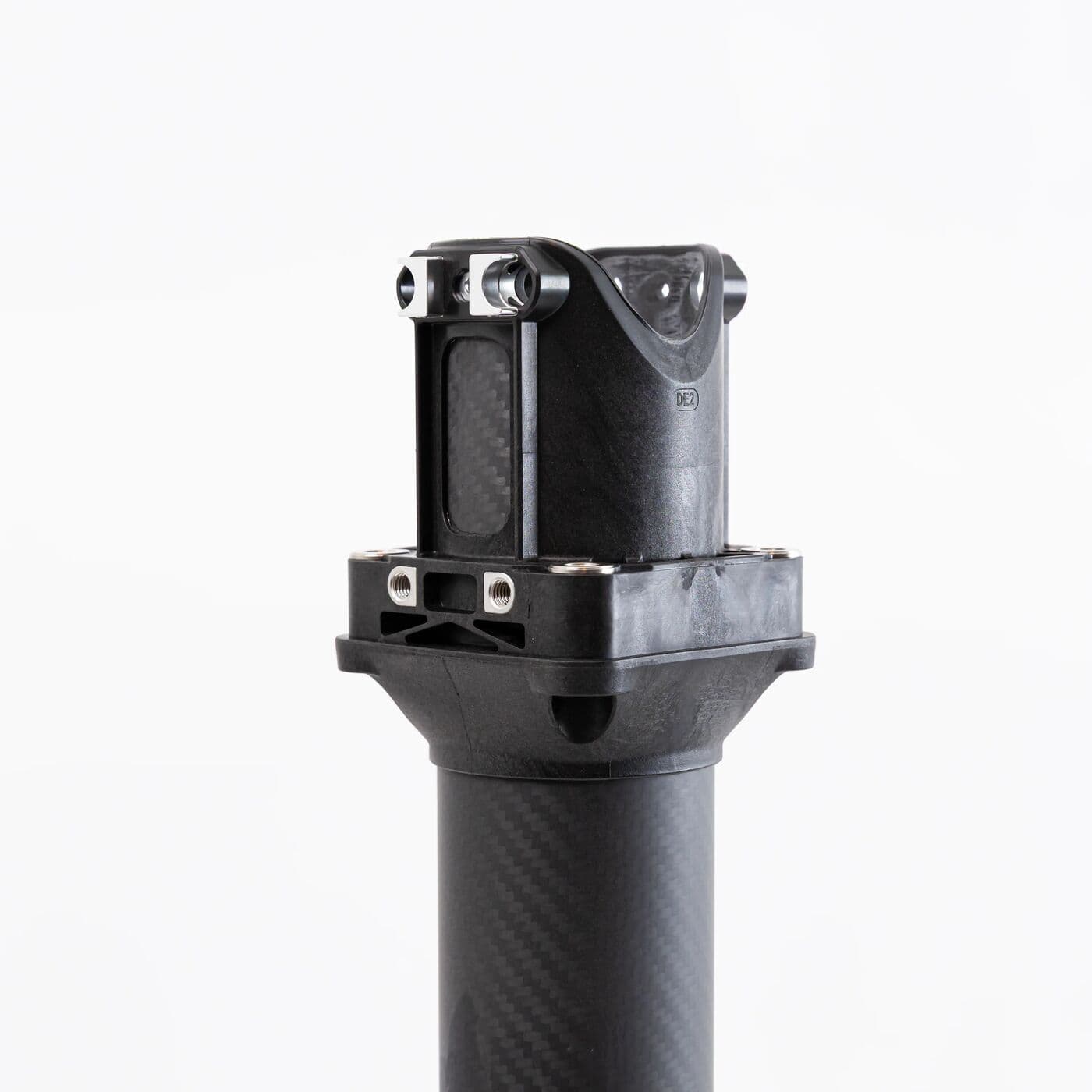

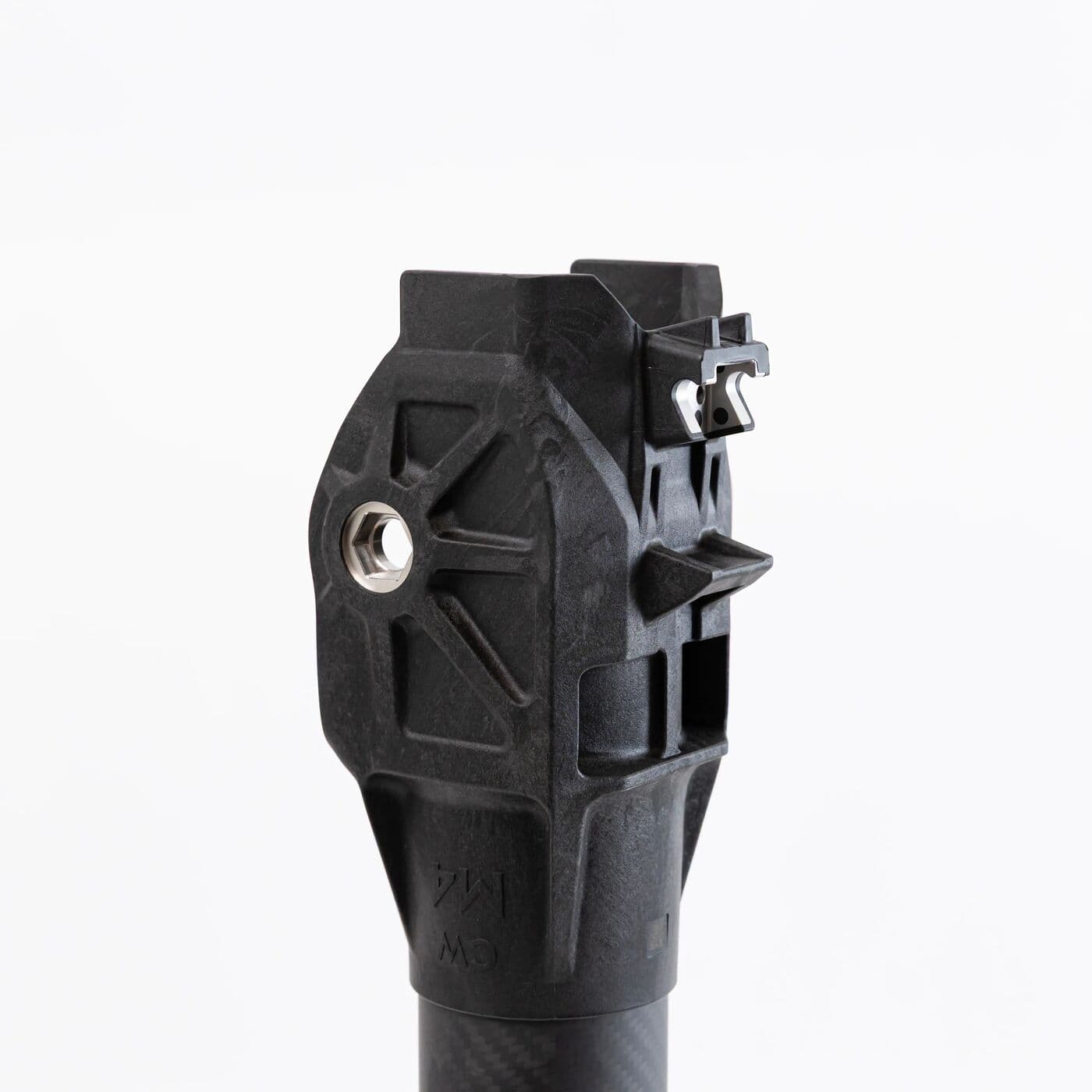

DJI's parts photo shows the arm as a carbon-fibre tube with its end fittings in place, and the rear arms are visibly longer than the front pair. The arm insert, fixing hardware and screws are drawn separately with their own part numbers, so check those while the arm is off.
The rear arm's code ends in 098 and the front arm's in 097, an easy pair to confuse on an order. The same diagram sheet lists the rear SDR antenna and its bracket, so if the arm was damaged, look over the rear SDR antenna and SDR bracket as well.
