DJI

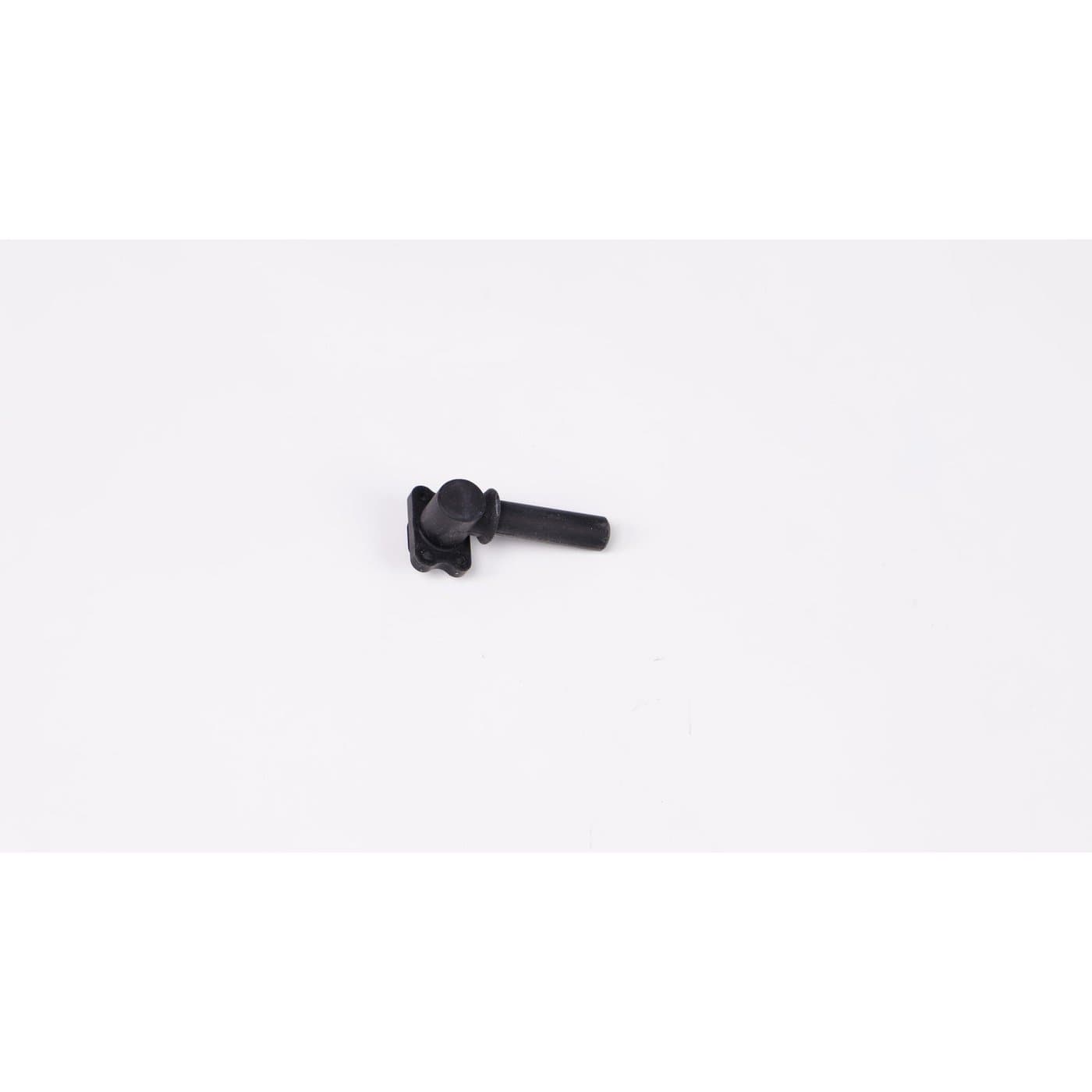

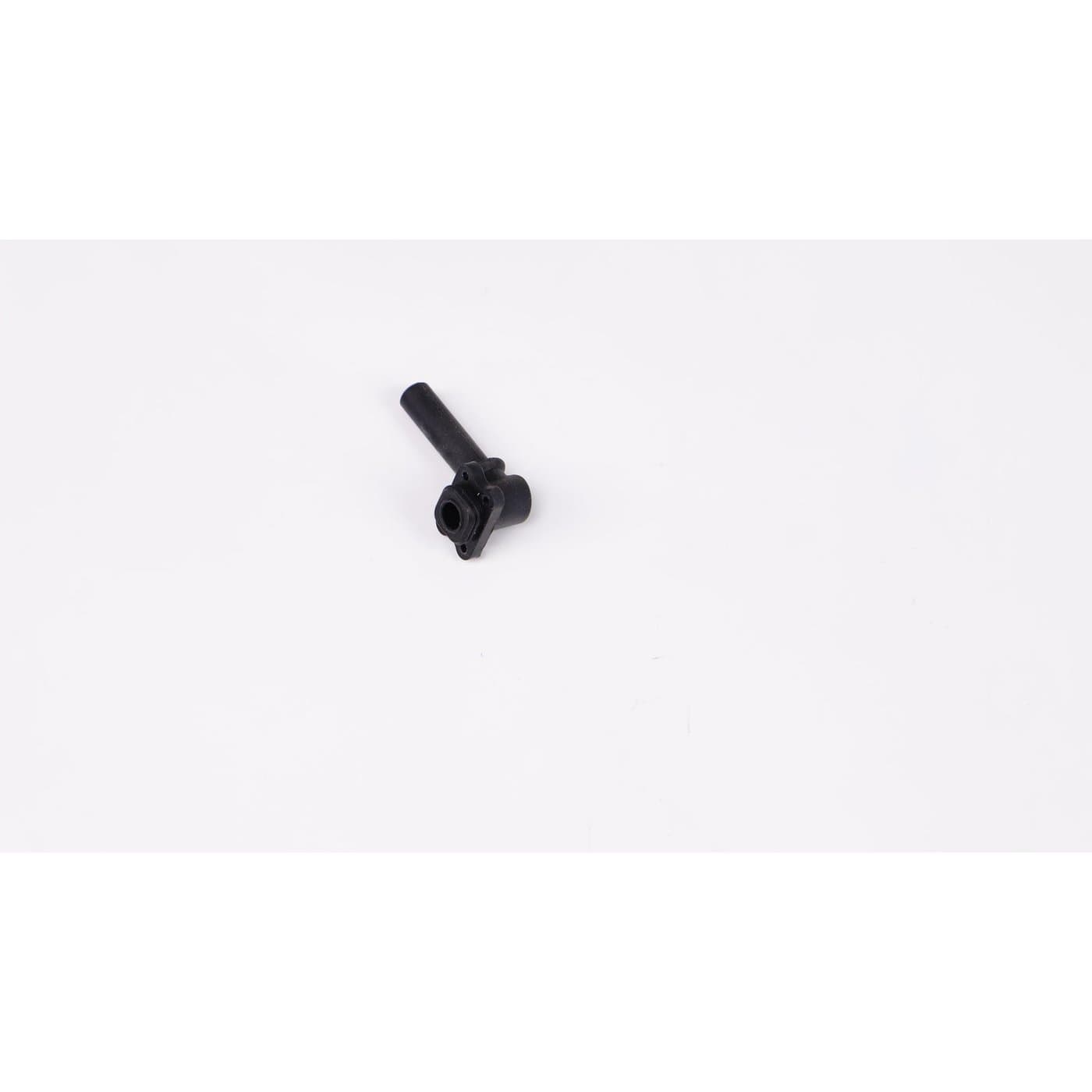

Barometer Curving Connector (T50) YC.JG.MY000797
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
This curving connector belongs to the barometer assembly of the DJI Agras T50. It is callout 2 on the T50 cable distribution board module sheet, listed with the barometer film, outer shell and board.
| Part number | YC.JG.MY000797 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 cable distribution board module, callout 2 |
Look it over whenever the barometer housing is opened. If the connector is cracked, split or bent out of shape, fit a new one rather than putting the damaged piece back.
It sits with the barometer waterproof permeability film (callout 3), the barometer outer shell (callout 4) and the barometer board (callout 5). Small barometer parts are easy to mix up, so if in doubt, contact us with a photo of the old connector.
