Cable Distribution Board Module (T50) BC.AG.SS000676
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

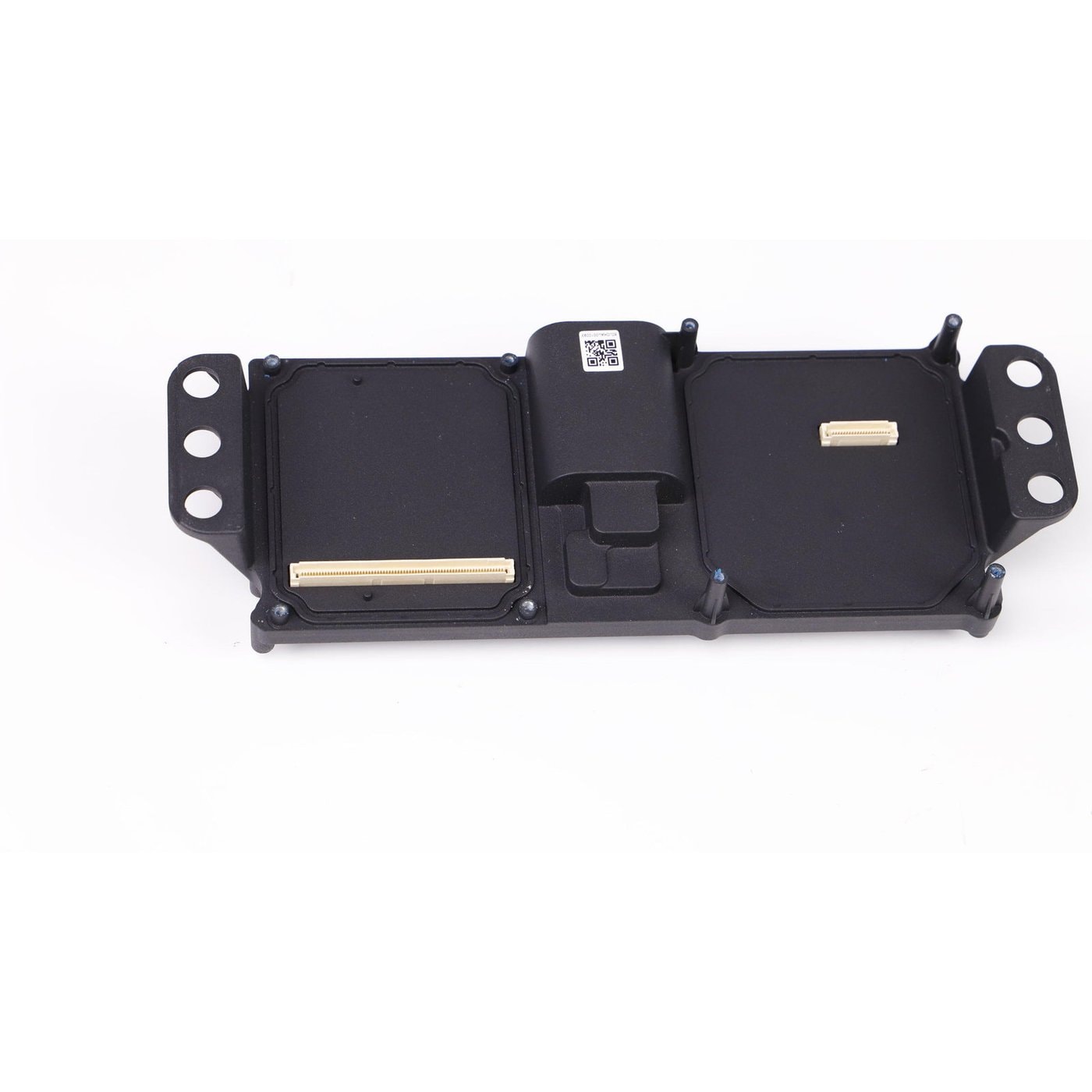

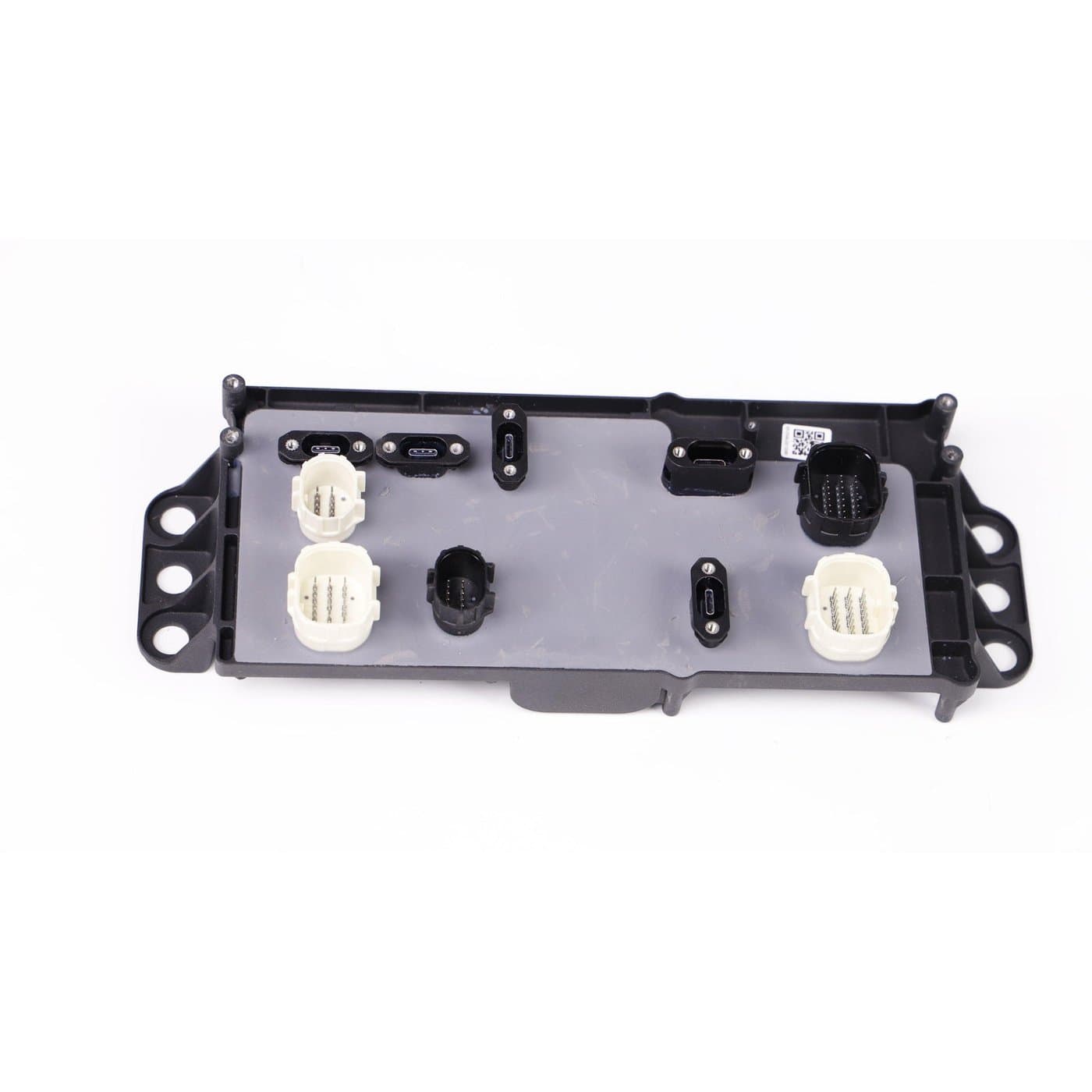

The cable distribution board module is the junction board on the DJI Agras T50 that leads such as the spraying-module throttle and communicate cables plug into. It is callout 17 on the T50 cable distribution board module sheet.
| Part number | BC.AG.SS000676 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 cable distribution board module, callout 17 |
A board can fail after water or chemical gets into the electronics or when a socket cracks, but a damaged cable can look the same, so have the fault diagnosed first; the Horsham or Manjimup workshop can do this. With the battery out, photograph each plug before unplugging it so every lead returns to its own socket. The damping pad listed next to it (callout 18) is worth checking at the same time.
Other models take their own board: the T100 has its own cable distribution board module, BC.AG.SS001091, and the T70P uses BC.AG.SS001024 (T70P cable distribution board module).
