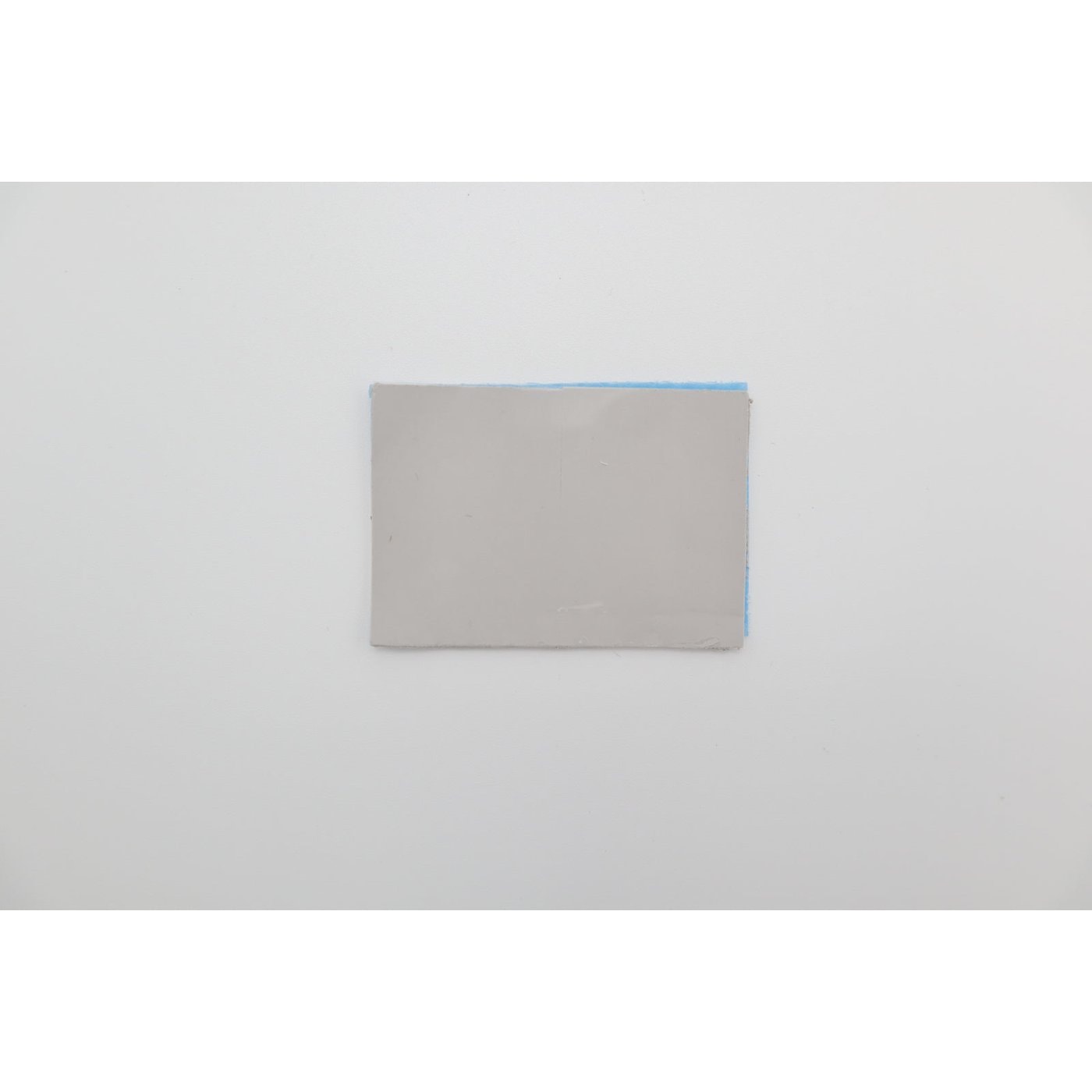

Aerial-Electronics Module RF Thermal Conductive Pad (T50) YC.JG.MQ001294
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
This thermal conductive pad draws heat away from the RF section of the aerial-electronics module on the DJI Agras T50. It is callout 16 on the T50 cable distribution board module sheet.
| Part number | YC.JG.MQ001294 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 cable distribution board module, callout 16 |
A thermal pad only works while it is pressed firmly between the hot part and the surface carrying the heat away. Once it has been compressed and pulled apart it seldom makes full contact again, so fit a new one whenever the RF module or the aerial-electronics system module is taken apart.
Peel off every scrap of the old pad, keep the new one free of dust and fingerprints, and line it up before the parts are brought together. A pad that is torn, dried out or sitting crooked should be replaced even if nothing else is being changed.
