DJI

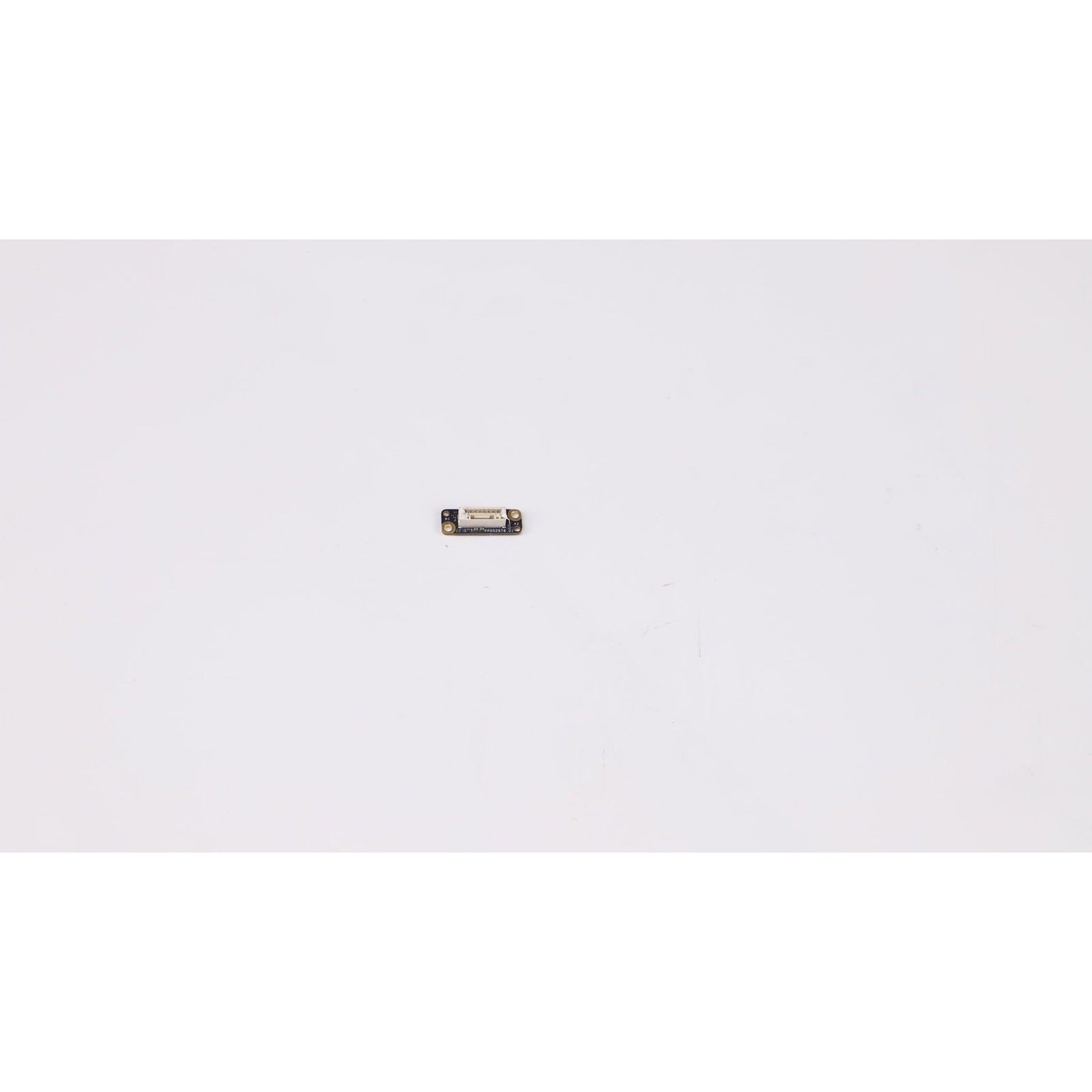

Barometer Board (T50) BC.AG.PP000354
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
The barometer board carries the air-pressure sensor that the DJI Agras T50 relies on for altitude readings. It is callout 5 on the T50 cable distribution board module sheet.
| Part number | BC.AG.PP000354 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 cable distribution board module, callout 5 |
Unsteady height hold or barometer errors in the app can also come from a wet or blocked barometer housing, so have the fault confirmed first; the Horsham or Manjimup workshop can test the board. The T70P and T25P take a different barometer board, BC.AG.PP000520, so this one is for the T50 only.
Fit a fresh barometer protection foam (callout 6) with the new board, and close the barometer outer shell (callout 4) evenly so the housing seals.
