DJI
RF Module (T50) BC.AG.SS000675
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

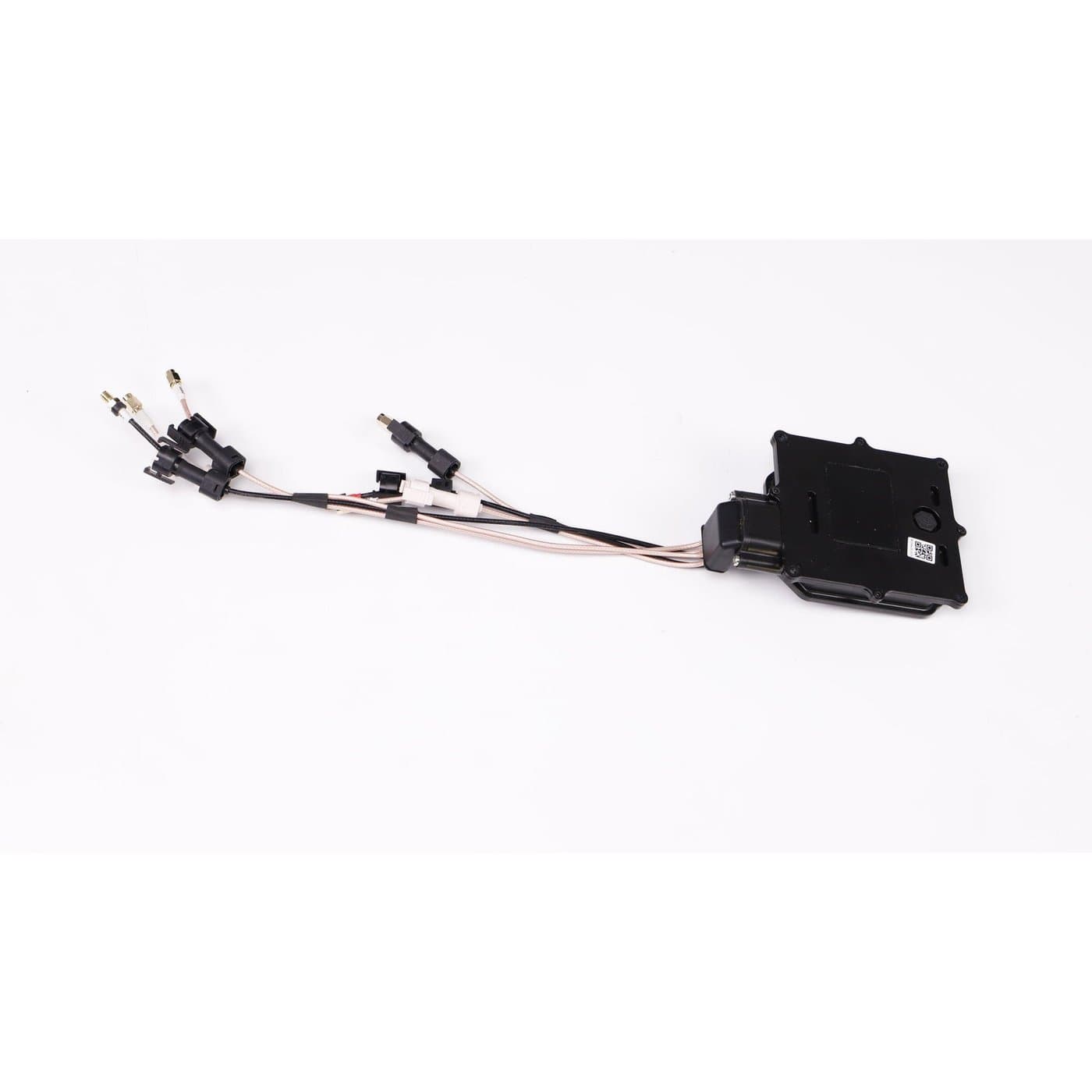

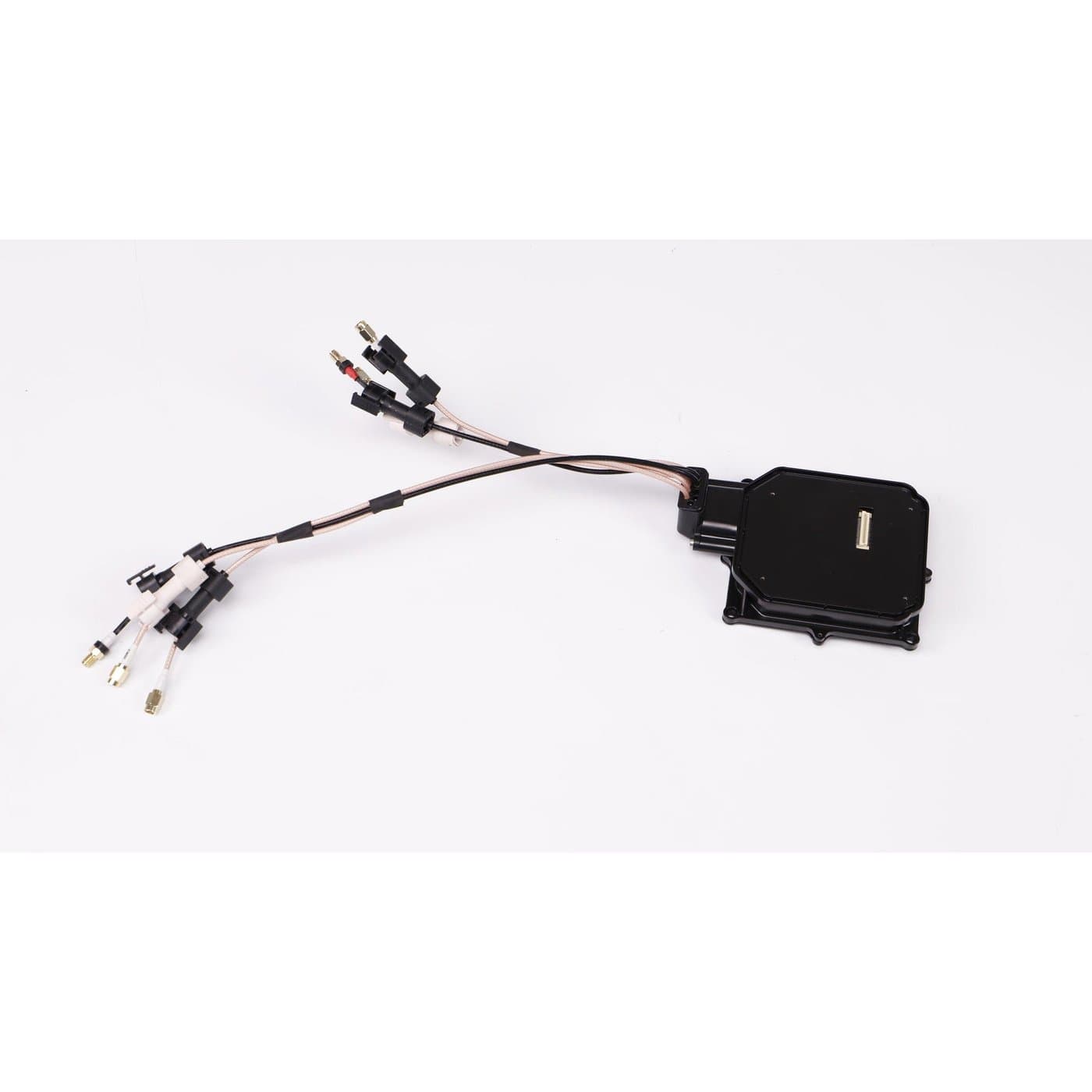

This RF module is the radio unit in the flight electronics of the DJI Agras T50, shown at callout 14 on the T50 cable distribution board module sheet beside its sealing ring and thermal pad.
| Part number | BC.AG.SS000675 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 cable distribution board module, callout 14 |
Short range, a link that drops out or RF errors in the app point towards it, but antennas, coaxial leads and plugs can cause the same faults. Have it diagnosed before ordering; the Horsham or Manjimup workshop can test it.
When the module is changed, fit a new RF sealing ring (callout 15) and a fresh RF thermal conductive pad (callout 16), since a used pad rarely makes full contact again. Check that every plug on the module is latched before closing up.
