DJI

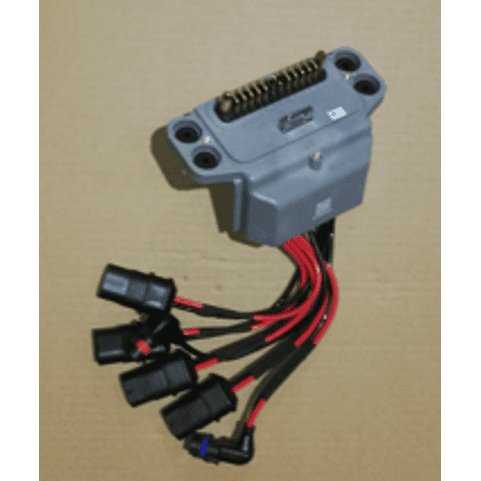

Power Distribution Board Module (T25P) BC.AG.SS000695
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
The power distribution board module for the DJI Agras T25P is part of the aircraft's power system and sits in the rear frame. It is callout 13 on the T25P rear frame sheet.
| Part number | BC.AG.SS000695 |
| Fits | DJI Agras T25P |
| Parts diagram | T25P rear frame, callout 13 |
Power faults can start at the battery, its contacts, the cabling or this board, so have the fault confirmed before replacing the module. Heat marks, corrosion on the terminals, or power warnings that persist with known-good batteries are all worth investigating. Our Horsham or Manjimup workshop can check it before you commit to a replacement.
The power distribution board waterproof cover is drawn beside it at callout 16; look it over when the board is changed. Each aircraft has its own board: the T50 uses BC.AG.SS000691, the T70P BC.AG.SS001023 and the T100 BC.AG.SS001090.
