DJI
One-Way Valve Sealing Ring (T25P) YC.JG.MY001129
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

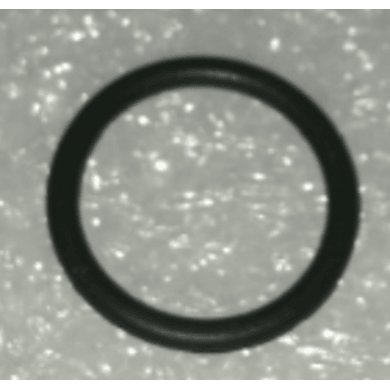

Sealing ring for the one-way valve in the flowmeter of the DJI Agras T25P, shown at callout 5 on the T25P flowmeter sheet among the valve parts.
| Part number | YC.JG.MY001129 |
| Fits | DJI Agras T25P |
| Parts diagram | T25P flowmeter, callout 5 |
Callout 6 beside it is the one-way valve core sealing ring, a separate part, and the T100 and T70P use their own one-way valve sealing ring, YC.JG.MY001774. Match the code to both the aircraft and the position.
A ring that is cut, squashed flat, swollen or brittle lets the valve leak. Renew it whenever the valve is opened, sit it evenly in its groove, and check the hose nut at callout 4 while the flowmeter is apart.
