DJI
Binocular Vision Sensors Sealing Ring (T50) YC.JG.MY001044
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

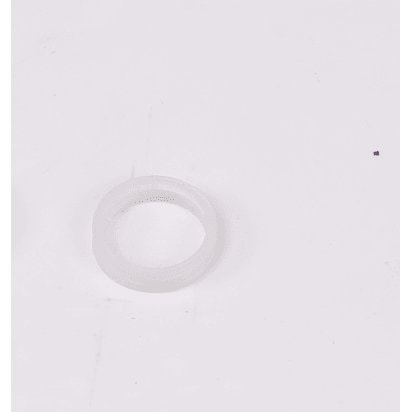

A sealing ring for the binocular vision sensors at the front of the DJI Agras T50, shown as callout 29 on the T50 front frame sheet. It keeps spray drift, dust and wash water away from the sensor opening.
| Part number | YC.JG.MY001044 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 front frame, callout 29 |
Renew it whenever the vision sensors are removed and the ring comes out flattened, torn, hard or out of shape, and any time you find moisture or fogging behind the sensor glass. Clear chemical residue from the seating groove before fitting, and make sure the ring is not twisted or pinched as the parts close up.
The same sheet lists a separate radar sealing ring at callout 33, so match the code before ordering. The front shell module is callout 32.
