Screw T30-HC00800080-057030-5103-N (T50/T25P) YC.ST.LL000235
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

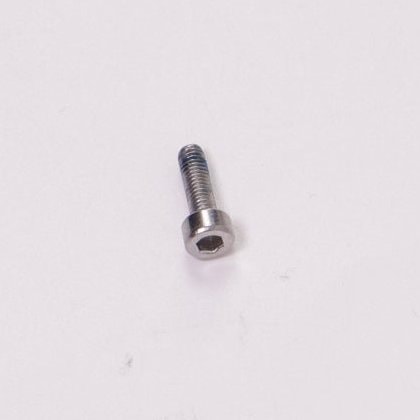

This T30-HC00800080-057030-5103-N screw is used at the front of the DJI Agras T50 and T25P. It appears on the T50 front cover of front shell and front frame sheets and twice on the first T25P front frame sheet.
| Part number | YC.ST.LL000235 |
| Fits | DJI Agras T50, T25P |
| Parts diagram | T50 front cover of front shell, callout 4; T50 front frame, callout 8; T25P front frame (sheet 1), callouts 10 and 12 |
Start it by hand so the thread runs true, and stop once it is snug; overtightening a small screw can strip the thread or crack the part it holds. A screw with a chewed-out head or worn thread should be thrown away, not refitted.
On the T50 front frame it is numbered next to the RF cable clip, and on the T25P sheet it sits either side of the buckle base (female). To identify a stray screw, contact us and send a photo plus the callout number.
