DJI

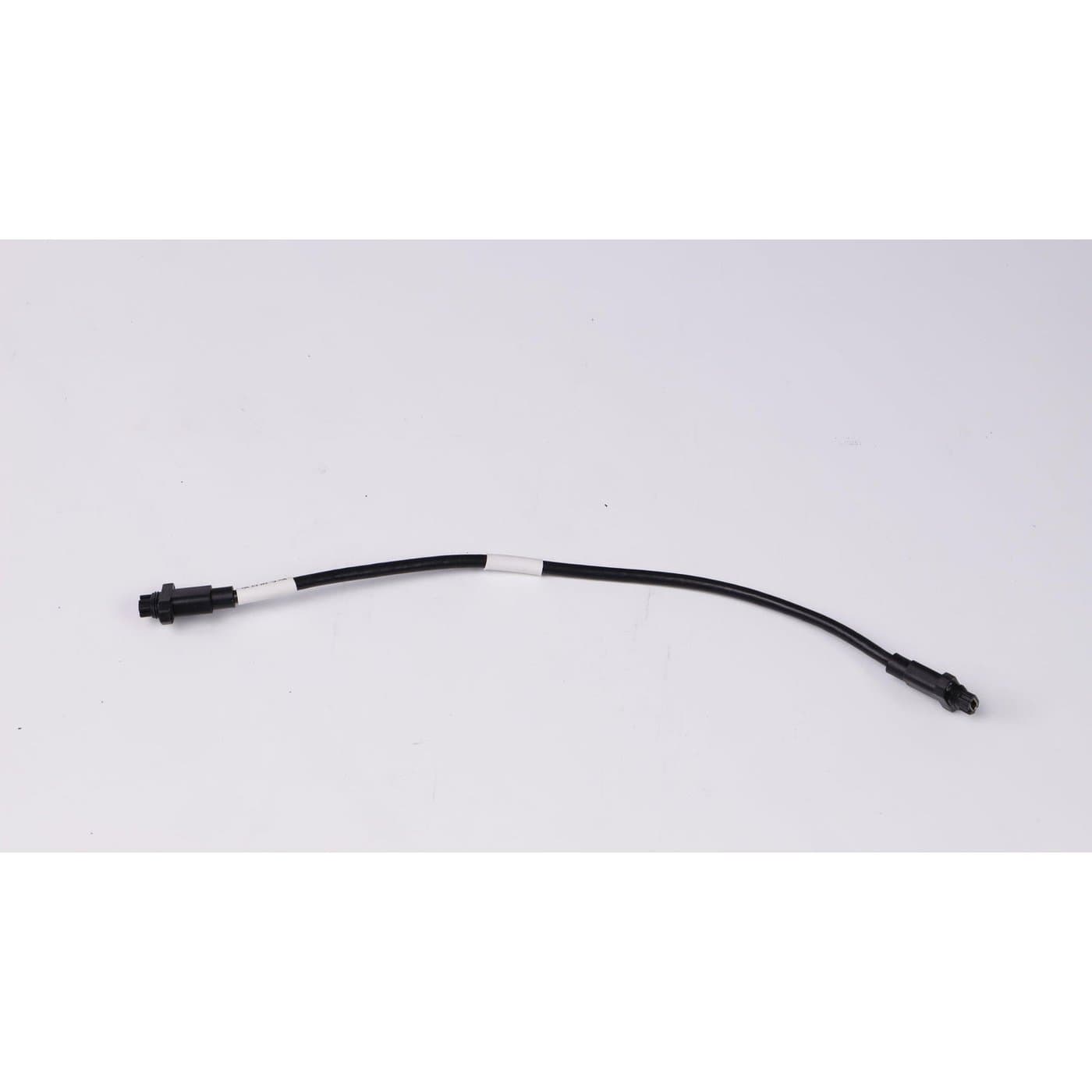

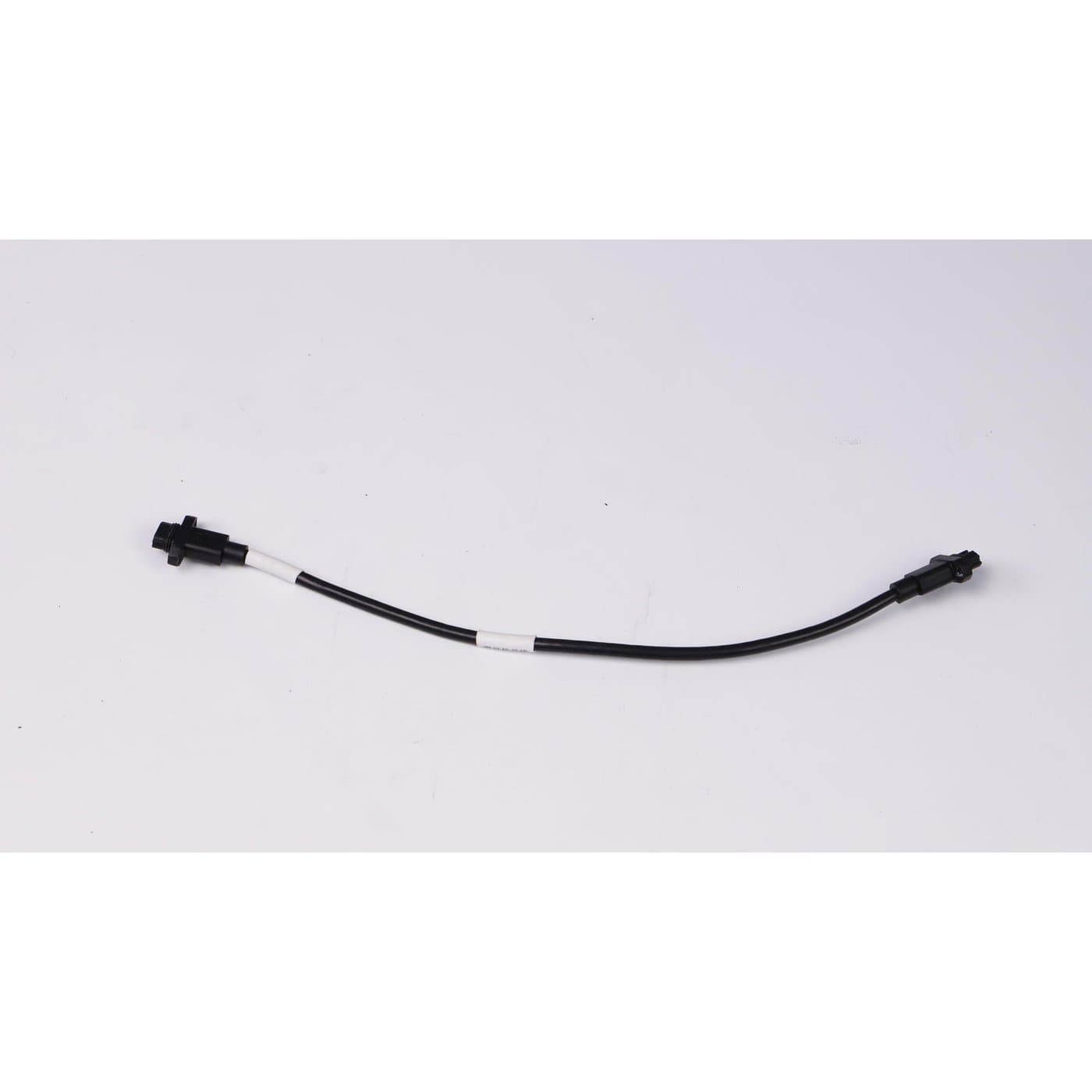

Forward Vision Sensor Signal Cable (T50) YC.XC.XX001013
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
On the DJI Agras T50, the forward vision sensor connects through this signal cable, numbered 4 on the T50 front frame sheet.
| Part number | YC.XC.XX001013 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 front frame, callout 4 |
Vision warnings, a forward sensor shown as disconnected, or obstacle sensing that drops out can come from this cable. Check both plugs for bent pins, dirt or a loose latch, and look along its run for chafing or a crushed section before replacing anything.
DJI's sheet lists the forward vision sensor module (callout 6) as including a signal cable, so this cable on its own is the part to order when the module is sound and only the lead is damaged. Check the damping silicone rubber (callout 5) while the front frame is open.
