DJI

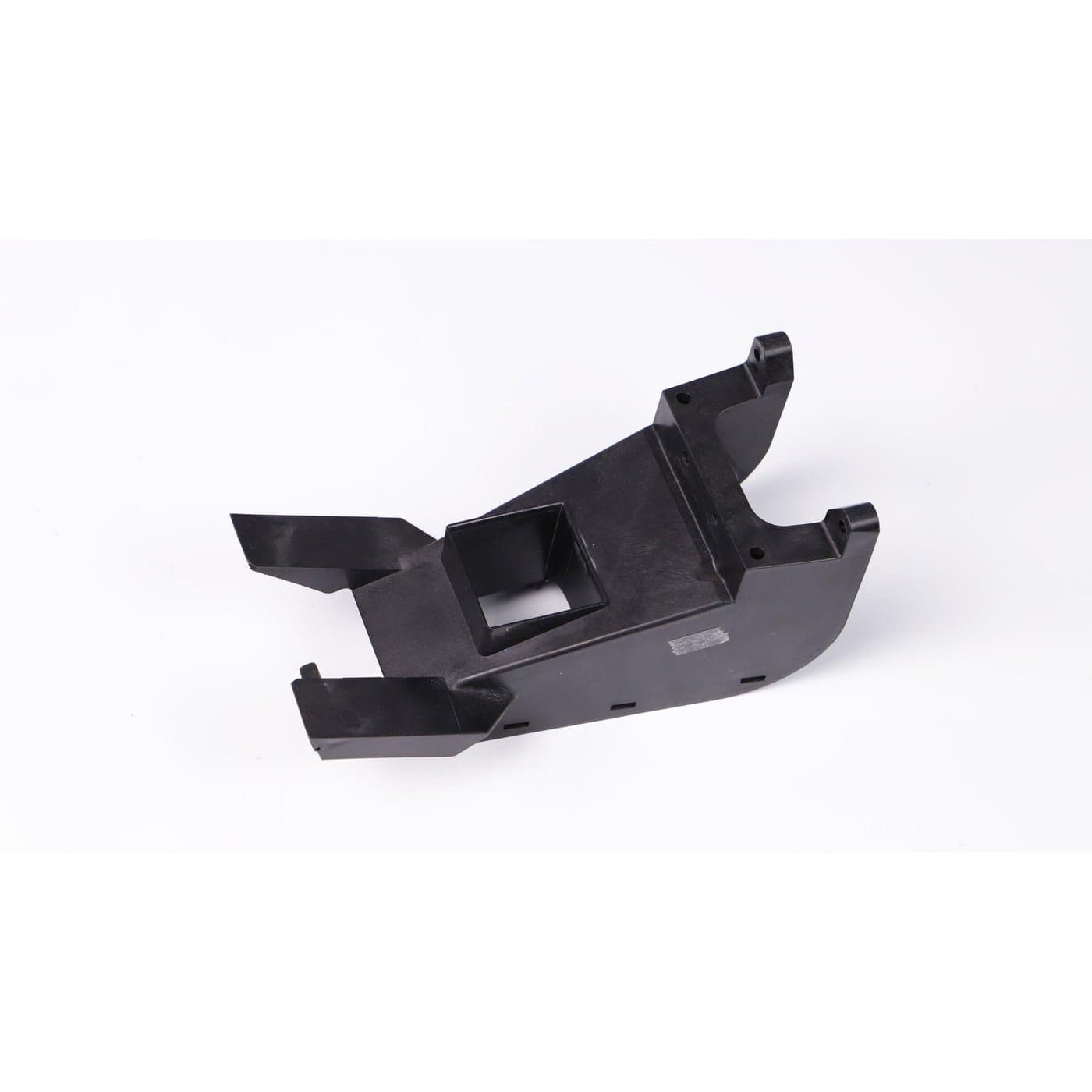

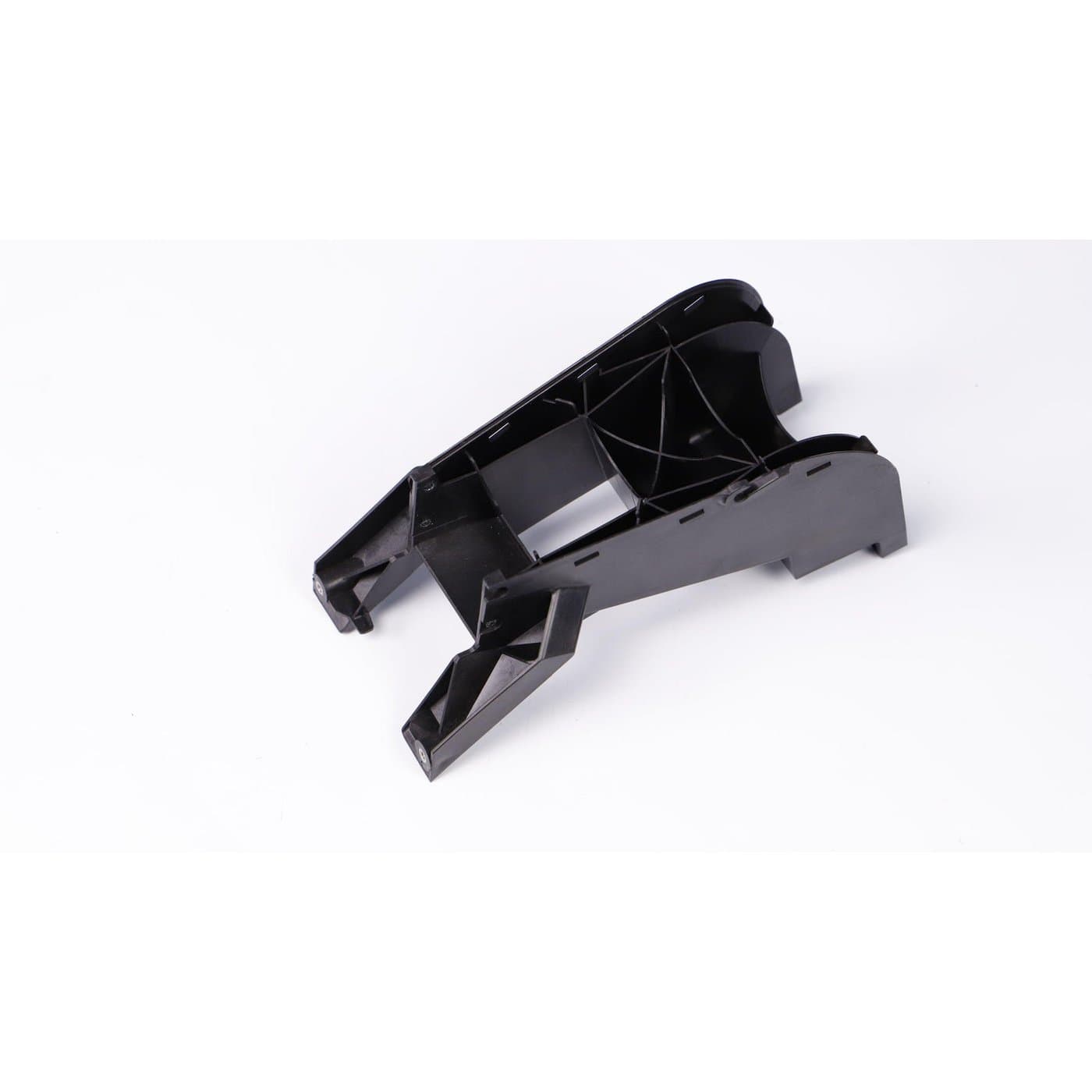

FPV Camera Bracket (T50) YC.JG.ZS003425
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
The FPV camera on a DJI Agras T50 is held by this bracket, callout 26 on the T50 front frame diagram. The FPV camera module itself is listed on the same sheet at callout 21.
| Part number | YC.JG.ZS003425 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 front frame, callout 26 |
If the live view from the front camera shakes, sits at a skewed angle, or the camera moves when pressed lightly, look for a cracked or bent bracket or a broken screw boss. When the picture is lost altogether the bracket is unlikely to be the cause; check the FPV camera module and its plug first.
Refit the camera squarely and make sure nothing presses on the lens once the shell is closed. The same sheet lists the front frame aluminium tube at callout 25 and the outer shell side cover at callout 31.
