DJI
Front Shell Bottom Plate (T50) YC.JG.ZS003388
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

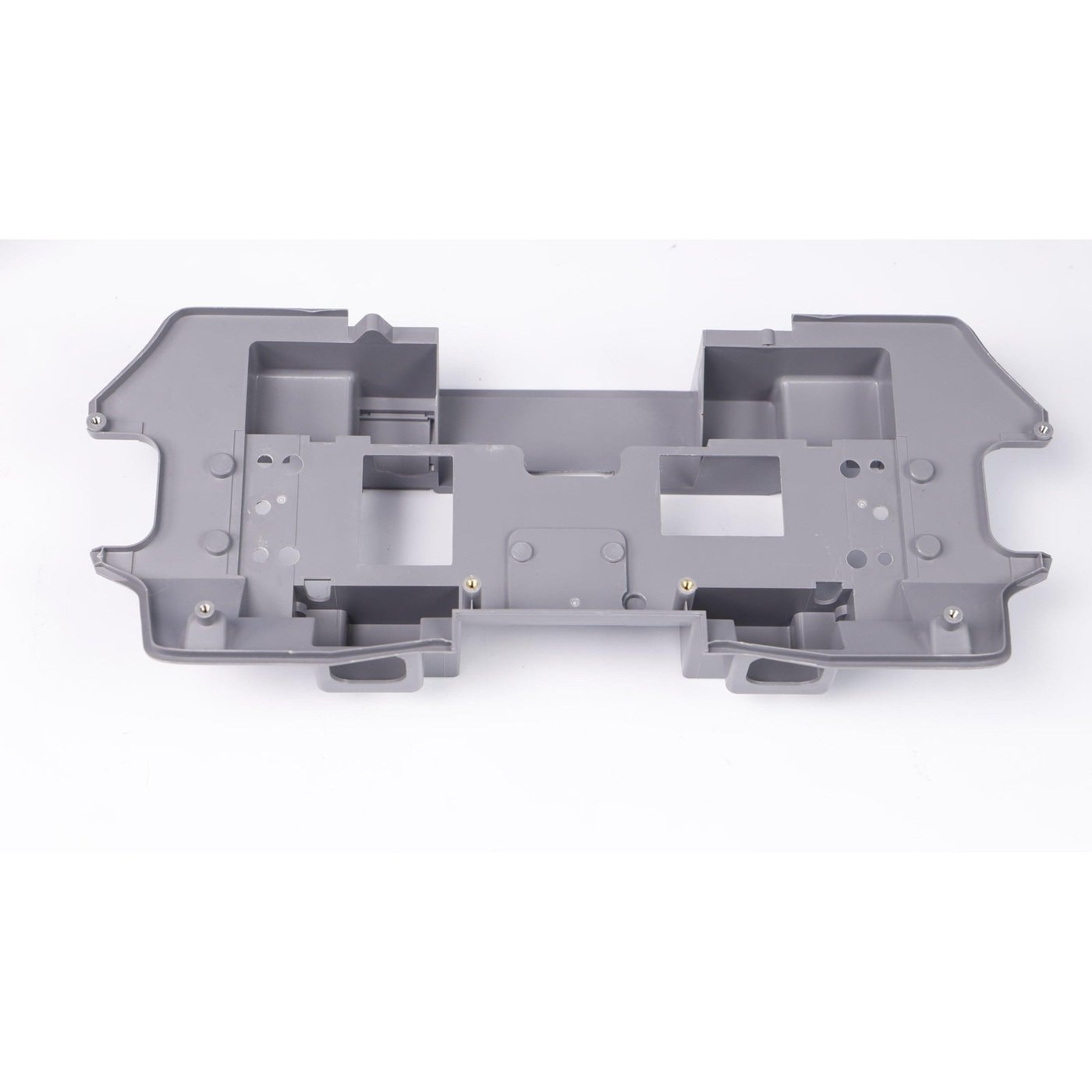

This plate closes off the underside of the front shell on the DJI Agras T50. It is callout 24 on the T50 front frame diagram, the sheet that also carries the FPV camera and forward radar parts.
| Part number | YC.JG.ZS003388 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 front frame, callout 24 |
Sitting under the nose, it is exposed to stubble, stones and mud thrown up on take-off and landing. Replace it if it is cracked, warped or no longer sits flush, or if a broken mounting point lets it rattle in flight. Before refitting, check that the front shell sealing stopper at callout 22 is still seated.
On the sheet it is numbered between the M40 screw at callout 23 and the front frame aluminium tube. Each aircraft has its own plate: the T70P uses YC.JG.ZS006145 and the T25P uses YC.JG.ZS004478.
