DJI

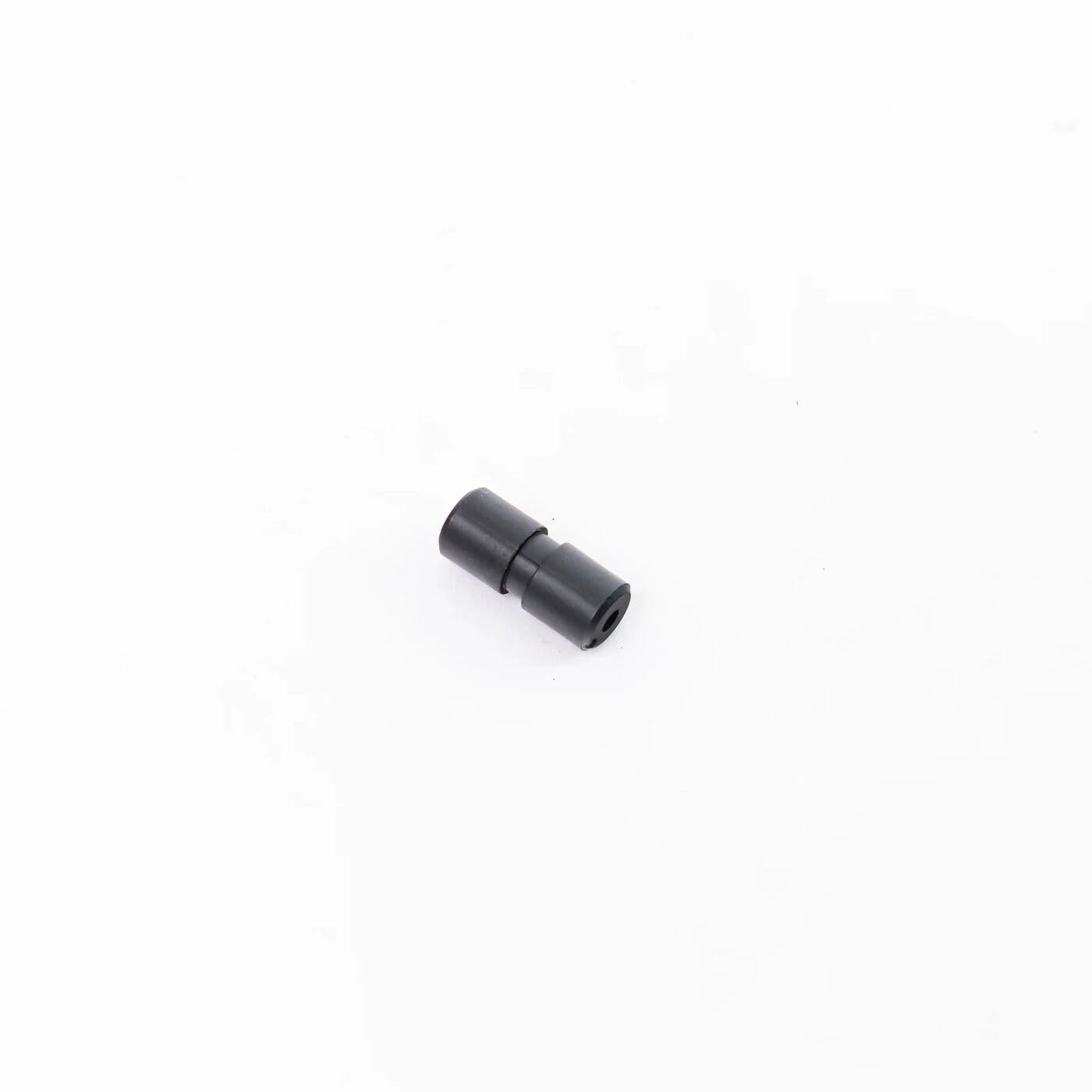

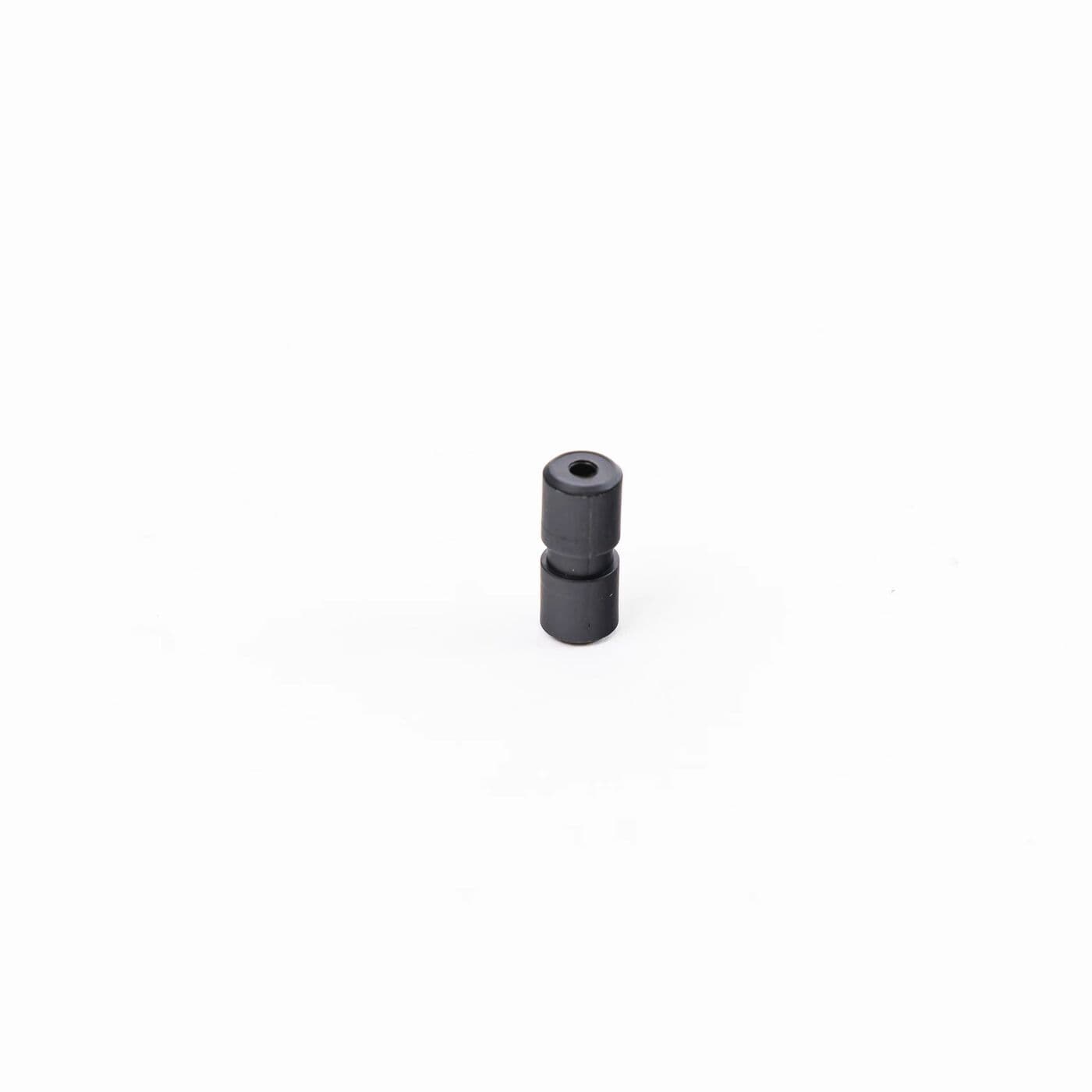

Spray Tank Fixing Piece_Internal Roller (T100/T50/T25P) YC.SJ.WS002500
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
This internal roller is part of the spray tank fixing in the middle frame of the DJI Agras T50 and T25P, and both diagrams draw it with the spray tank fixing piece roller shaft.
| Part number | YC.SJ.WS002500 |
| Fits | DJI Agras T100, T50, T25P |
| Parts diagram | T50 middle frame, callout 4; T25P middle frame, callout 18 |
A roller only does its job while it turns, so look for grit or dried spray mix binding it to the shaft, and for a crack or flat spot if the tank has been forced into place. With the tank out, spin the roller by hand: it should turn freely and without wobble. Replace one that binds, is cracked or has worn out of round, and clean the roller shaft before fitting the new roller. A regular wash of the frame around the tank mount keeps the new one turning.
EE Group's parts list sells the same roller as a T100 part, although no T100 parts diagram shows where it sits. If you are ordering for a T100 and are unsure, send a photo of the old roller through our contact page and we can help identify it.
