DJI

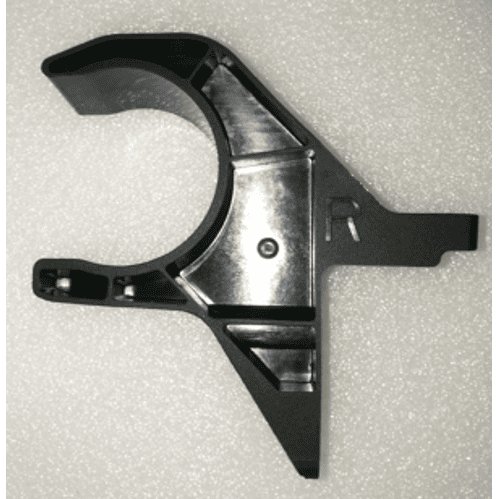

Aircraft Arm Fixing Piece - Right (T25P) YC.JG.ZS003413
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
The right-hand aircraft arm fixing piece is part of the arm mounting on the DJI Agras T25P middle frame. It is callout 7 on the middle frame sheet, listed between an M40 screw and the weighing sensor bracket roller.
| Part number | YC.JG.ZS003413 |
| Fits | DJI Agras T25P |
| Parts diagram | T25P middle frame, callout 7 |
If an arm has play where it meets the frame after a crash or heavy landing, inspect this piece for cracks, elongated screw holes or distortion; a distorted piece will not clamp the arm securely. Wipe both mating faces clean before fitting the replacement. The sheet lists M40-HC01400140-070042-4203-Y screws at callouts 2 and 6; renew any with damaged heads or threads.
The name marks this as the right-hand piece, so check which side of the frame is damaged before ordering. The T50 uses its own right fixing piece, YC.JG.ZS003463.
