DJI
Landing Gear Fixing Piece - Front Left (T50/T25P) YC.JG.ZS003465
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

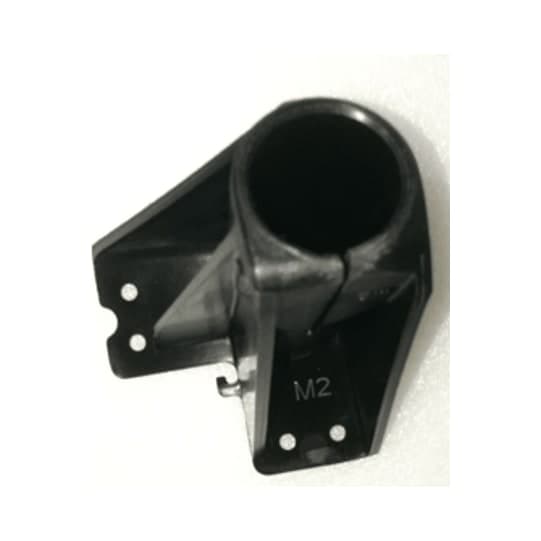

Of the four landing gear fixing pieces on a DJI Agras T50 or T25P, this is the front-left one, joining that leg to the frame. The T50 draws it on its landing gear sheet and the T25P on its middle frame sheet.
| Part number | YC.JG.ZS003465 |
| Fits | DJI Agras T50, T25P |
| Parts diagram | T50 landing gear, callout 18; T25P middle frame, callout 26 |
Each corner has its own fixing piece and code, so the front-right, rear-left and rear-right pieces are separate parts. Hard landings, a leg caught on a stump or trellis wire, or the aircraft tipping on rough ground all put load through this corner. Replace it if it is cracked, the screw holes have worn oval, or the leg no longer lines up with the other three. Tighten the fixing screws evenly so the leg pulls up square.
If the other front corner took the same knock, the front-right fixing piece is sold separately.
