DJI
Impeller Pump Motor (T50/T25P) BC.AG.SS000543
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

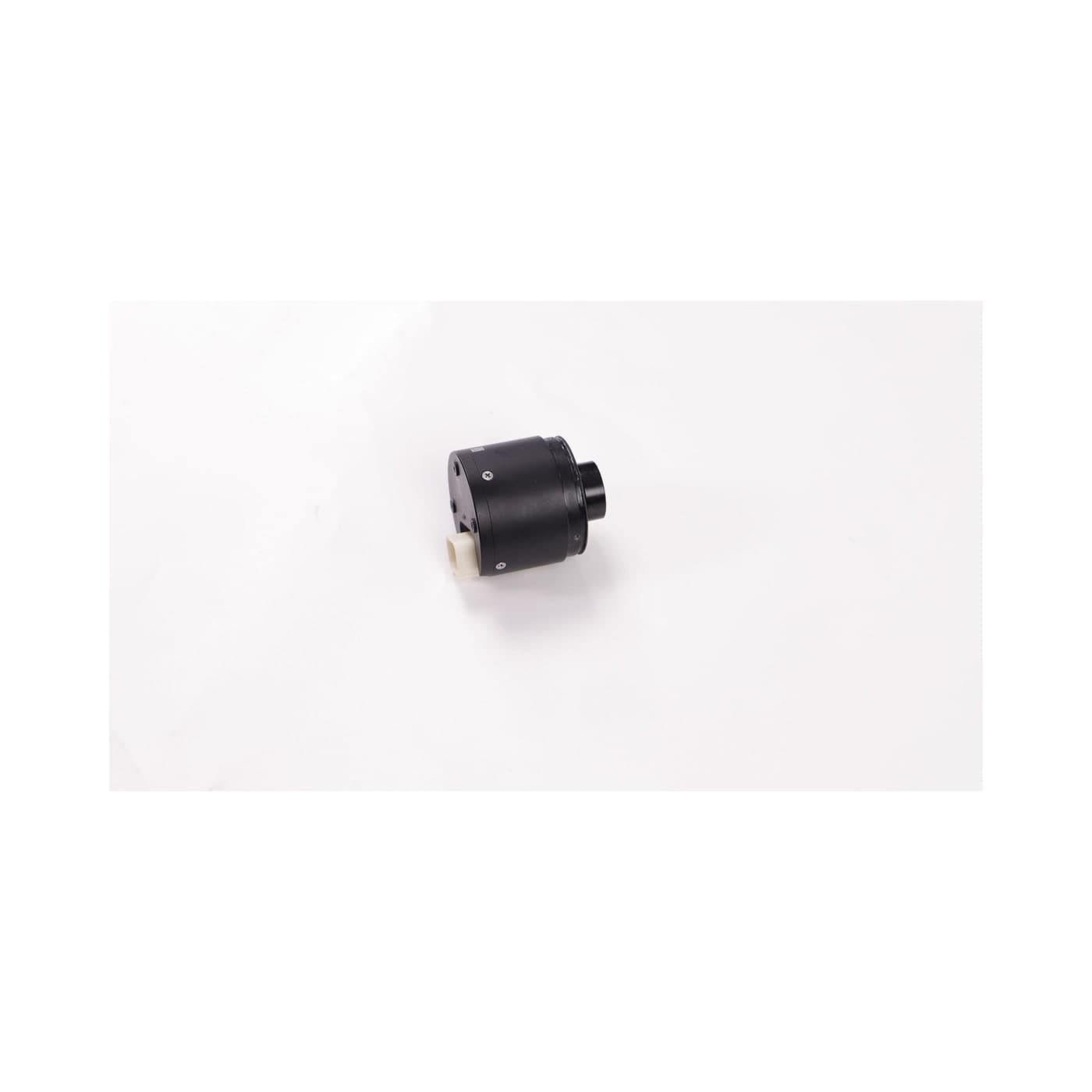

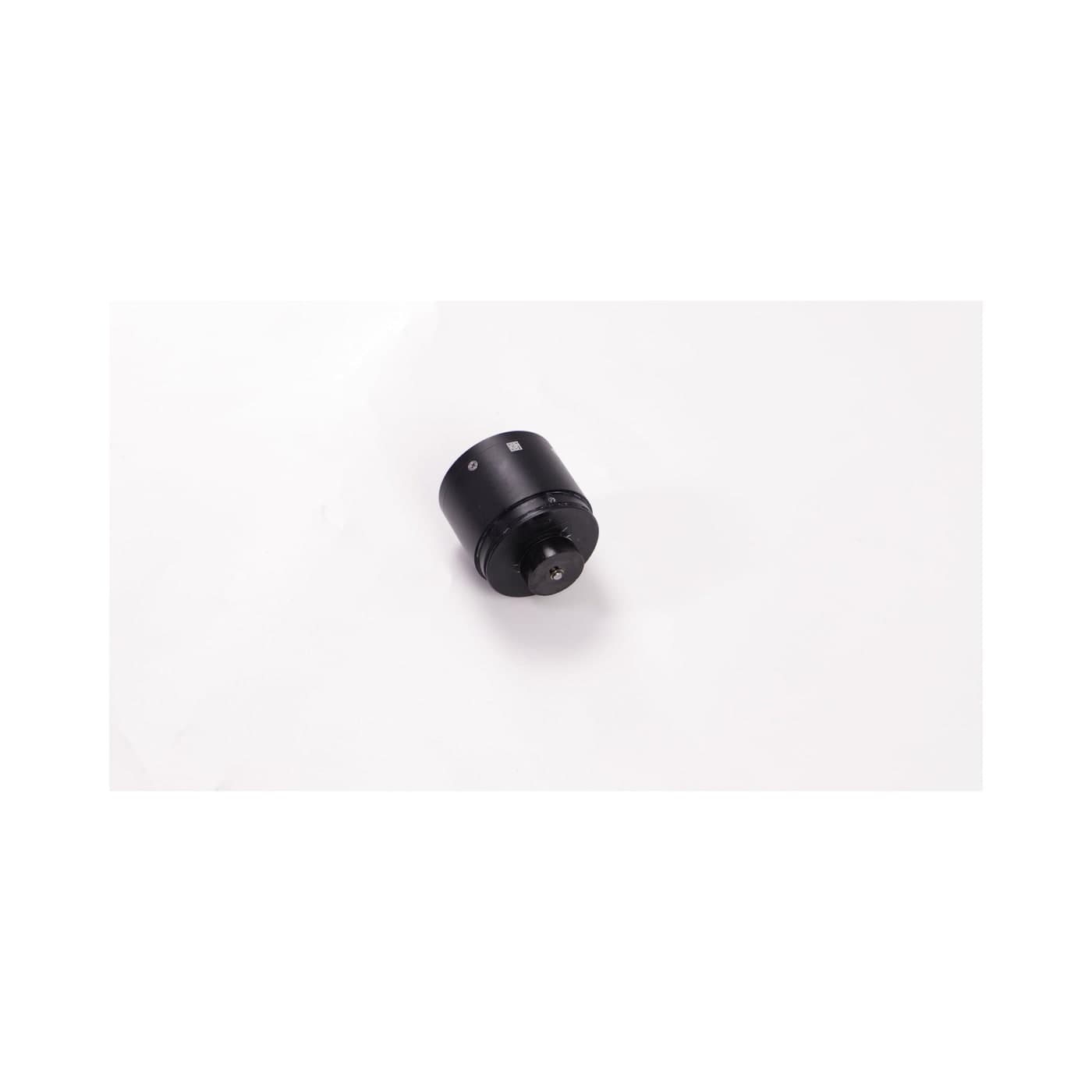

Powering the impeller pump on the DJI Agras T50 and T25P, this motor spins the impeller that pushes spray mix from the tank out to the sprinklers. The T50 impeller pump diagram shows it at callout 3.
| Part number | BC.AG.SS000543 |
| Fits | DJI Agras T50, T25P |
| Parts diagram | T50 impeller pump, callout 3; T25P impeller pump, callout 14 (sheet code BC.AG.SS000870) |
Suspect the motor if the pump will not run, flow is weak or uneven, or it sounds rough. A blocked filter, a kinked hose or a poor cable connection can give the same symptoms, so rule those out before changing it. If mix has reached the motor, find the leaking seal before the replacement goes in.
The T25P pump sheet numbers its motor BC.AG.SS000870, and EE Group supplies this motor for that position. The T100 and T70P sheets show different impeller pump motors. Renew the pump sealing ring and Y-tee part sealing pad while the pump is apart, then run clean water through and confirm steady flow before spraying.
