DJI
Impeller Pump Protective Hood (T50/T25P) YC.JG.ZS002389
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

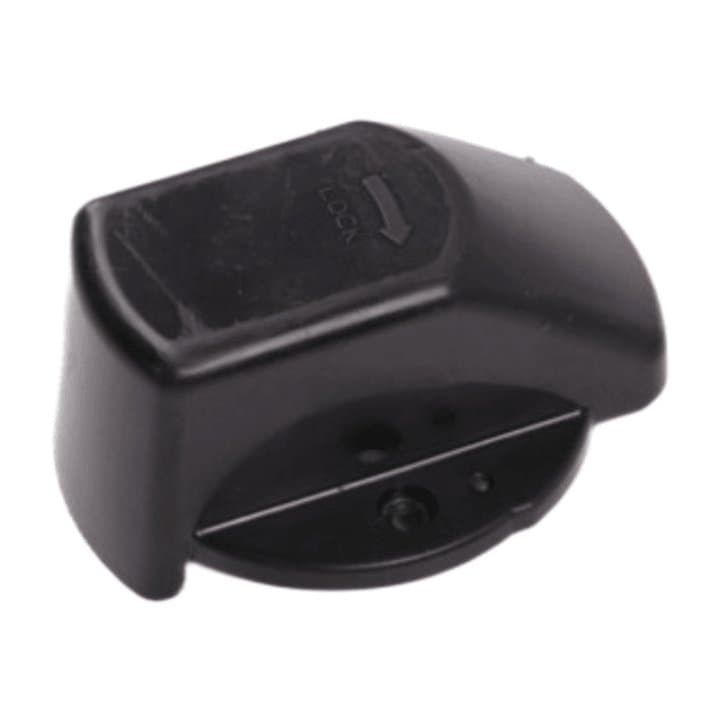

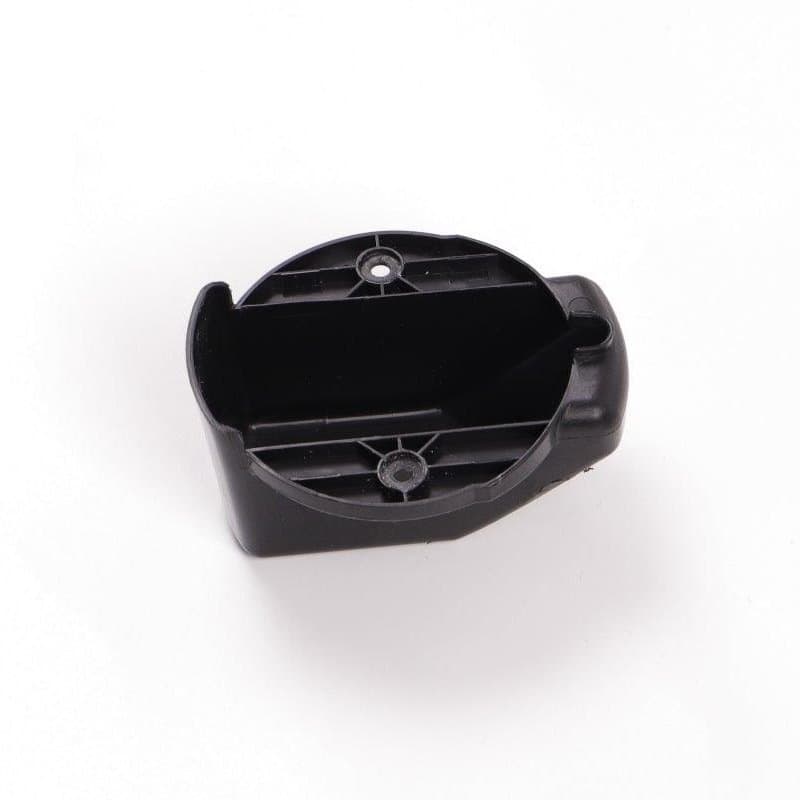

Shielding the impeller pump of the DJI Agras T50 and T25P, this protective hood is callout 2 on the T50 impeller pump sheet and callout 12 on the T25P one.
| Part number | YC.JG.ZS002389 |
| Fits | DJI Agras T50, T25P |
| Parts diagram | T50 impeller pump, callout 2; T25P impeller pump, callout 12 |
The hood shields the pump from knocks and spray residue. Replace it if it is cracked, broken at a fixing point, or no longer sits square. The M30-HC060060-55-85 screw is listed with it on both sheets (callout 1 for the T50, callout 11 for the T25P), so check those screws and their threads whenever the hood comes off.
One code covers both aircraft. On the T50 drawing the impeller pump motor comes straight after it; the T25P sheet lists the 46.5 mm sealing ring a few places later, at callout 15.
