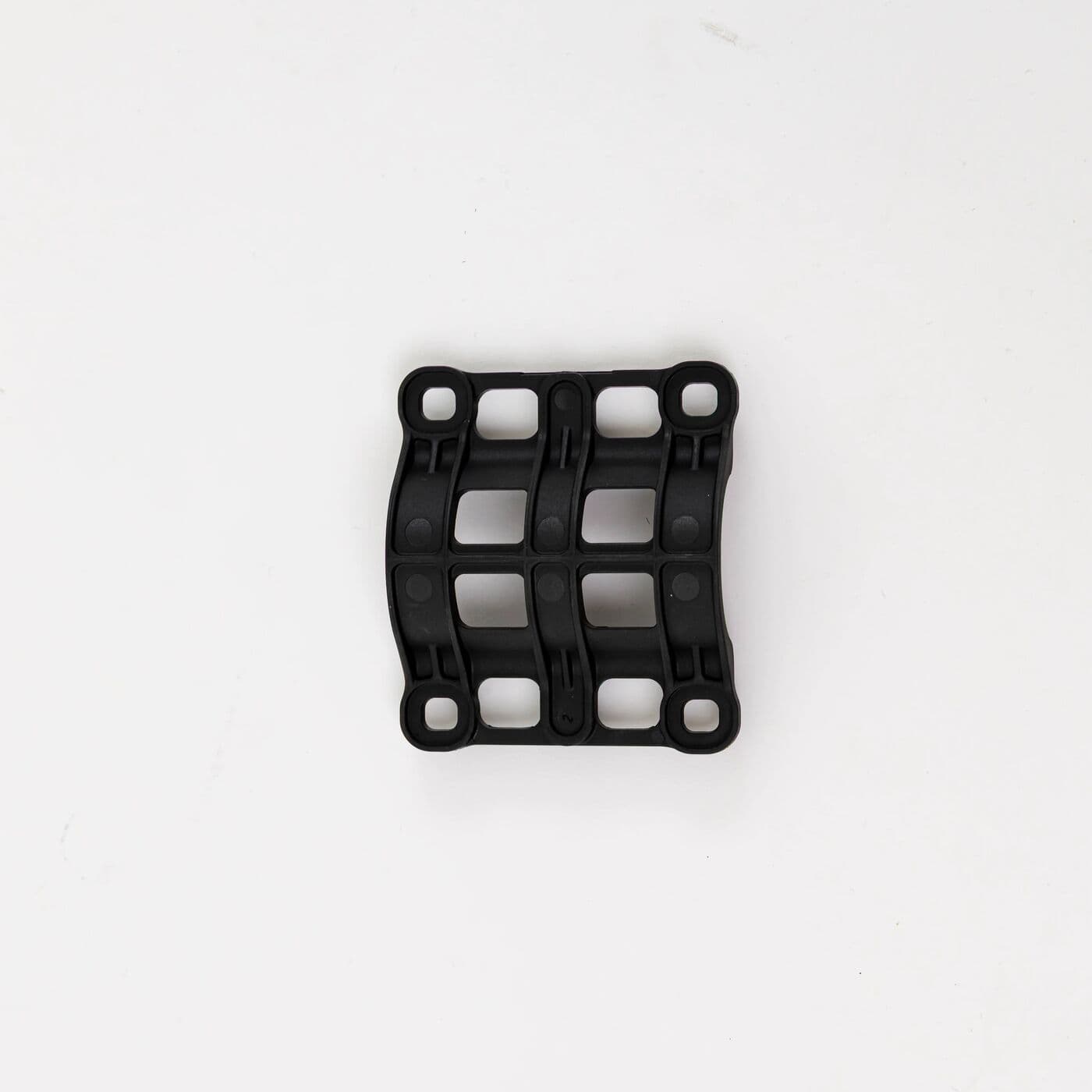

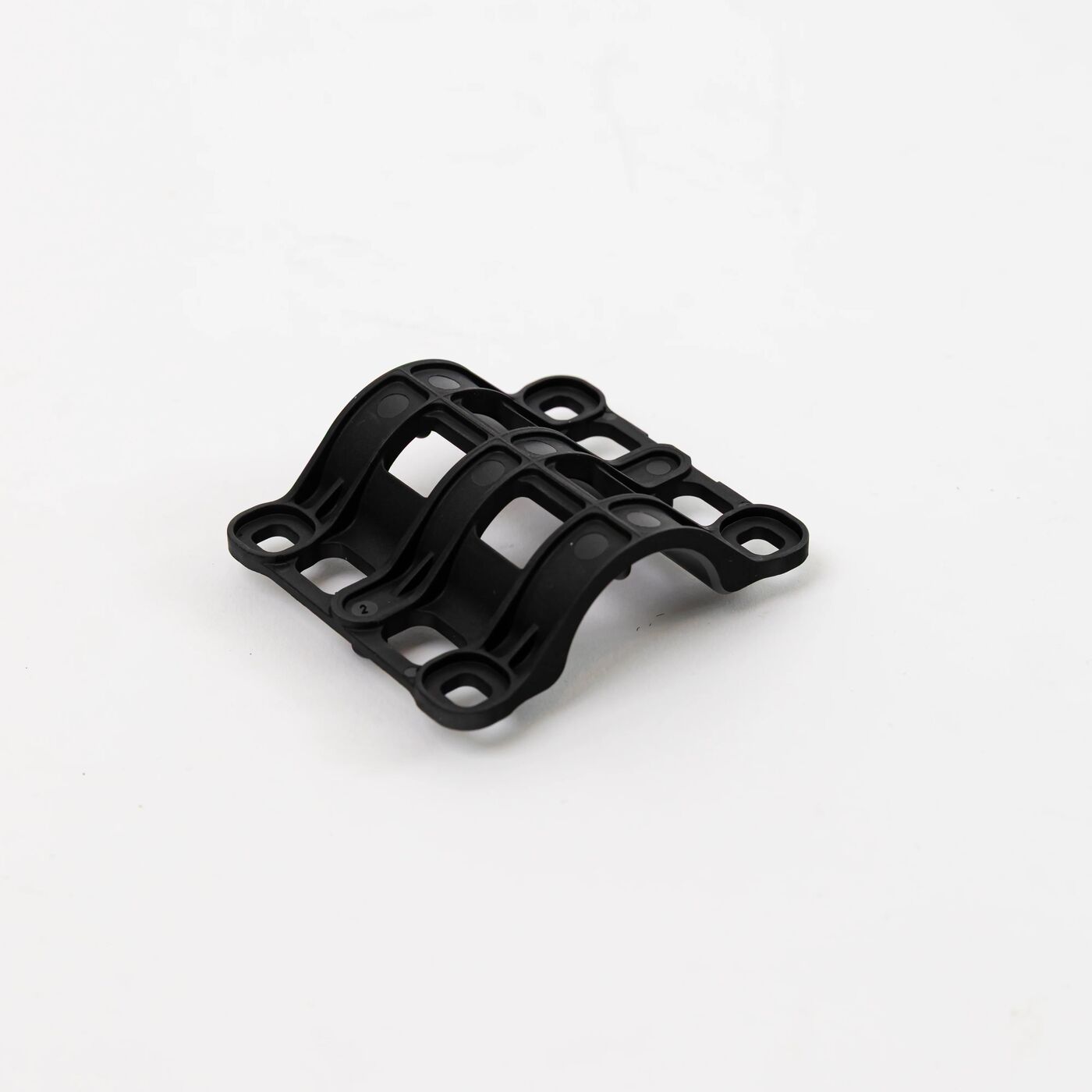

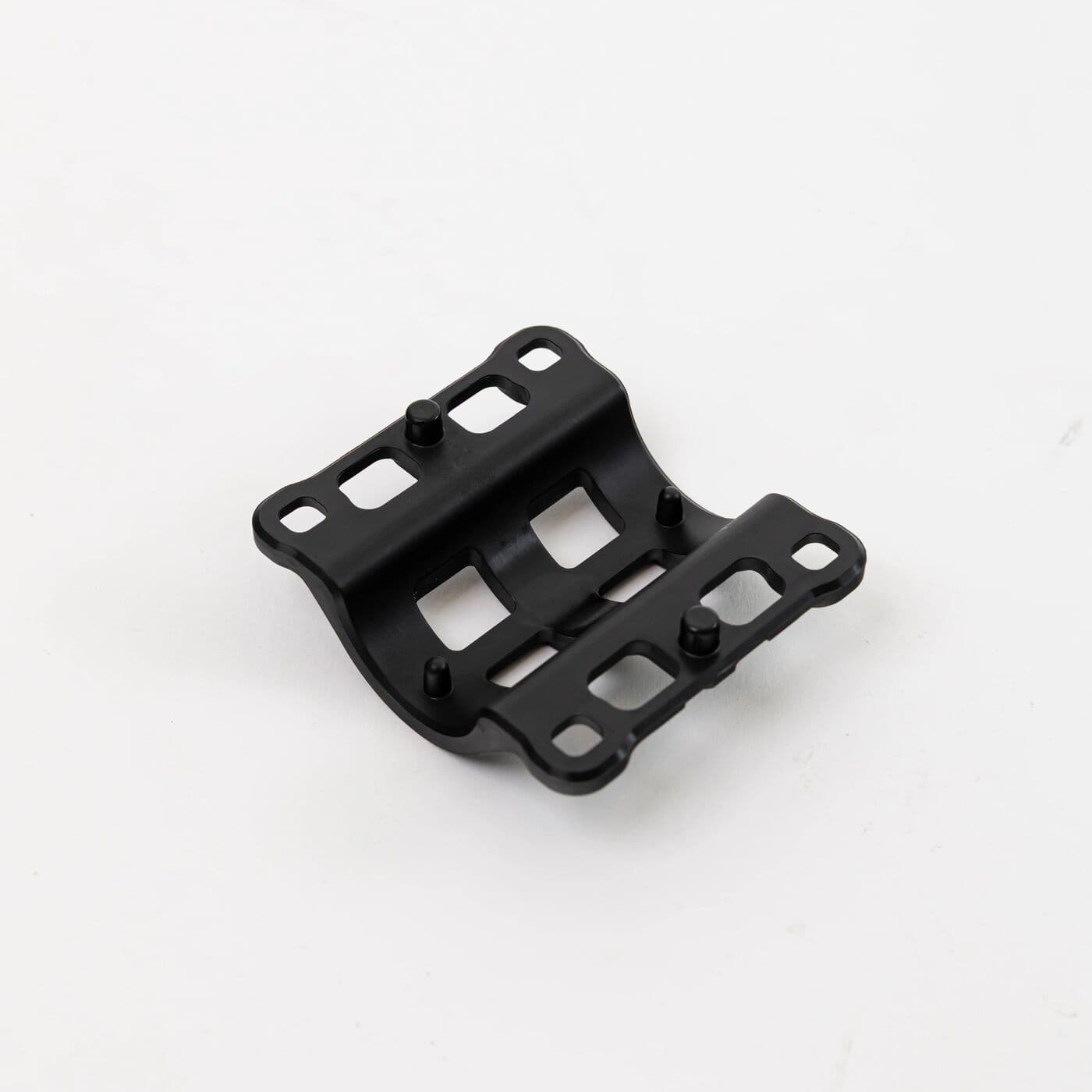

Spray Tank C-Type Mounting Piece (T100) YC.JG.ZS006630
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Part of how the spray tank is mounted on the DJI Agras T100, this C-type mounting piece is callout 20 on the second landing gear sheet of DJI's parts diagram.
| Part number | YC.JG.ZS006630 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 landing gear (sheet 2), callout 20 |
| Supplied as | One mounting piece |
DJI's parts photo for this sheet shows four of these curved, open-frame pieces, two laid out by each crossbeam, although only one is numbered. Each sits beside four M40-HCW01000070 screws (callout 19). Order one for each piece you are replacing.
Replace a piece that is cracked, broken or distorted, or one that no longer lets the tank sit firmly, before the tank goes back into service. Heavy landings and knocks during transport or tank handling can damage it. While you are there, check the front and rear landing gear crossbeams from the same sheet.
