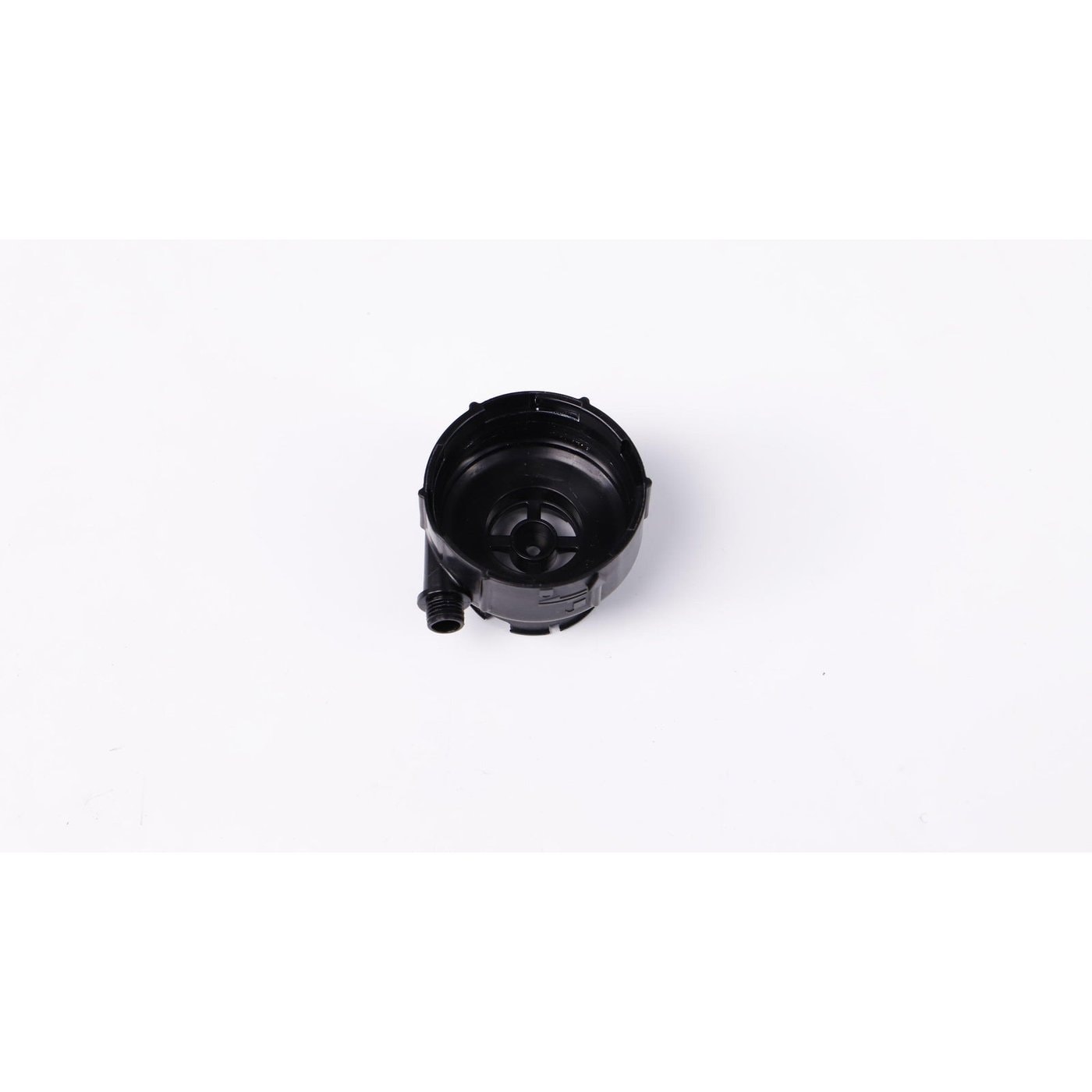

Impeller Pump Shell (T50) YC.JG.ZS003418
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Housing for the impeller pump on the DJI Agras T50, shown as callout 6 on the T50 impeller pump sheet between the centrifugal valve rubber pad and the water outlet rotation cover.
| Part number | YC.JG.ZS003418 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 impeller pump, callout 6 |
A shell cracked by an impact, by over-tightening, or by water freezing inside it will let mix escape and can let the pump draw air, so flow drops or turns uneven. Look for hairline cracks around the fittings and screw points.
With the shell open, check the pump sealing ring and the centrifugal valve rubber pad, and renew any that are flattened. If flow faults continue with a sound shell, the impeller pump motor may need a test at our Horsham or Manjimup workshop.
