DJI

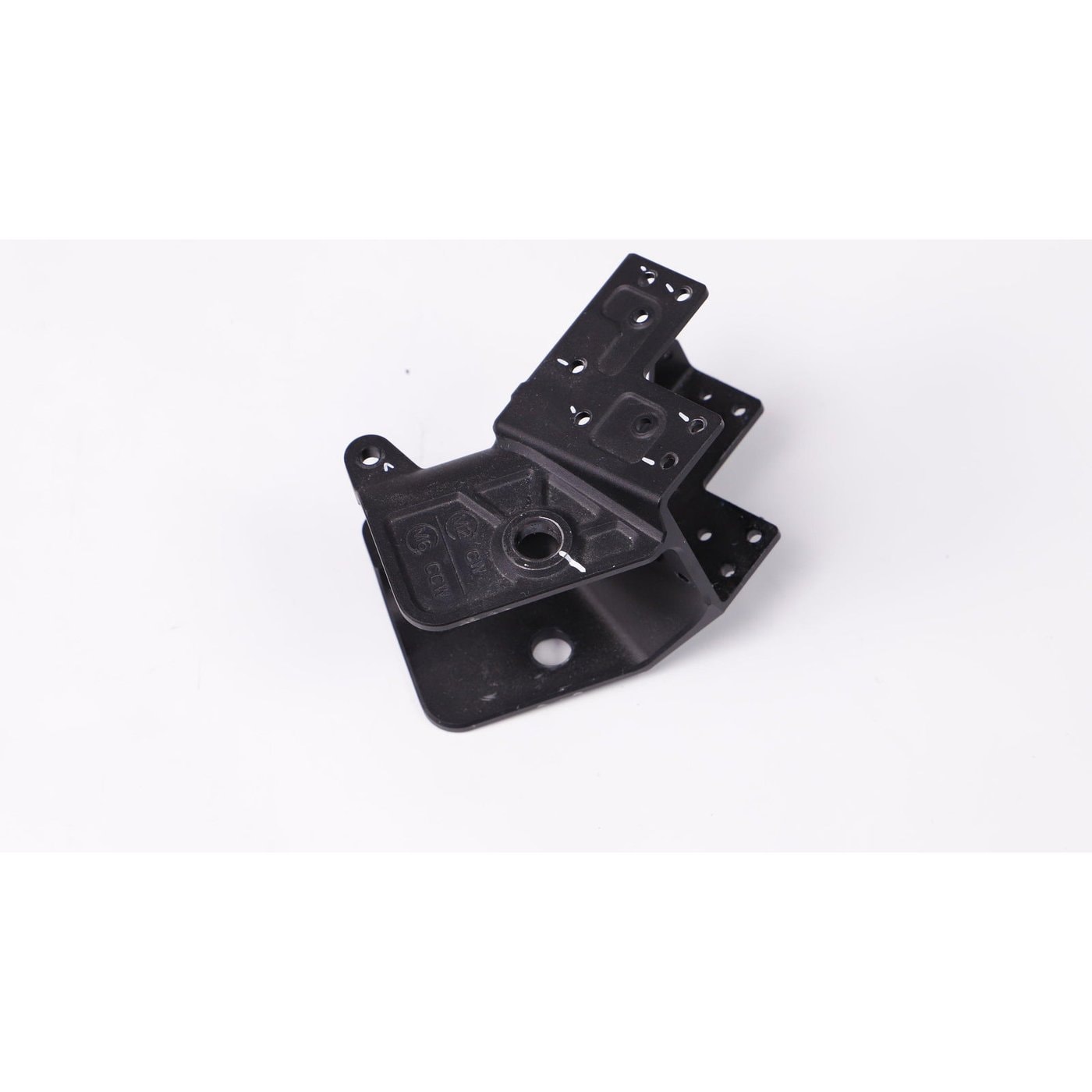

M2 Aircraft Arm Connector (T50) BC.AG.SS000684
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
The front left arm of the DJI Agras T50 attaches to the middle frame at the M2 aircraft arm connector, callout 24 on the middle frame sheet.
| Part number | BC.AG.SS000684 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 middle frame, callout 24 |
It is listed beside the aircraft arm fixing piece (left) and, at callout 23, the M40-HC01050056-070039-5103-Y screw. After a hard landing, inspect it for cracking around its fixing points and check whether the arm sags or shifts.
Have the frame checked before ordering; our Horsham or Manjimup workshop can confirm which parts took the damage. The M1 connector is BC.AG.SS000683, and the T70P uses its own M2 aircraft arm connector, BC.AG.SS000901.
