DJI
Bottom Rubber Pad (T100) YC.JG.ZS006655
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

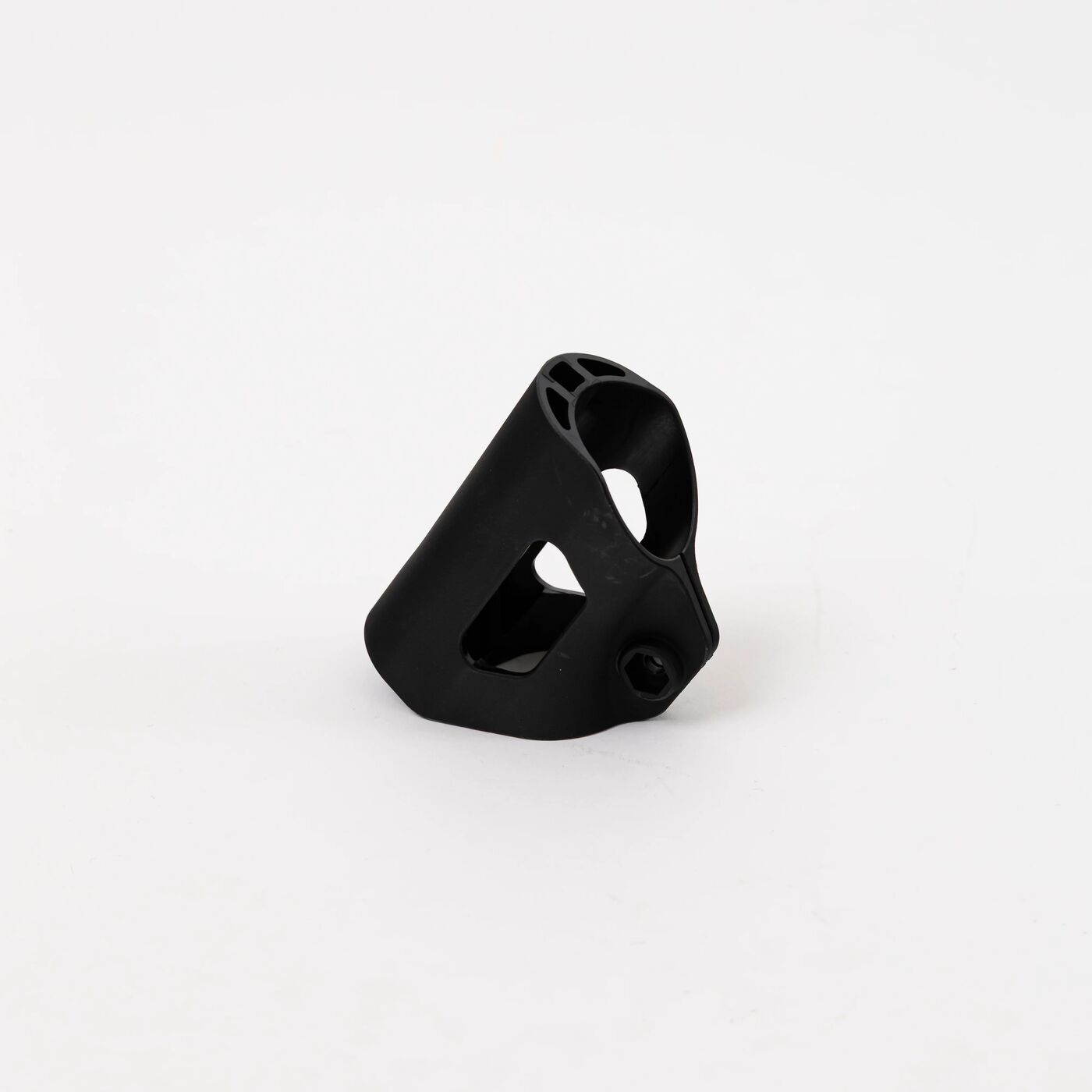

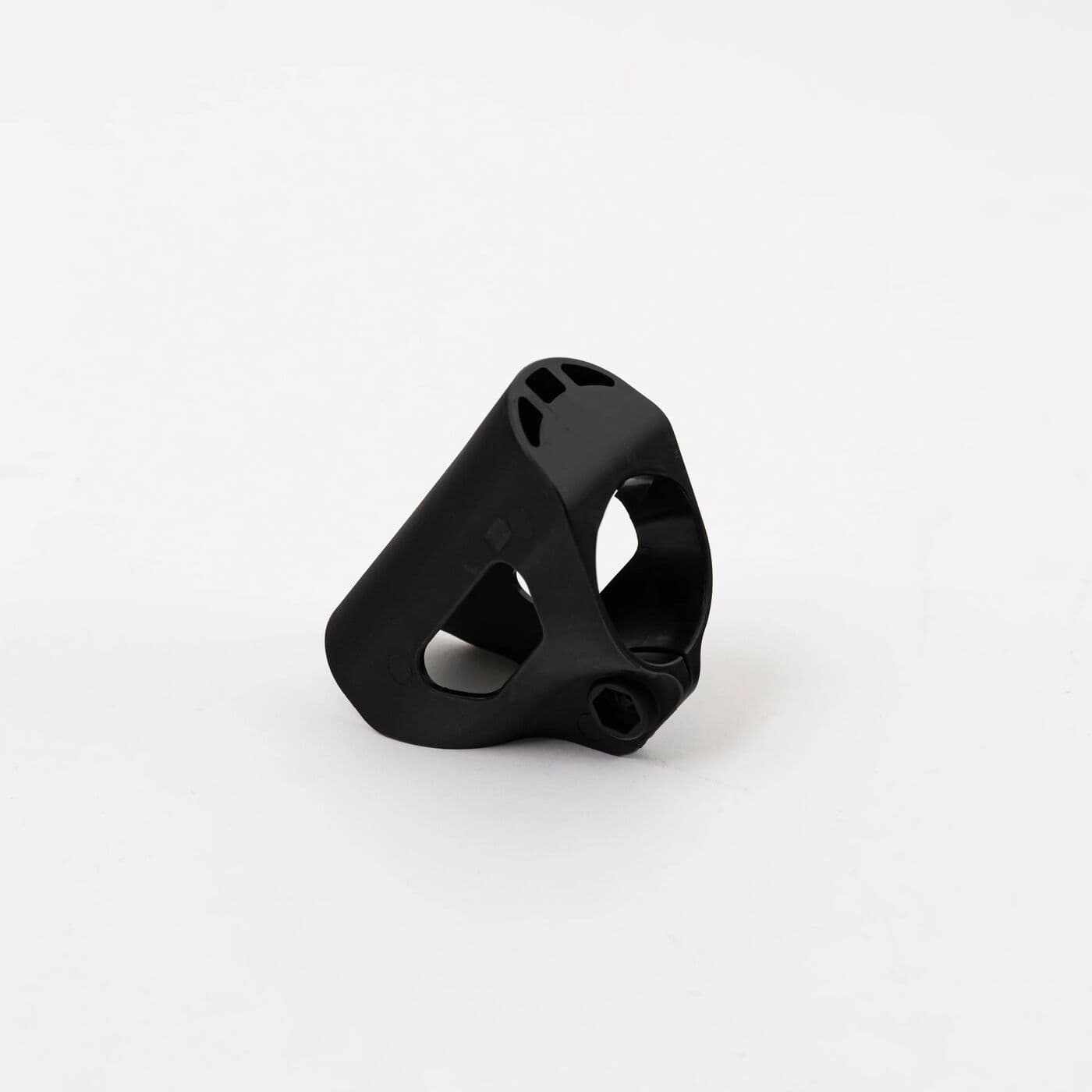

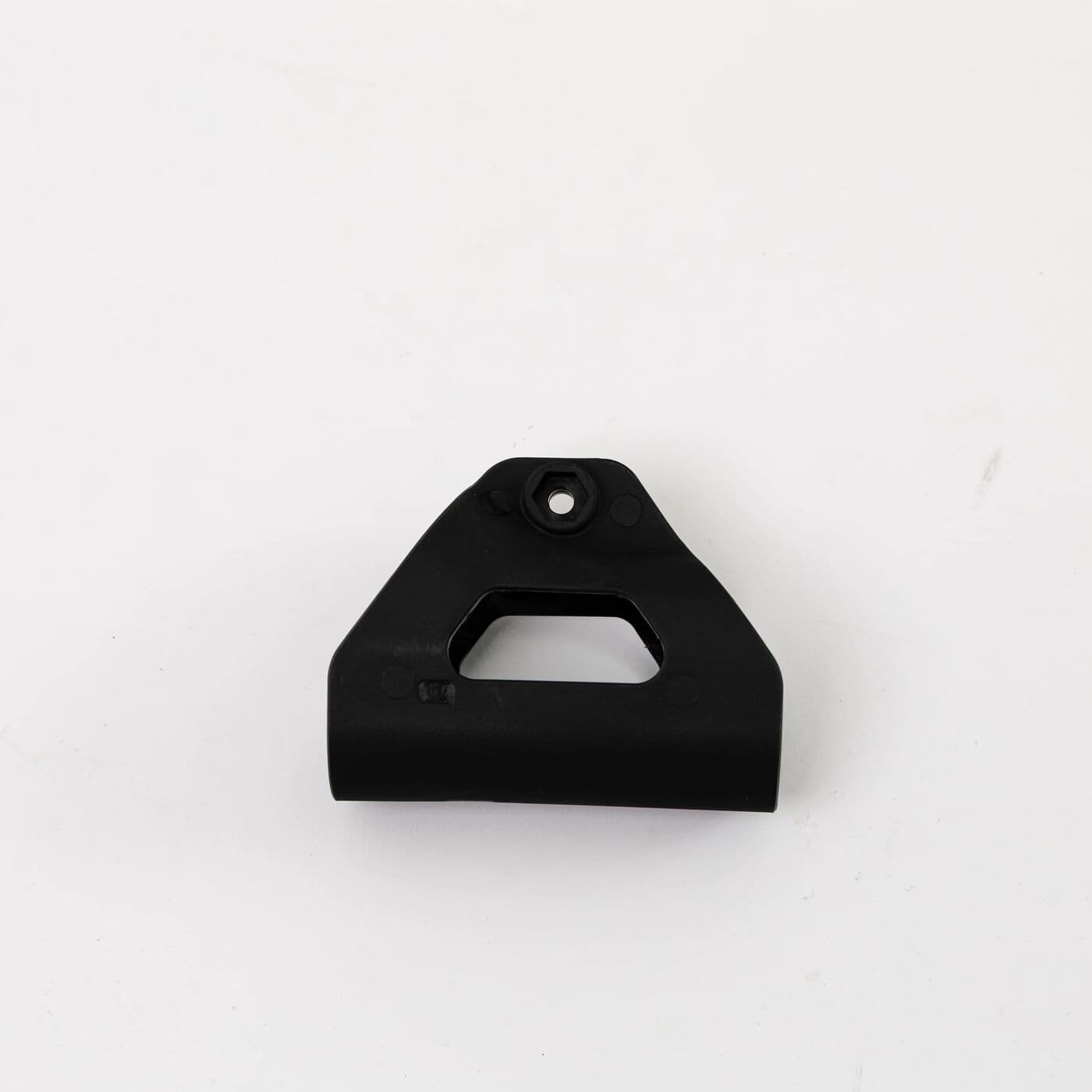

The bottom rubber pad is a moulded pad for the DJI Agras T100 landing gear. One part number serves all three T100 landing gear set-ups (spray, spreading and lift), so the same pad suits whichever you fly.
| Part number | YC.JG.ZS006655 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 landing gear (sheet 1), callout 8; T100 spreading landing gear, callout 7; T100 lift system landing gear (sheet 2), callout 5 |
DJI's parts photo for each of these sheets shows four pads, each with a curved channel that seats against a landing gear tube, and each laid out beside one M40-HC01400115 screw and one M40-HX088065-5103 hex nut. The photos show loose parts rather than the assembled gear, so they do not confirm its exact position; the name places it on the lower part of the gear.
Check the pads during routine cleaning and replace any that are split, worn thin, hardened or missing, fitting the new pad in the same spot and orientation. The anti-collision soft rubber shares these three sheets, so inspect it in the same pass.
