DJI
Spray Lance Outer Shell (T100) YC.JG.ZS006356
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
The outer shell is the outside casing of the DJI Agras T100 spray lance, shown at callout 8 on DJI's spray lance sheet. The same code appears at callout 14 on the T100 mist kit external spray boom sheet.
| Part number | YC.JG.ZS006356 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 spray lance, callout 8; T100 mist kit external spray boom, callout 14 |

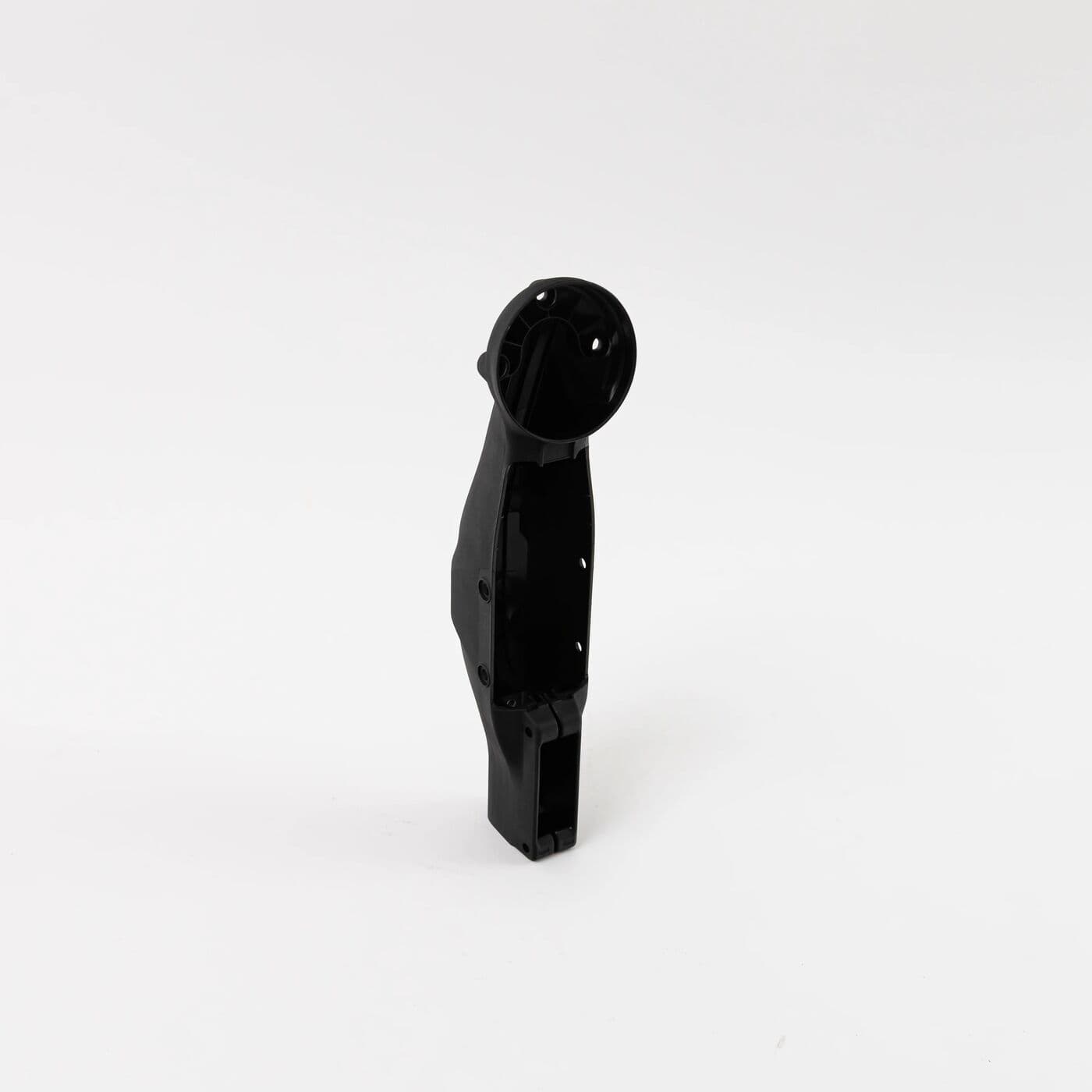

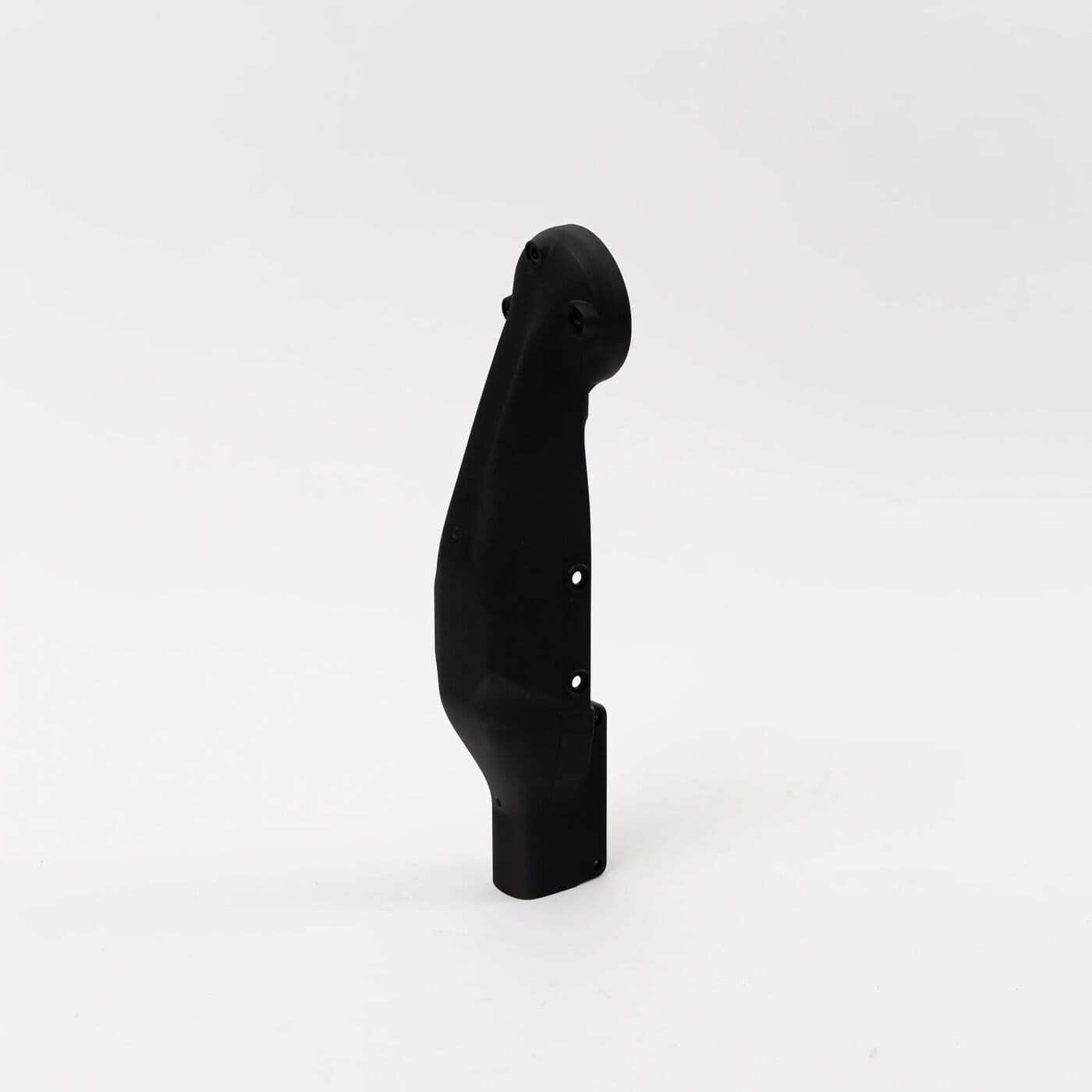

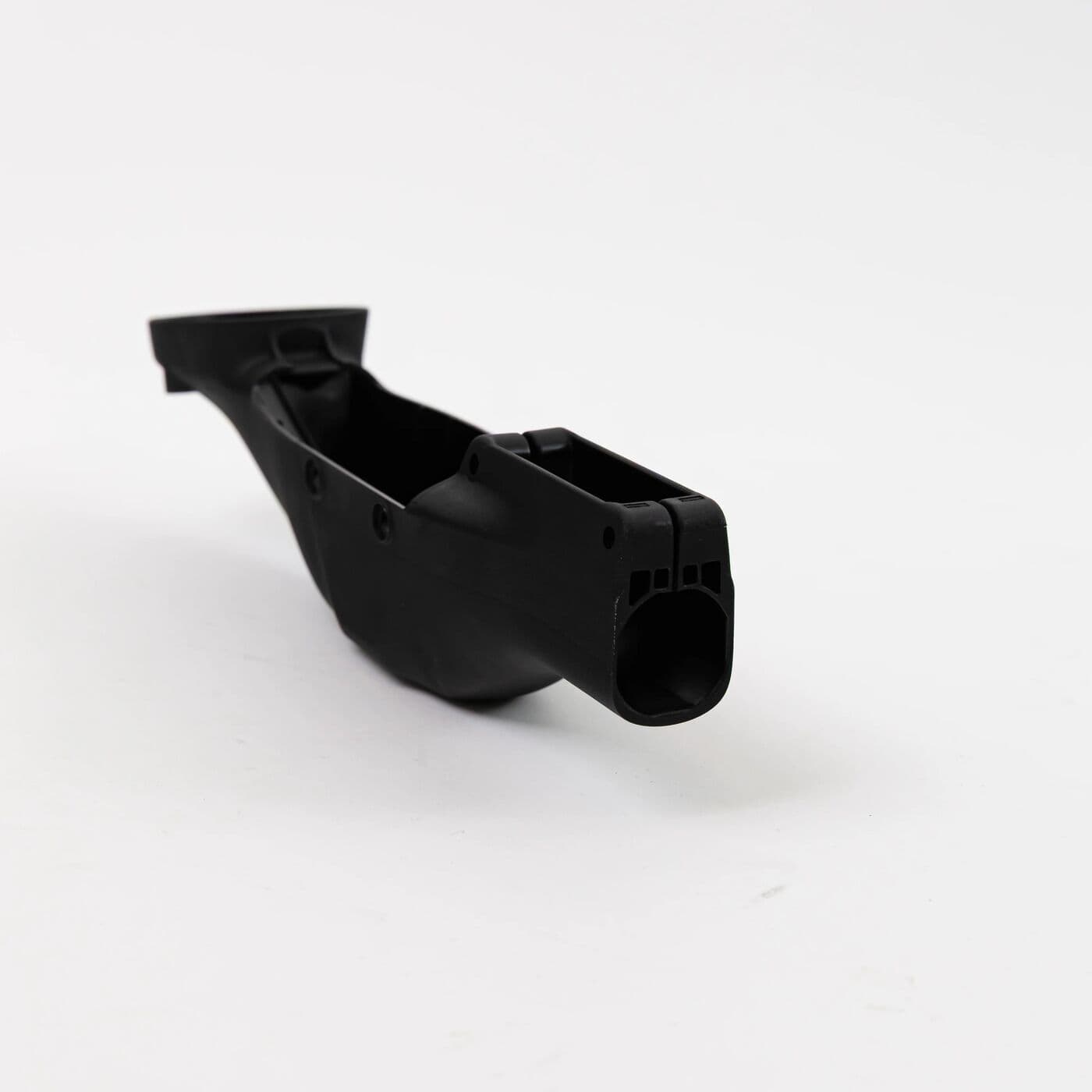

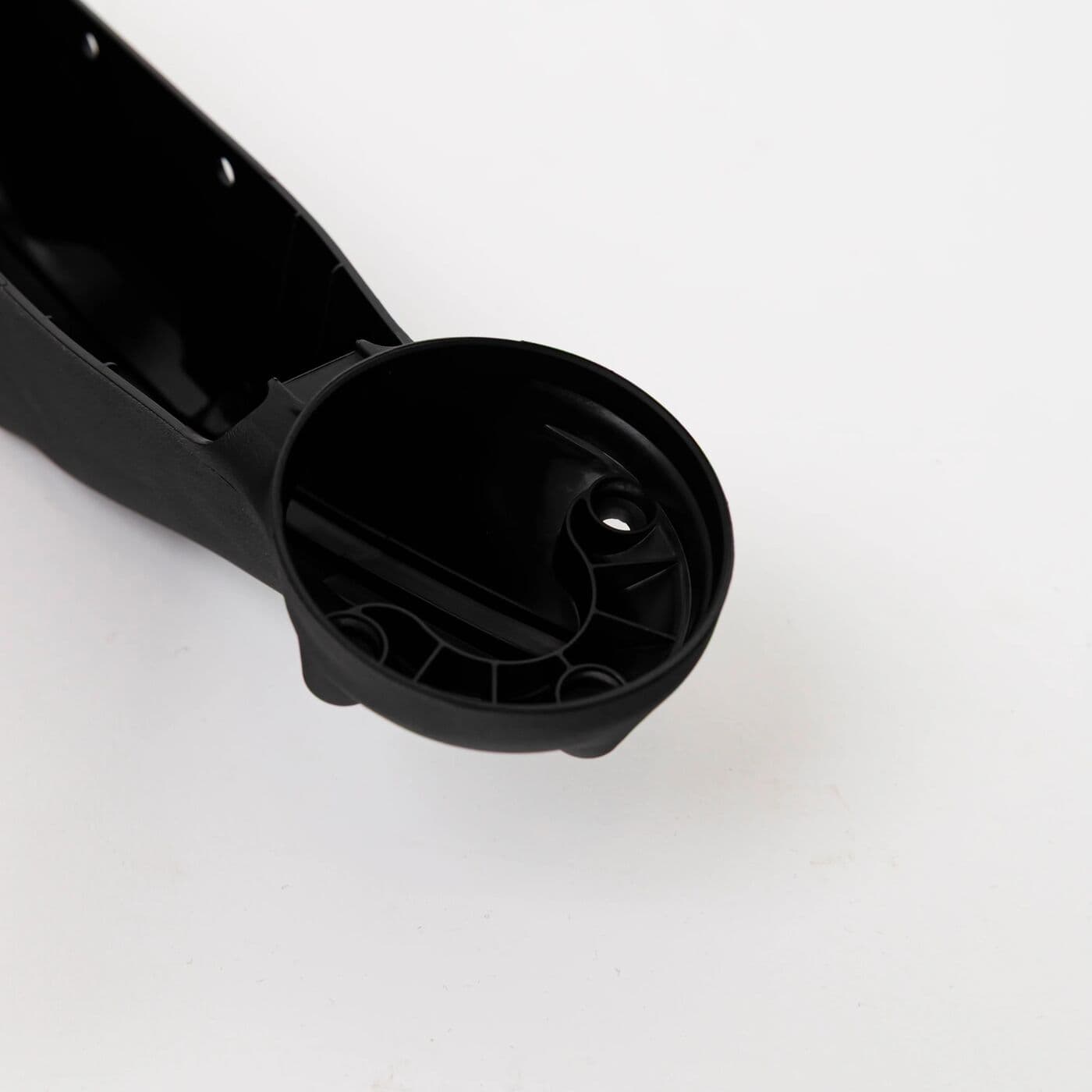

In DJI's parts photo it is the long, tapered body of the lance, with three screw holes at its wider end; the spray lance bottom shell (callout 7) is much shorter, with an open rectangular frame.
Being on the outside, it tends to carry the marks when a lance clips a fence post or a tree limb, or touches the ground on a hard landing. Change it once a split has opened up, a fixing point has broken away, or the shell rocks when fitted instead of seating firmly.
When refitting, check the centrifugal spray lance cable (external boom callout 15) for chafe and make sure nothing is pinched along the edges. If the bottom shell is cracked as well, replace it in the same job.
