Landing Gear Hose Clamp (T100) YC.JG.ZS006786
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Holding a hose in place on the landing gear, this clamp belongs to the spray-system landing gear of the DJI Agras T100 and is drawn twice on landing gear sheet 1, at callouts 2 and 6.
| Part number | YC.JG.ZS006786 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 landing gear (sheet 1), callouts 2 and 6 |

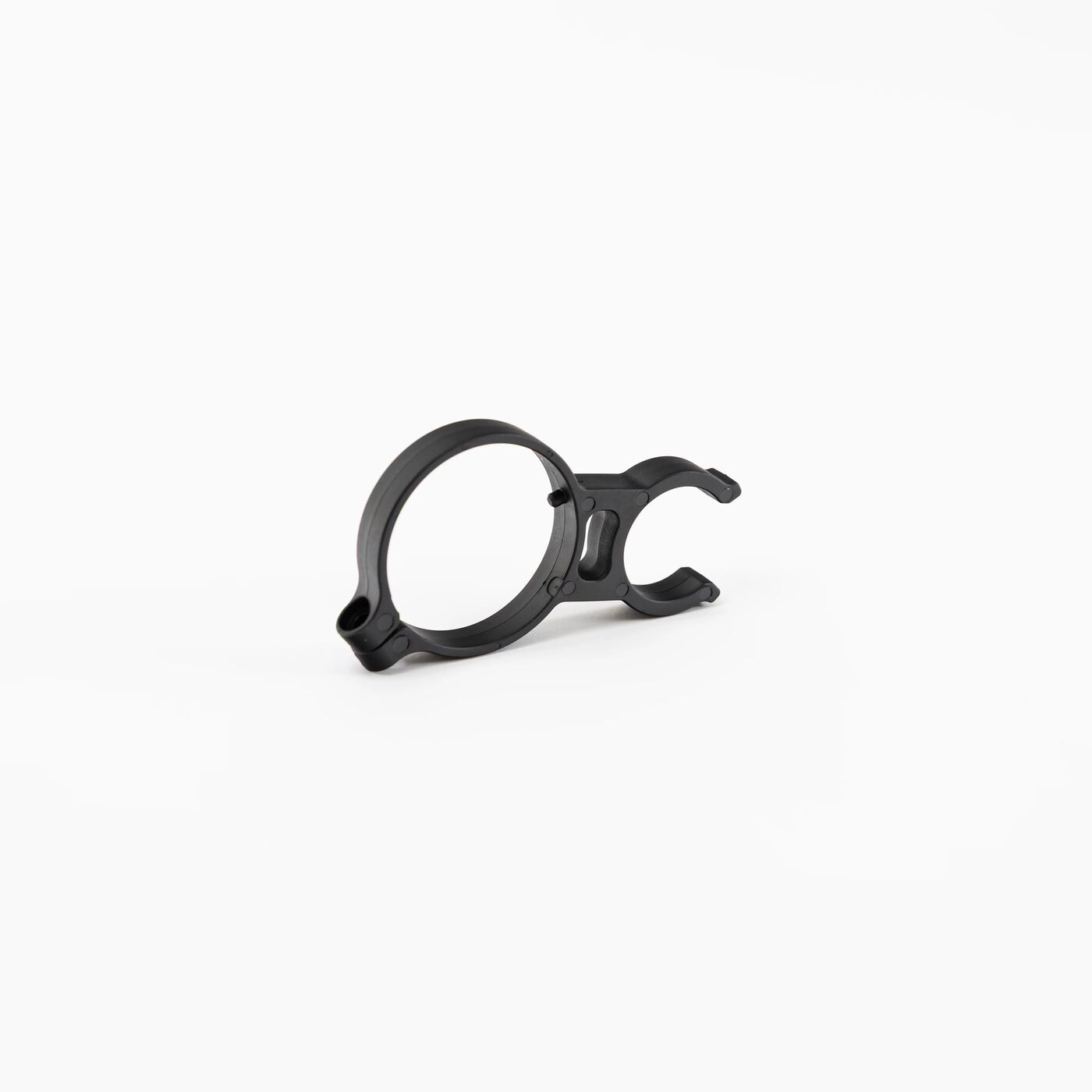

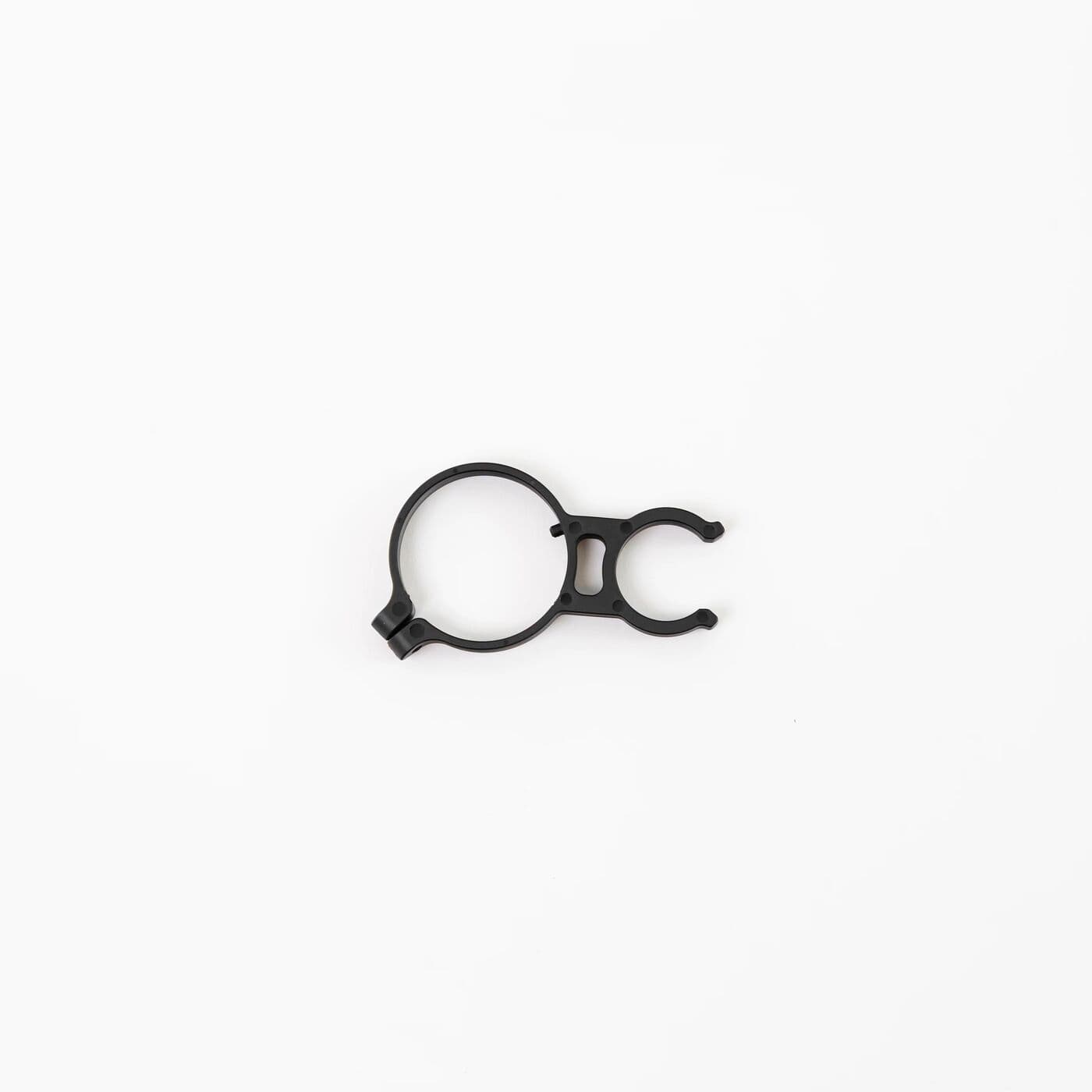

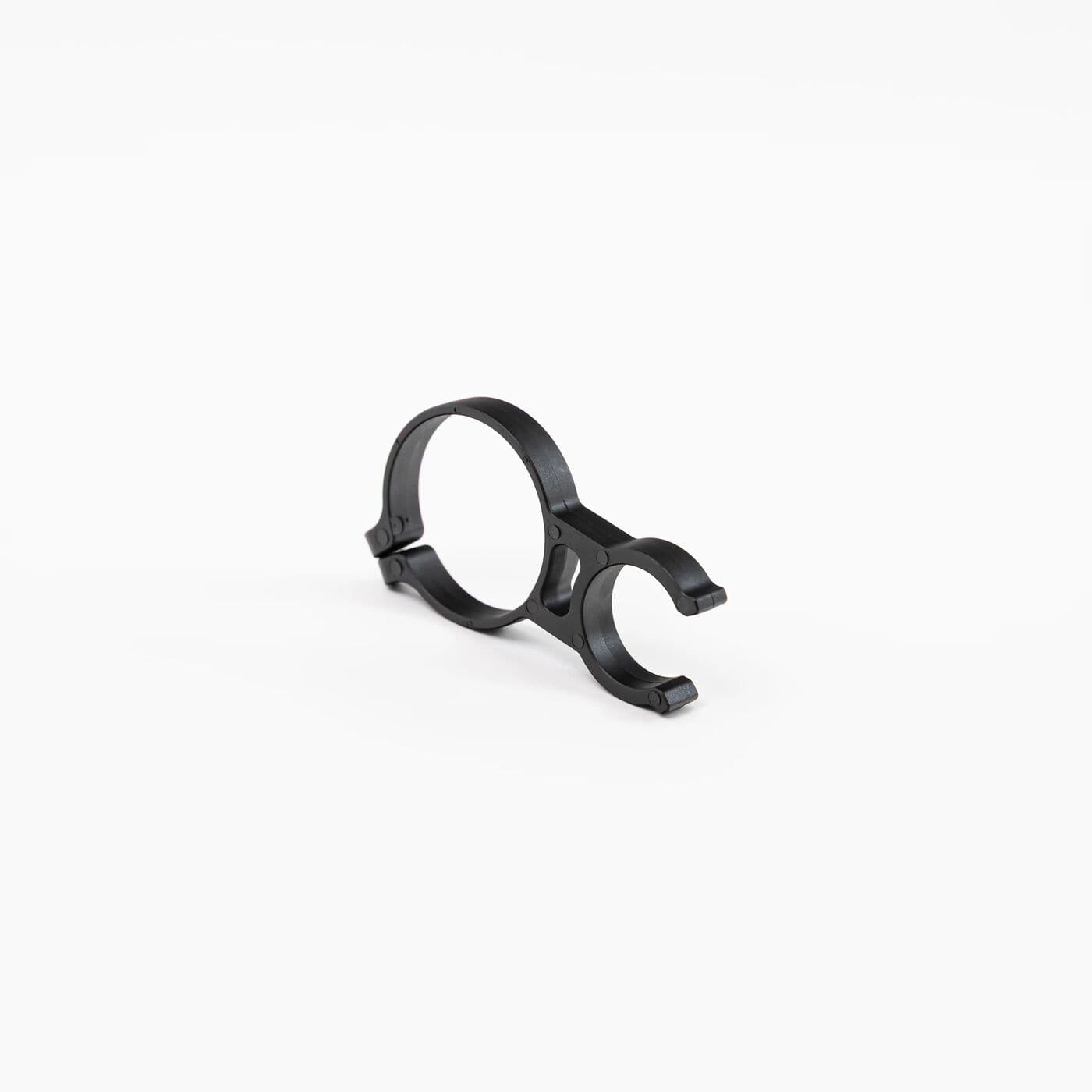

DJI's parts photo for that sheet shows two of these clamps, each a ring with a C-shaped clip on one side, and each laid out beside one small T30-HC01000100 screw (callout 3). Order one for each clamp you are replacing.
A hose that is free to move rubs against the airframe and flexes at its fittings until it wears through. Swap the clamp out once it is cracked, broken or no longer grips firmly; long exposure to sun and chemicals can leave clamps brittle. Route the hose exactly as before with no kinks or tension, and look for flat spots or scuffing where the old clamp sat. The landing gear aluminium tube on the same sheet is worth a look for scoring while the clamp is off.
