DJI
M1 & M3 Small Aircraft Arm (T100) BC.AG.SS001100
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

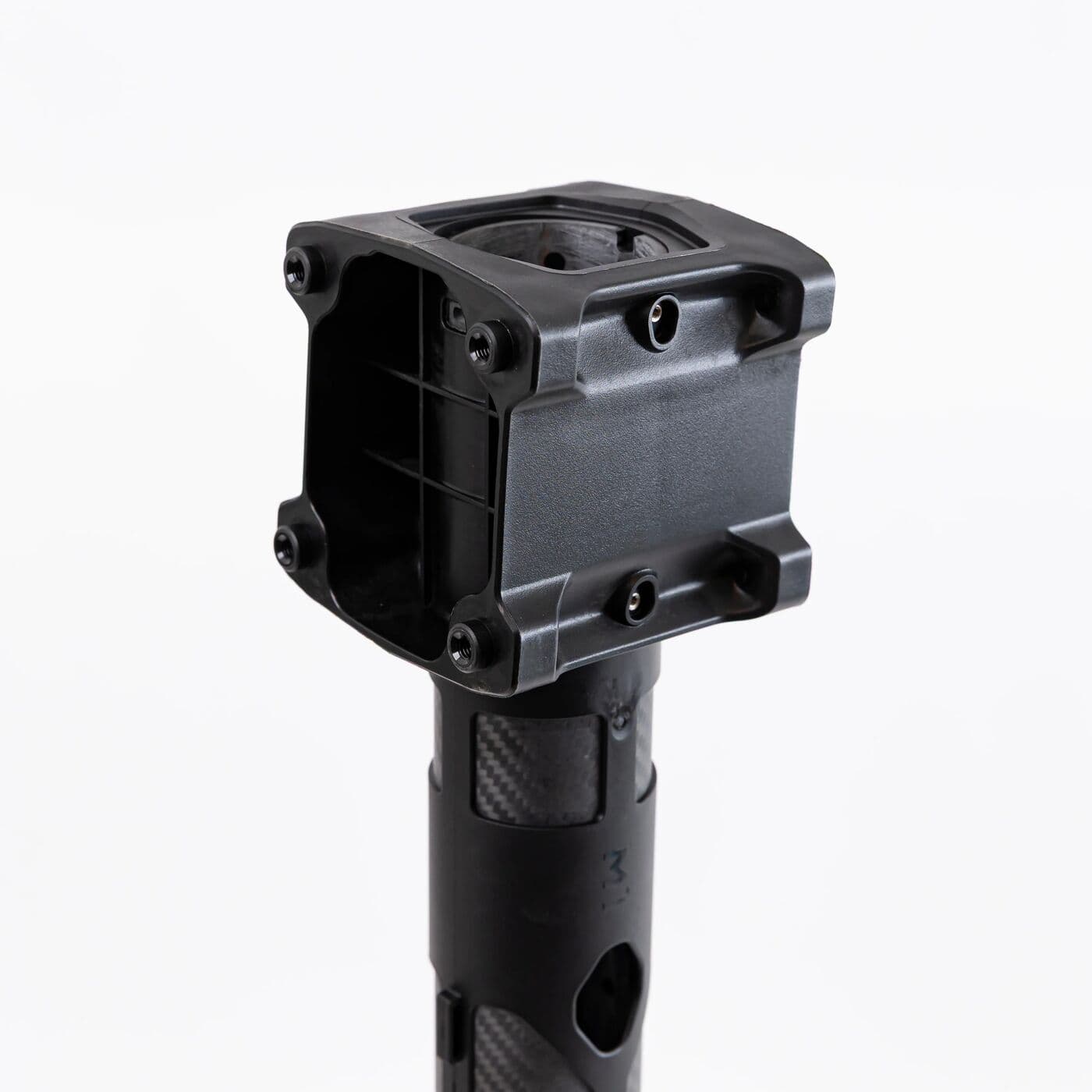

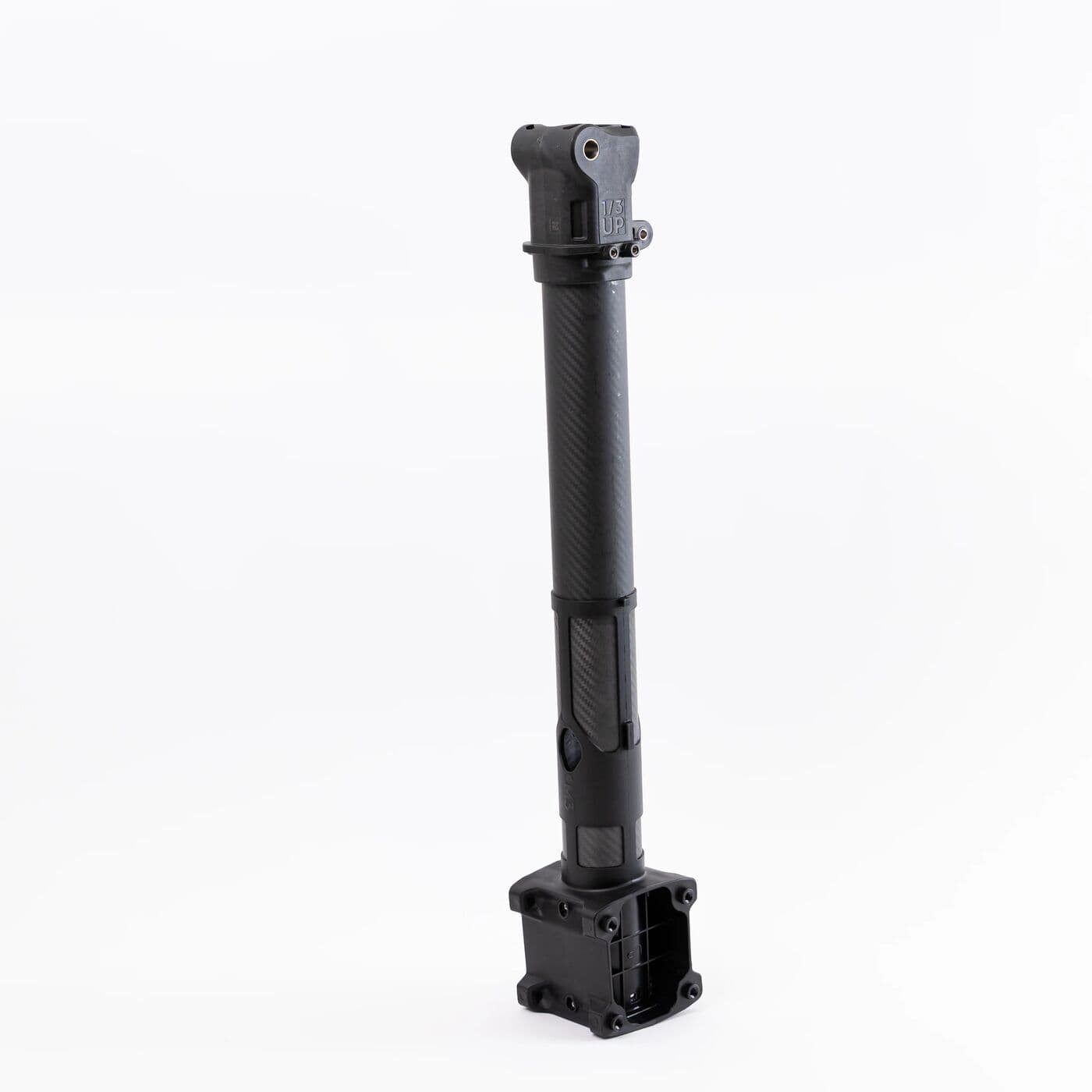

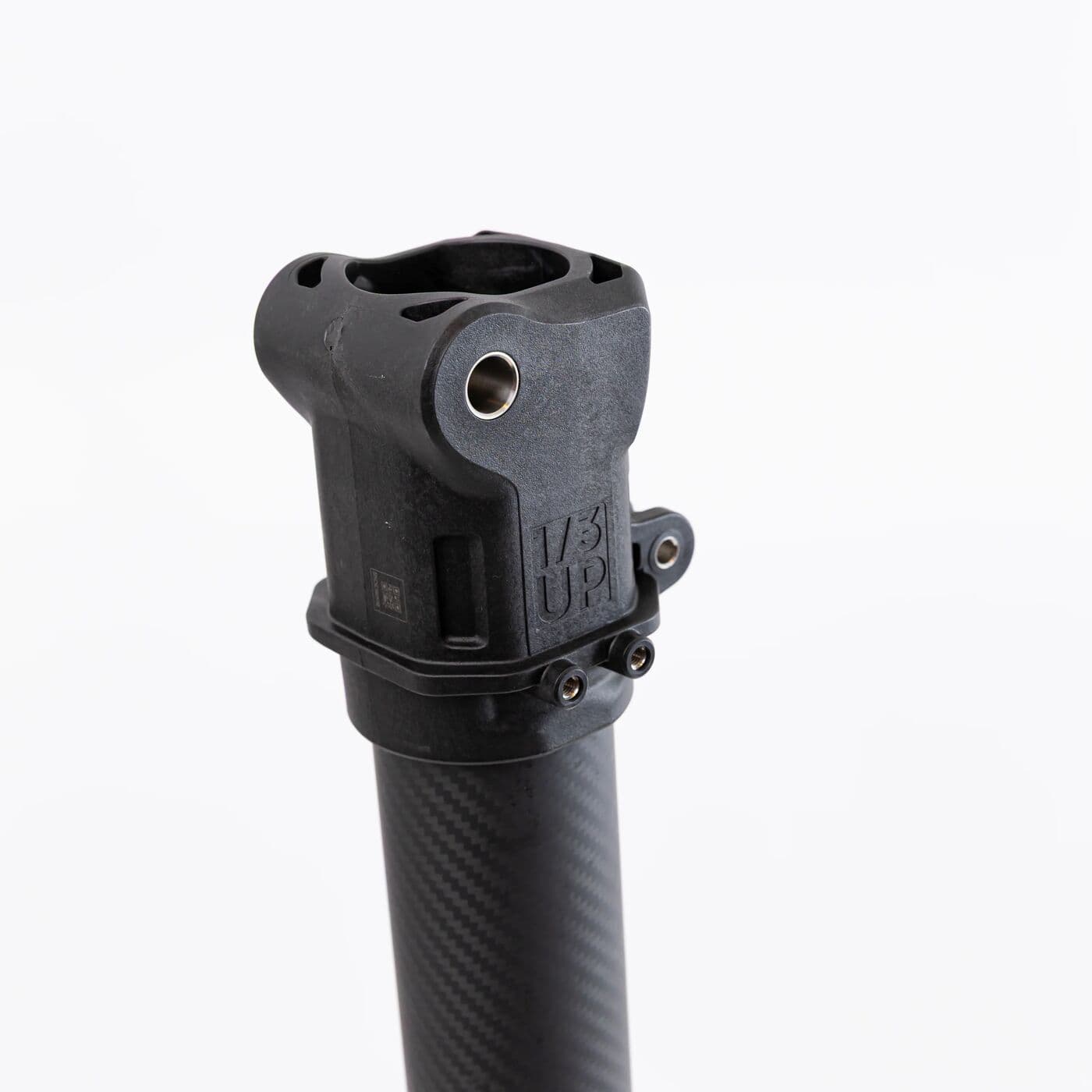

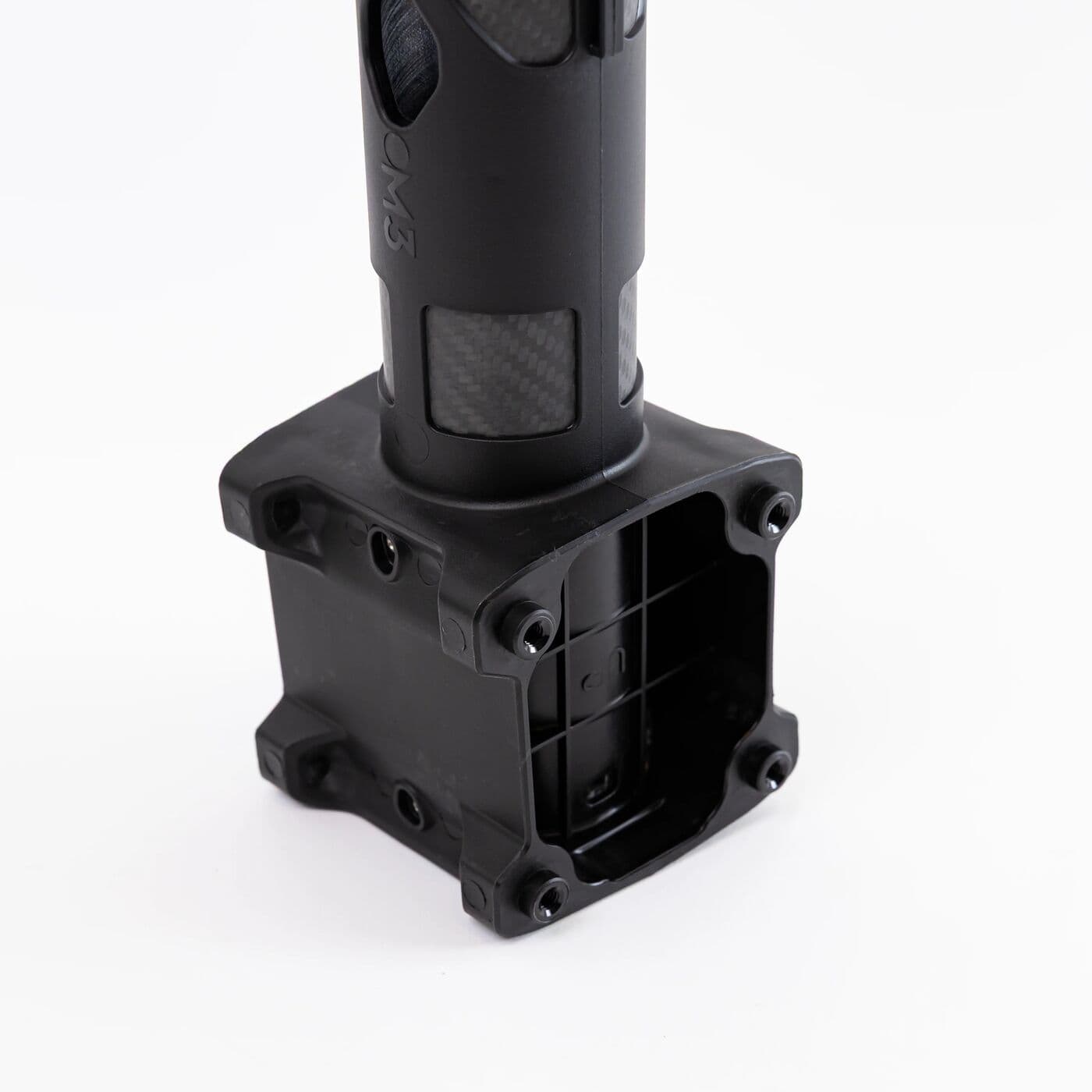

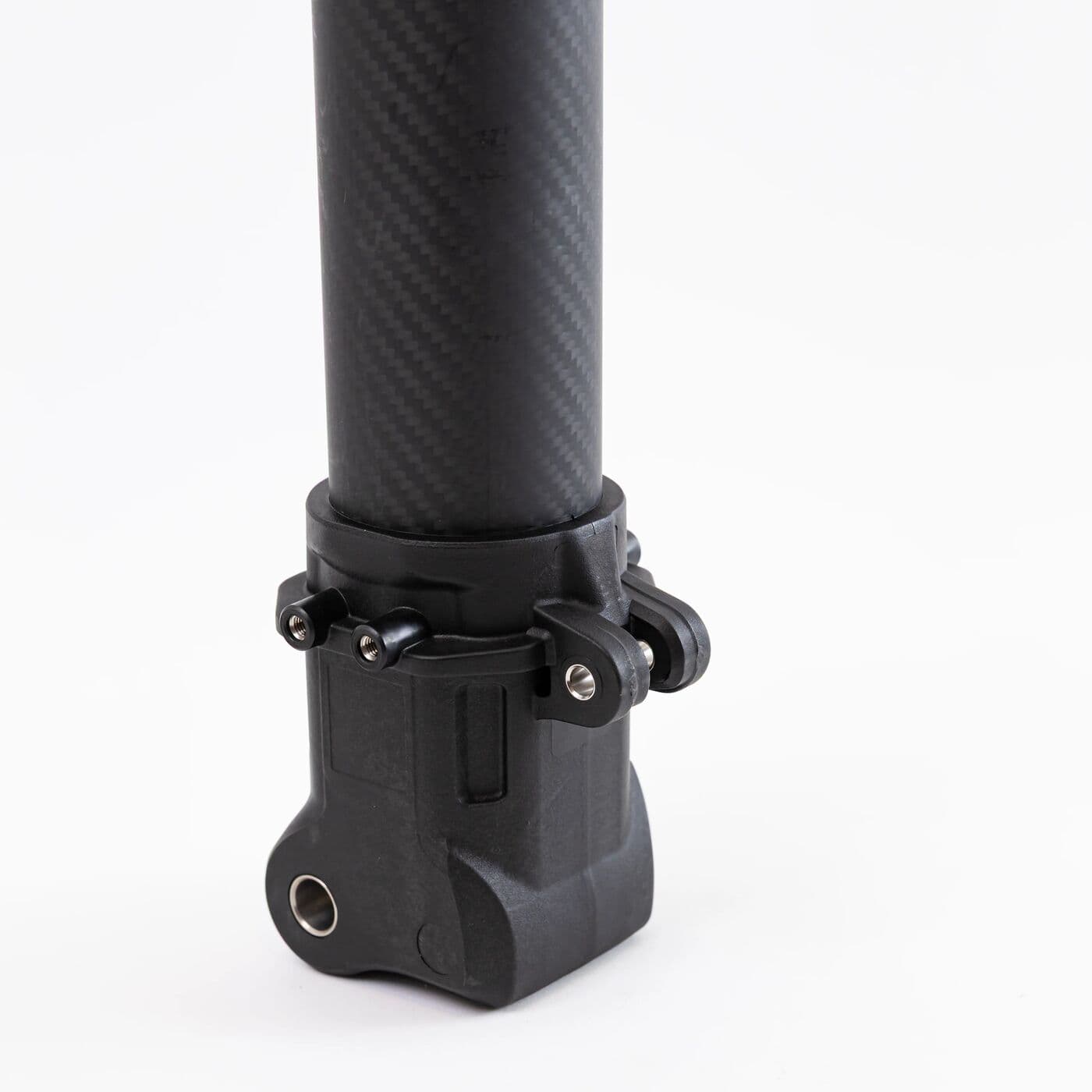

Replacement M1 and M3 small aircraft arm for the DJI Agras T100, callout 7 on its parts diagram. It is the arm section that the ESC, end cap, anti-collision pad and buckle hardware assemble around.
| Part number | BC.AG.SS001100 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 M1/M3 small arm, callout 7 |
The diagram photo shows the arm as the carbon tube with its end fittings. The ESC, buckle, end cap, pads, clamp and cables are drawn beside it with their own callouts and part numbers.
Replace the arm if the tube or its coating is cracked, if it is bent, or if the fold no longer lines up and locks cleanly. After a strike, check its full length, including under fitted parts where damage can hide.
The M2 and M4 positions use a different arm, the M2 and M4 small aircraft arm (BC.AG.SS001101, on the M2/M4 small arm diagram), so confirm the position before ordering. An impact hard enough to damage the arm can also crack the ESC module, arm end cap or anti-collision pad, so check those too.
