DJI
Landing Gear Spray Lance Connector (T100) YC.JG.ZS006709
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

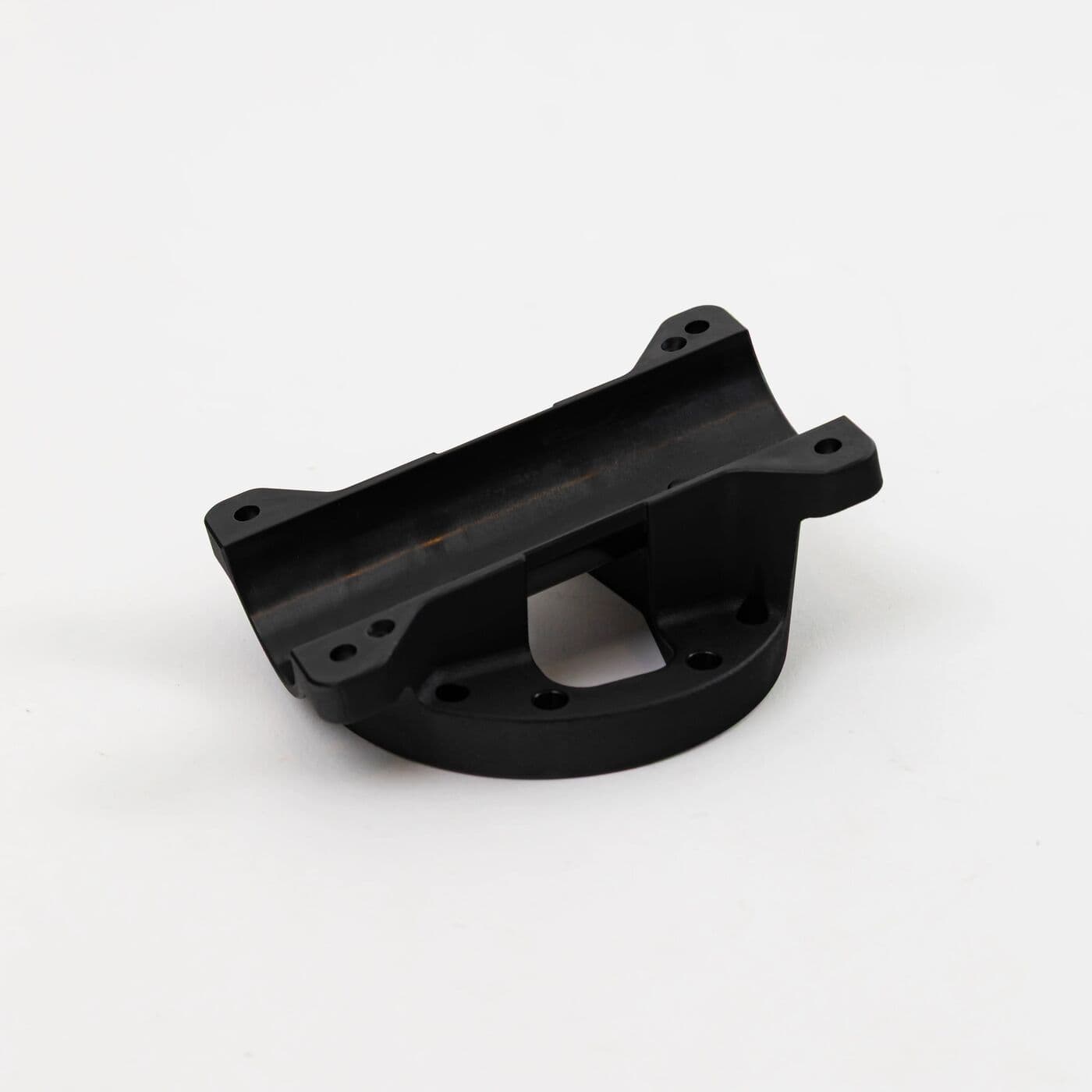

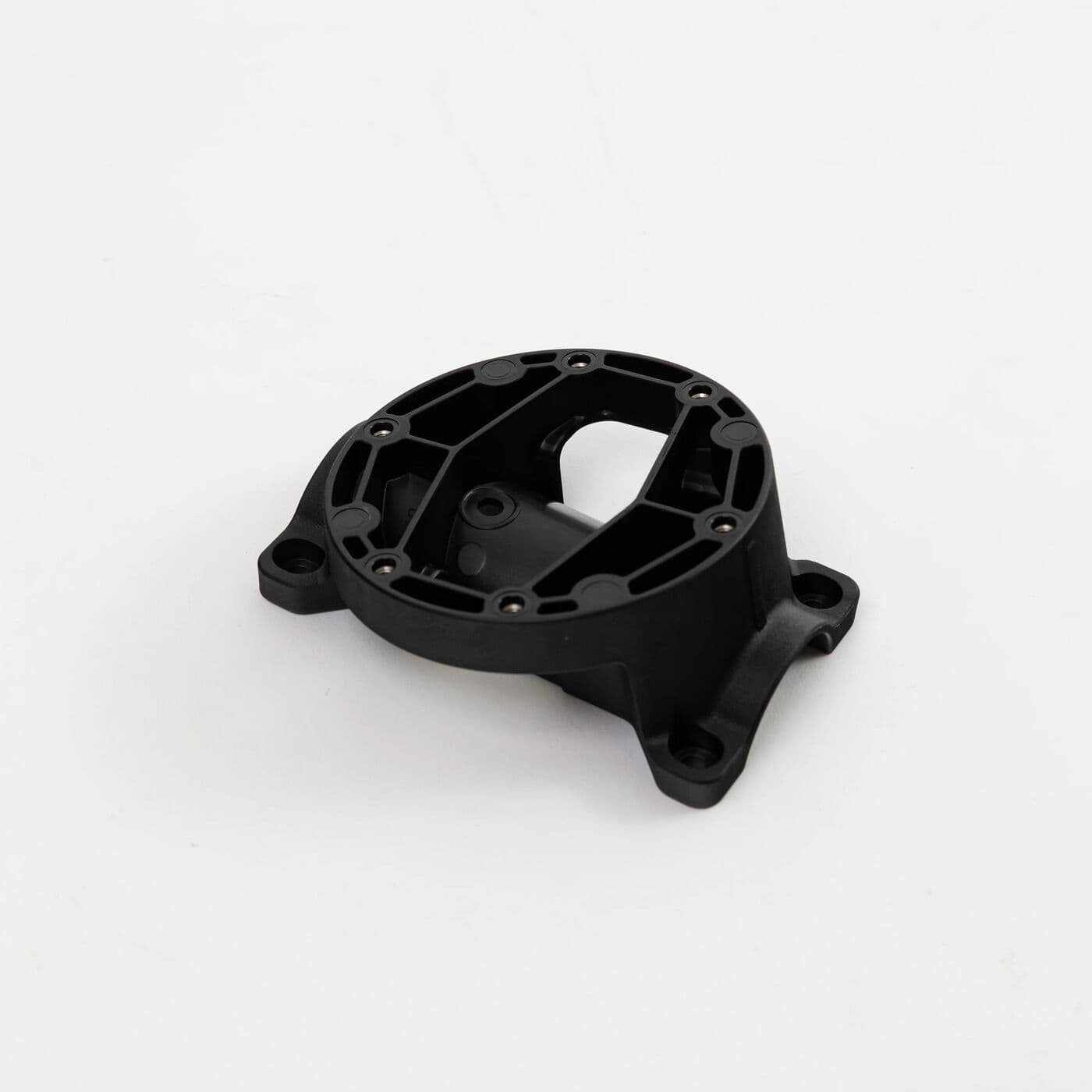

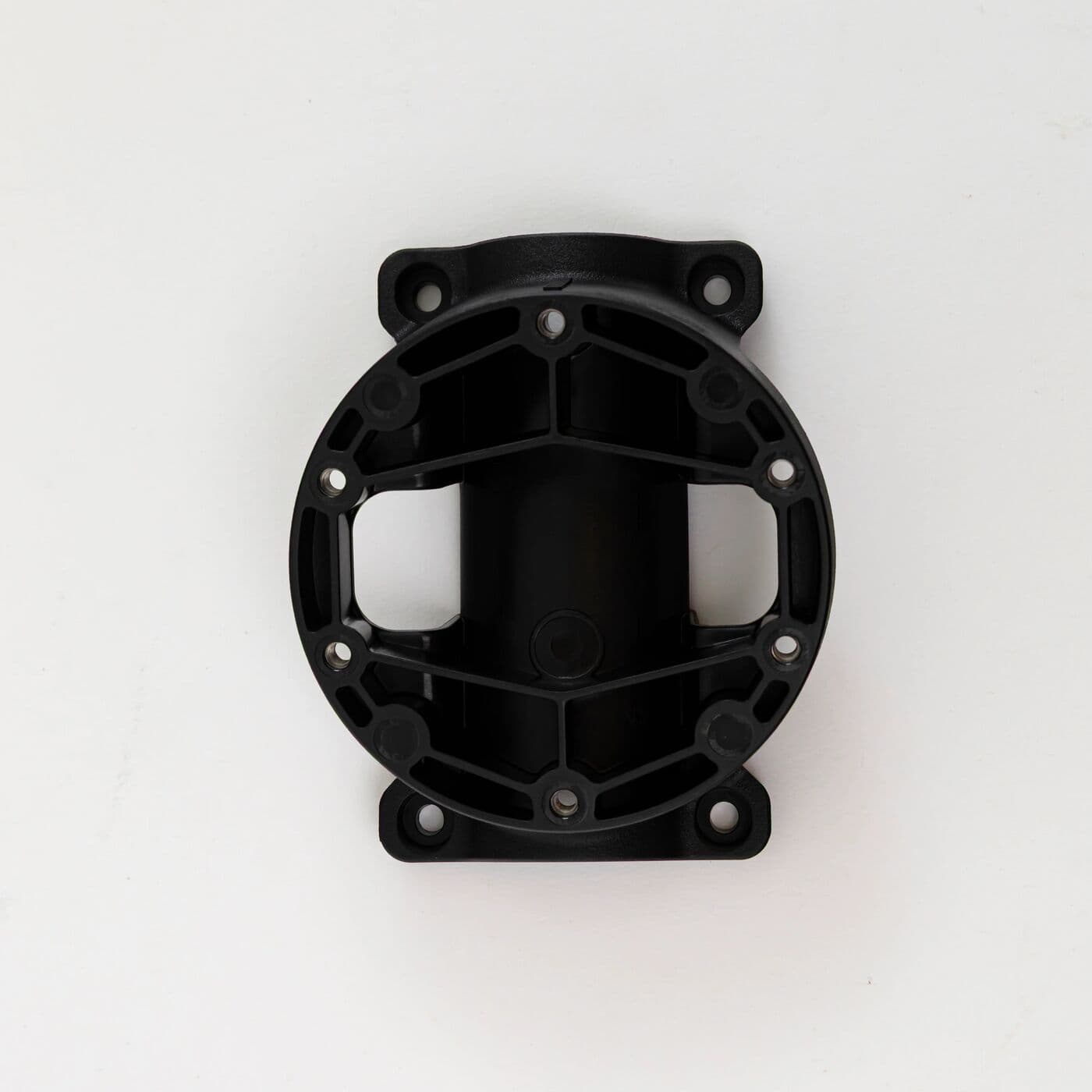

The spray lance mounts to the DJI Agras T100 landing gear through this connector, shown at callout 9 on DJI's landing gear (sheet 2) parts diagram.
| Part number | YC.JG.ZS006709 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 landing gear (sheet 2), callout 9 |
DJI's parts photo for this sheet shows two of these round connectors, only one of them numbered. Each is laid out with one long M40-HC04800220 screw (callout 10), a group of M40-HX088065-5103 hex nuts (callout 11) and four short M40-HC01400115 screws (callout 12). The parts are shown loose, so the photo does not show how the lance locates in it.
Sitting low on the airframe, the connector takes knocks from standing crop, stubble and hard landings. Replace it if it is cracked or distorted, if the lance no longer sits firmly, or if it has worked loose on the gear. DJI's T100 maintenance schedule includes checking the spray lance screws for looseness, so check this hardware at the same time.
