DJI
Middle Frame Buckle Module (T100) BC.AG.SS001094
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

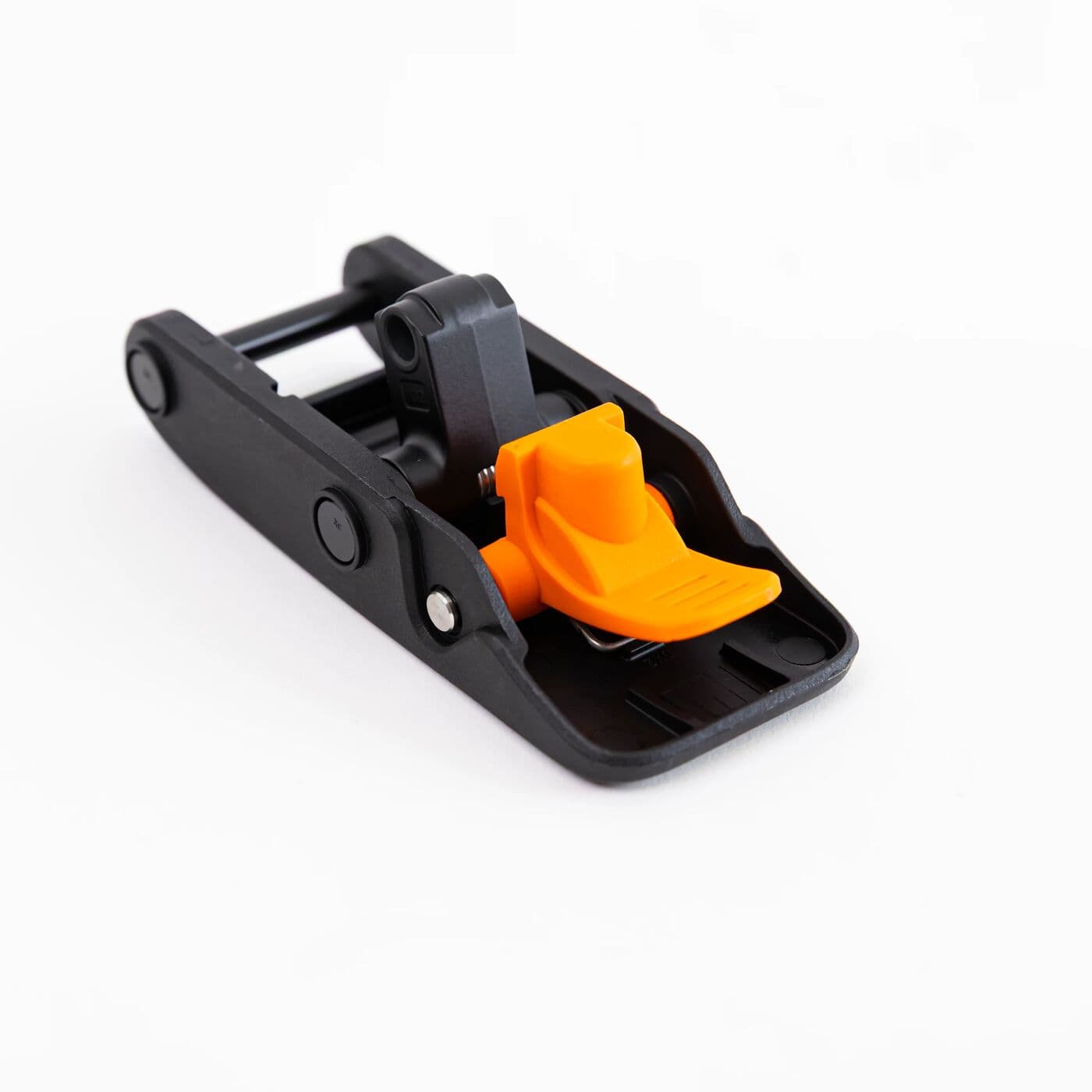

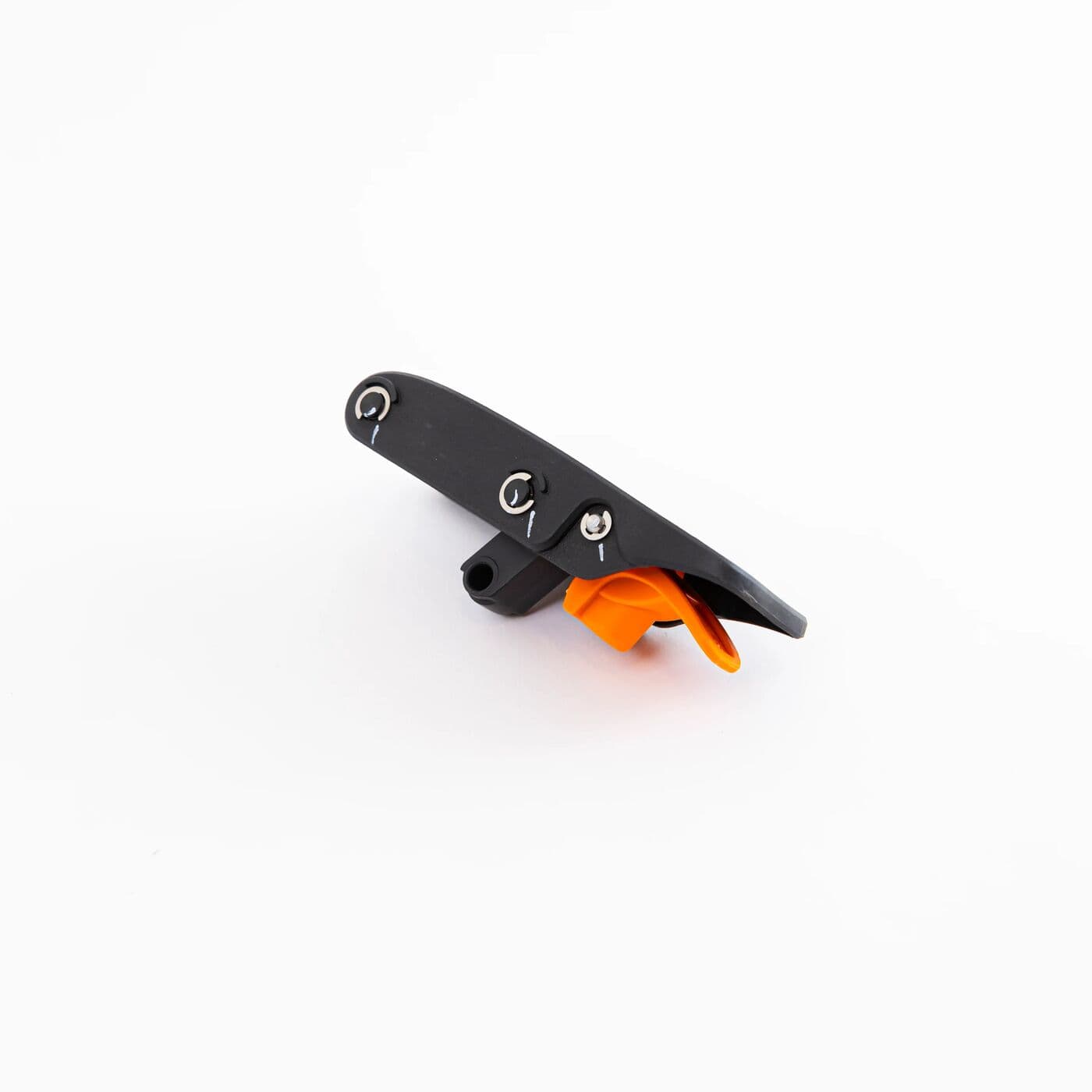

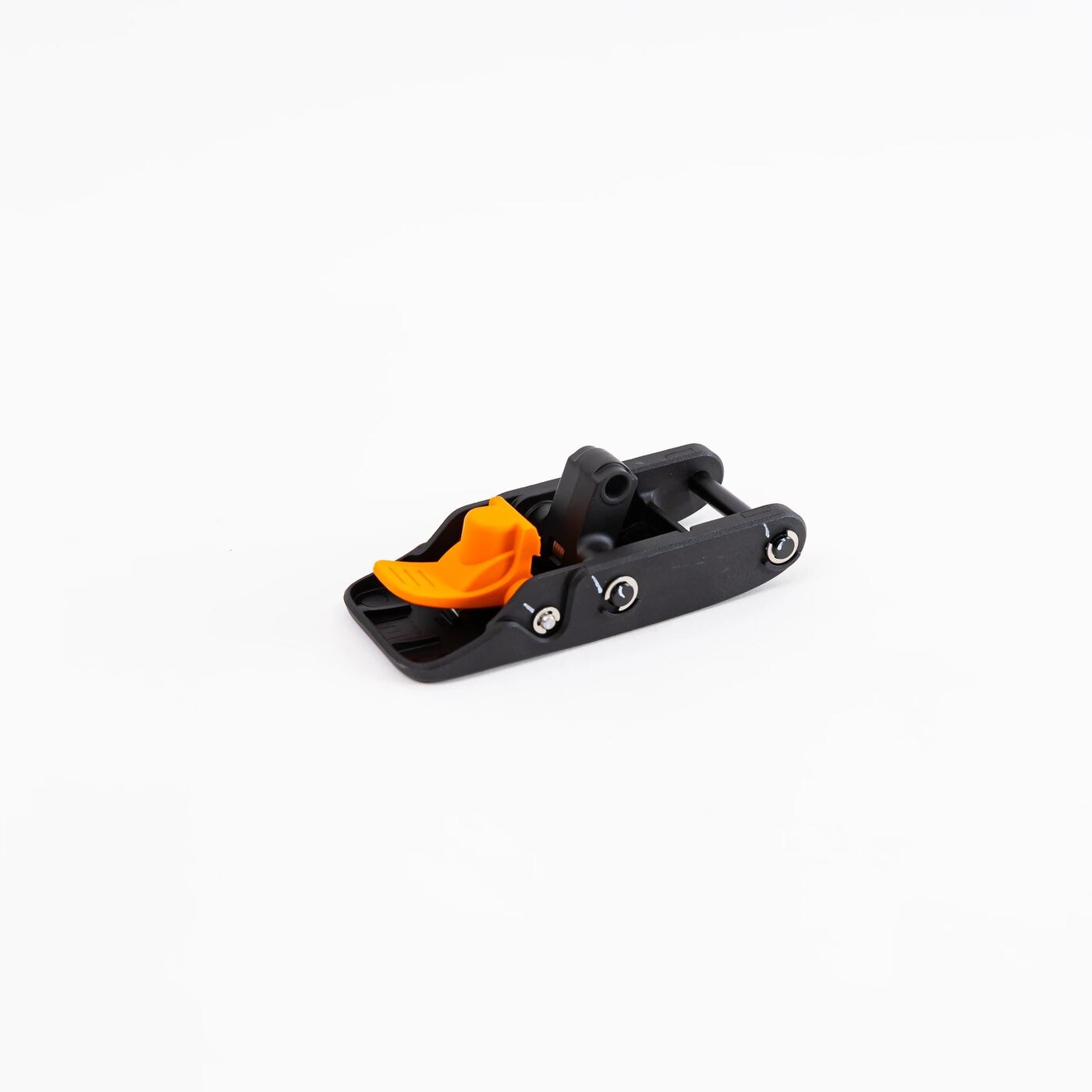

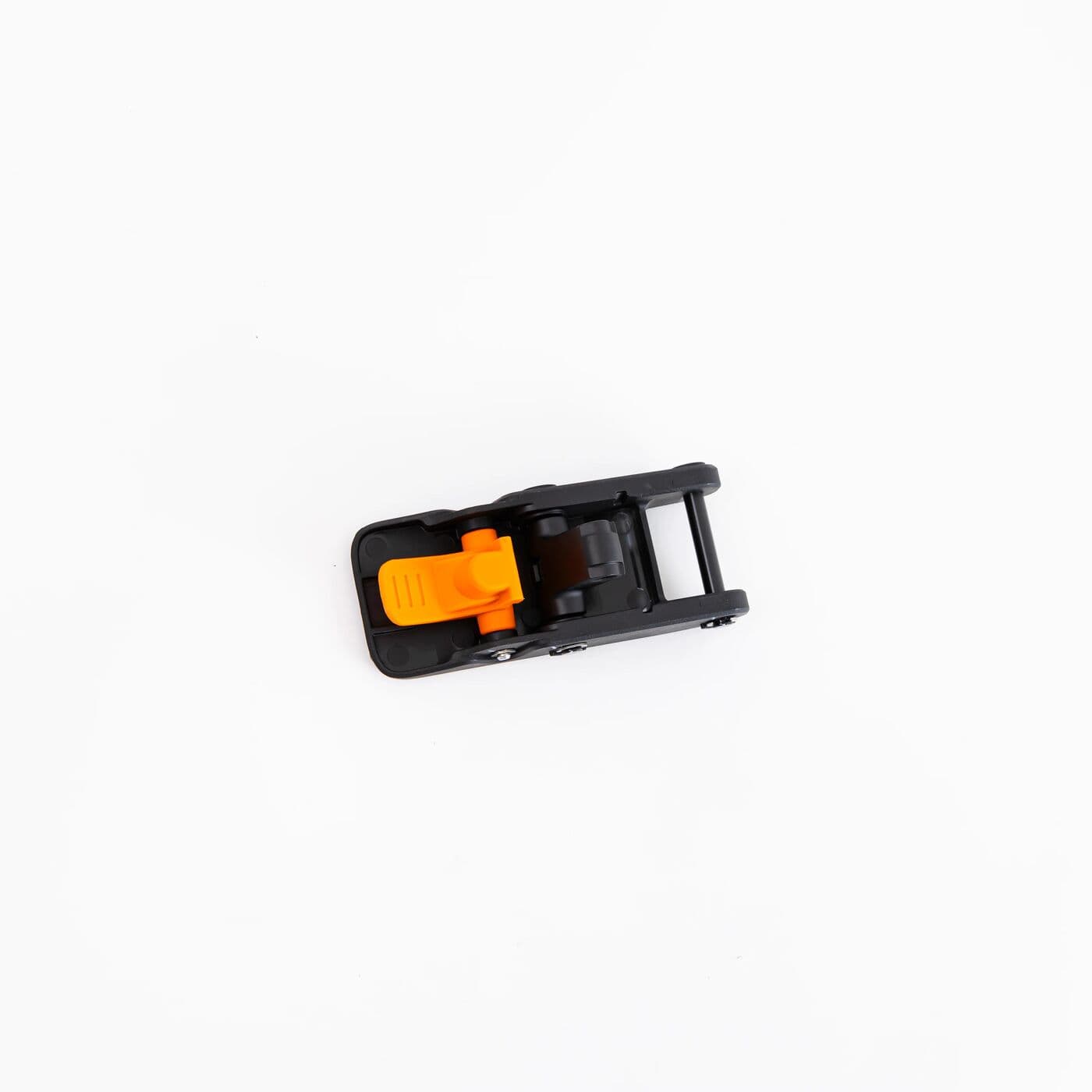

A cracked or sloppy middle frame buckle on the DJI Agras T100 is replaced with this complete buckle (latch) module, drawn at callout 5 on the middle and rear frame sheet.
| Part number | BC.AG.SS001094 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 middle and rear frame (sheet 1), callout 5 |
The sheet lists a buckle support base, a 29.7 mm pin shaft and a 9 mm E-type circlip at callouts 2 to 4, just ahead of it. Replace the module if its body is cracked or chipped, if it no longer closes positively, or if it has worked loose enough to rattle. A worn pin or base gives similar symptoms, so inspect both while it is apart.
Fit a new E-type circlip rather than reusing one that was spread on removal. The pin shaft and buckle support base are sold separately.
