DJI
Middle Frame Aluminum Tube - Right (T100) BC.AG.SS001105
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

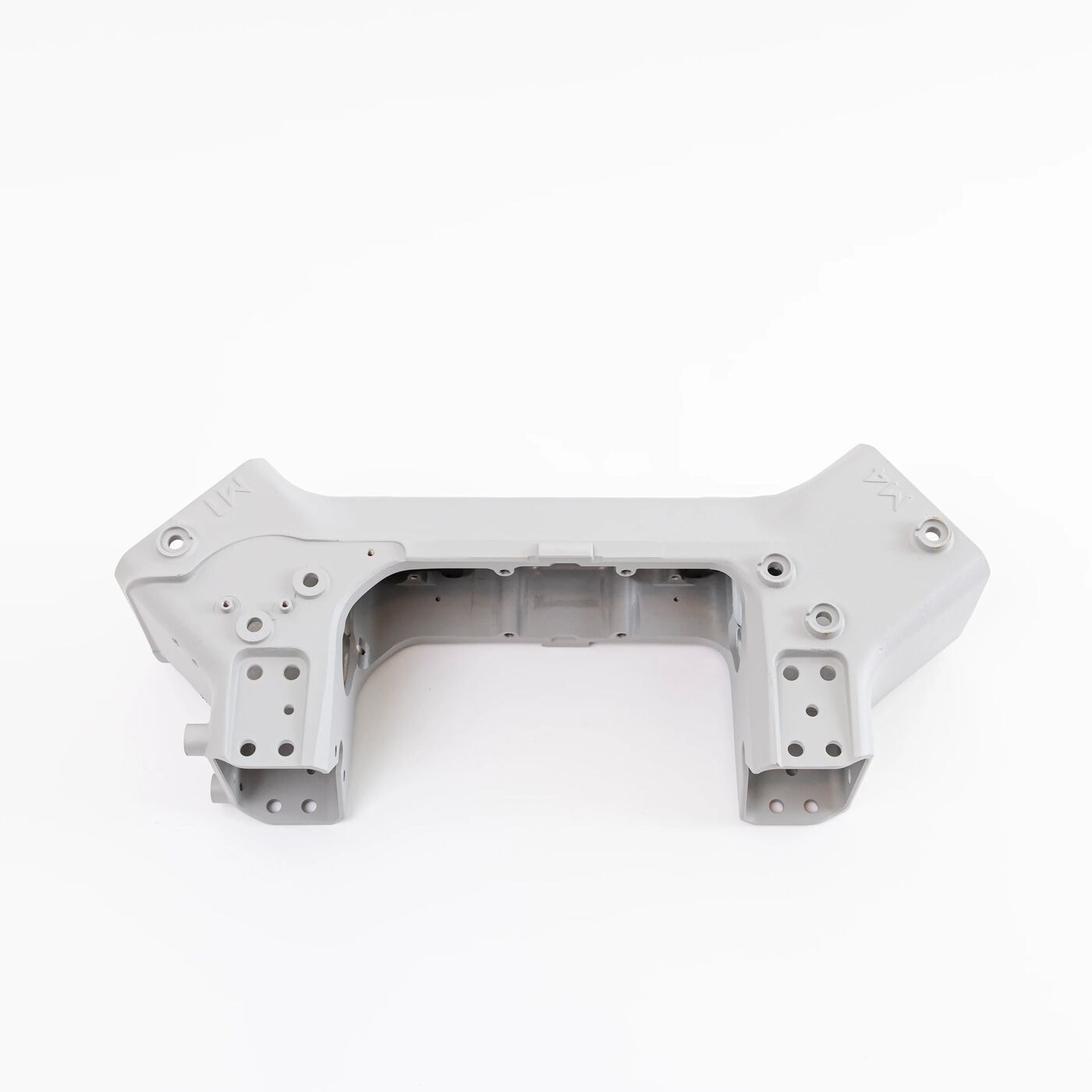

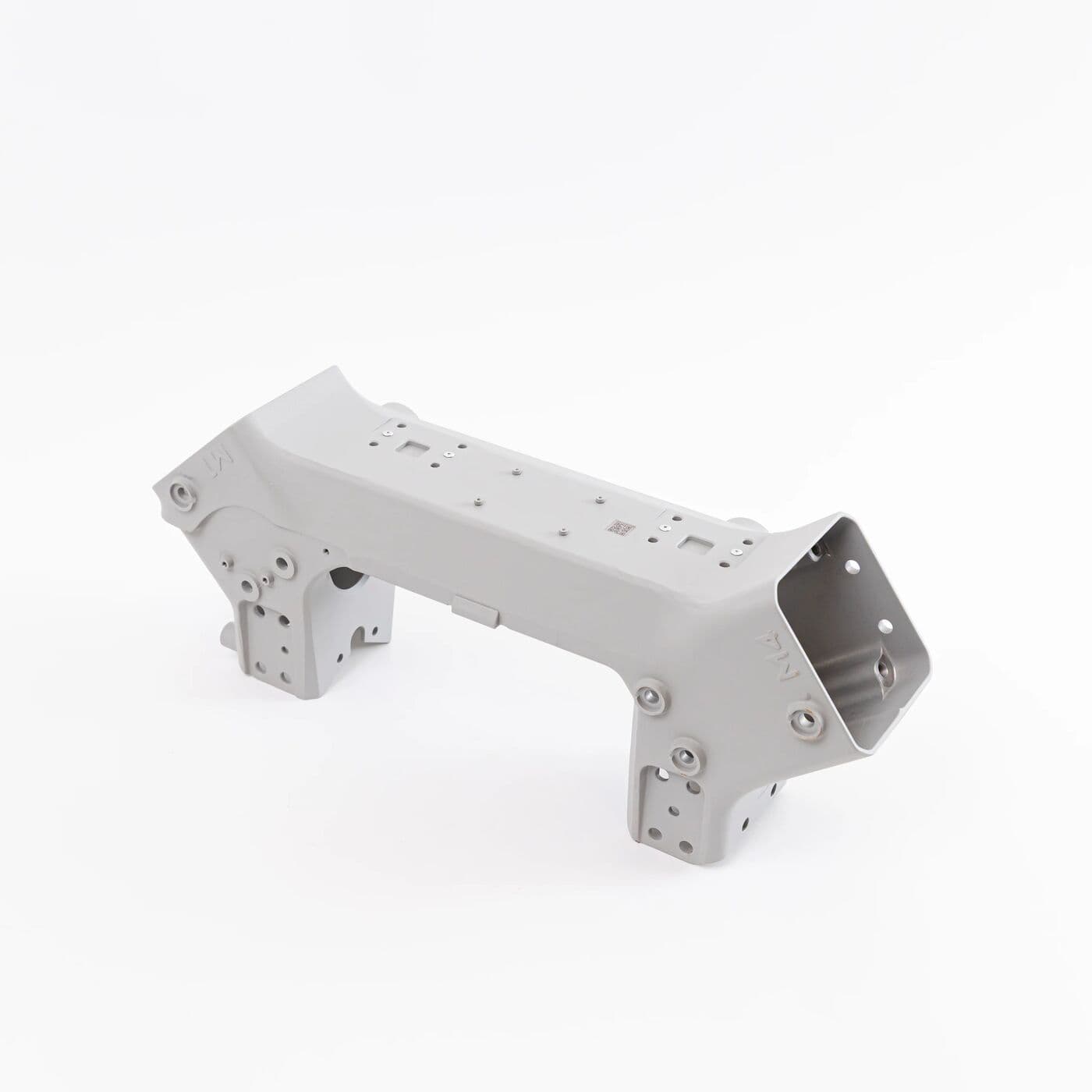

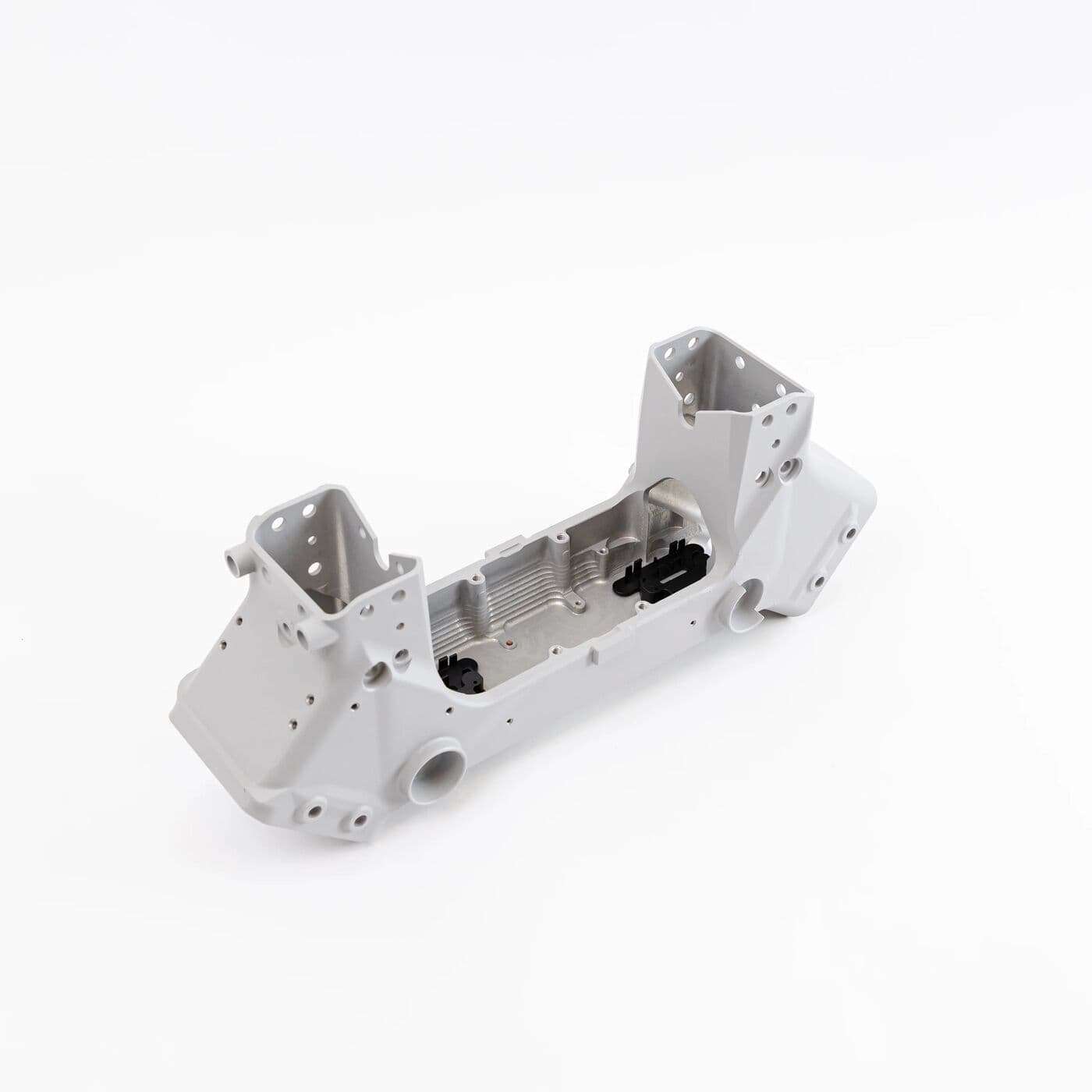

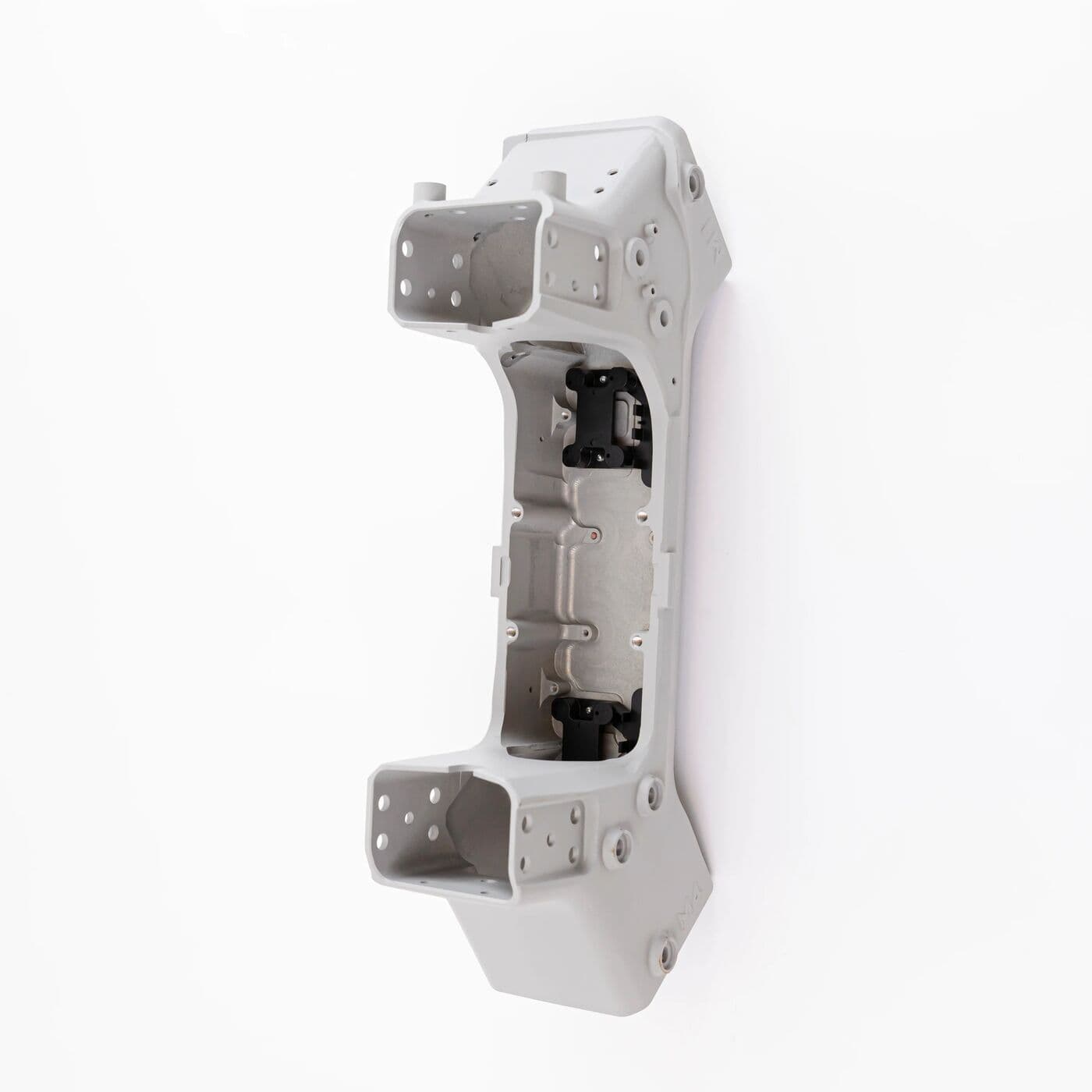

The DJI Agras T100 middle frame has a left and a right aluminium tube, and this is the right-hand one: a main structural member at the centre of the airframe.
| Part number | BC.AG.SS001105 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 middle and rear frame (sheet 1), callout 9 |
Hard landings, a clipped post or tree, or a crash that bends an arm can load the frame tubes past their limit. Check the tube for any bow or twist, and look around each fixing point for cracks or holes that have gone oval. A distorted tube can pull the rest of the frame out of true, so replace it rather than trying to straighten it.
This is the right side only; the left-hand middle frame tube has its own code (BC.AG.SS001104). The airframe cable cover and SDR cable clamp B0 are listed just ahead of it on the sheet, so if either is disturbed during the job, check it for cracks before refitting.
