DJI
Pin Shaft - 29.7 mm (T100) YC.JG.QX004628
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

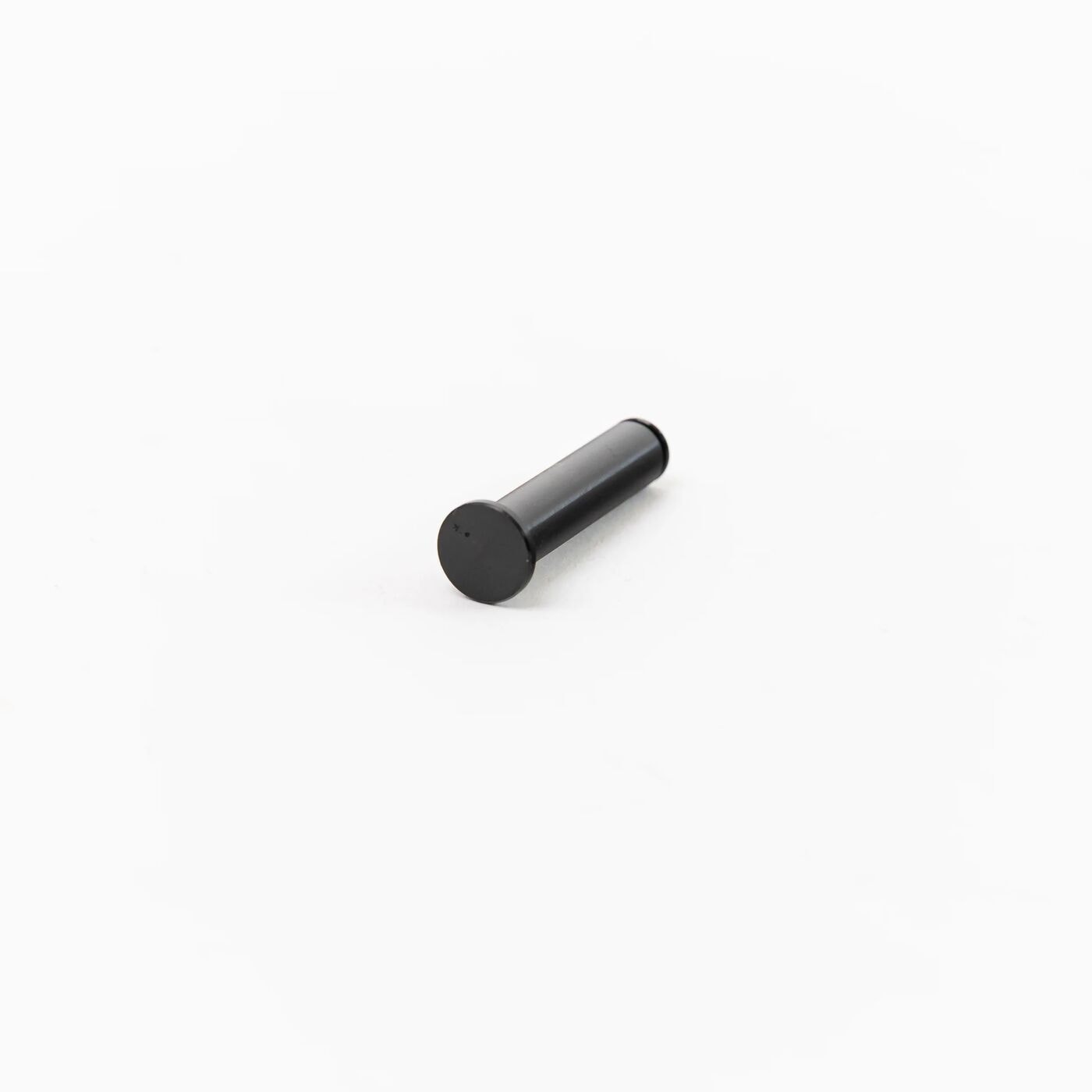

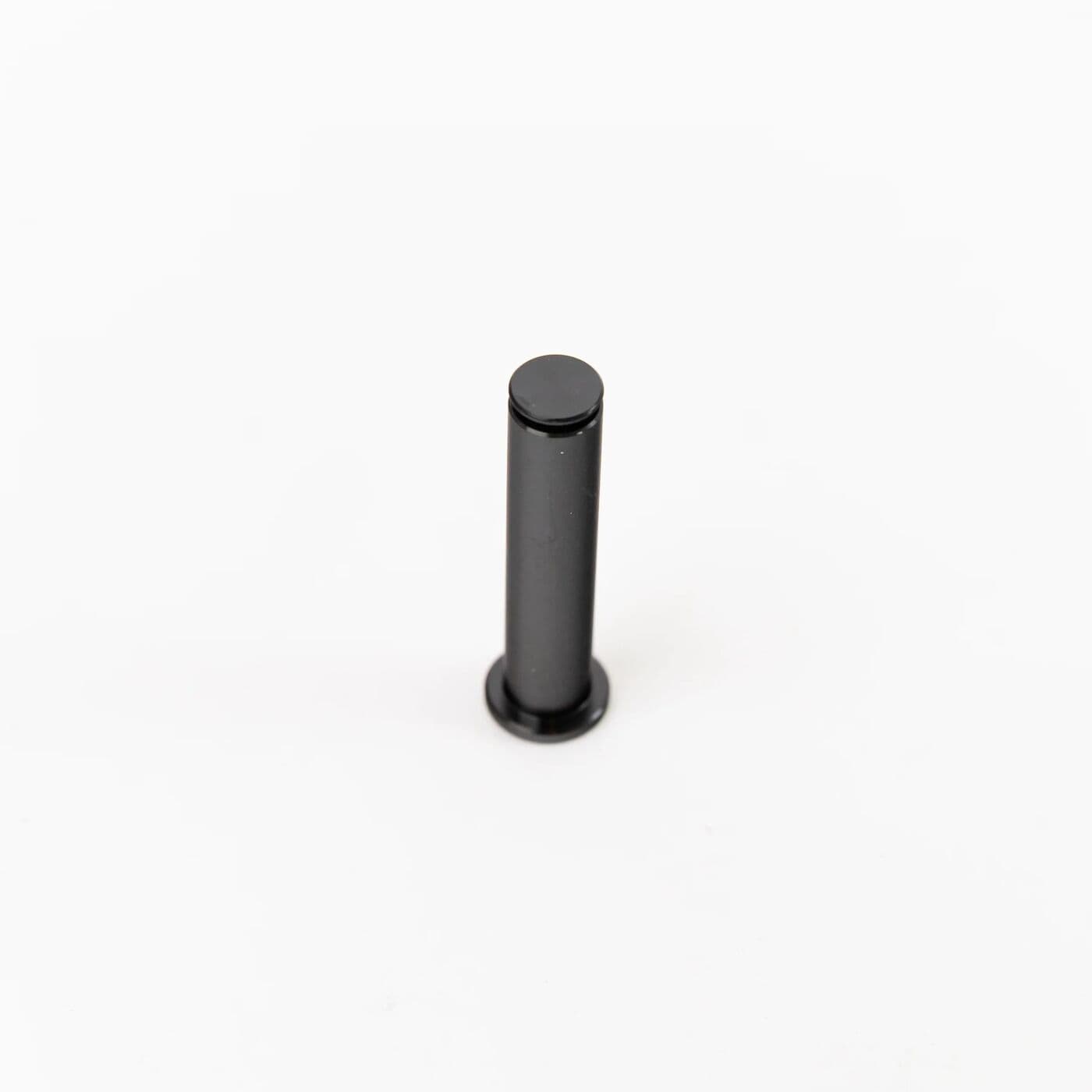

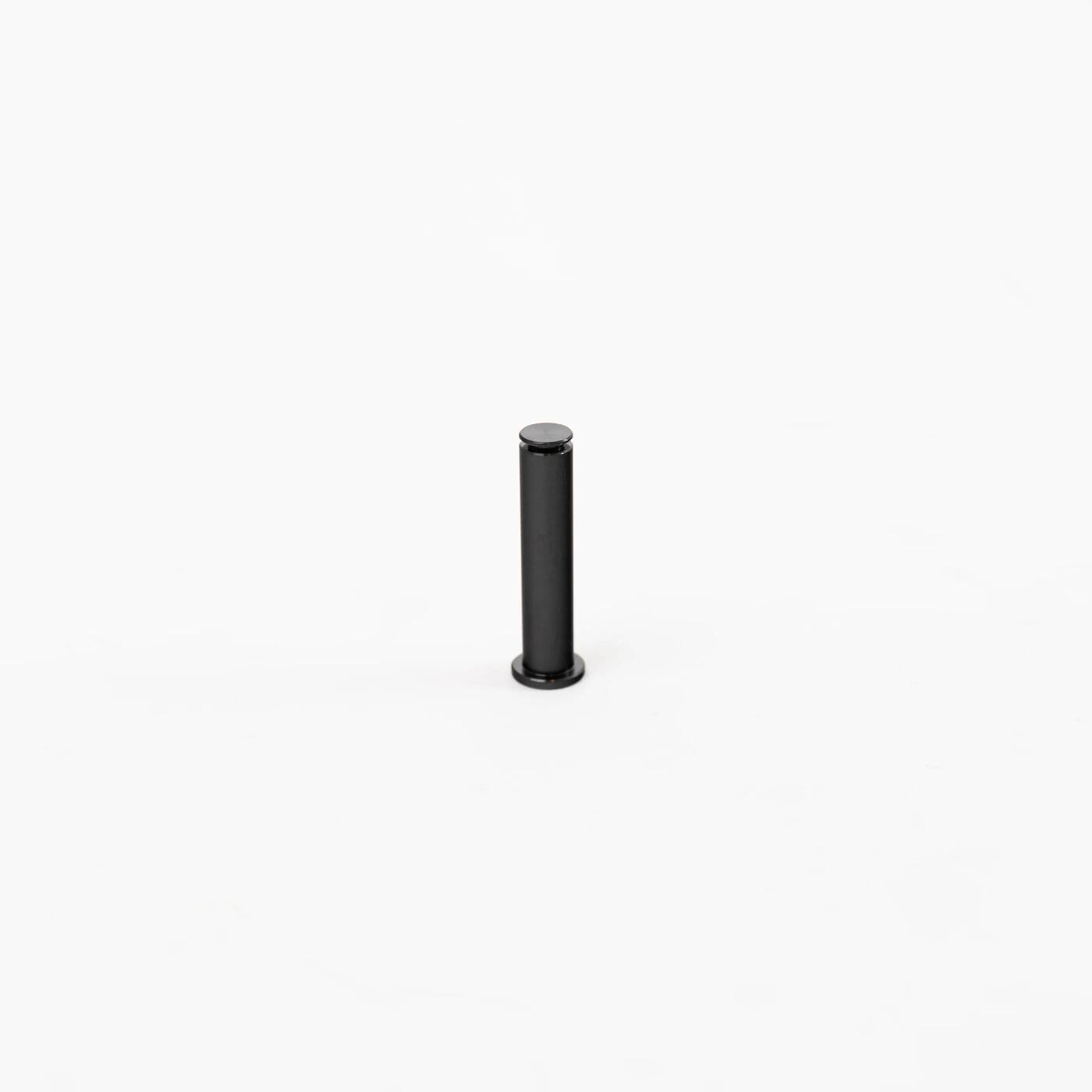

Measuring 29.7 mm, this pin shaft is part of the middle frame buckle hardware on the DJI Agras T100. The middle and rear frame sheet lists it between the buckle support base and the 9 mm E-type circlip that retains it.
| Part number | YC.JG.QX004628 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 middle and rear frame (sheet 1), callout 3 |
A worn pin can leave slack in the buckle. With it out, look for a stepped or polished groove, scoring, corrosion or any bend. A pin that will not slide out and back in cleanly, or a buckle that rattles when closed, points to the same problem. When refitting, make sure the circlip snaps fully into its groove.
The T100's M1/M3 small arm sheet lists a separate 57.1 mm pin shaft beside the arm buckle, so order by code rather than by appearance. If the buckle has worn along with the pin, the middle frame buckle module and 9 mm E-type circlip are sold separately.
