DJI

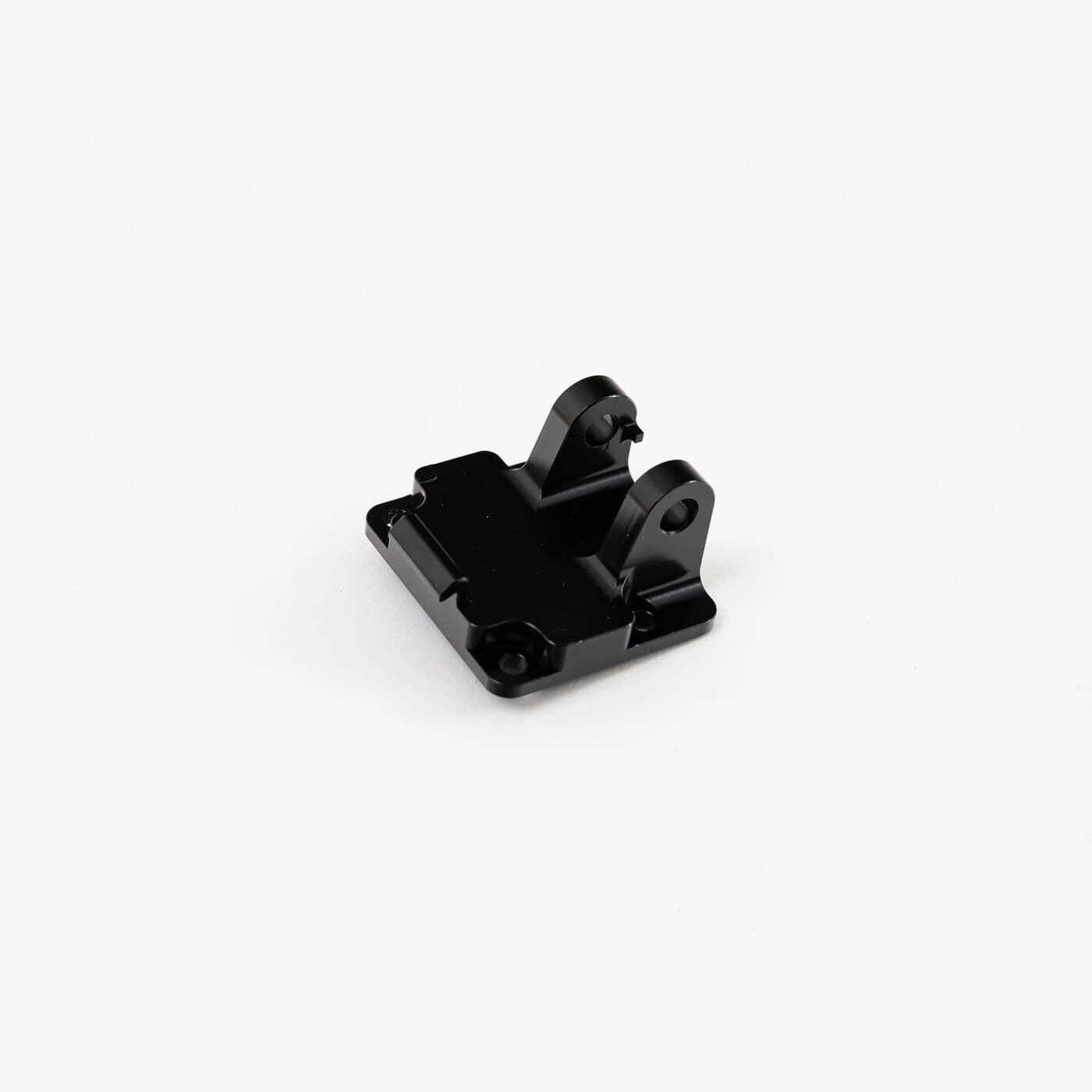

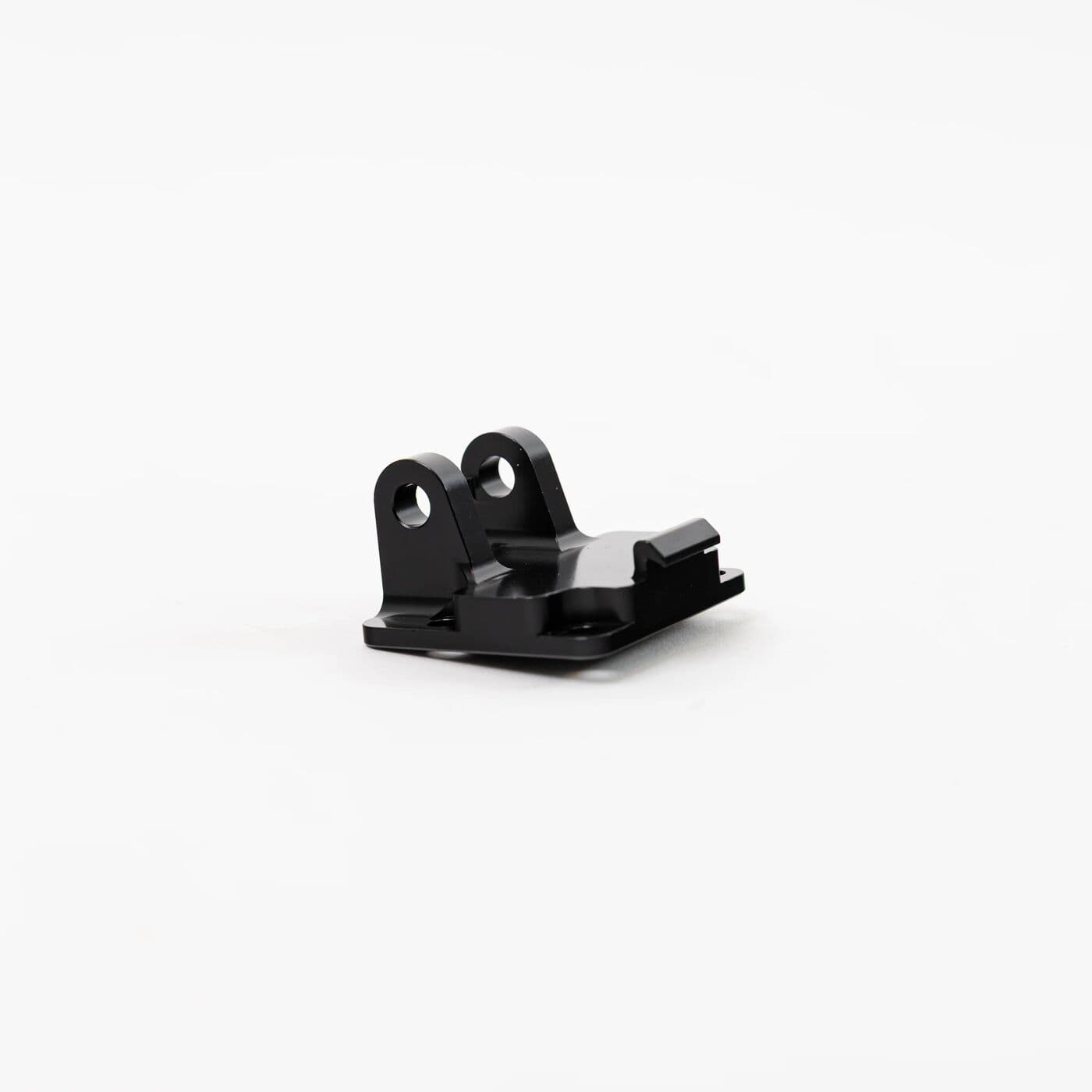

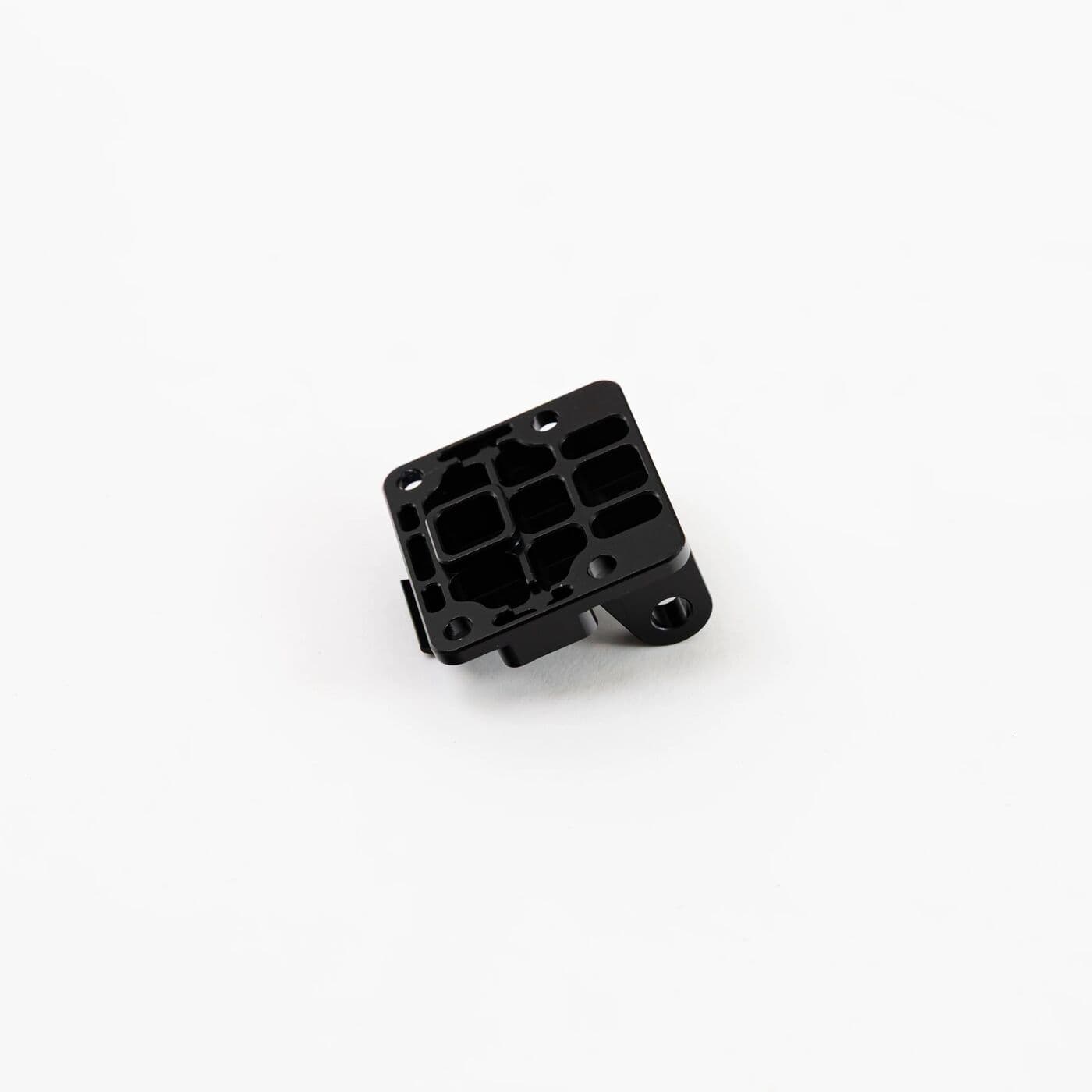

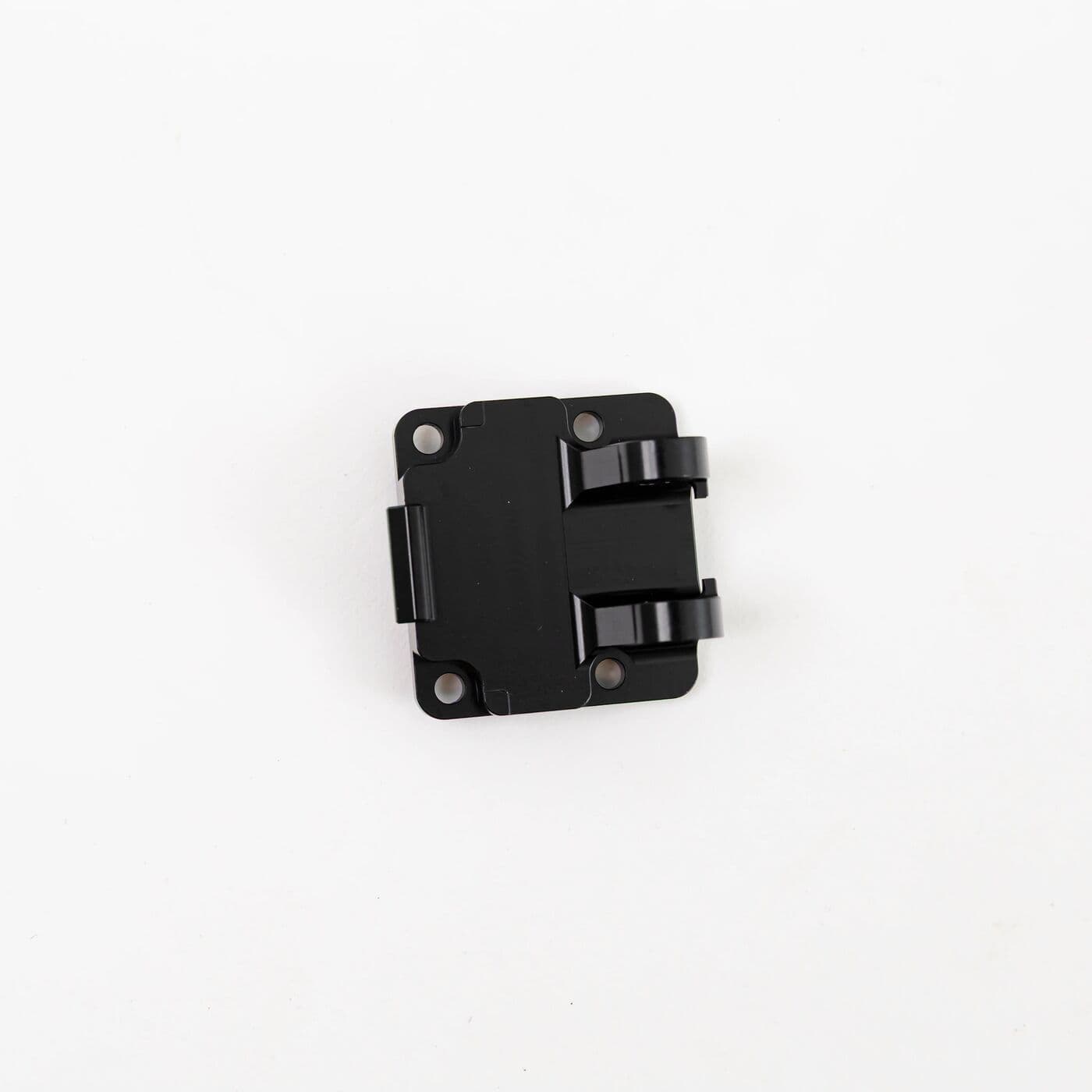

Buckle Support Base (T100) YC.JG.QX004627
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
On the DJI Agras T100 middle frame, the buckle support base belongs to the buckle group, drawn with the middle frame buckle module, the 29.7 mm pin shaft and the E-type circlip (OD 9 mm).
| Part number | YC.JG.QX004627 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 middle and rear frame (sheet 1), callout 2 |
The callout 1 screws are drawn directly above it in the diagram. Replace the base if it is cracked or its screw holes are damaged, as either lets the buckle shift. With the buckle apart, it is also a good time to inspect the pin shaft for wear.
The 29.7 mm pin shaft, E-type circlip (OD 9 mm) and middle frame buckle module can each be ordered on their own.
