DJI

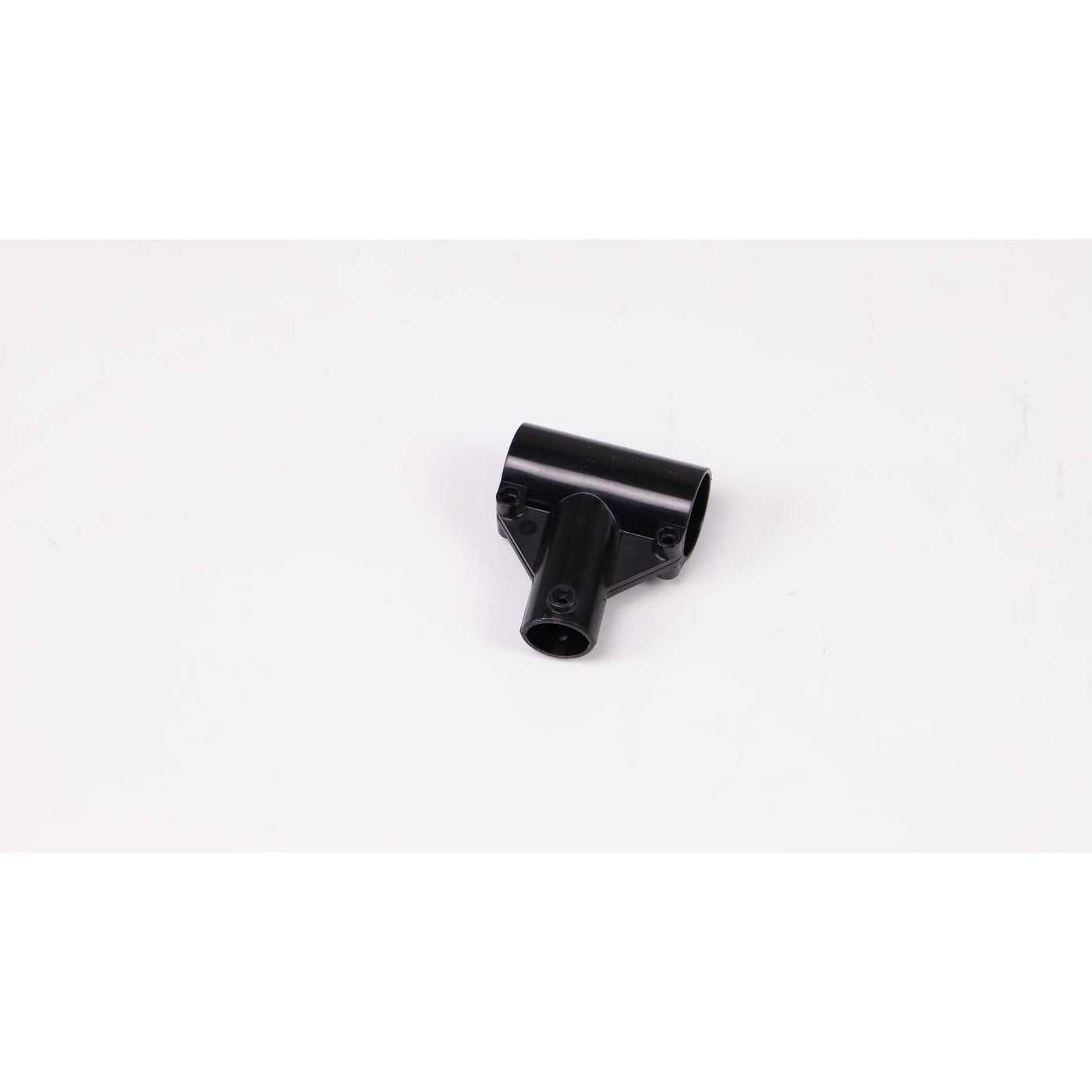

Landing Gear Y-tee Part (T50) YC.JG.ZS003468
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
The Y-tee part is a joint in the DJI Agras T50 landing gear. On the T50 landing gear sheet it is callout 7, numbered between an M3 nut and the T30 screw at callout 8.
| Part number | YC.JG.ZS003468 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 landing gear, callout 7 |
After a heavy or sideways landing, look for cracks spreading from the screw holes, a joint that has spread open, or tubes that turn in the joint when the gear is twisted by hand. Fit fresh M3 nuts if the old ones no longer grip, and tighten the screws evenly so the joint pulls up square.
The T30-HC01000100-057030-0323-N screw at callout 8 is listed beside it. The T70P uses its own Y-tee part, YC.JG.ZS006560.
