DJI

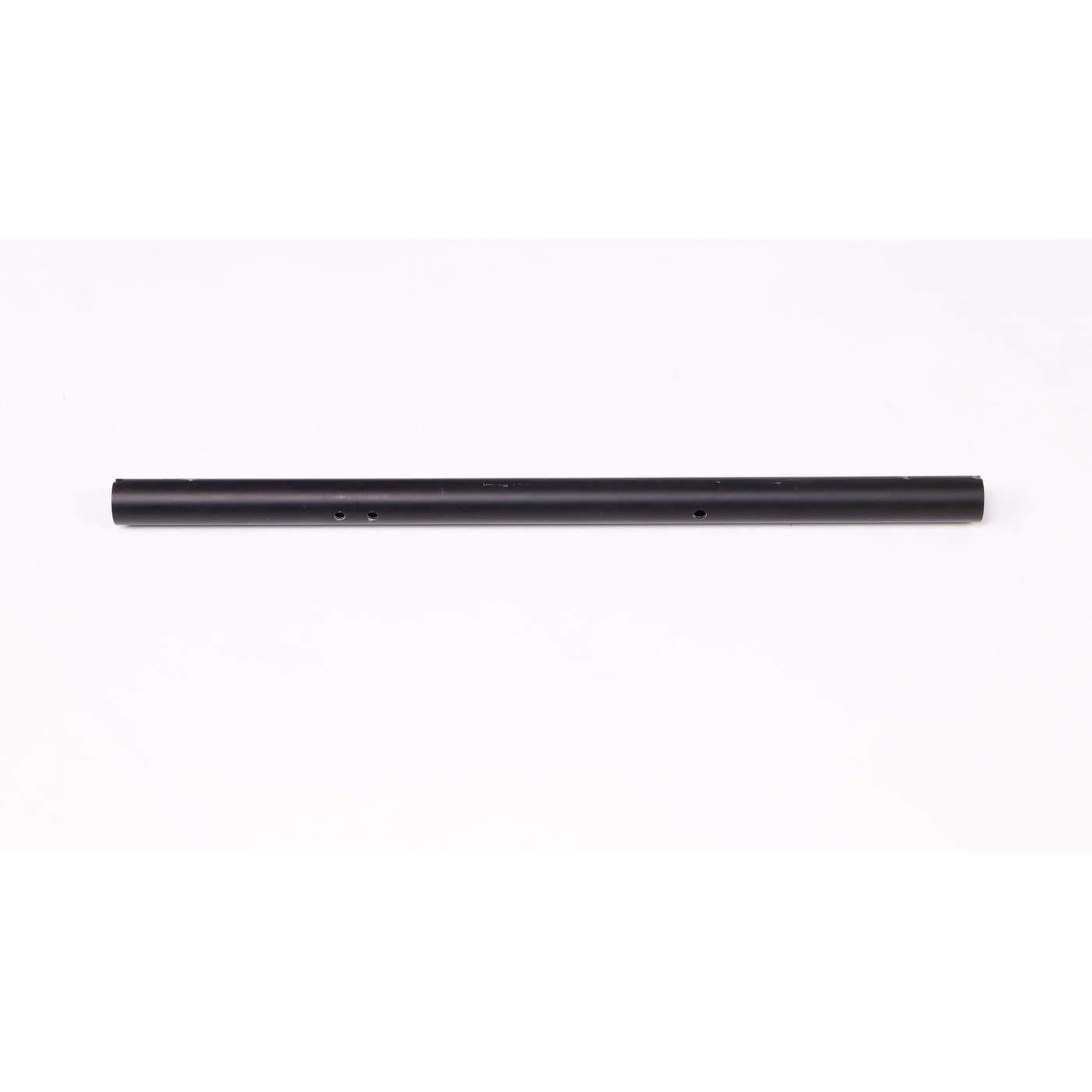

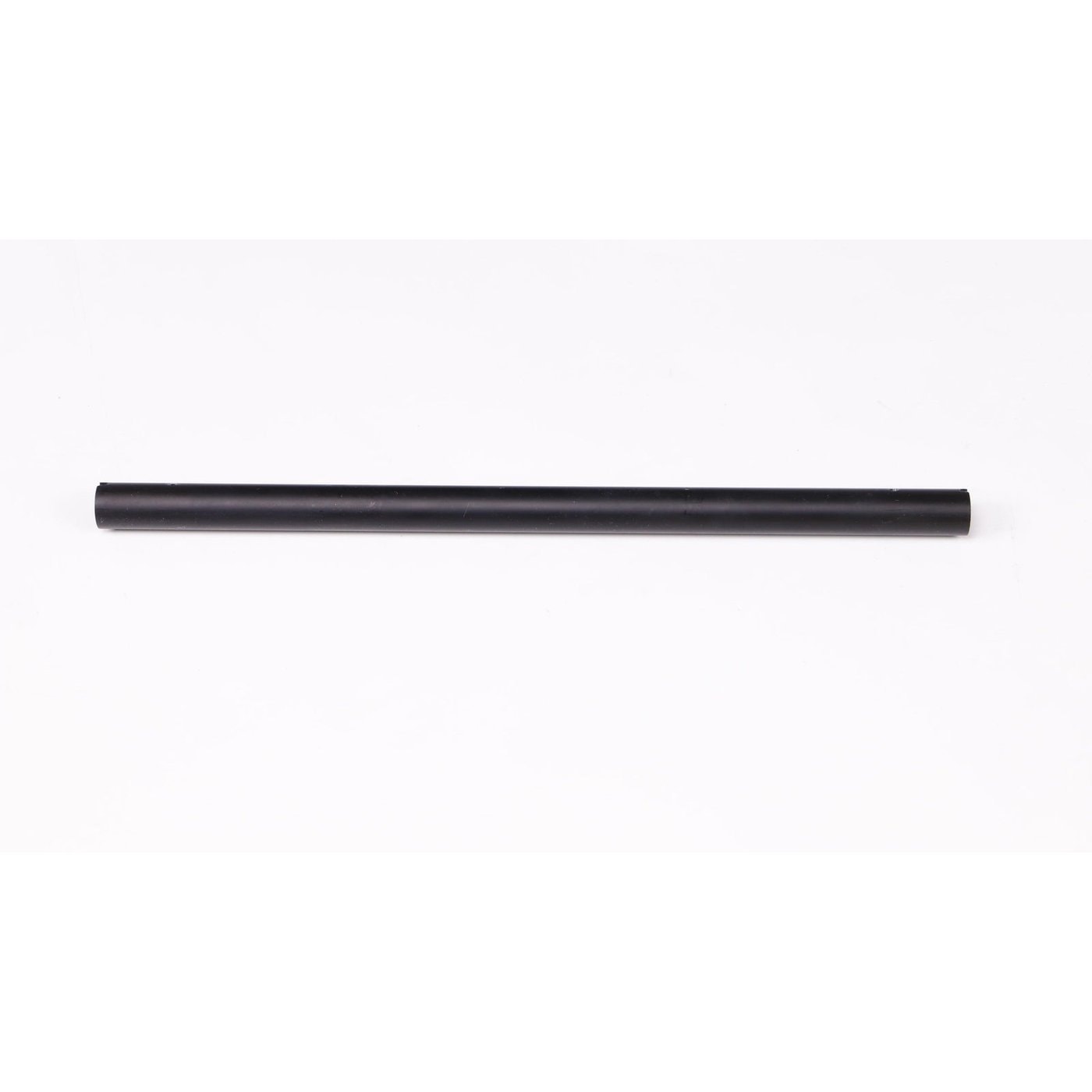

Landing Gear Crossbeam - Rear (T50) YC.JG.XW000110
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
The rear crossbeam ties the back of the DJI Agras T50 landing gear together. It is callout 11 on the T50 landing gear diagram; the front crossbeam is a separate part at callout 20.
| Part number | YC.JG.XW000110 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 landing gear, callout 11 |
Crossbeams are position-specific, so order by position and code: this rear beam is YC.JG.XW000110 and the front crossbeam is YC.JG.XW000111. Replace a beam that is bent, cracked at its ends, or lets the legs splay when the aircraft is sitting on the ground.
The rear right fixing piece and the landing gear cable clip are listed beside it. Other models have their own rear crossbeam: T70P YC.JG.ZS006813, T25P YC.JG.ZS005273, and on the T100 YC.JG.ZS006693 and YC.JG.ZS007106.
