DJI
Auxiliary Bottom Light Signal Cable (T50) YC.XC.XX000999
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

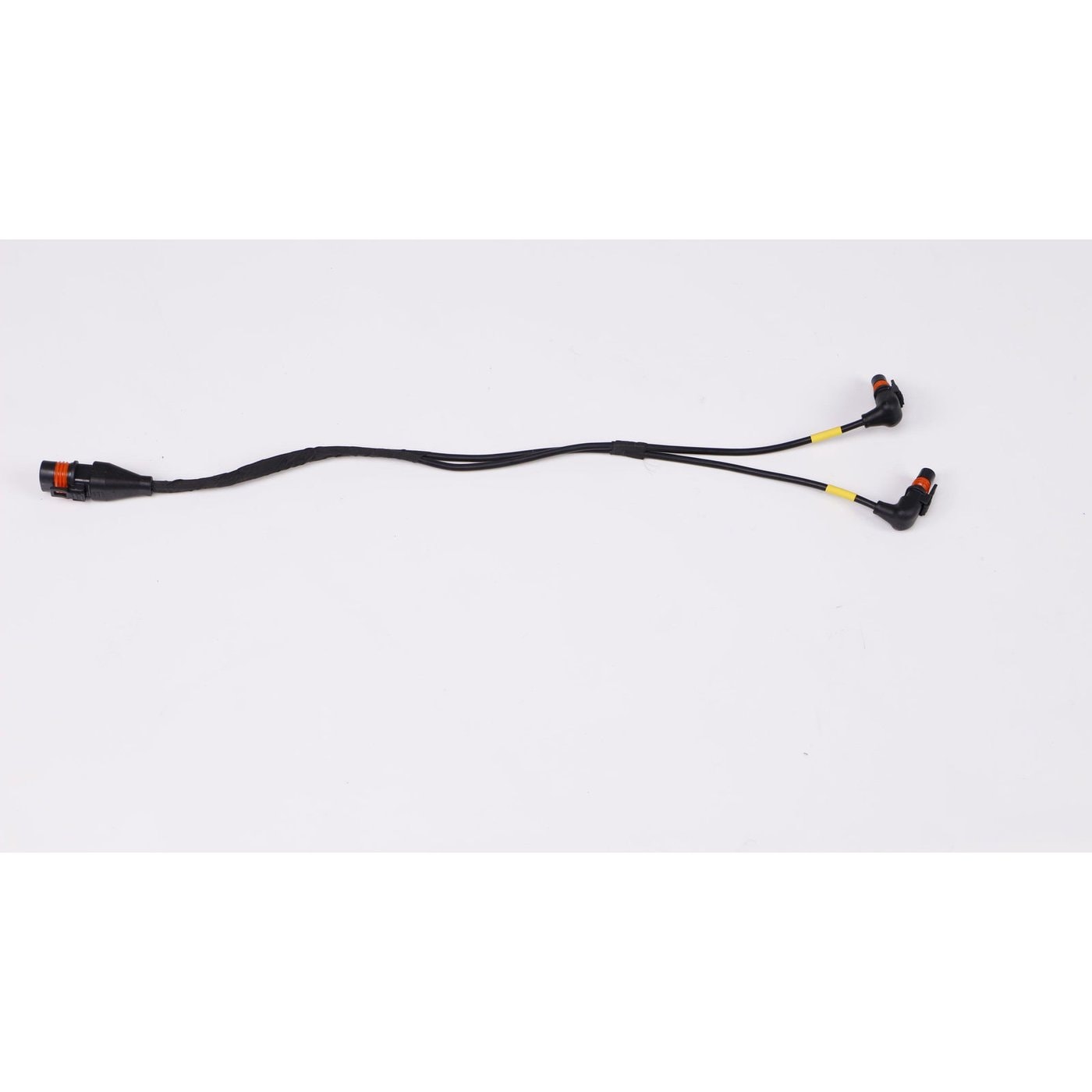

This signal cable connects the auxiliary bottom light module on the DJI Agras T50 to the aircraft's wiring. It is numbered 7 on the T50 front cover of front shell sheet.
| Part number | YC.XC.XX000999 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 front cover of front shell, callout 7 |
A bottom light that flickers or will not switch on can be caused by this cable as easily as by the light. Look for a bent pin, a latch not fully home, or a lead that was caught when the front cover was last fitted.
Replace the cable if the sheath is cut or a plug is cracked, and route the new one so it is clear of the cover edge and the female buckle base (callout 5). The auxiliary bottom light module at callout 2 is listed separately.
