DJI
Middle Frame Aluminum Tube - Left (T100) BC.AG.SS001104
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Among the main structural members of the DJI Agras T100 is this left-hand middle frame aluminium tube, which forms one side of the aircraft's centre section.
| Part number | BC.AG.SS001104 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 middle and rear frame (sheet 1), callout 12 |

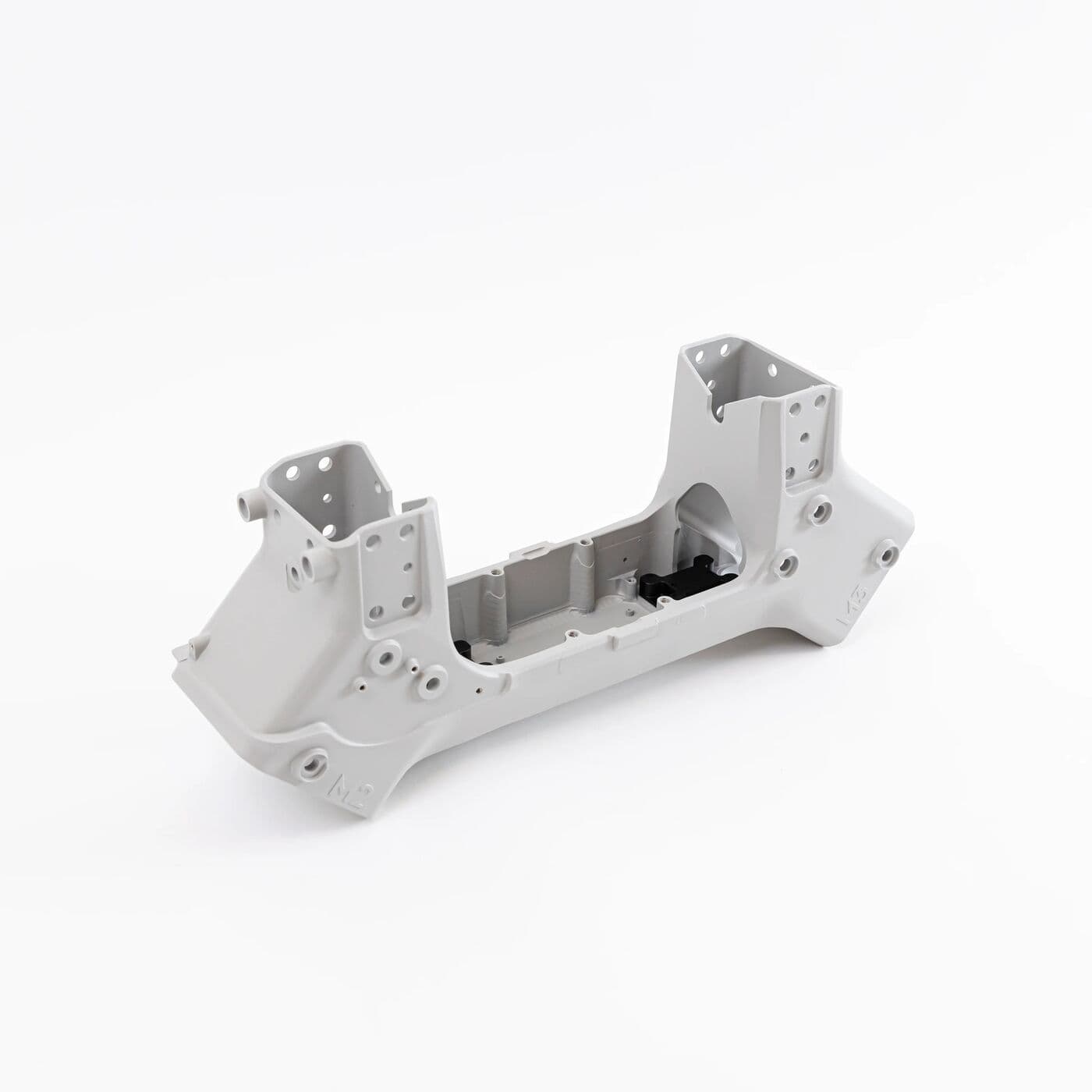

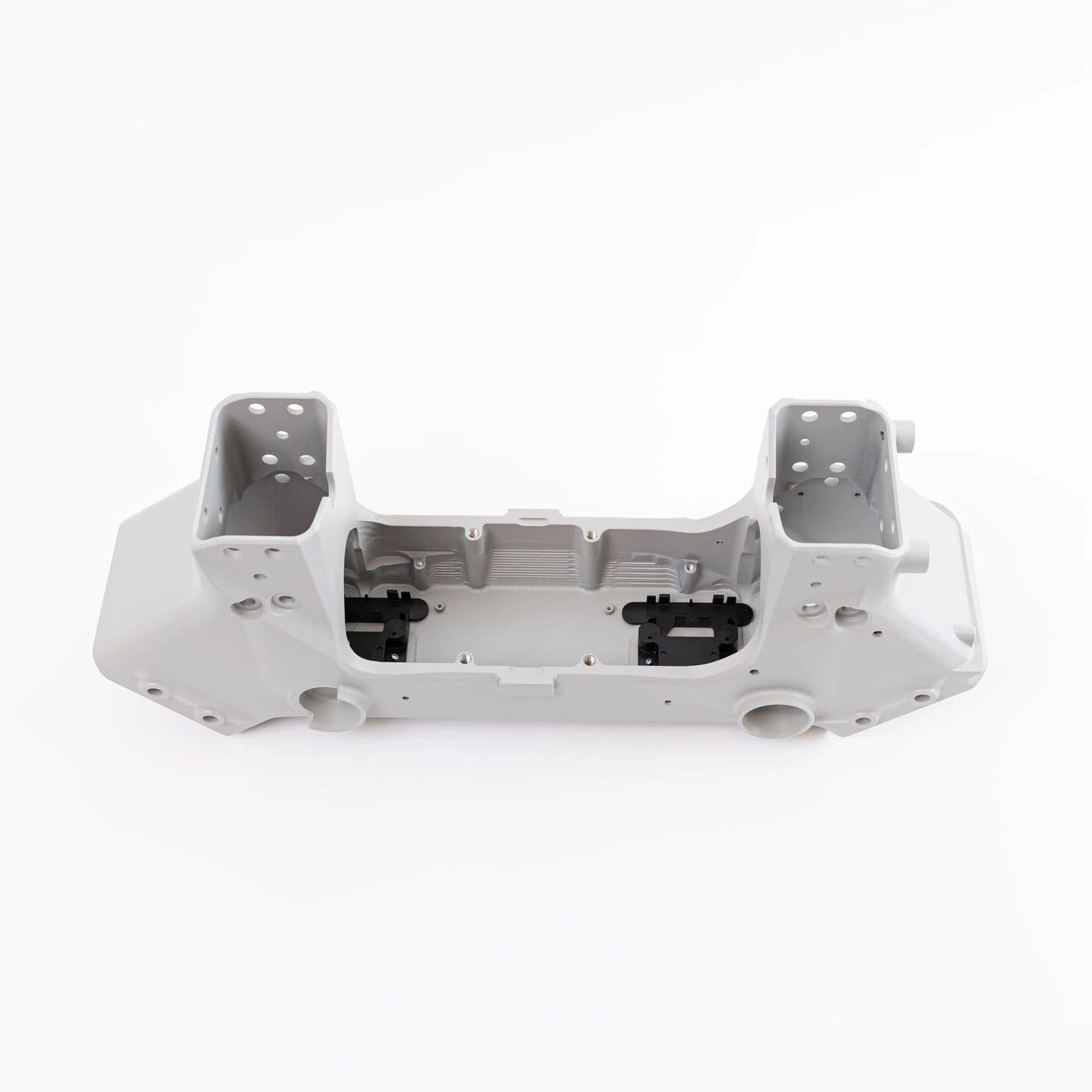

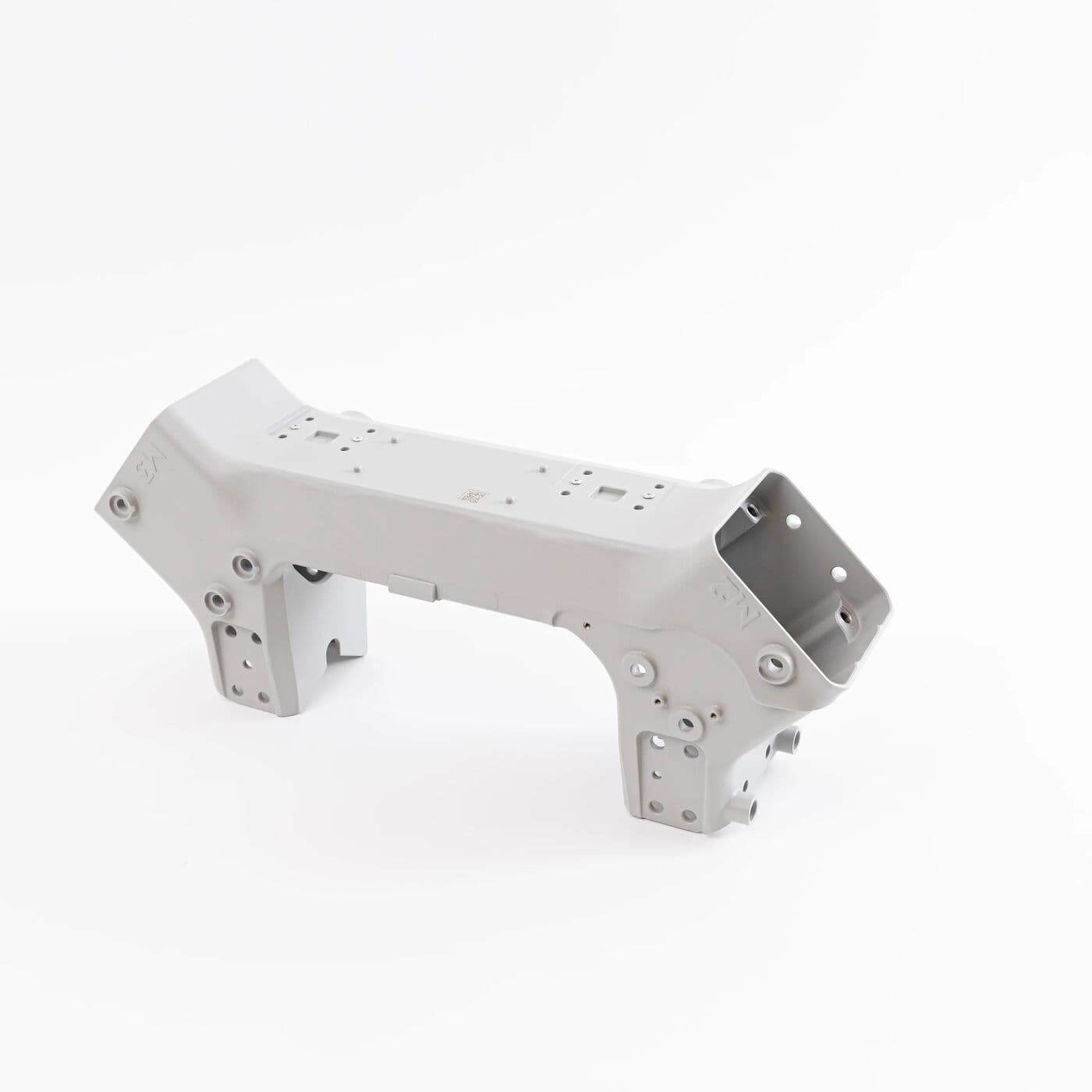

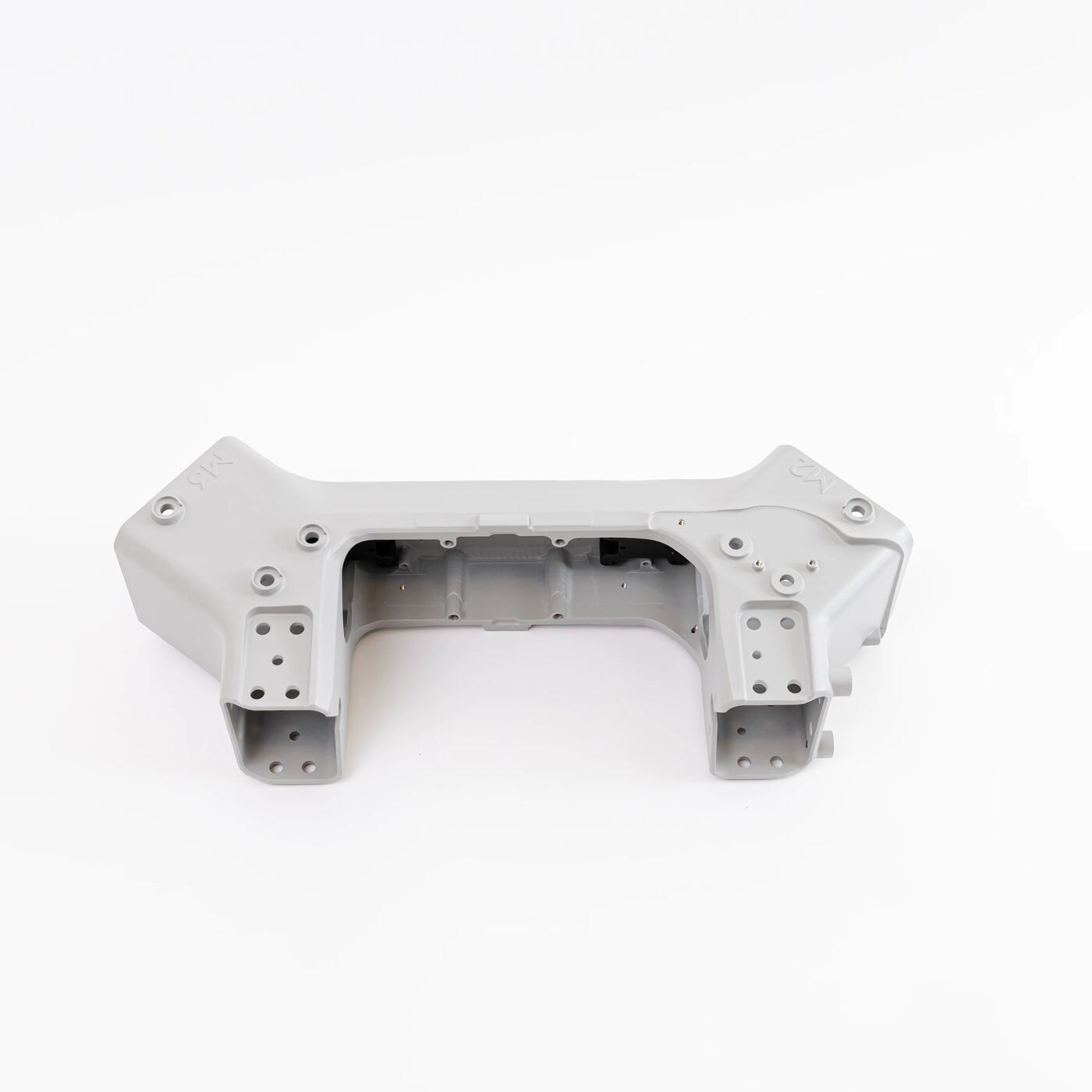

In the diagram photo it is the grey frame piece marked M2 and M3 at its ends; the right-hand tube (callout 9) and the rear frame aluminium tube (14) appear on the same sheet. Hard landings, crashes and tip-overs are the usual reasons it gets replaced: look for bends, cracks around the mounting holes, or arms and fittings that no longer line up. Swapping it means stripping off the parts mounted to it, so photograph cable routing and clamp positions first and check each screw and clamp as it comes off.
If both sides took the hit, the right-hand middle frame tube can be ordered as well.
