DJI

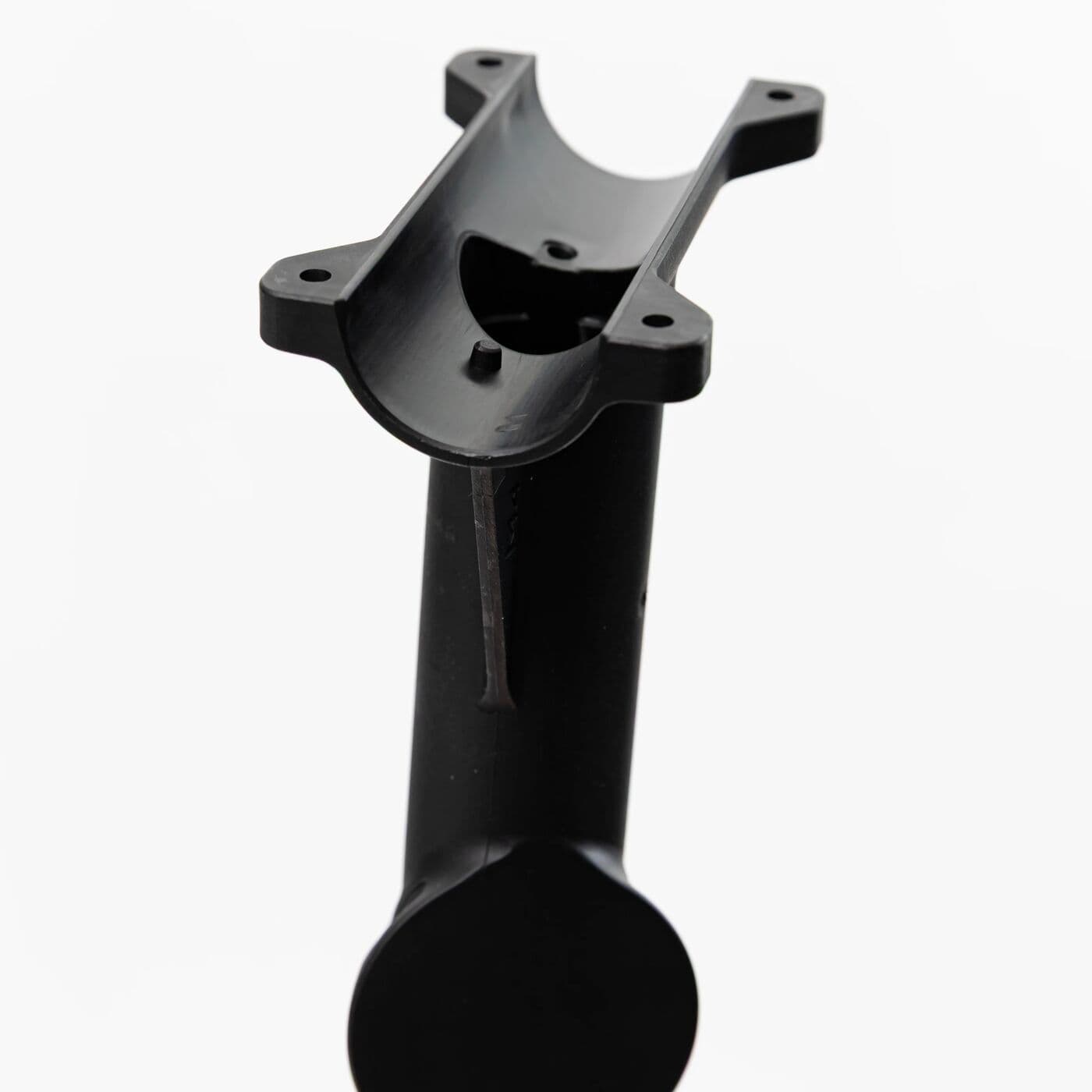

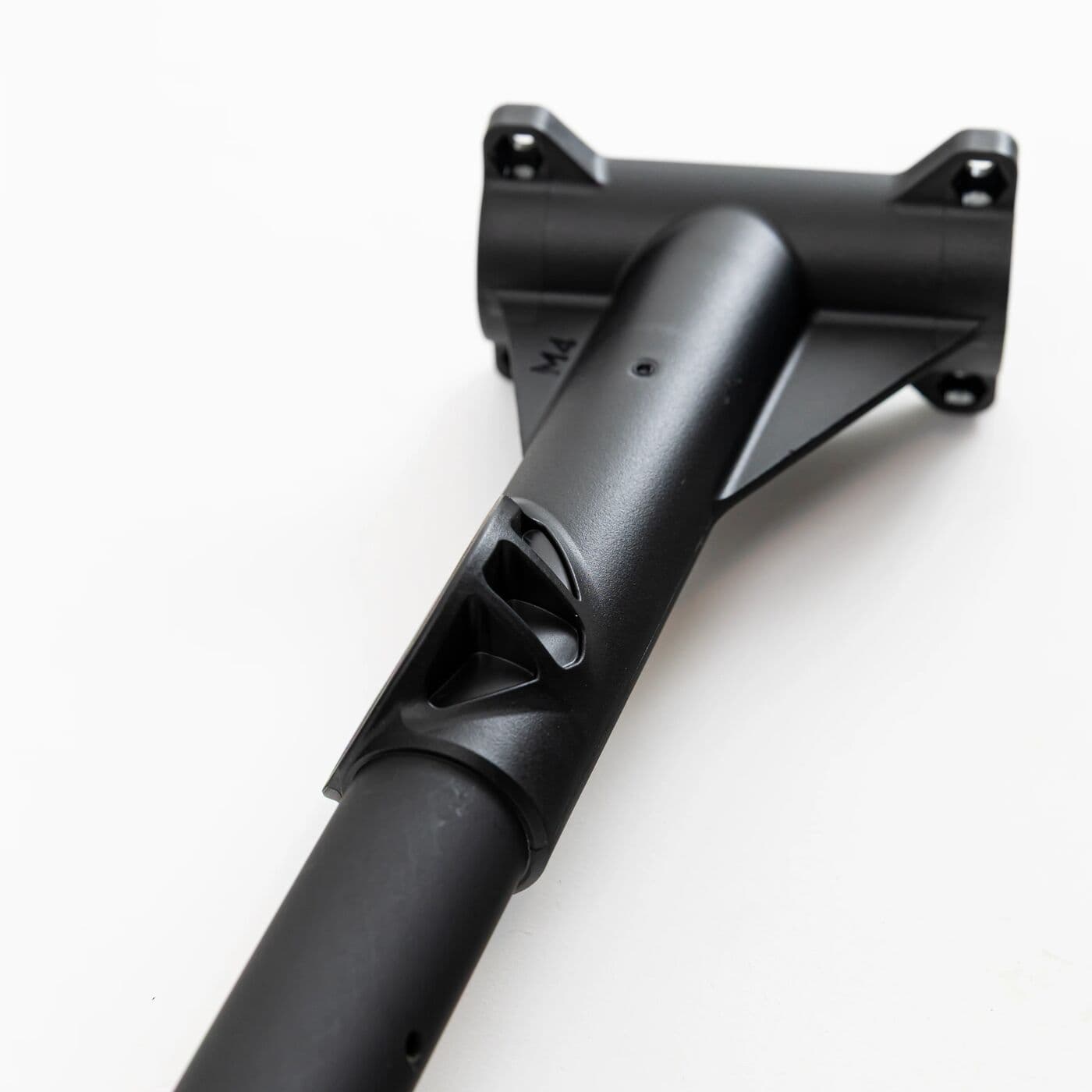

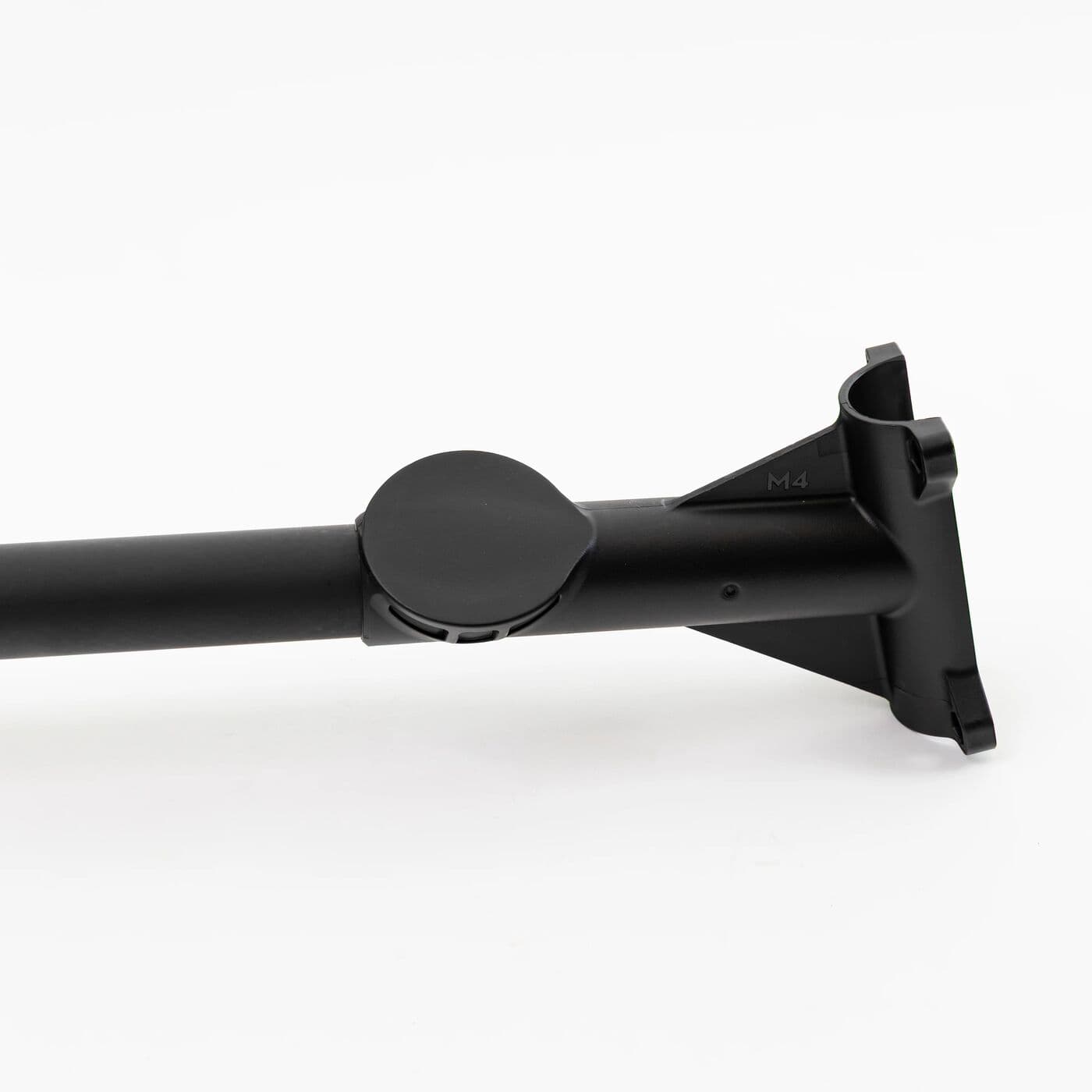

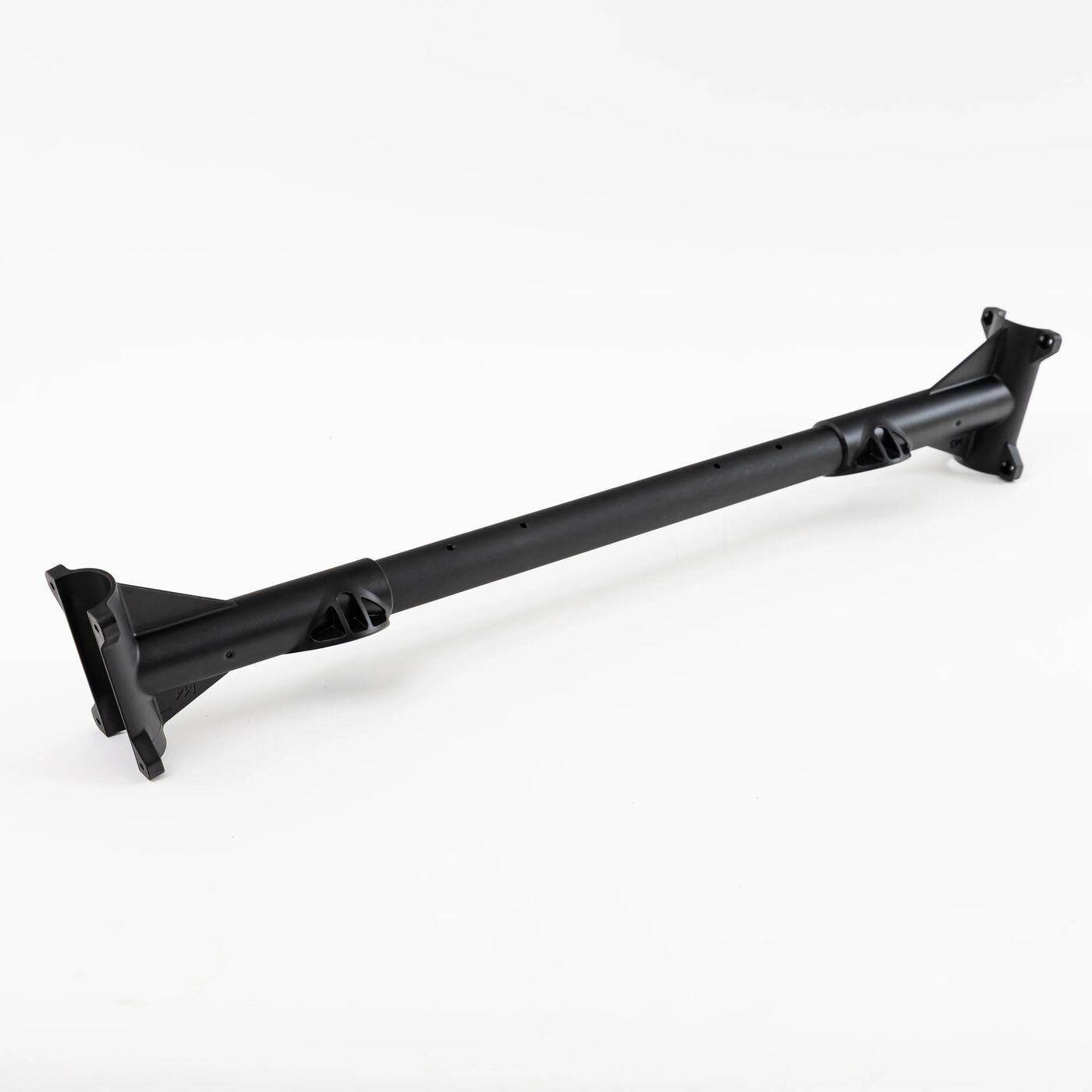

Landing Gear Crossbeam - Rear, Spreading (T100) YC.JG.ZS007106
Shipping: Oversize Parcel, $67.50 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Fitted across the back of the DJI Agras T100 landing gear, this rear crossbeam belongs to the spreader-system configuration and is callout 12 on the second spreading landing gear sheet.
| Part number | YC.JG.ZS007106 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 spreading landing gear (sheet 2), callout 12 |
As a crossbeam it spans the gear from one side to the other. DJI sells the front crossbeam as a separate part on the same sheet, so check you are ordering the rear one. Inspect it for bowing, cracks at the mounting points and any fixings that have worked loose, especially after a hard or skidding landing.
The spotlight, its bracket and signal cable, and the payload adapter cable are shown on this sheet too. When refitting the crossbeam, make sure none of those leads is trapped or rubbing, then tighten the fixings evenly.
