FJD AG1 Guidance System

Manual guidance with ease and precision. The FJD AG1 is the entry point to precision farming: an assisted driving guidance system that keeps you on the planned path with location accuracy up to 2.5 cm, at an entry-level price. With free decimetre-level positioning out of the box, the AG1 is your quick gateway to smart farming.

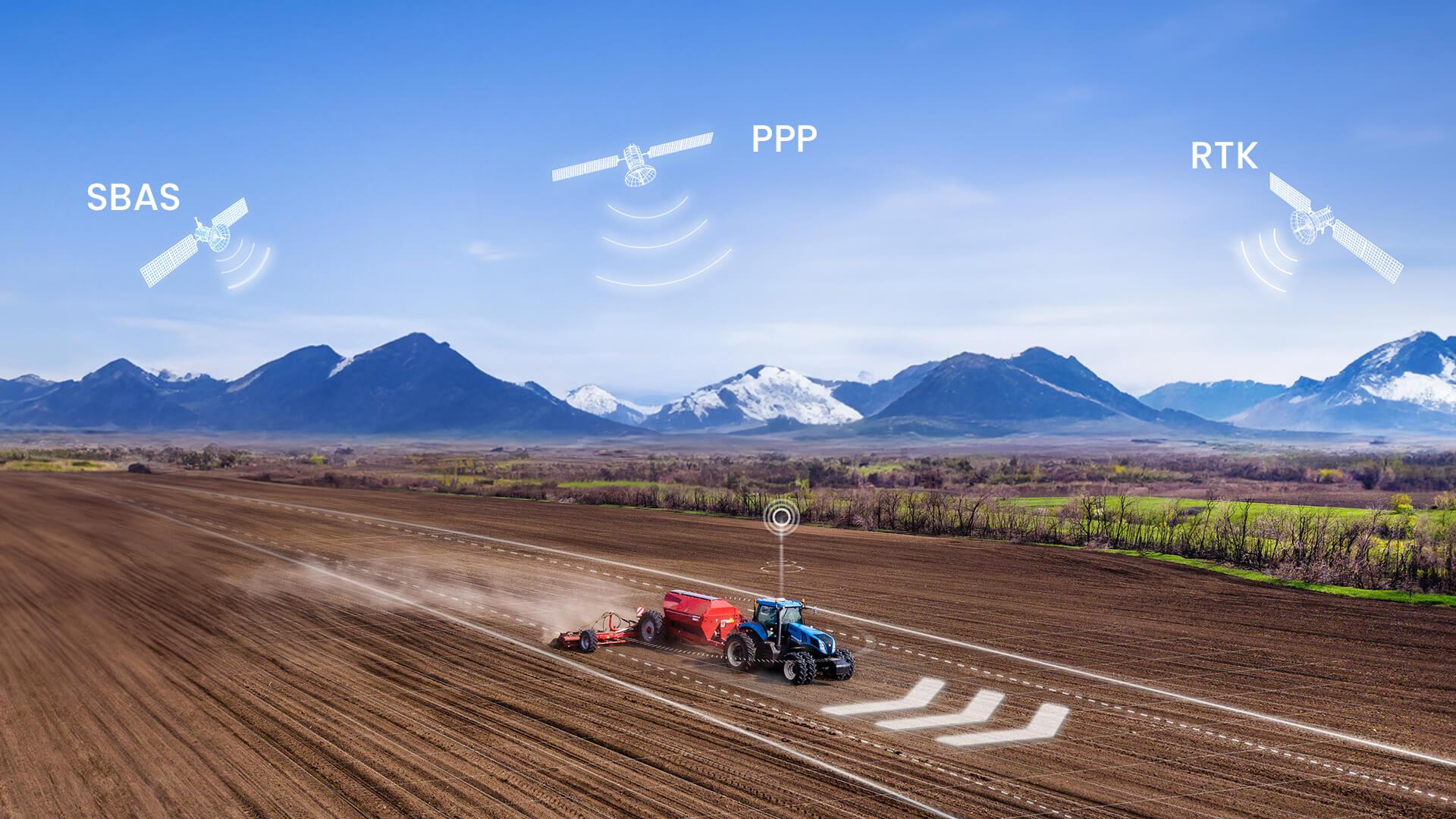

Multiple accuracy solutions

The AG1 integrates RTK, PPP, and SBAS positioning. Start with free decimetre-level accuracy and step up to 2.5 cm with RTK corrections. Built-in algorithms keep the system working independently with sub-metre accuracy in signal-challenging areas, and the GNSS receiver connects to the display wirelessly over Wi-Fi.

Extensive functions

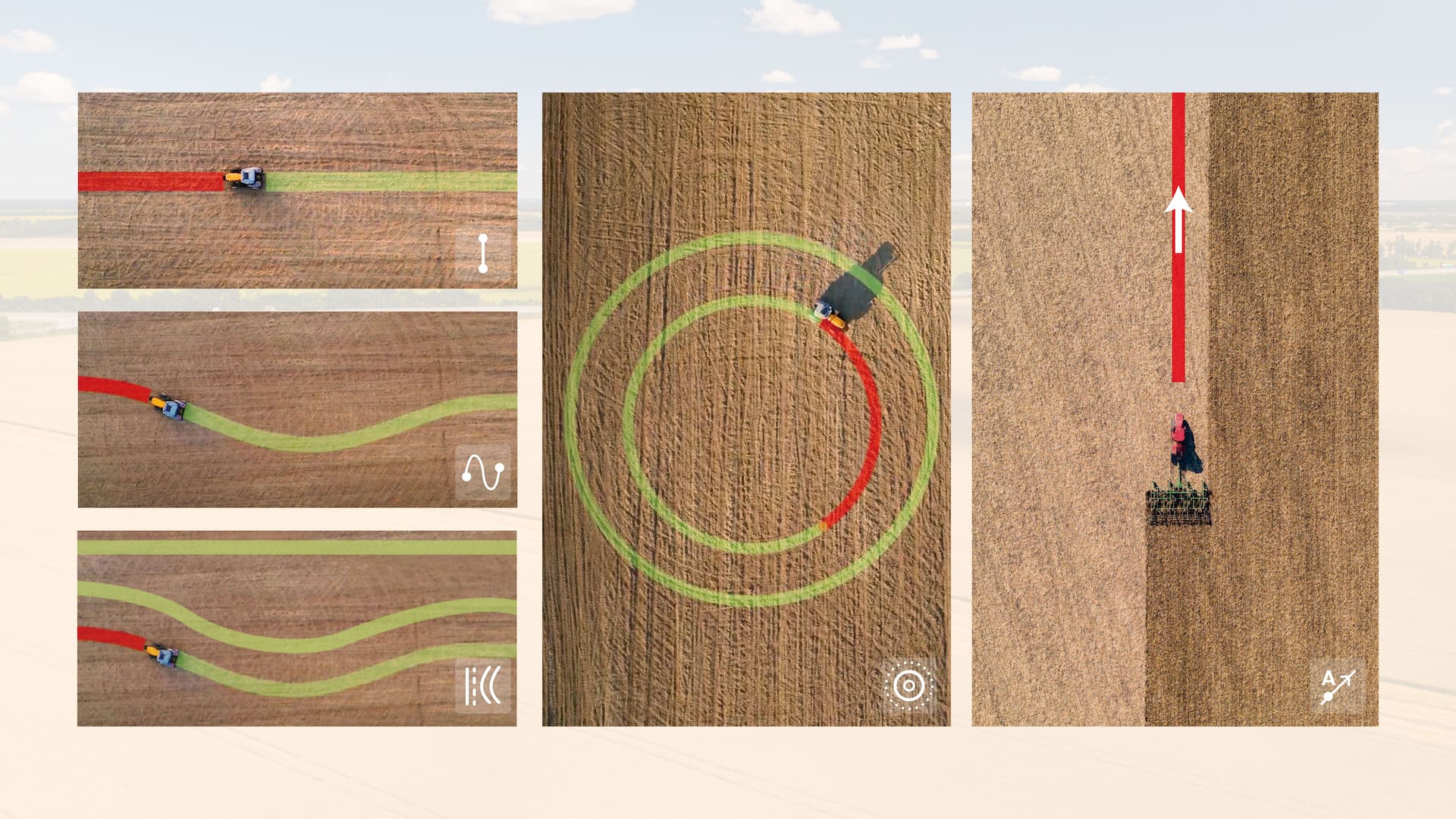

Guidance covers straight lines, curves, A+ lines, pivots, and line groups for oddly shaped fields, plus slope climbing and diagonal ploughing. That makes the AG1 well suited to small fields, terraces, and hilly country where full autosteering may not be feasible. Guidance lines can be adjusted on the go and shared between two tractors working the same field.

Implement management with ISOBUS

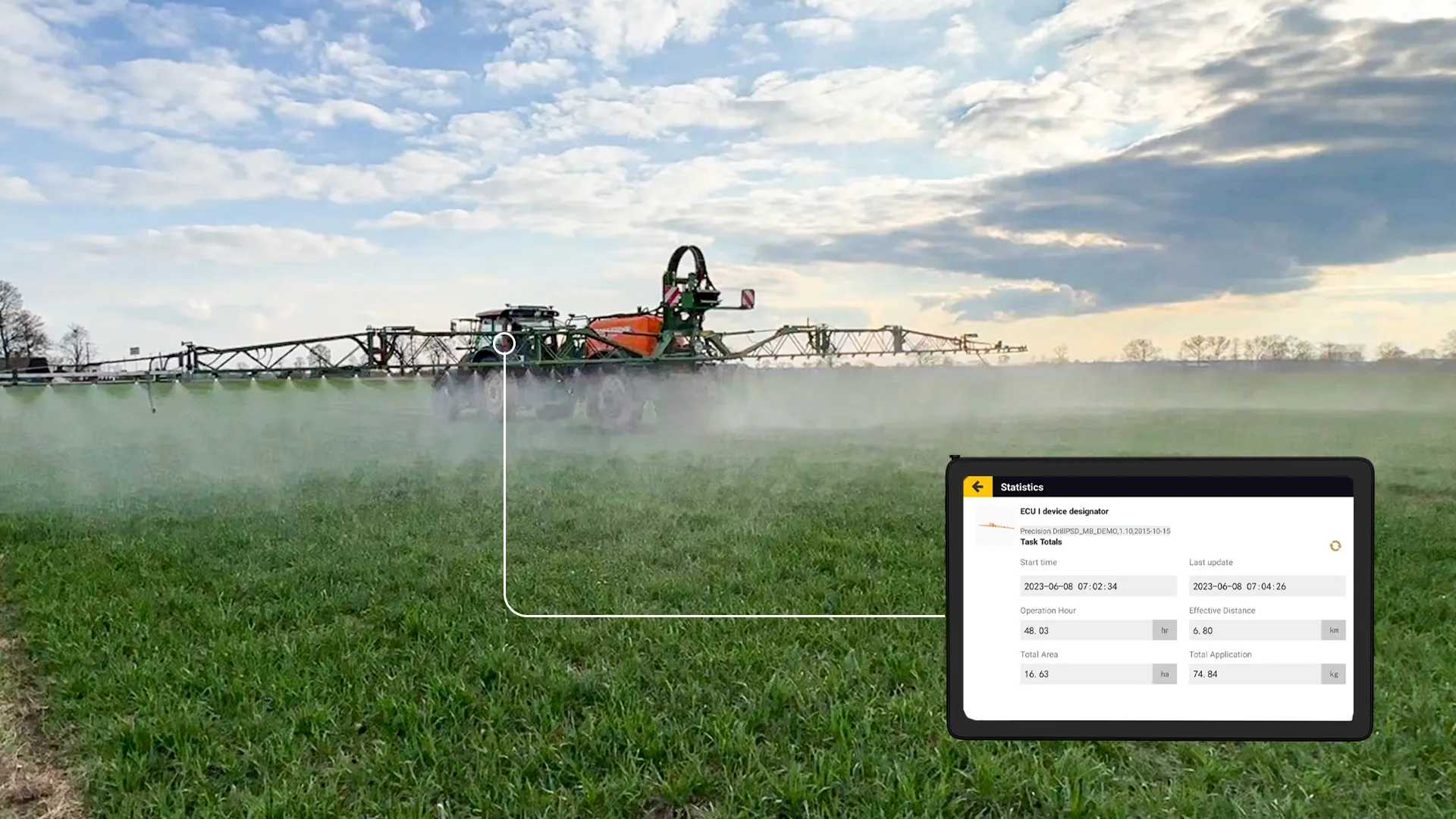

A wireless ISOBUS module adds VT, TC, and AUX capabilities for real-time monitoring and control of implements, streamlining seeding, fertilising, and spraying while minimising waste.

• Virtual Terminal (VT): control implements from multiple brands through a single terminal
• Task Controller Section Control (TC-SC): records operation data, schedules tasks, and enables automated fine-grained control
• Auxiliary Control (AUX-N): auxiliary functions that lift work efficiency

Effortless installation

The AG1 needs only a guidance terminal and a wirelessly connected GNSS receiver, so there is no wiring hassle. Configuration is simplified for operators new to precision agriculture.

Select your ideal configuration

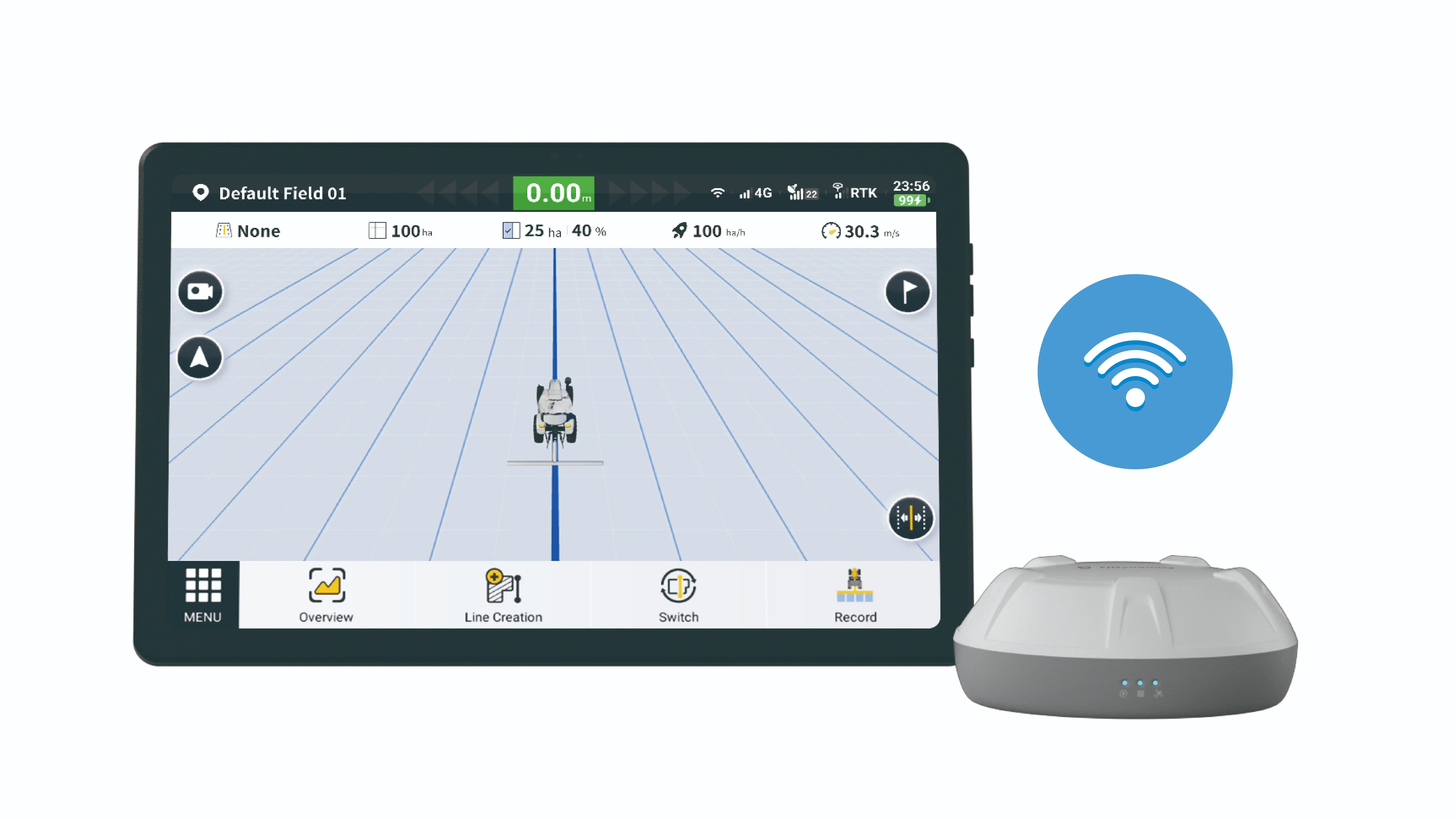

• AG1 Standard: the base wireless setup for getting started with guidance

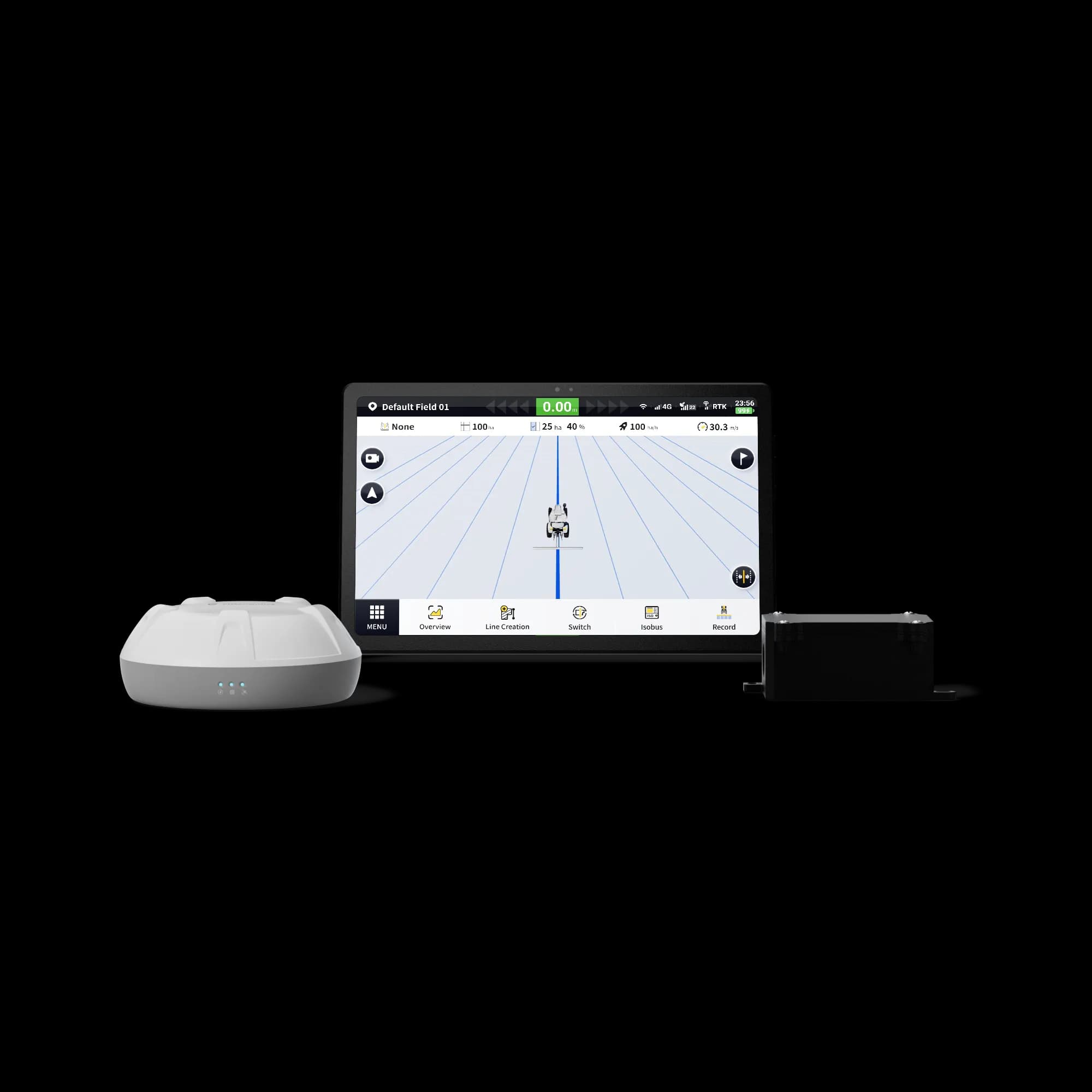

• AG1 ISOBUS Kit: manage ISOBUS implements without buying the original equipment display
• AG1 VCU Kit: retrofit a non-ISOBUS sprayer for ISOBUS control, keeping the original equipment's performance and avoiding expensive replacements

Grows with your operation

The AG1 connects to FJD's farm management platform to sync operational data and execute pre-planned tasks such as boundary lines and guidance paths, and an optional electric steering wheel upgrades it towards full autosteering later on.

Specifications

Accuracy	Up to 2.5 cm with RTK, free PPP and SBAS decimetre-level
Display	10.36-inch 2000x1200 FHD touchscreen, Android 13, 8-core 2.0 GHz, 4 GB + 64 GB
Battery	6000 mAh dual cells, 8-10 hour endurance
GNSS receiver	GPS L1/L2/L5, BDS B1/B2/B3, GLONASS L1/L2, SBAS; 9-36 V; IP67
ISOBUS module	Wireless, CAN protocol, 9-36 V, IP67
Connectivity	Wi-Fi link between receiver and display, no cabling required
