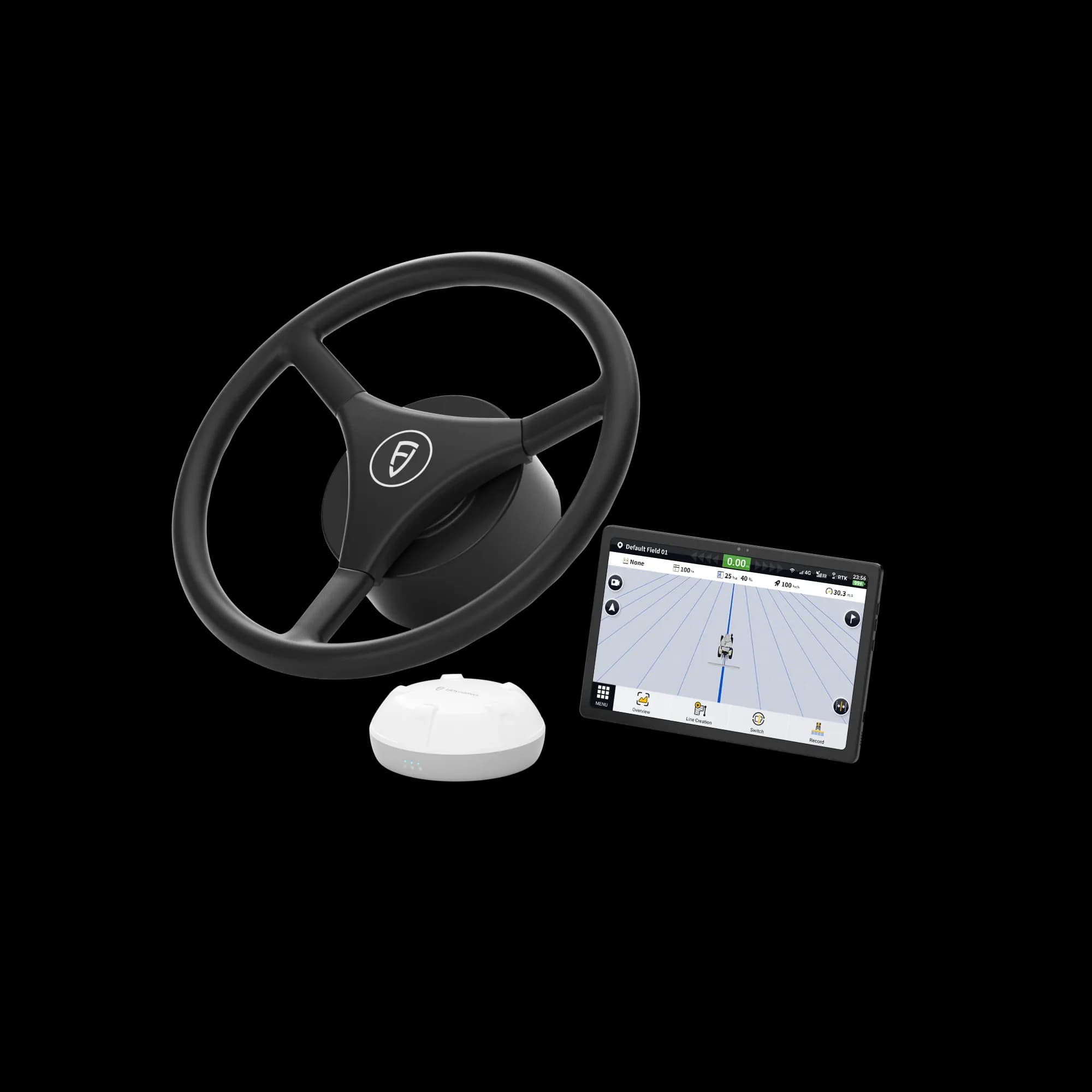

FJD AT2 Lite Auto Steer System

Lite in hand, might in land. The FJD AT2 Lite is the entry point to precision steering for small and medium farms: the same ±2.5 cm RTK accuracy as its bigger siblings, on a rugged tablet that weighs under 0.8 kg, with a wireless connection that removes most of the wiring from the install.

Easy to use

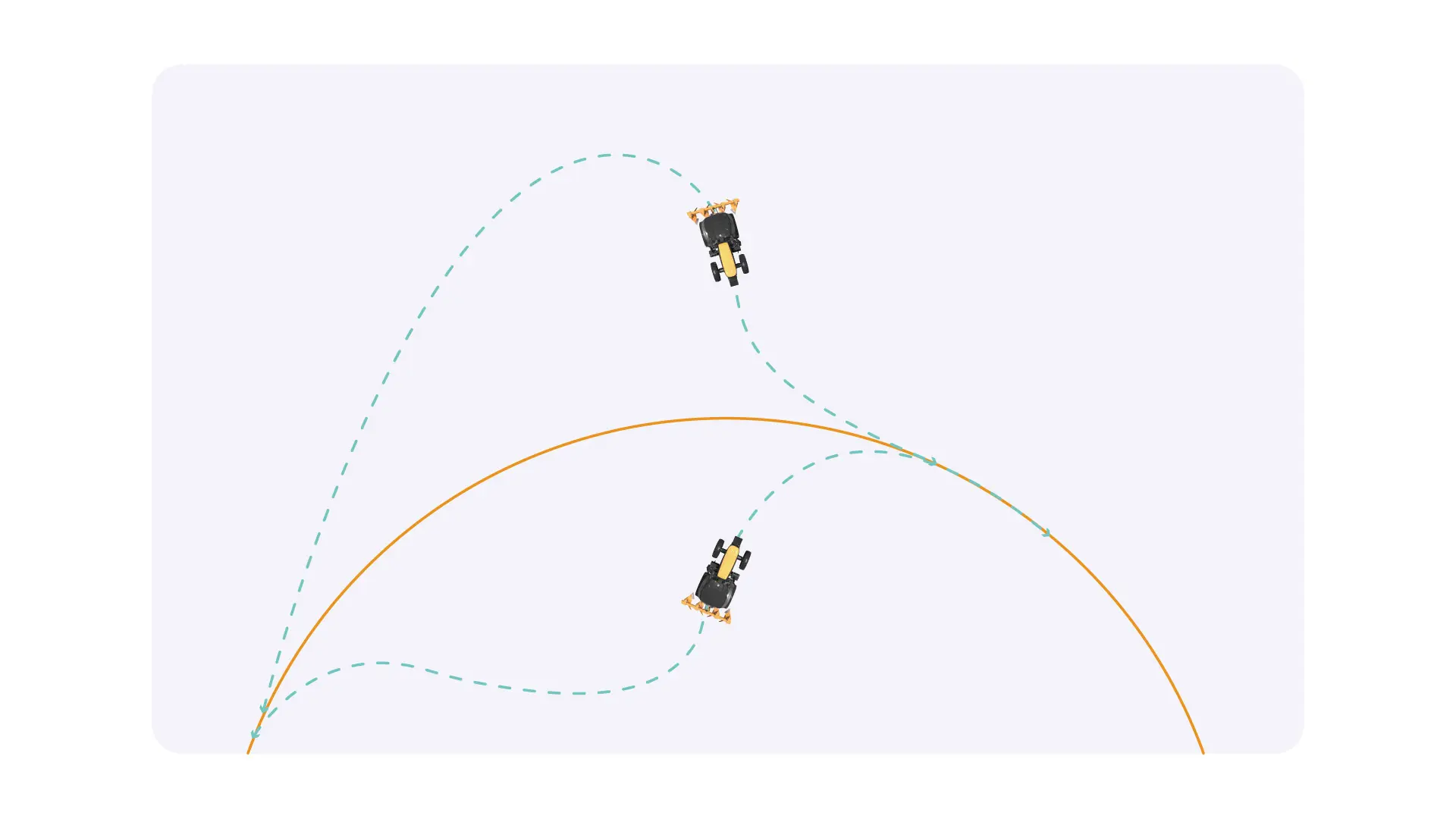

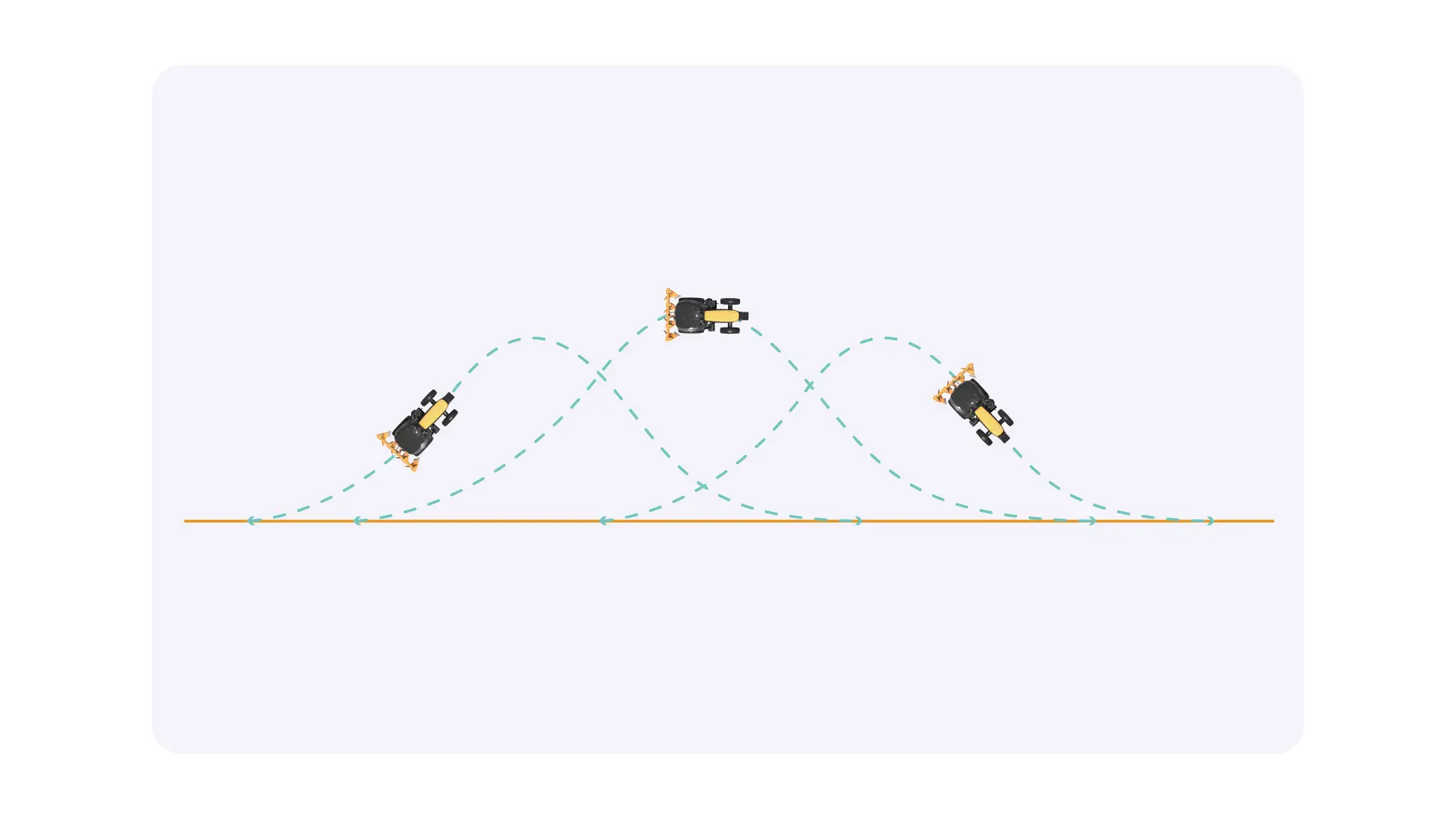

Nearly 20 guidance patterns cover real paddock shapes, including shifted guidance line, tramline, AccessPath, and single line. One-tap activation and automatic parameter tuning keep the learning curve short, autosteering engages from as low as 0.15 km/h, and Smart Turn-In handles approach angles up to 90°.

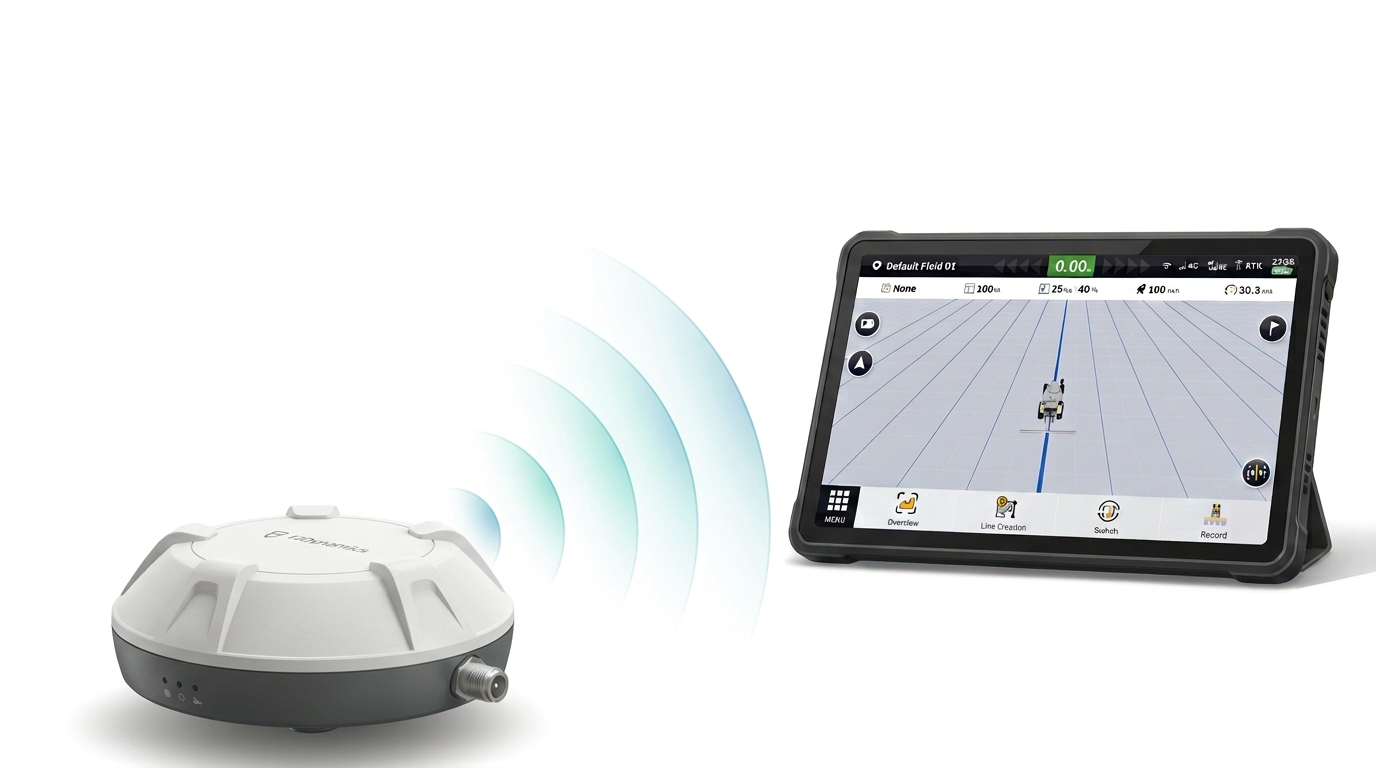

Wireless FJD Link connection

The integrated FJD Link module connects the tablet to the steering system wirelessly with just 10 ms of latency, roughly 90% quicker than the previous generation, and holds a stable link within a metre of strong interference sources such as power lines.

Lightweight design

At under 0.8 kg the rugged tablet is about 40% lighter than traditional navigation devices, easy to operate one-handed in the cab and easy to take home at the end of the day.

Quick installation

The harness count drops from 12 to 4 with minimalist single or dual connection points, so the system goes onto most machinery quickly, even in harsh field conditions.

Worry-free performance

Alert

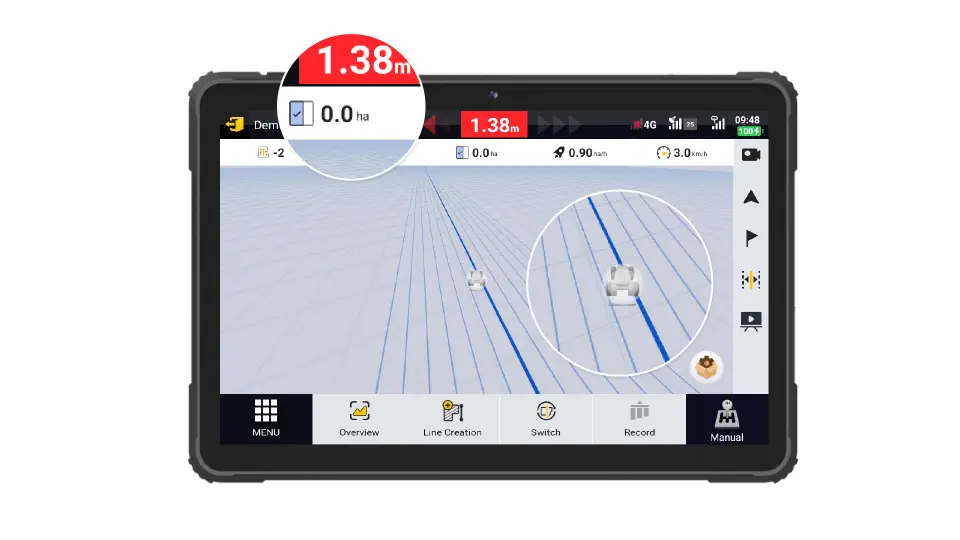

Intelligent fault alerts improve operational safety, with timely warnings as the tractor approaches obstacles or field boundaries.

ALS

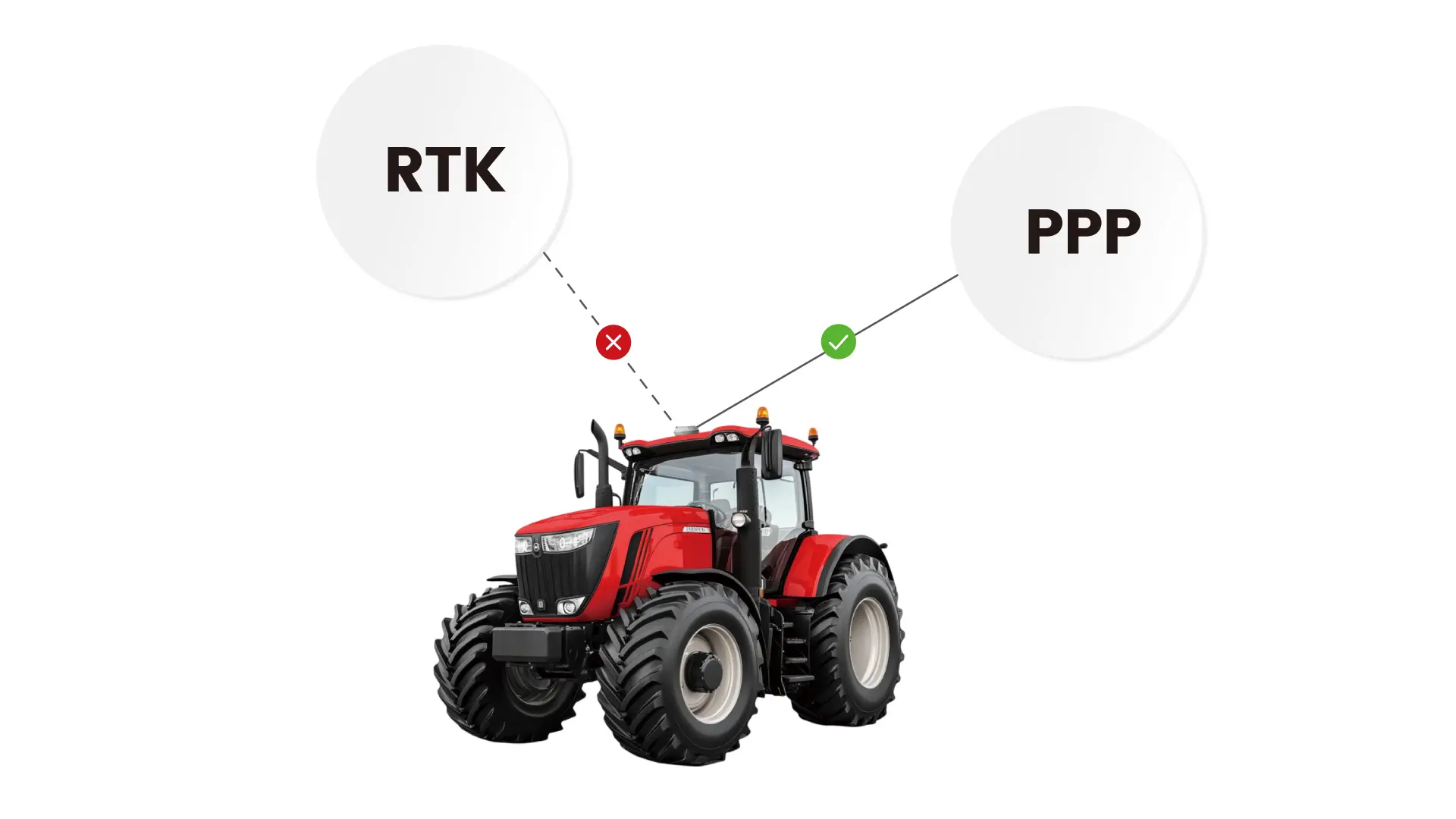

Lose RTK mid-pass and ALS keeps you steering for up to 20 minutes, then hands over seamlessly to PPP mode. When RTK reconnects the system switches back automatically with the line held to within ±2 cm.

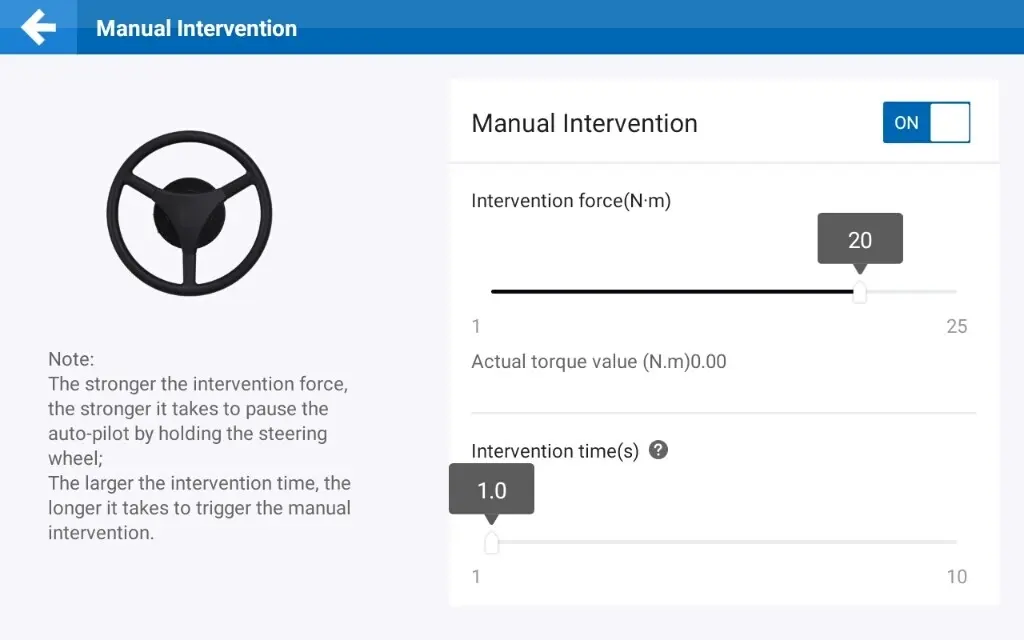

Manual intervention

A nudge of the steering wheel deactivates the autopilot instantly, putting the operator in full control whenever it is needed.

Specifications

Accuracy	±2.5 cm (RTK)

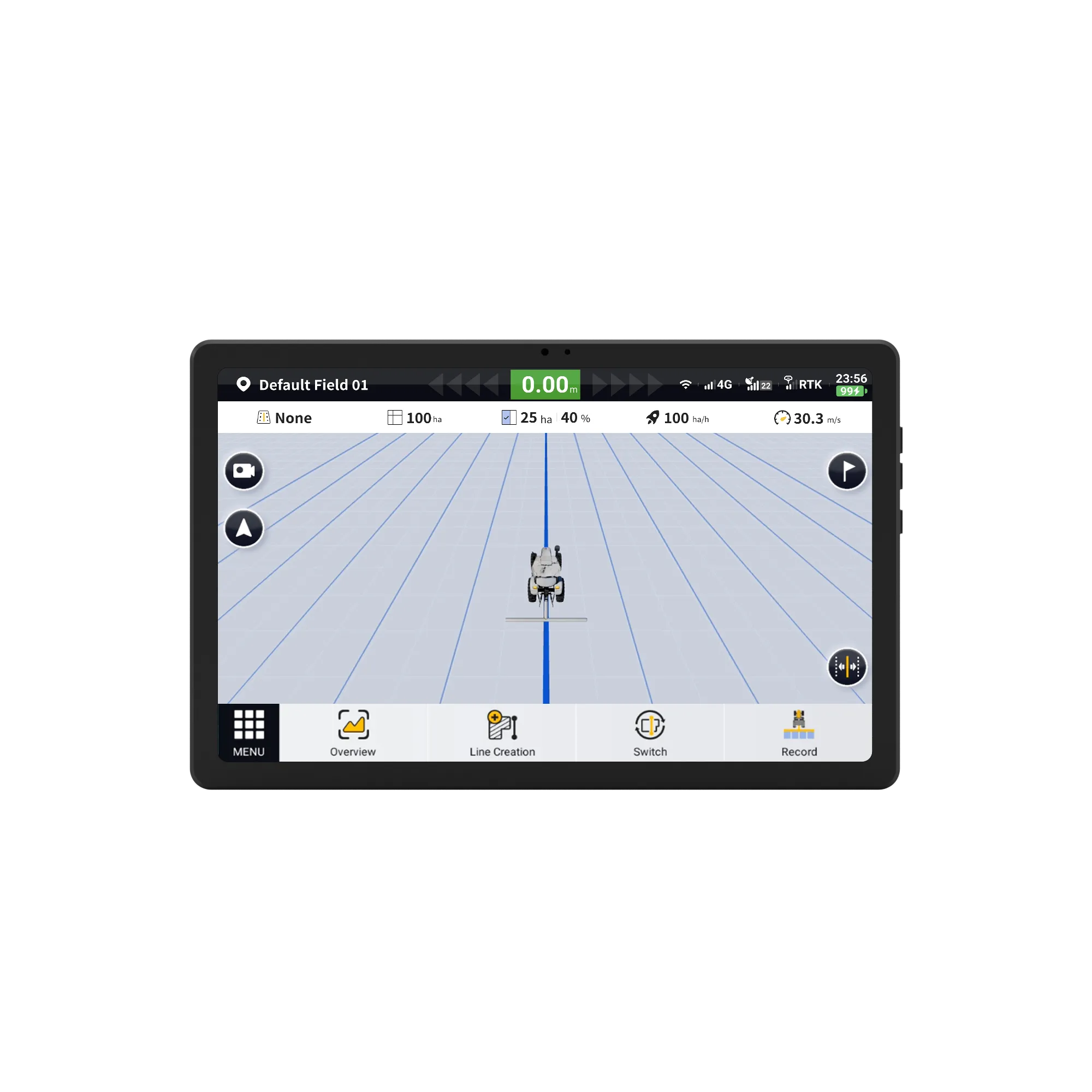

Display	Rugged tablet, under 0.8 kg
Connection	Wireless FJD Link, 10 ms latency
Installation	4 harnesses
Minimum speed	0.15 km/h
RTK loss fallback	ALS for 20 minutes, then seamless PPP
Guidance patterns	Nearly 20

Request a quote and we'll confirm fit for your tractor and RTK options for your area. Outgrowing it later? The AT2 and AT2 Max share the same ecosystem, or browse the full autosteering range.
