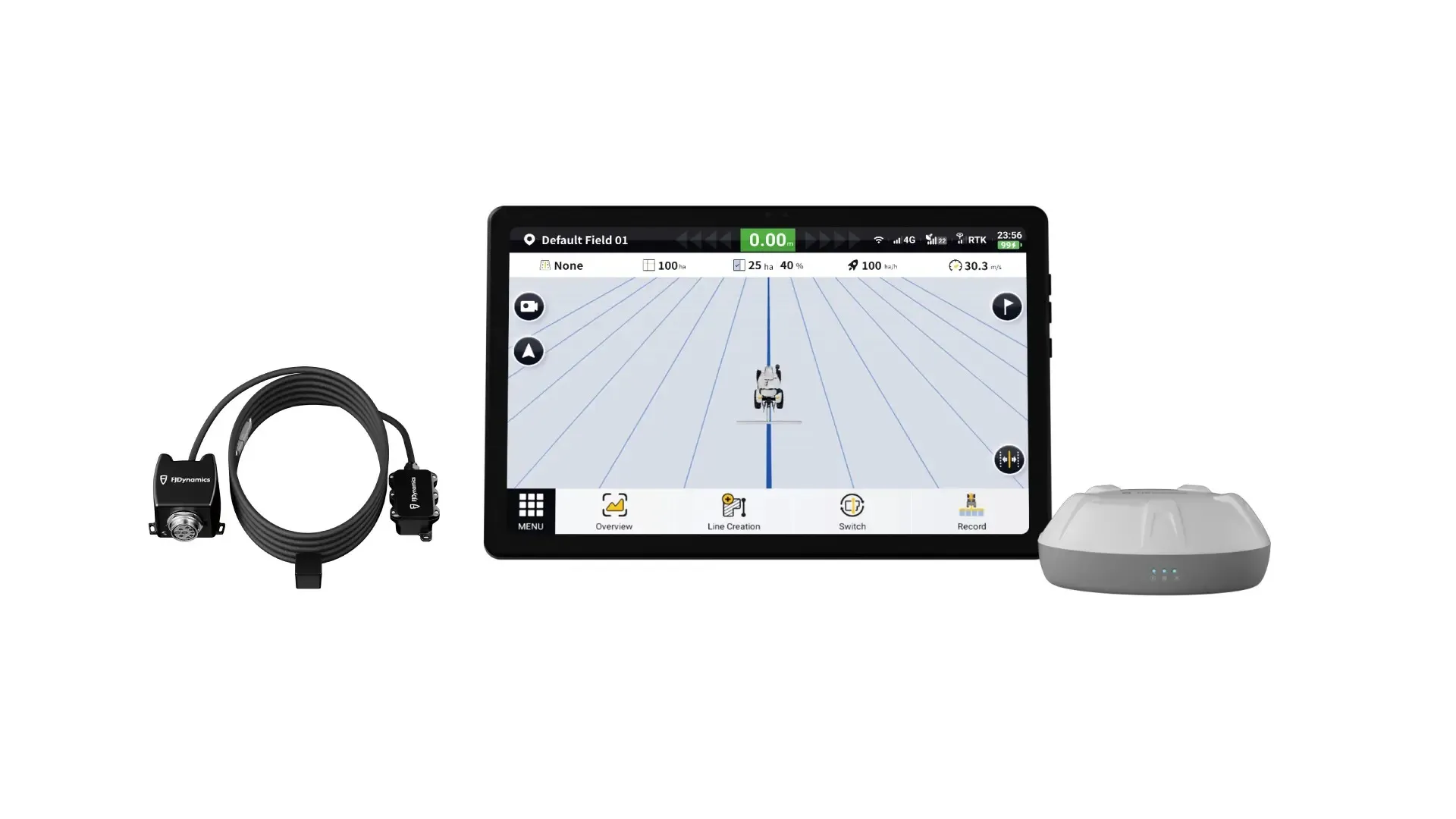

FJD ISOBUS Display Solution

Independent display, infinite compatibility. The FJD ISOBUS Display Solution gives your ISOBUS implement its own dedicated screen, so you stop flicking between navigation and implement views mid-pass. Built-in UT, AUX-N, ISB, and TC modules make it compatible with popular ISOBUS implements and third-party systems, at a fraction of the cost of OEM displays, and data syncs between the navigation and ISOBUS screens in real time.

Flexible setup options

• Wireless single-screen: AG1 terminal with ISOUNI-PRO/ISORDY-PRO and GNSS receiver; supports UT, AUX-N, ISB, and TC with wireless installation
• Wired single-screen: 10-inch AT2 display (v2025 or later) with ISOBUS harness; independent implement control plus NMEA 0183 input, camera, and keypad ports

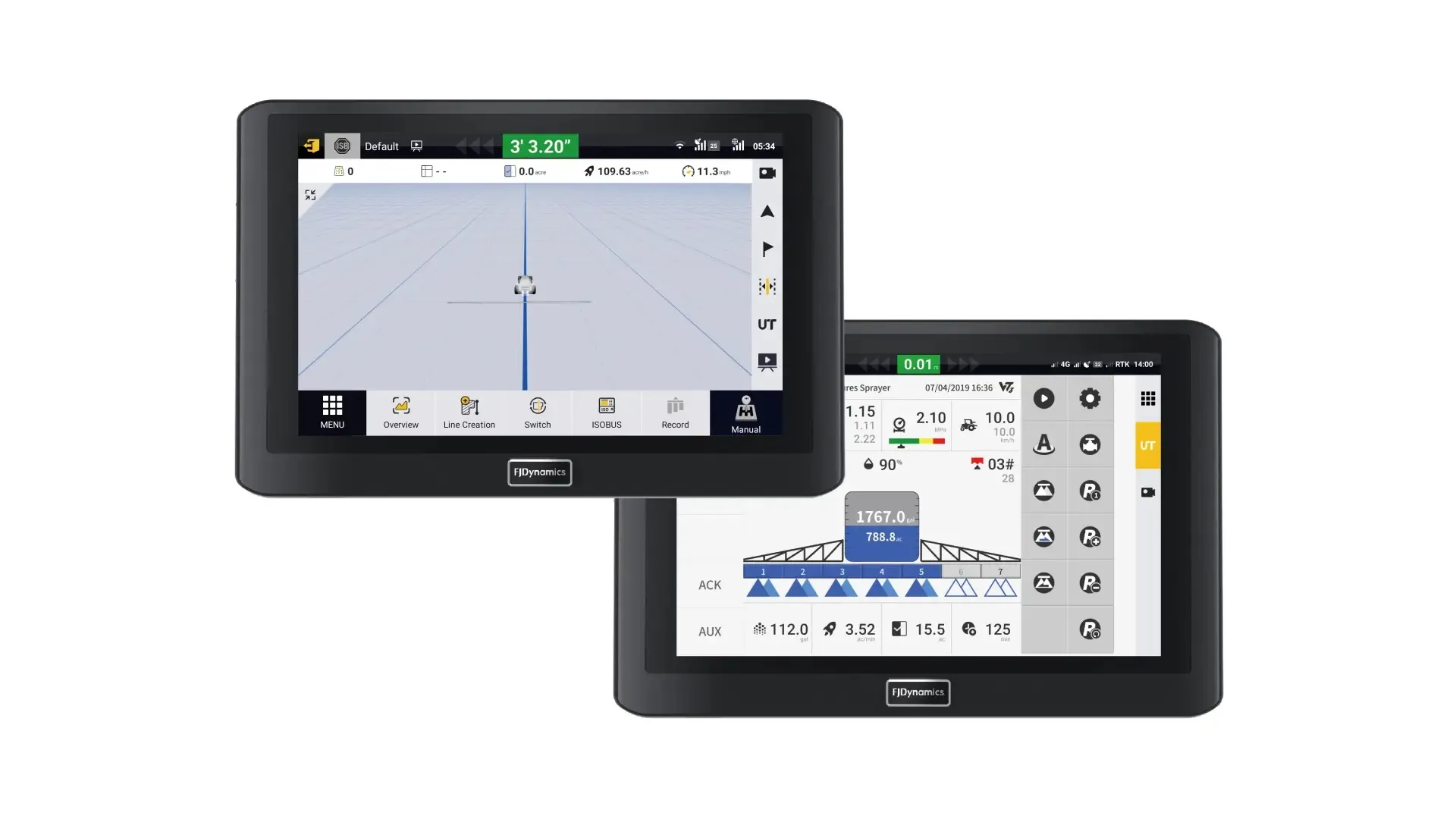

• Wired dual-screen: your FJD navigation display handles guidance while a second 10-inch screen runs the implement, with split-screen camera feed and external keypad control

Specifications (10-inch terminal)

Screen	10-inch touchscreen, 700-nit backlight, 1280x720
Dimensions	275 x 180 x 25 mm
Power supply	9-36 V
Storage	2 GB RAM, 8 GB ROM
Protection	IP65, -20°C to +70°C operating
Ports	Main harness x2, radio, Type-C x2, SIM
